BYP21-200 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYP21-200

BYP21-200: DescriptionRectifier Diode, 1 Phase, 1 Element, 8A, 200V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size244KB，10 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

BYP21-200 Overview

Rectifier Diode, 1 Phase, 1 Element, 8A, 200V V(RRM), Silicon,

BYP21-200 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
application	ULTRA FAST SOFT RECOVERY
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.15 V
JESD-30 code	R-PSFM-T2
Maximum non-repetitive peak forward current	100 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Maximum output current	8 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	200 V
Maximum reverse current	5 µA
Maximum reverse recovery time	0.025 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

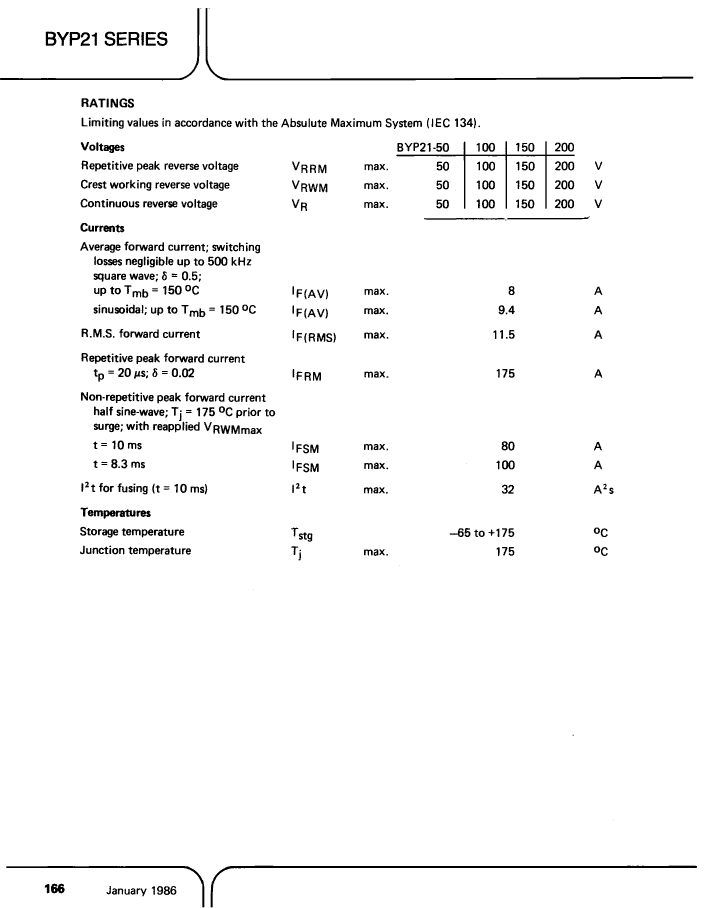

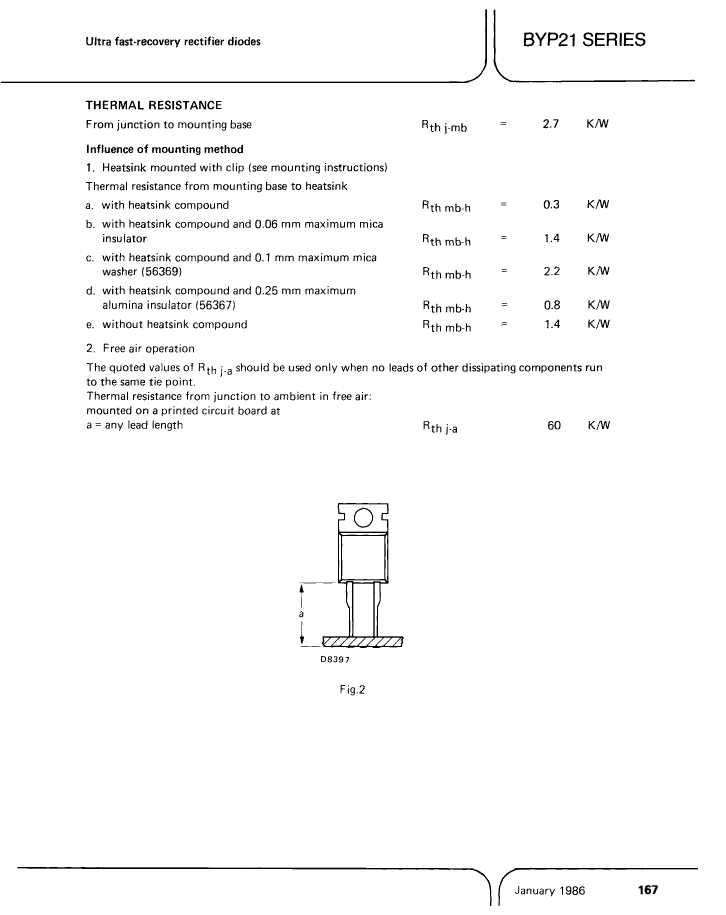

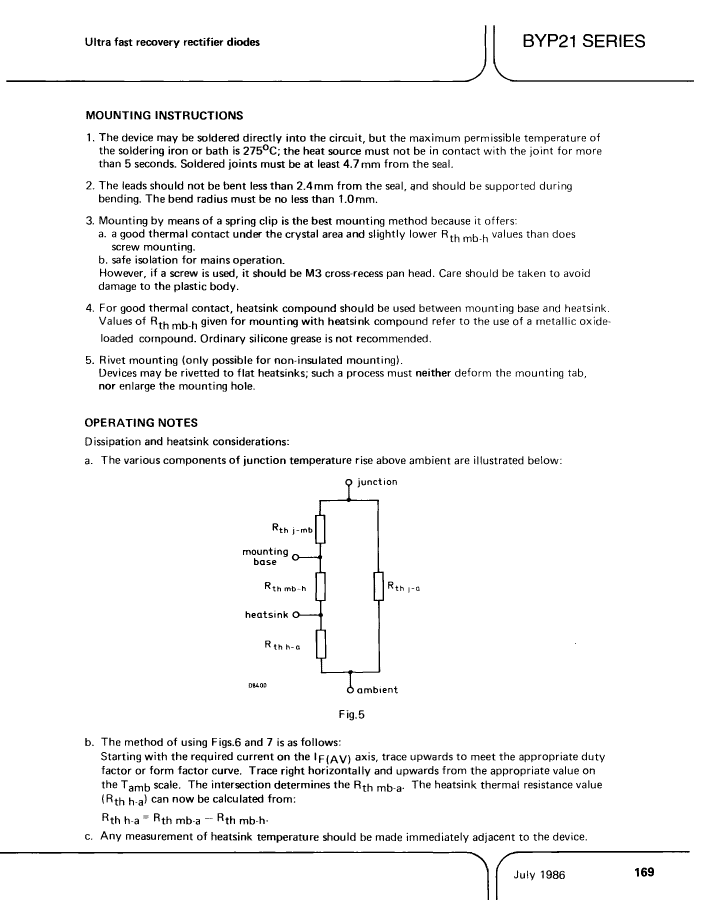

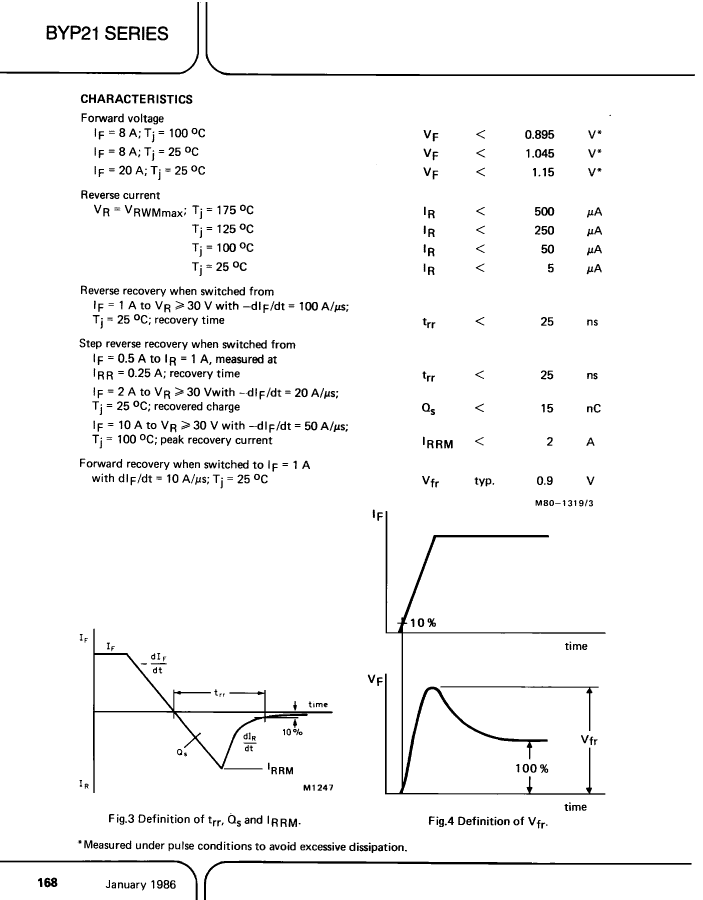

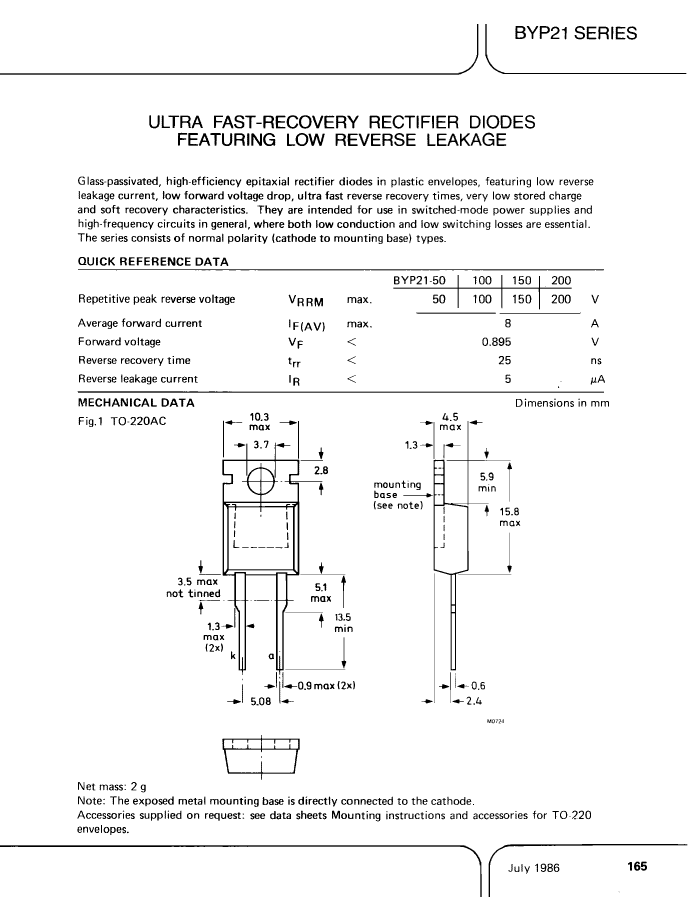

Preview

Download Datasheet

View All

BYP21-200 Related Products

	BYP21-200	BYP21-50	BYP21-150	BYP21-100
Description	Rectifier Diode, 1 Phase, 1 Element, 8A, 200V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 8A, 50V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 8A, 150V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 8A, 100V V(RRM), Silicon,
Reach Compliance Code	unknown	unknown	unknow	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
application	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY	ULTRA FAST SOFT RECOVERY
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.15 V	1.15 V	1.15 V	1.15 V
JESD-30 code	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2
Maximum non-repetitive peak forward current	100 A	100 A	100 A	100 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C
Maximum output current	8 A	8 A	8 A	8 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	200 V	50 V	150 V	100 V
Maximum reverse current	5 µA	5 µA	5 µA	5 µA
Maximum reverse recovery time	0.025 µs	0.025 µs	0.025 µs	0.025 µs
surface mount	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
Maker	-	YAGEO	YAGEO	YAGEO
package instruction	-	R-PSFM-T2	R-PSFM-T2	R-PSFM-T2
