BYV120-40: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 15A, 40V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size248KB，8 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

BYV120-40 Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 15A, 40V V(RRM), Silicon,

BYV120-40 Parametric

Parameter Name	Attribute value
package instruction	O-MUPM-D1
Reach Compliance Code	unknown
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.85 V
JESD-30 code	O-MUPM-D1
Maximum non-repetitive peak forward current	330 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	150 °C
Maximum output current	15 A
Package body material	METAL
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	40 V
Maximum reverse current	100 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	SOLDER LUG
Terminal location	UPPER
Base Number Matches	1

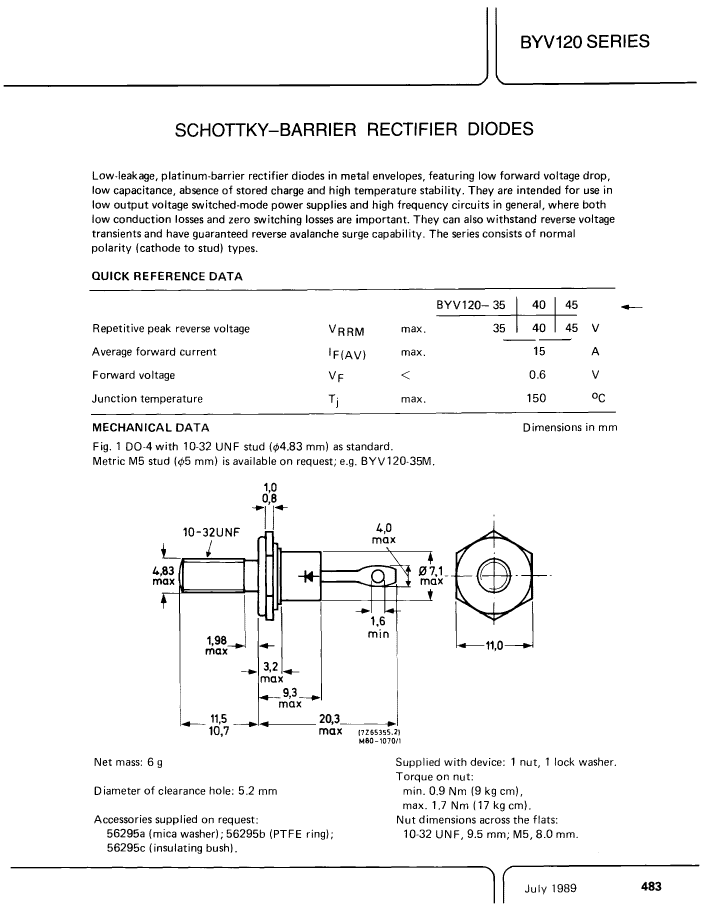

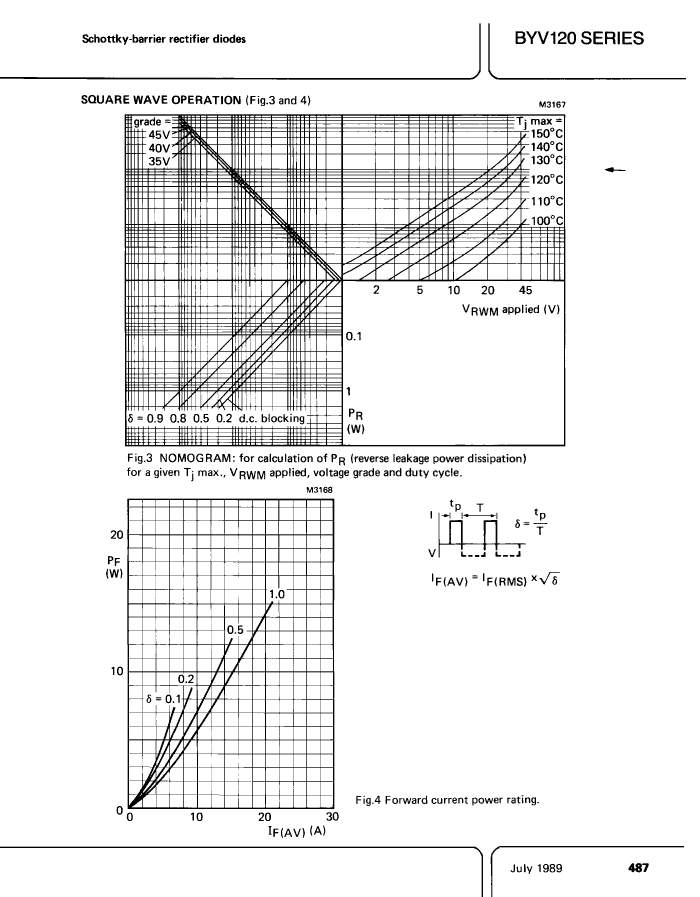

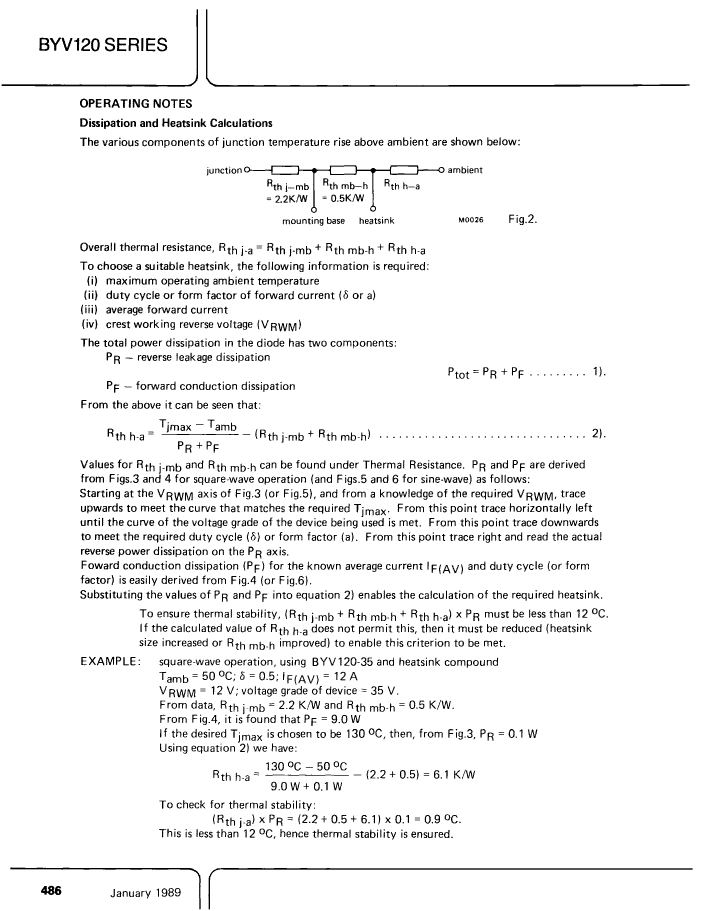

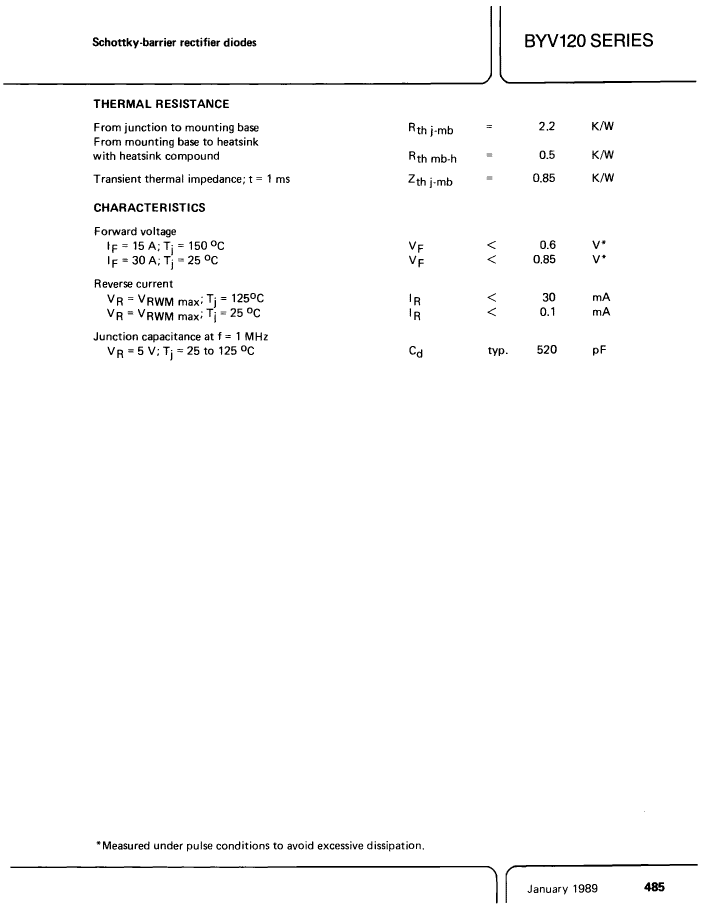

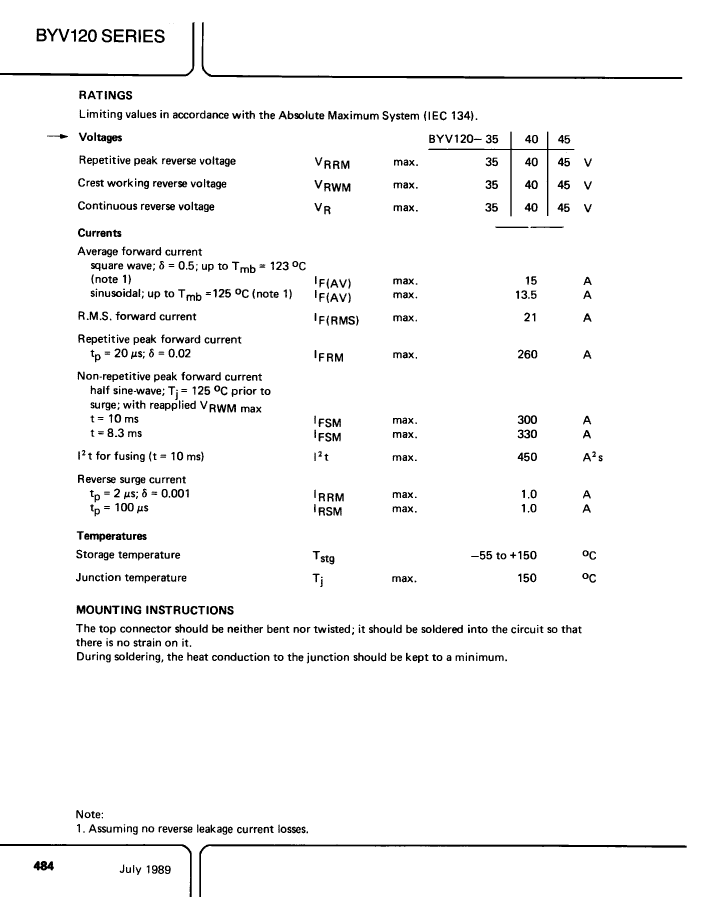

Preview

Download Datasheet

View All

BYV120-40 Related Products

	BYV120-40	BYV120-35M	BYV120-45	BYV120-45M	BYV120-40M	BYV120-35
Description	Rectifier Diode, Schottky, 1 Phase, 1 Element, 15A, 40V V(RRM), Silicon,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 15A, 35V V(RRM), Silicon,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 15A, 45V V(RRM), Silicon,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 15A, 45V V(RRM), Silicon,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 15A, 40V V(RRM), Silicon,	Rectifier Diode, Schottky, 1 Phase, 1 Element, 15A, 35V V(RRM), Silicon,
package instruction	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.85 V	0.85 V	0.85 V	0.85 V	0.85 V	0.85 V
JESD-30 code	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1	O-MUPM-D1
Maximum non-repetitive peak forward current	330 A	330 A	330 A	330 A	330 A	330 A
Number of components	1	1	1	1	1	1
Phase	1	1	1	1	1	1
Number of terminals	1	1	1	1	1	1
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	15 A	15 A	15 A	15 A	15 A	15 A
Package body material	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	40 V	35 V	45 V	45 V	40 V	35 V
Maximum reverse current	100 µA	100 µA	100 µA	100 µA	100 µA	100 µA
surface mount	NO	NO	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Base Number Matches	1	1	1	1	1	-
