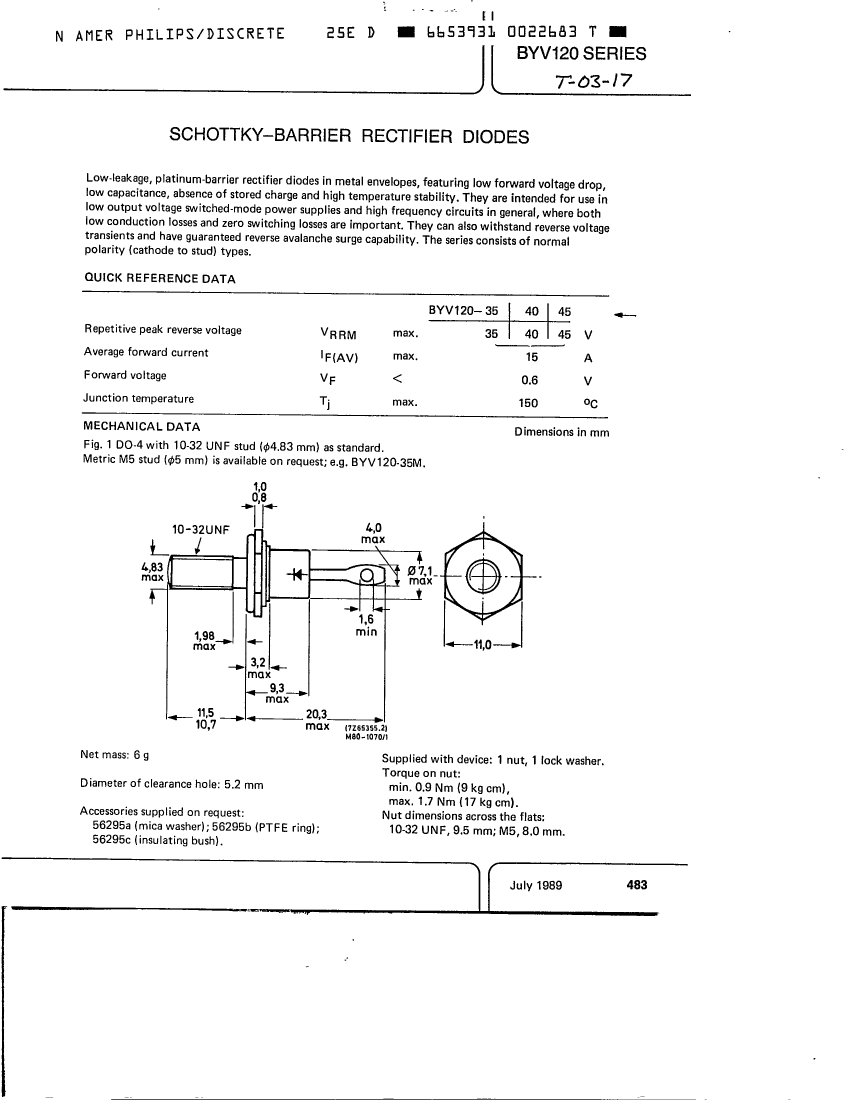

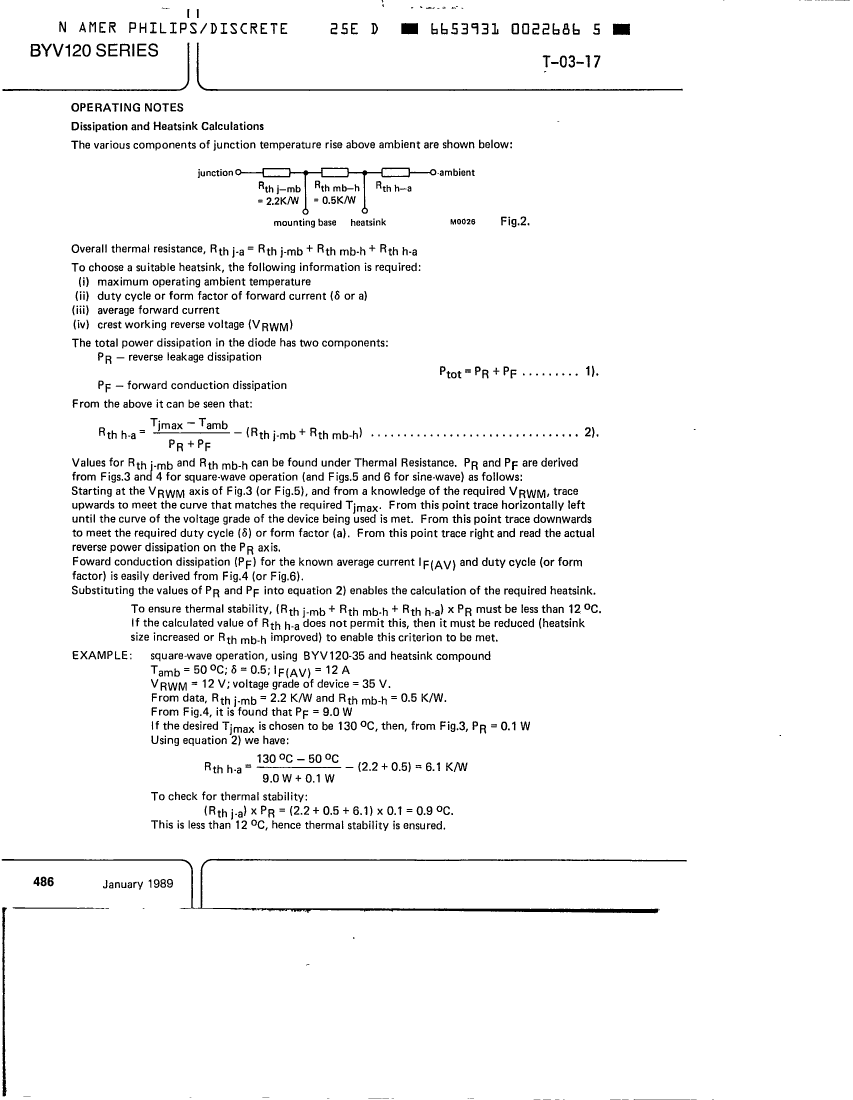

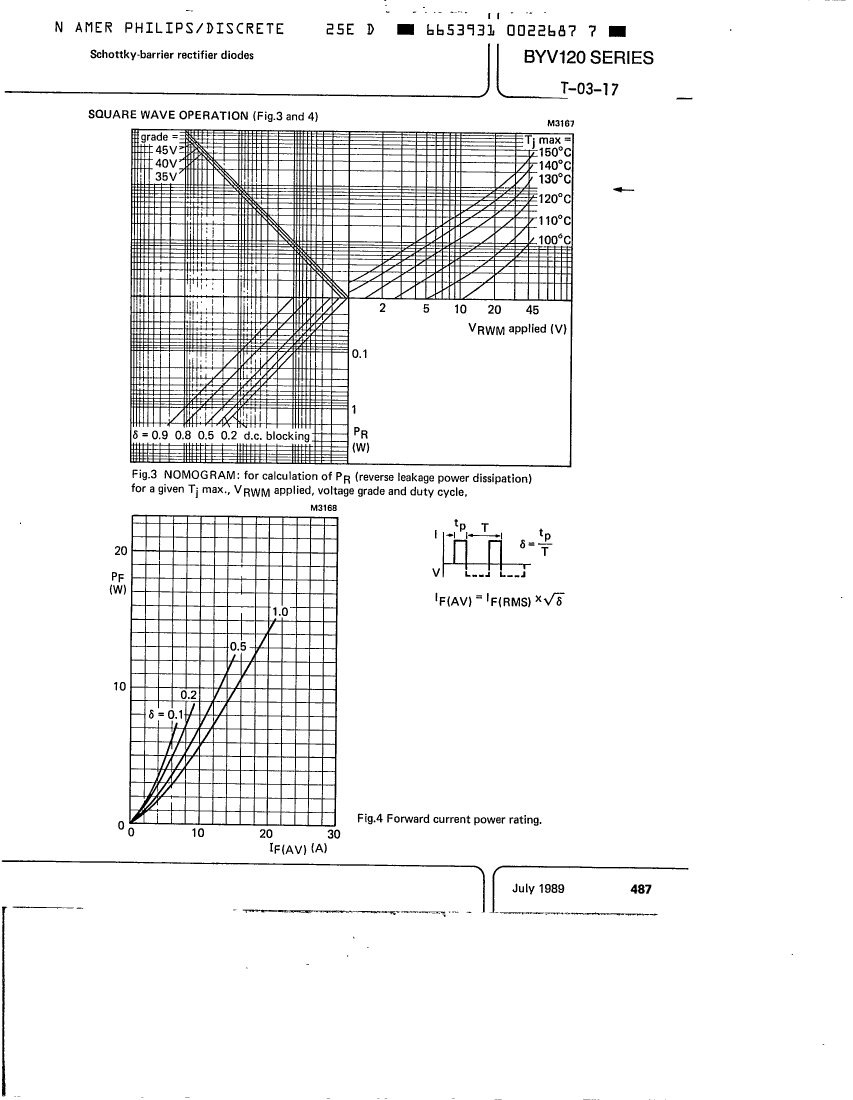

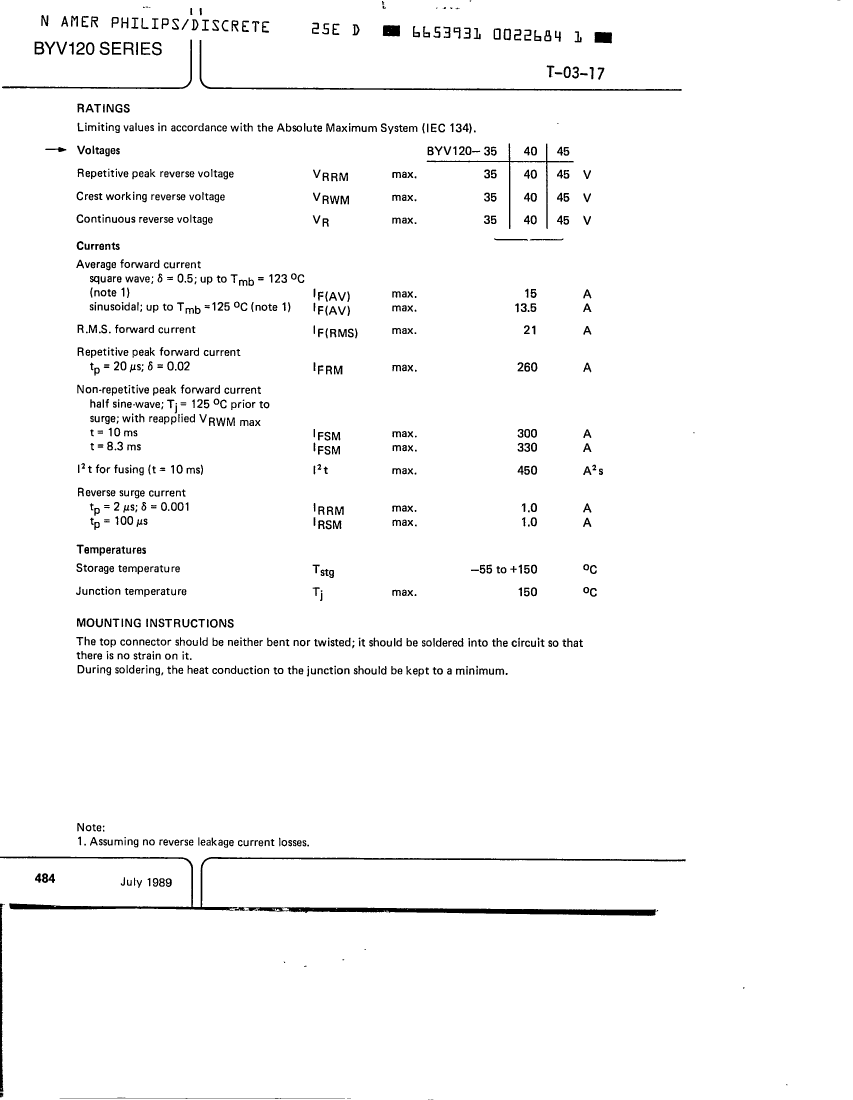

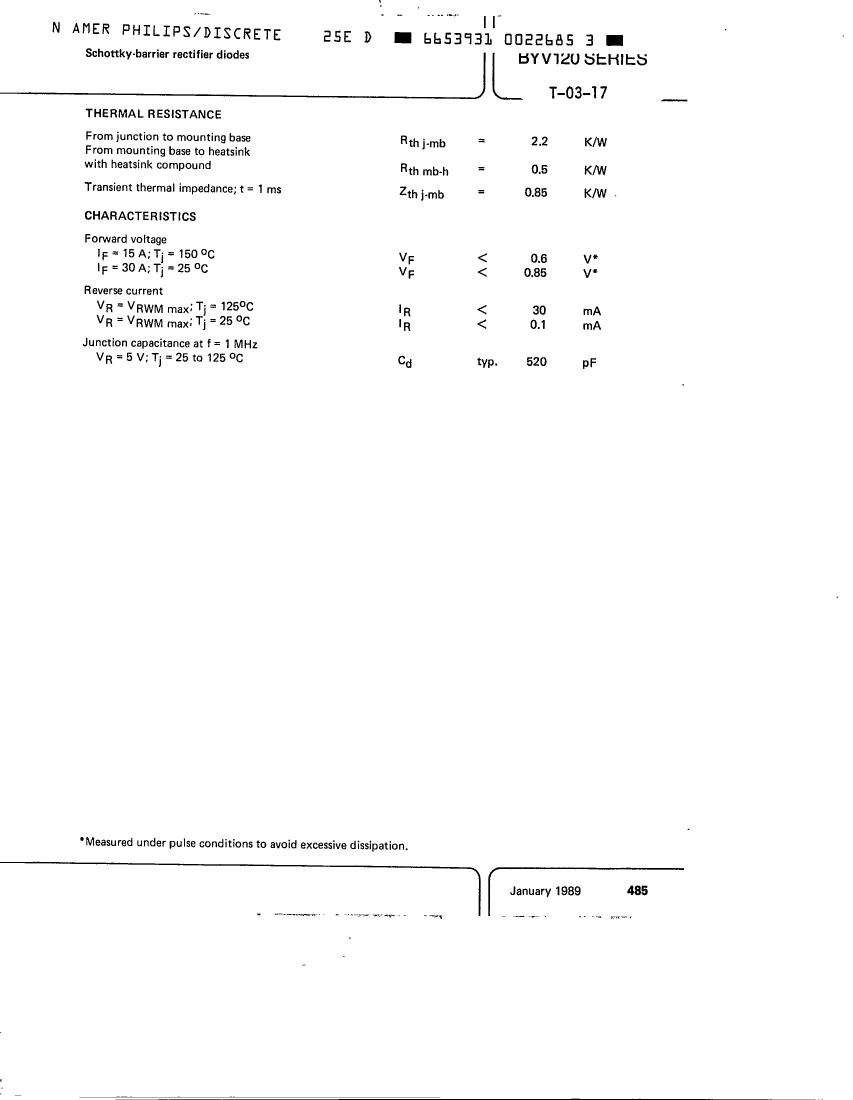

BYV120-40M datasheet, PDF - EEWORLD Datasheet

BYV120-40M: DescriptionRectifier Diode, Schottky, 1 Element, 13A, 40V V(RRM),; CategoryDiscrete semiconductor diode; File Size453KB，8 Pages; ManufacturerNorth American Philips Discrete Products Div

Download Datasheet Parametric Compare View All

BYV120-40M Overview

Rectifier Diode, Schottky, 1 Element, 13A, 40V V(RRM),

Parameter Name	Attribute value
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	SINGLE
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.6 V
Maximum non-repetitive peak forward current	330 A
Number of components	1
Maximum operating temperature	150 °C
Maximum output current	13 A
Maximum repetitive peak reverse voltage	40 V
surface mount	NO
technology	SCHOTTKY
Base Number Matches	1

	BYV120-40M	BYV120-35	BYV120-35M	BYV120-45M	BYV120-40
Description	Rectifier Diode, Schottky, 1 Element, 13A, 40V V(RRM),	Rectifier Diode, Schottky, 1 Element, 15A, 35V V(RRM),	Rectifier Diode, Schottky, 1 Element, 13A, 35V V(RRM),	Rectifier Diode, Schottky, 1 Element, 13A, 45V V(RRM),	Rectifier Diode, Schottky, 1 Element, 15A, 40V V(RRM),
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.6 V	0.6 V	0.6 V	0.6 V	0.6 V
Maximum non-repetitive peak forward current	330 A	330 A	330 A	330 A	330 A
Number of components	1	1	1	1	1
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	13 A	15 A	13 A	13 A	15 A
Maximum repetitive peak reverse voltage	40 V	35 V	35 V	45 V	40 V
surface mount	NO	NO	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Base Number Matches	1	1	1	1	1
