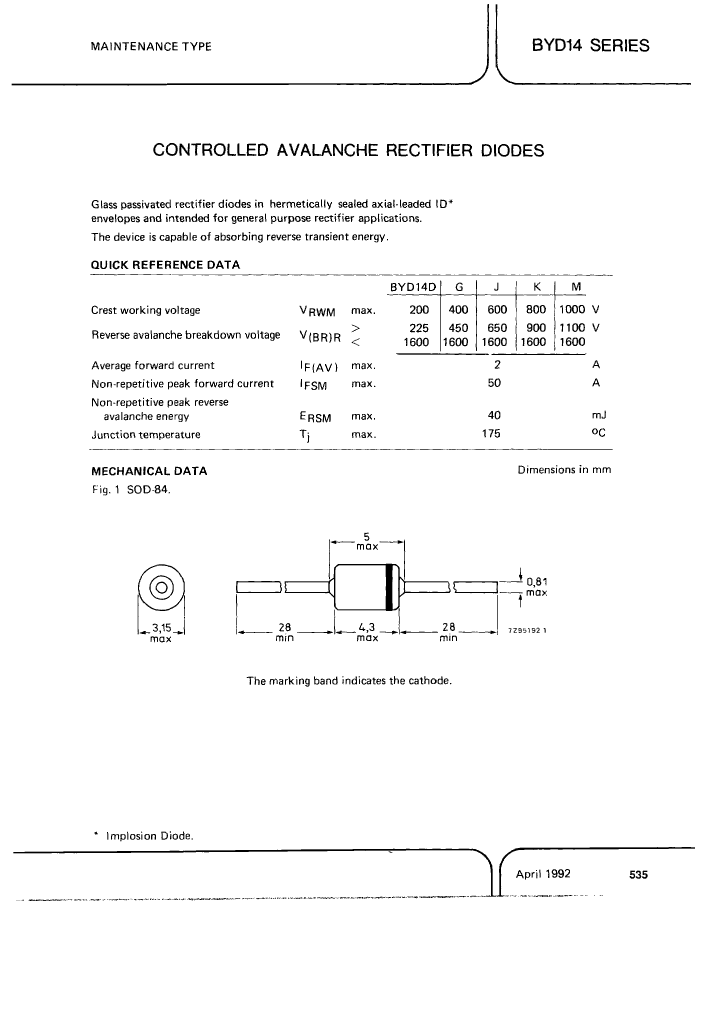

BYD14J: Description2A, SILICON, RECTIFIER DIODE; CategoryDiscrete semiconductor diode; File Size128KB，6 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BYD14J Overview

2A, SILICON, RECTIFIER DIODE

BYD14J Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.15 V
JESD-30 code	O-LALF-W2
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Maximum output current	2 A
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	600 V
Maximum reverse current	1 µA
Maximum reverse recovery time	2.5 µs
surface mount	NO
technology	AVALANCHE
Terminal form	WIRE
Terminal location	AXIAL
Base Number Matches	1

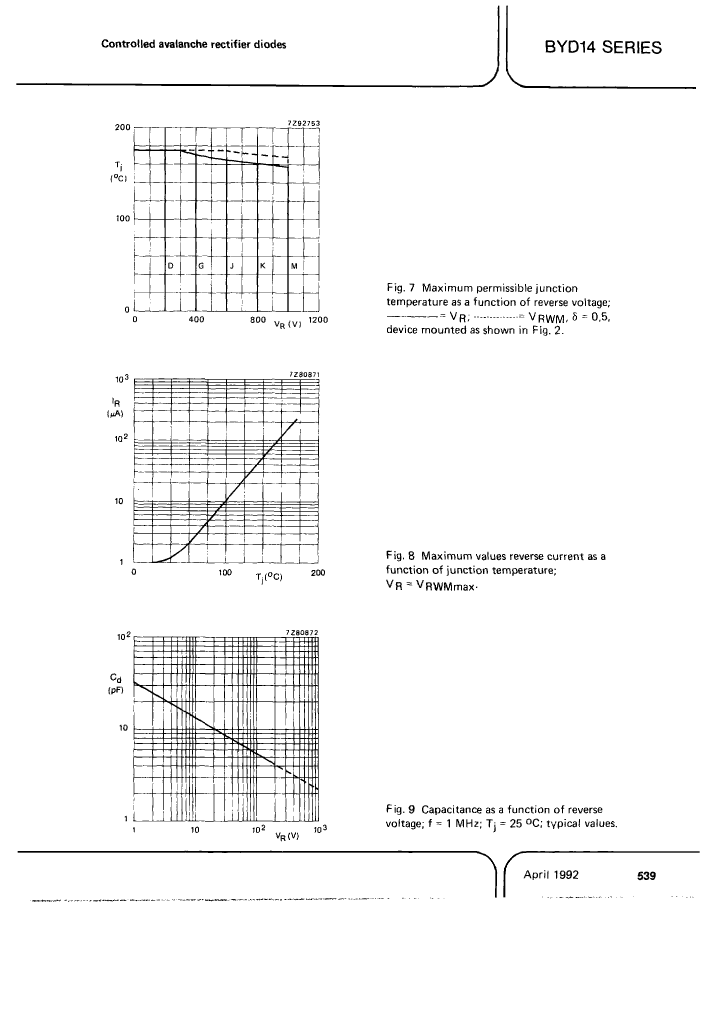

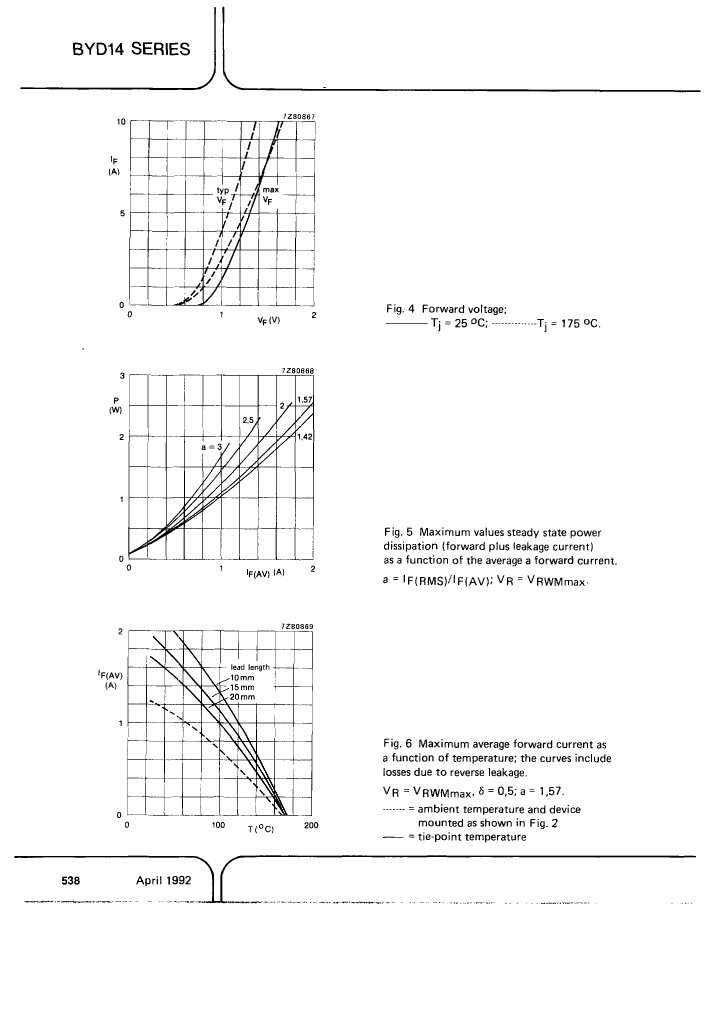

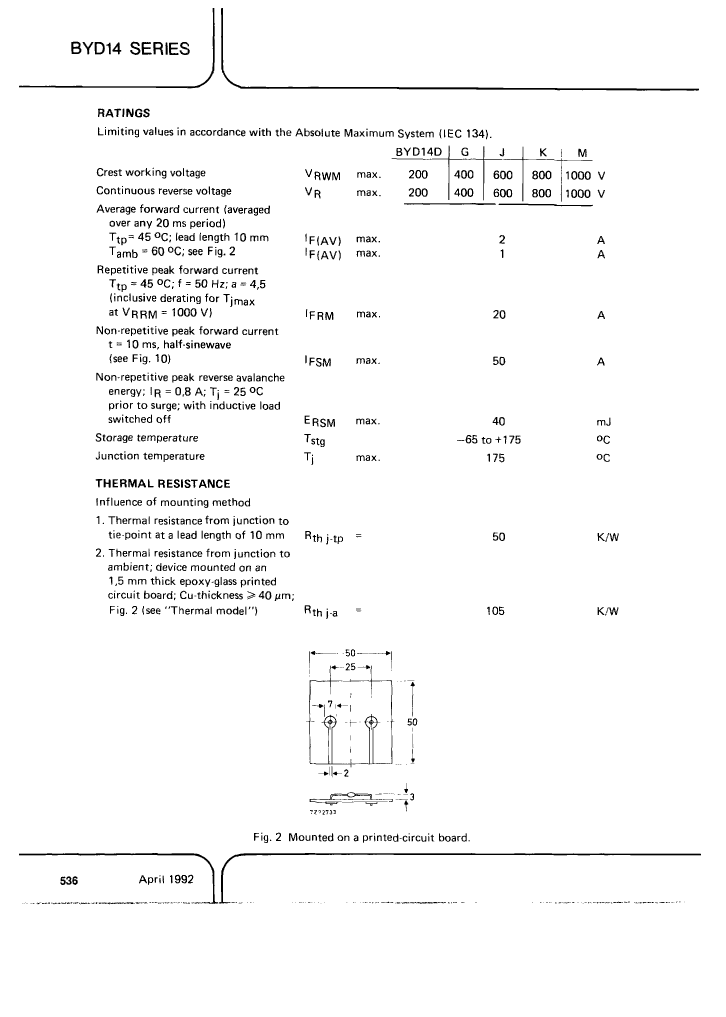

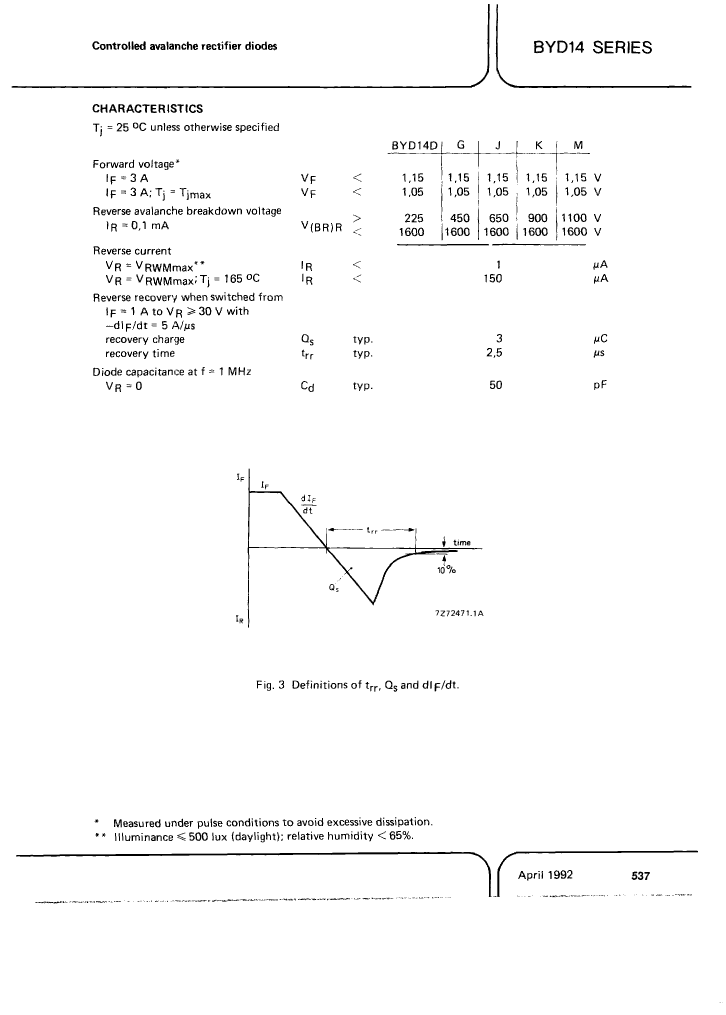

Preview

Download Datasheet

View All

BYD14J Related Products

	BYD14J	BYD14K	BYD14D	BYD14M	BYD14G
Description	2A, SILICON, RECTIFIER DIODE	2A, SILICON, RECTIFIER DIODE	2A, SILICON, RECTIFIER DIODE	2A, SILICON, RECTIFIER DIODE	2A, SILICON, RECTIFIER DIODE
Reach Compliance Code	compliant	unknown	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.15 V	1.15 V	1.15 V	1.15 V	1.15 V
JESD-30 code	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2	O-LALF-W2
Maximum non-repetitive peak forward current	50 A	50 A	50 A	50 A	50 A
Number of components	1	1	1	1	1
Phase	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum output current	2 A	2 A	2 A	2 A	2 A
Package body material	GLASS	GLASS	GLASS	GLASS	GLASS
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	LONG FORM	LONG FORM	LONG FORM	LONG FORM	LONG FORM
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	1 µA	1 µA	1 µA	1 µA	1 µA
Maximum reverse recovery time	2.5 µs	2.5 µs	2.5 µs	2.5 µs	2.5 µs
surface mount	NO	NO	NO	NO	NO
technology	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE	AVALANCHE
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	AXIAL	AXIAL	AXIAL	AXIAL	AXIAL
Maximum repetitive peak reverse voltage	600 V	-	200 V	1000 V	400 V
Base Number Matches	1	1	1	1	-
