REVISION AP
DO NOT
SCALE FROM
THIS PRINT
C3
BTE-XXX-XX-X-D-XX
No OF POSITIONS
-020, -040, -060,
**[-080, *-090, -100, -120]
(PER ROW)
*-03, -04 & -08 BODY STYLE ONLY
**SEE NOTE 12
BODY STYLE
-01: .1680[4.267]
-02: .2861[7.264]
-03: .4042[10.266]
-04: .6010[15.265]
-05: .7190[18.263]
-06: .8370[21.260]
-07: .9542 [24.237]
-08: 1.1511[29.238]
.2350 5.969
-09: .5224 [13.269]
REF
OPTION
-A: ALIGNMENT PINS
(USE BTE-XXX-XX-D-A)
-LC: LOCKING CLIPS(SEE NOTE 13)
(USE LC-08-TM-01)
-K: POLYIMIDE FILM
(N/A ON STYLES -07 & -08)
(USE K-500-300, SEE FIG 2)
(SEE NOTE 11)
-TR: TAPE & REEL (80 POS MAX)
[N/A ON STYLE -05, -06, -07 & -08]
-FL: FRICTION LOCK (SEE FIG 4, SHEET 3)
(USE BTE-XXX-01-D-X-FL)
(AVAIL ON LEAD STYLE -01 ONLY,
-020 THRU -100 POSITIONS ONLY)
((No OF POSITIONS x .0315[.800]) +.1575[4.000]) REF
.0945 2.400
01
((No OF POSITIONS -1) x .0315[.800]) .003[.08]
.1550 3.937 REF
(SEE NOTE 14)
02
.0080 0.203 REF

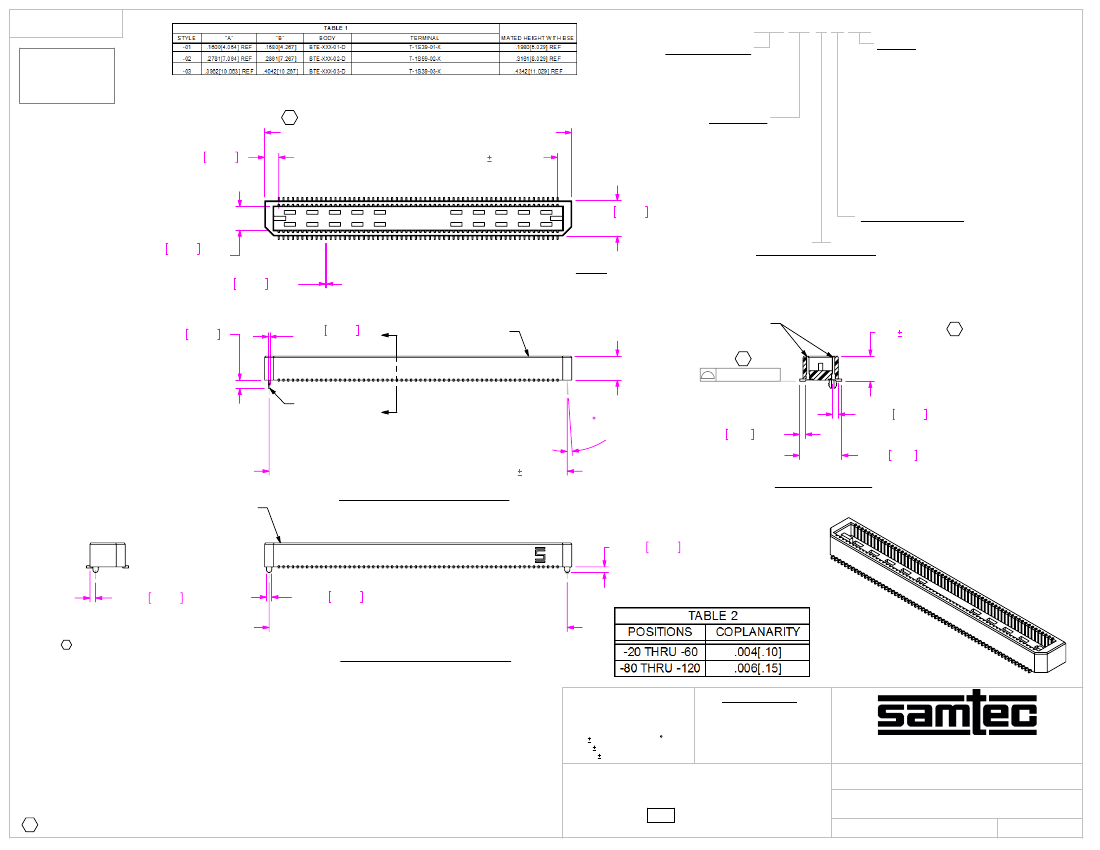

BTE-060-01-X-D-LC SHOWN
FIG 1
ROW SPECIFICATION
-D: DOUBLE (USE BTE-XXX-XX-D-X
& BTEH-XXX-XX-D-X)
PLATING SPECIFICATION
-F: FLASH SELECTIVE GOLD WITH MATTE TIN TAILS (USE T-1SXX-XX-F) (SEE NOTE 10)
-L: LIGHT SELECTIVE GOLD WITH MATTE TIN TAILS (USE T-1SXX-XX-L) (SEE NOTE 10)
-H: HEAVY GOLD (USE T-1SXX-XX-H)
-C: ELECTRO-POLISHED SELECTIVE (USE T-1SXX-XX-C)
T-1S39-XX-X
C2
.055 1.397
.010 0.254 REF
"A"
(-LC WIDTH)
BTE-XXX-XX-D
"A"
"B"
.001[.03]
C1
(SEE NOTE 8)
.003[.08]
SEE TABLE 2
.0375 0.953
.037 0.94 REF
.280 7.11 REF
LC-08-TM-01
"A"
2 MAX SWAY
(ANY DIRECTION)
((No OF POSITIONS x .0315[.800]) + .0975[2.477]) .003[.08]
BTE-XXX-XX-D-A
-LC: LOCKING CLIP OPTION
SECTION "A"-"A"
.0375 0.952 REF
.0375 0.953 REF
.0350 0.889 DIA REF
C5
((No OF POSITIONS x .0315[.800]) + .0975[2.477]) REF
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
-A: ALIGNMENT PIN OPTION
2. NOTE DELETED.
3. BURR ALLOWANCE: .0015[.038] MAX.
4. NOTE DELETED.
5. MINIMUM PUSHOUT FORCE: 6 OZ.
6. NOTE DELETED.
7. PARTS TO BE MOLD TO POSITION.
8. MAX VARIANCE OF .002[.05].
9. BTE-XXX-03-D BODY CAN BE SUBSTITUTED FOR BTE-XXX-03-D-A.
10. -L PLATING CAN BE SUBSTITUTED FOR -F PLATING.
11. IF PART OPTION IS PACKAGED IN TRAY, USE K-DOT-.276-.375-.005.
12. FOR NEW APPLICATIONS REQUIRING THESE POSITIONS, PLEASE CONTACT SAMTEC
INTERCONNECT PROCESSING GROUP.
13. DUE TO THE HIGH AMOUNT OF INSERTION FORCE NEEDED, THE –LC OPTION IS NOT COMPATIBLE
WITH AUTO PLACEMENT. SAMTEC RECOMMENDS MANUAL PLACEMENT FOR ALL ASSEMBLIES
WITH THE –LC OPTION."
14. ROW TO ROW MINIMUM IS .152 [3.86], PIN CAN EXTEND PAST WALL .003 [.08] MAX.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
INSULATOR: LCP, COLOR: BLACK, FLAMMABILITY RATING: UL94VO
TERMINAL: PHOS BRONZE
.8mm DOUBLE ROW TERMINAL ASSEMBLY
AP
F:\DWG\MISC\MKTG\BTE-XXX-XX-X-D-XX-MKT.SLDDRW
BTE-XXX-XX-X-D-XX
03/22/1999
SHEET
1
OF
3
BY:
DEAN P
REVISION AP
(No OF POSITIONS x .0315[.800] + .1575[4.000] REF
({(No OF POSITIONS x .0315
[.800] + .1575 [4.000])
-.275 [6.99] }/ 2) .020[.51]
-K: POLYIMIDE FILM PAD
[USE K-500-300]
(SEE NOTE 11)
FIG 2
.02 0.5
.275 6.99
"R"

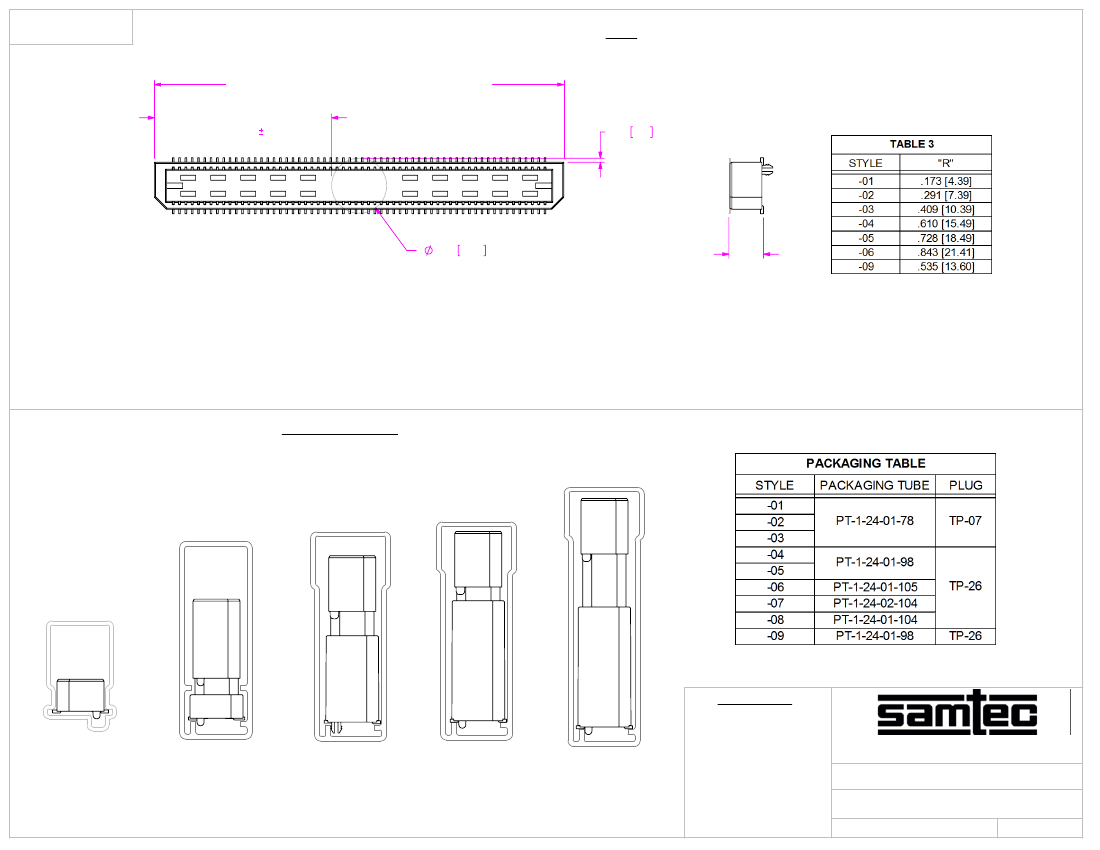

PACKAGING VIEW
[PARTS NEED TO BE LOADED PER PACKAGING VIEWS]
[-05 LEADSTYLE PARTS WITH KAPTON TO BE
LOADED WITH KAPTON RESTING ON THE TUBE RIBS].
[STYLE -07]
[STYLE -08]
[STYLES -04, -05 & -09]
[STYLE -06]
[STYLES -01, -02 & -03]
F:\DWG\MISC\MKTG\BTE-XXX-XX-X-D-XX-MKT.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
TUBE: PT-1-24-01-78
PLUG: TP-07
TUBE: PT-1-24-01-98
PLUG: TP-26
TUBE: PT-1-24-01-105
PLUG: TP-26
TUBE: PT-1-24-02-104
PLUG: TP-26
TUBE: PT-1-24-01-104
PLUG: TP-26
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.8mm DOUBLE ROW TERMINAL ASSEMBLY
BTE-XXX-XX-X-D-XX
03/22/1999
SHEET
2
OF
3
BY:
DEAN P
REVISION AP
01
FIG 3

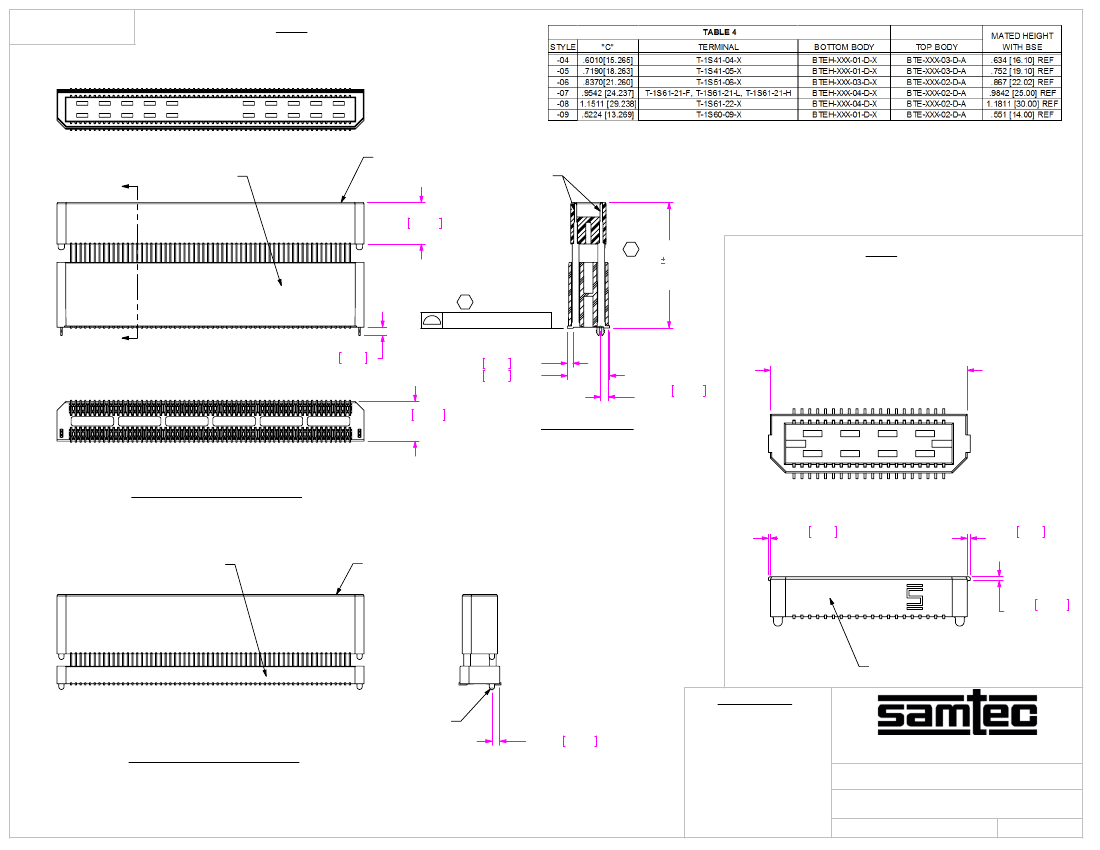

BTE-060-06-X-D-LC SHOWN
[DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1]
02
"B"
BTEH-XXX-XX-D
BTE-XXX-02-D-A
(SEE NOTE 9, SHEET 1)
T-1S51-XX-X
.2781 7.064 REF
C4
"C"
.001[.03]
(SEE NOTE 8,
SHEET 1)
.003[.08]
FIG 4
-FL OPTION
BTE-020-01-X-D-A-FL SHOWN
(AVAILABLE ON -01 LEAD STYLE ONLY,
-020 THRU -100 POSITIONS ONLY)
[DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1]
C5
SEE TABLE 2, SHEET 1
"B"
.055 1.40
.037 0.94 REF
.281 7.14 REF
.2650 6.731
REF
.0525 1.334
REF
((No OF POSITIONS x .0315[.800])
+.1575[4.000]) REF
SECTION "B"-"B"
-LC: LOCKING CLIP OPTION
.008 0.20
REF
BTEH-XXX-XX-D-A
BTE-XXX-XX-D-A
.012 0.30
REF
.015 0.381
REF
BTE-XXX-01-D-X-FL
PROPRIETARY NOTE
R
-A: ALIGNMENT PIN OPTION
[STYLE -04, -05, -06, -07, -08 & -09]
.0525 1.334 REF
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
.8mm DOUBLE ROW TERMINAL ASSEMBLY
BTE-XXX-XX-X-D-XX
03/22/1999
SHEET
3
OF
3
F:\DWG\MISC\MKTG\BTE-XXX-XX-X-D-XX-MKT.SLDDRW
BY:
DEAN P
