Part Number

Search

BTFN20P-3RF7

Description
DIP Connector, 20 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Plug
CategoryThe connector    The connector
File Size111KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

BTFN20P-3RF7 Overview

DIP Connector, 20 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Plug

BTFN20P-3RF7 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Reach Compliance Codeunknown
ECCN codeEAR99
Body/casing typePLUG
Connector typeDIP CONNECTOR
Contact to complete cooperationTIN
Contact completed and terminatedTIN
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Manufacturer's serial numberBTFN20P
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch1.27 mm
Termination typeSOLDER
Total number of contacts20
UL Flammability Code94V-0
Base Number Matches1

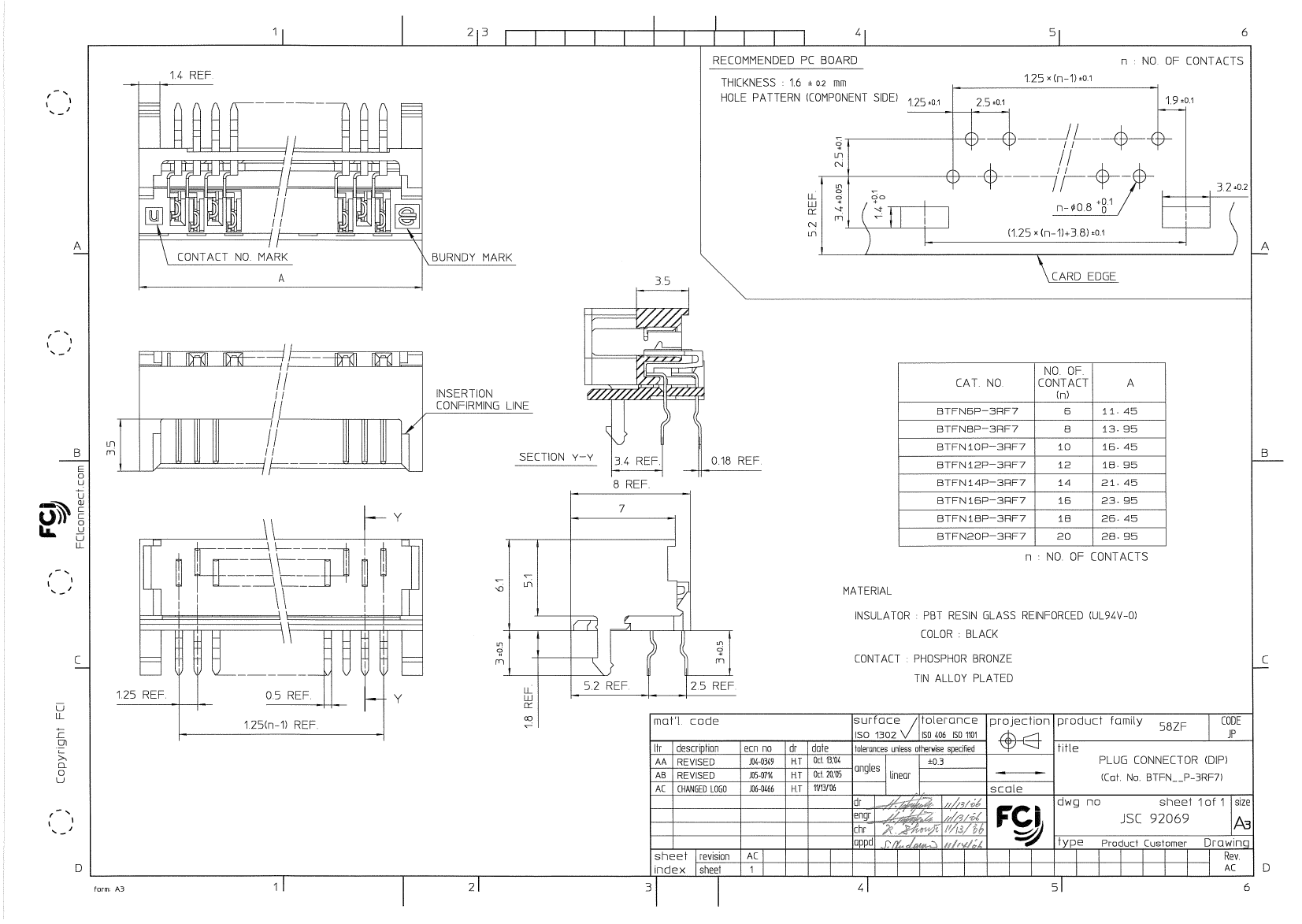

PDM: Rev:AC
STATUS:
Released
Printed: Jan 31, 2009
.

BTFN20P-3RF7 Related Products

BTFN20P-3RF7 BTFN16P-3RF7 BTFN18P-3RF7 BTFN6P-3RF7 BTFN12P-3RF7 BTFN8P-3RF7 BTFN14P-3RF7 BTFN10P-3RF7
Description DIP Connector, 20 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Plug DIP Connector, 16 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Plug DIP Connector, 18 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Plug DIP Connector, 6 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Plug DIP Connector, 12 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Plug DIP Connector, 8 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Plug DIP Connector, 14 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Plug DIP Connector, 10 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Plug
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown
Body/casing type PLUG PLUG PLUG PLUG PLUG PLUG PLUG PLUG
Connector type DIP CONNECTOR DIP CONNECTOR DIP CONNECTOR DIP CONNECTOR DIP CONNECTOR DIP CONNECTOR DIP CONNECTOR DIP CONNECTOR
Contact point gender MALE MALE MALE MALE MALE MALE MALE MALE
DIN compliance NO NO NO NO NO NO NO NO
Filter function NO NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO NO
MIL compliance NO NO NO NO NO NO NO NO
Manufacturer's serial number BTFN20P BTFN16P BTFN18P BTFN6P BTFN12P BTFN8P BTFN14P BTFN10P
Mixed contacts NO NO NO NO NO NO NO NO
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD BOARD
Number of rows loaded 2 2 2 2 2 2 2 2
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch 1.27 mm 1.27 mm 1.27 mm 1.27 mm 1.27 mm 1.27 mm 1.27 mm 1.27 mm
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Total number of contacts 20 16 18 6 12 8 14 10
UL Flammability Code 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0
Base Number Matches 1 1 1 1 1 1 1 -
