BTS-025-01-L-D-K-TR datasheet, PDF

Datasheet> All Categories > The connector> The connector> BTS-025-01-L-D-K-TR

BTS-025-01-L-D-K-TR: DescriptionBoard Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Receptacle,; CategoryThe connector The connector; File Size135KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BTS-025-01-L-D-K-TR Overview

Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Receptacle,

BTS-025-01-L-D-K-TR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PICK&PLACE PAD, TAPE&REEL PKG
body width	0.235 inch
subject depth	0.16 inch
body length	0.788 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
Plug contact pitch	0.025 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
Plating thickness	10u inch
polarization key	ENDS
Rated current (signal)	1.6 A
Guideline	UL
reliability	COMMERCIAL
Terminal length
Terminal pitch	0.635 mm
Termination type	SURFACE MOUNT
Total number of contacts	50
Base Number Matches	1

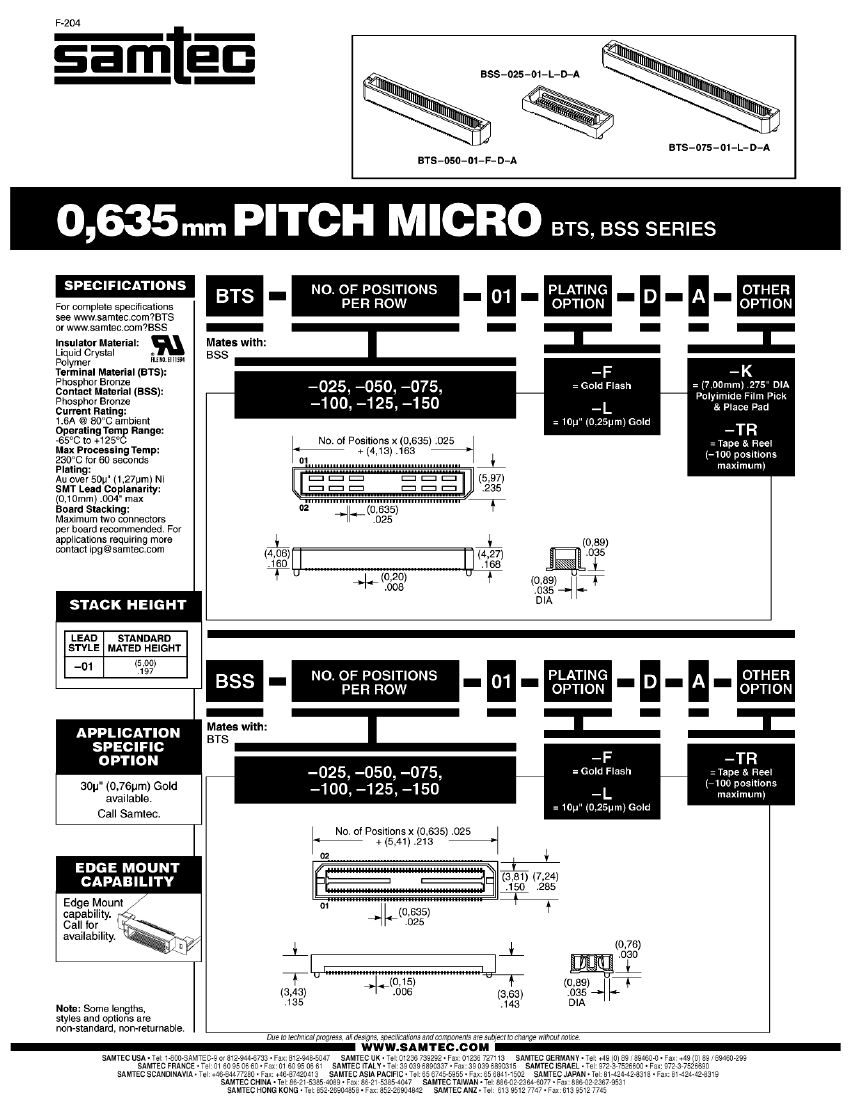

Preview

Download Datasheet

View All

BTS-025-01-L-D-K-TR Related Products

	BTS-025-01-L-D-K-TR	BTS-050-01-L-D-K-TR	BTS-075-01-F-D-K-TR	BTS-075-01-L-D-K-TR	BTS-100-01-F-D-K-TR	BTS-100-01-L-D-K-TR
Description	Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Receptacle,	Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Receptacle,	Board Connector, 150 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Receptacle,	Board Connector, 150 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Receptacle,	Board Connector, 200 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Receptacle,	Board Connector, 200 Contact(s), 2 Row(s), Male, Straight, 0.025 inch Pitch, Surface Mount Terminal, Receptacle,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	PICK&PLACE PAD, TAPE&REEL PKG	PICK&PLACE PAD, TAPE&REEL PKG	PICK&PLACE PAD, TAPE&REEL PKG	PICK&PLACE PAD, TAPE&REEL PKG	PICK&PLACE PAD, TAPE&REEL PKG	PICK&PLACE PAD, TAPE&REEL PKG
body width	0.235 inch	0.235 inch	0.235 inch	0.235 inch	0.235 inch	0.235 inch
subject depth	0.16 inch	0.16 inch	0.16 inch	0.16 inch	0.16 inch	0.16 inch
body length	0.788 inch	1.413 inch	2.038 inch	2.038 inch	2.663 inch	2.663 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
insulator material	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)	LIQUID CRYSTAL POLYMER (LCP)
Plug contact pitch	0.025 inch	0.025 inch	0.025 inch	0.025 inch	0.025 inch	0.025 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	10u inch	10u inch	FLASH inch	10u inch	FLASH inch	10u inch
polarization key	ENDS	ENDS	ENDS	ENDS	ENDS	ENDS
Rated current (signal)	1.6 A	1.6 A	1.6 A	1.6 A	1.6 A	1.6 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	50	100	150	150	200	200
Base Number Matches	1	1	1	1	1	1
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier	-	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier	Tin (Sn) - with Nickel (Ni) barrier
JESD-609 code	e3	-	e3	e3	e3	e3
Factory Lead Time	-	3 weeks	3 weeks	3 weeks	3 weeks	-
