REVISION Q
DO NOT
SCALE FROM
THIS PRINT
BTS-XXX-XX-X-D-XX
*
*
NOT ENGINEERING APPROVED
C3
No OF POSITIONS
-025, -050, -075
(SEE NOTE 11),
-100, -125, -150
(PER ROW)
(No OF POSITIONS x .025[.64]) +.163[4.13] REF
((No OF POS -1) x .0250[.635]) .003[.08]
.0941 2.389 REF
01
.251 6.38
REF
.2350 5.969 REF
BODY STYLE
-01: .1680 [4.267]
*
-02: .2861 [7.268]
*
-03: .4042 [10.267]
*
-04: .6000 [15.240]
PLATING SPECIFICATION
-F: FLASH SELECTIVE GOLD,
MATTE TIN TAILS
(USE T-1SXX-XX-F)(SEE NOTE 9)
-L: LIGHT SELECTIVE GOLD,
MATTE TIN TAILS
(USE T-1SXX-XX-L)
-H: HEAVY GOLD
(USE T-1SXX-XX-H)
OPTION
-A: ALIGNMENT PINS
(SEE FIGS 1 & 4)
-LC: LOCKING CLIPS
(USE LC-08-T-01)
-K: POLYIMIDE FILM PAD
(USE K-DOT-.276-.375-.005,
SEE FIG 2)
-TR: TAPE & REEL (100 POS MAX)
ROW SPECIFICATION
-D: DOUBLE (USE BTS-XXX-XX-D &
BTSH-XXX-XX-D)
* NOT ENGINEERING APPROVED
(SEE NOTE 11)
02
.0080 0.203 REF
T-1S56-XX-X
(No OF POS x .025[.64]) + .040[1.02] REF
BTS-XXX-XX-D
C5
C4
"A"
.055 1.40
"B" REF
.155±.005 3.94±0.127
(SEE NOTE 13)
C2
C1
SEE TABLE 2
"A"
((No OF POS x .025[.64]) +
.1025[2.604]) .003[.08]
.0271 0.689 REF
"A"
(SEE NOTE 7)
.0100 0.254 REF
2 MAX SWAY
(TYP)
LC-08-T-01
.0375 0.953 REF
.0560 1.422 REF
.2800 7.112
REF
BTS-XXX-XX-D-A
-LC: LOCKING CLIP OPTION SHOWN
.0375 0.953 REF
SECTION "A"-"A"
.0375 0.953 REF
.0350 0.889 REF

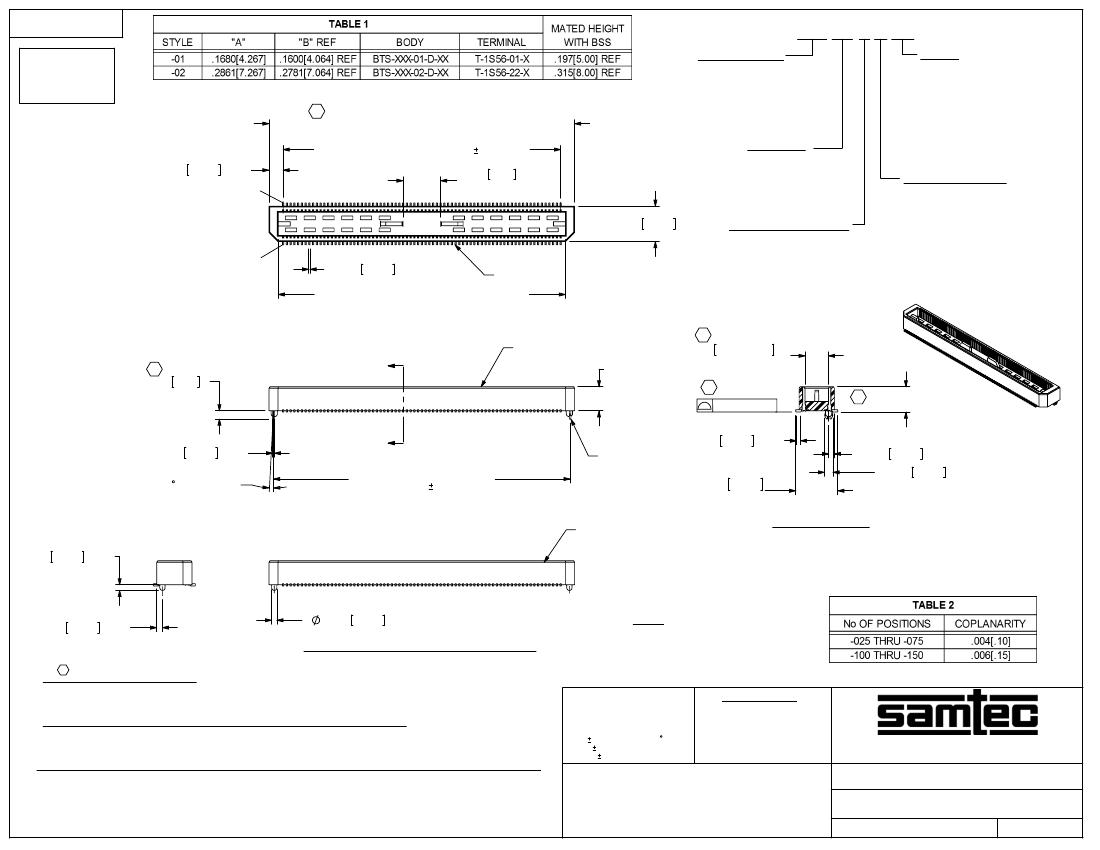

FIG 1
NOTES:
-A: ALIGNMENT PIN OPTION SHOWN
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. COPLANARITY: SEE TABLE 2.
3.
MAXIMUM BURR ALLOWANCE: .0015[.038].
4. MAXIMUM CUT FLASH: .010[.25].
5. MINIMUM PUSHOUT FORCE: 6 OZ.
6. MAXIMUM ALLOWABLE BOW: .002[.05] INCH/INCH AFTER ASSEMBLY.
7. MAXIMUM VARIANCE: .002[.05].
8. LEAD STYLES -03 & -04: TOP BODY (BTS) CANNOT HAVE -A OPTION.
9. -L PLATING CAN BE SUBSTITUTED FOR -F PLATING.
10. ENGINEERING APPROVED BUT NOT RELEASED FOR SALE. RELEASE PENDING BSS-01 APPROVAL.
11. RELEASE FOR SALE THE -02 LEAD STYLE, IN -075 POSITION ONLY, FOR SPECIFIC CUSTOMER NEED.
12. NOTE DELETED.
13. PIN CAN EXTEND PAST WALL .003 [.08] MAXIMUM.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01[.3]
.XXX: .005[.13]
.XXXX: .0020[.051]
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
INSULATOR: LCP, COLOR: BLACK
FLAMMABILITY RATING: UL94VO
TERMINAL: PHOS BRONZE
F:\DWG\MISC\MKTG\BTS-XXX-XX-X-D-XX-MKT.SLDDRW
.635mm DOUBLE ROW SOCKET ASSEMBLY
BTS-XXX-XX-X-D-XX
06/24/1999
SHEET
1
OF
3
BY:
DEAN P
REVISION Q

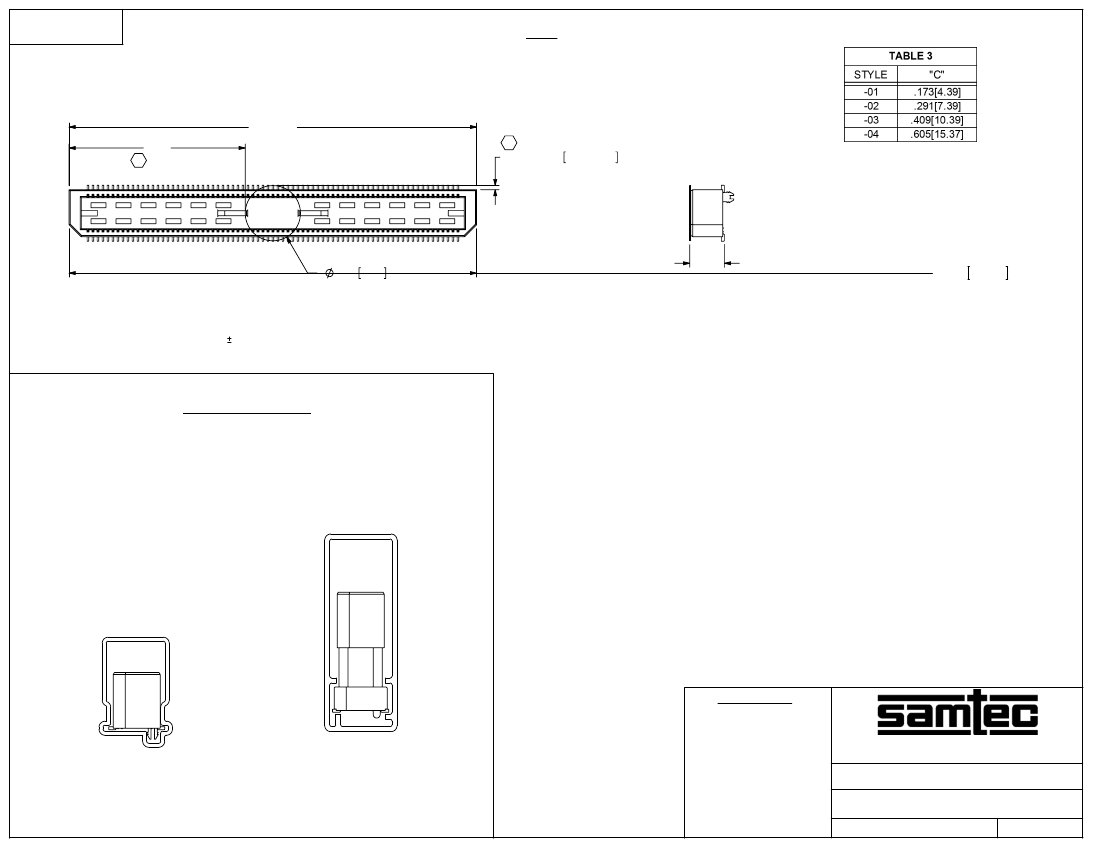

FIG 2
-K: POLYIMIDE FILM PAD
(USE K-DOT-.276-.375-.005)
"R" REF
C8
"S"
C7
.0205±.020 0.52±0.51
*
*
*
*
NOT ENGINEERING APPROVED
(SEE NOTE 11)
.276 7.01
"C"
2.0375 51.753
NOTE: "R" = (No OF POSITIONS x .0250[.635] + .1625[4.128]
"S" = (("R" - .276[7.01]) / 2) .020[.51]
[PARTS TO HAVE POSITION #1 LOADED IN
SAME DIRECTION AS ARROW ON TUBE]
PACKAGING VIEWS
[STYLE -03 & -04]
[STYLE -01 & -02]
F:\DWG\MISC\MKTG\BTS-XXX-XX-X-D-XX-MKT.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
TUBE: PT-1-24-01-78
PLUG: TP-07
TUBE: PT-1-24-01-98
PLUG: TP-26
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.635mm DOUBLE ROW SOCKET ASSEMBLY
BTS-XXX-XX-X-D-XX
06/24/1999
SHEET
2
OF
3
BY:
DEAN P
REVISION Q

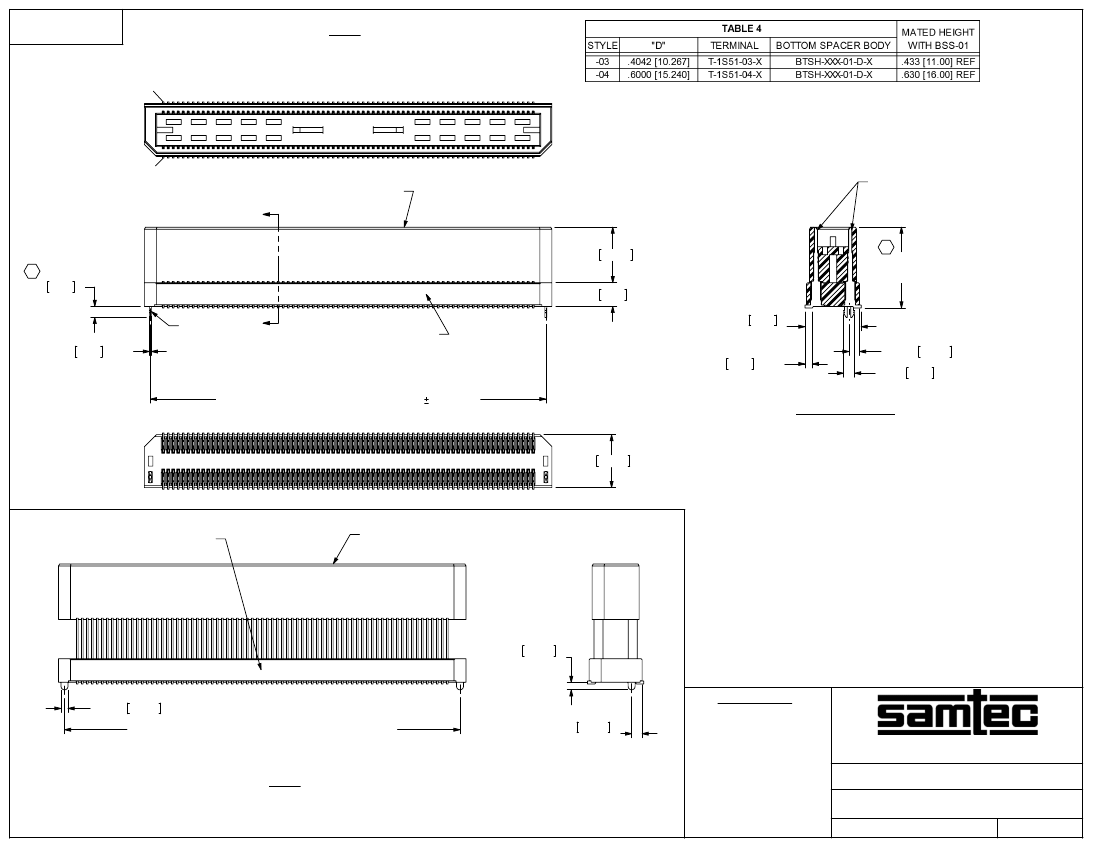

FIG 3
BTS-075-03-X-D-LC SHOWN
(SAME AS FIG 1, UNLESS OTHERWISE STATED)
01
*
*
*
NOT ENGINEERING APPROVED
02
BTS-XXX-02-D (SEE NOTE 8)
"B"
T-1S51-XX-X
.2781 7.064 REF
C5
C1
.055 1.40
LC-08-T-01
.010 0.25 REF
"B"
"D"
- .001
(SEE NOTE 13)
+.003
.118 3.00 REF
BTSH-XXX-01-D-X
.281 7.14
REF
.037 0.94 REF
((No OF POS x .025[.64]) + .1025[2.604]) .003[.08]
.0525 1.334 REF
.056 1.42 REF
SECTION "B"-"B"
.2650 6.731
REF
BTSH-XXX-01-D-A
BTS-XXX-02-D (SEE NOTE 8)
.0375 0.953
REF
PROPRIETARY NOTE
.0350 0.889 REF
(No OF POSITIONS x .0250[.635]) + .1025[2.604] REF
.0525 1.334
REF
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
FIG 4
-A: ALIGMENT PIN OPTION FOR -03 & -04 LEAD STYLES
BTS-075-04-X-D-A SHOWN
(SAME AS FIG 3, UNLESS OTHERWISE STATED)
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
.635mm DOUBLE ROW SOCKET ASSEMBLY
BTS-XXX-XX-X-D-XX
06/24/1999
SHEET
3
OF
3
F:\DWG\MISC\MKTG\BTS-XXX-XX-X-D-XX-MKT.SLDDRW
BY:
DEAN P
