B10B-J21DK-GGXR datasheet, PDF

Datasheet> All Categories > The connector> The connector> B10B-J21DK-GGXR

B10B-J21DK-GGXR: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,; CategoryThe connector The connector; File Size583KB，17 Pages; ManufacturerJST

Download Datasheet Parametric View All

B10B-J21DK-GGXR Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,

B10B-J21DK-GGXR Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
Other features	TOP ENTRY
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	J2100
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	10
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

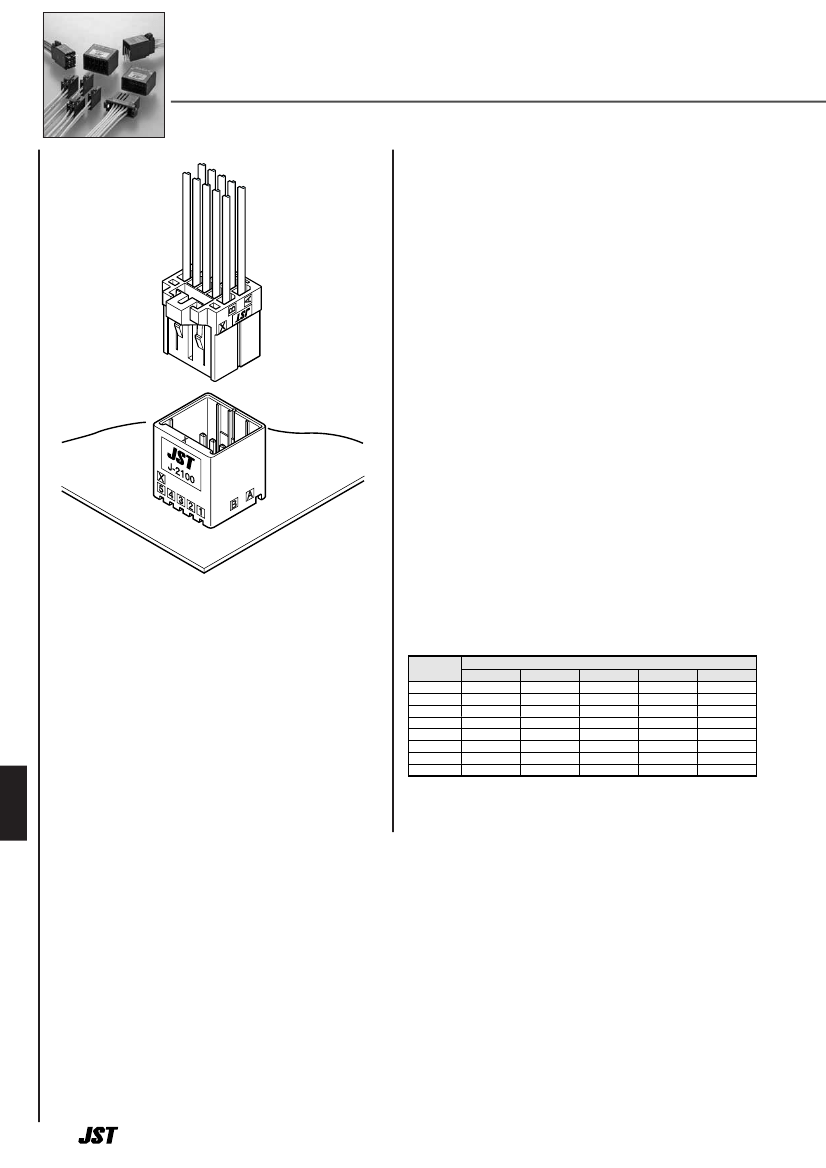

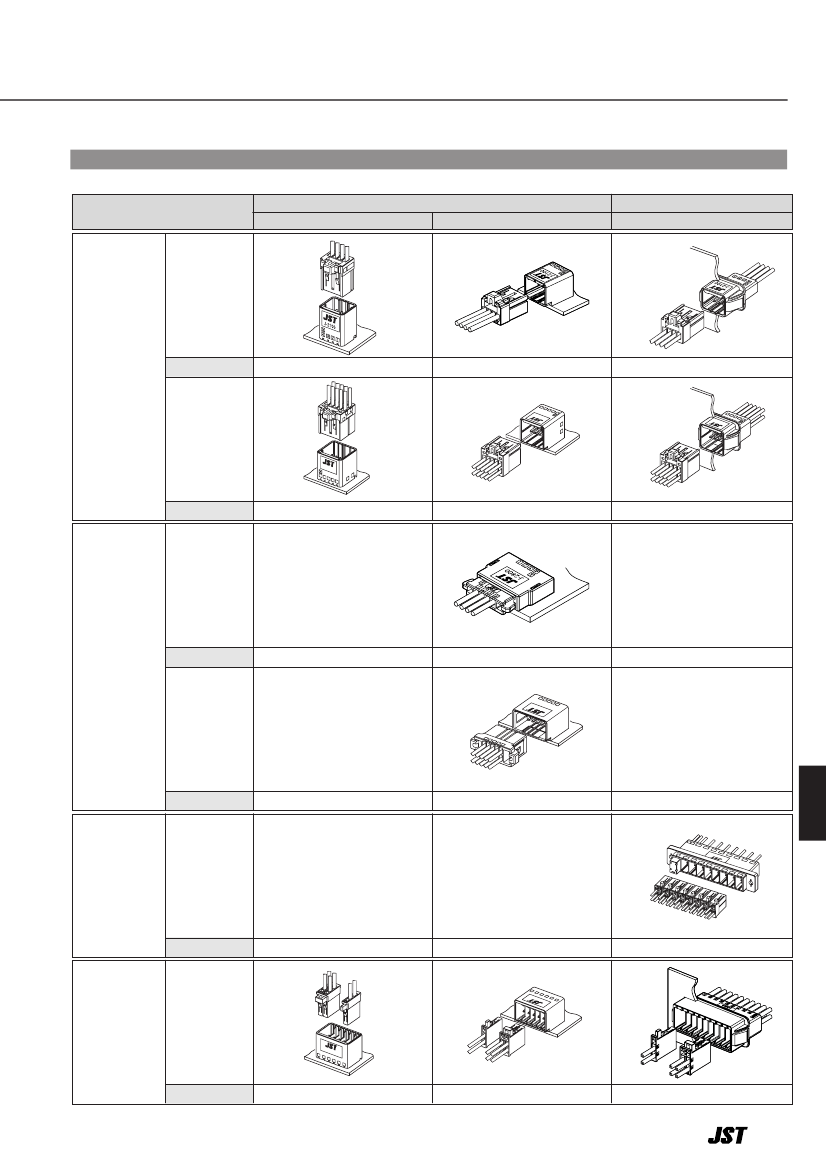

2.5mm pitch/Disconnectable Crimp style connectors(Wire-to-board/Wire-to-wire)

JFA

CONNECTOR J2000

SERIES

Specifications –––––––––––––––––––

• Current rating: 4.6A max. AC, DC (3 circuits/AWG #20)

• Voltage rating: 250V AC, DC

• Temperature range: –55°C to +105°C

(including temperature rise in applying

electrical current)

• Withstanding voltage: 1,500V AC/minute

• Applicable wire: AWG #28 to #20 (0.08 to 0.75mm2)

• Applicable PC board thickness: 1.6mm

2.5mm pitch connector for miniaturization

of electronic equipment.

Center locking or side locking options can

be used depending on the required

application.

Receptacle contacts are designed to be

common with all JFA connector J2000

series.

• Double-spring construction

• 2 kinds of locking method

• Housing lance

• Clear “click feeling”

*Contact JST for details.

*RoHS compliant products are published.

Current rating

Circuits

#20

4.6

4.5

4.3

4.1

3.9

3.6

3.2

2.9

#22

4.4

4.3

4.1

3.6

3.4

3.1

2.8

2.5

Wire size (AWG)

#24

3.4

3.2

2.8

2.6

2.5

2.4

2.2

2.1

#26

3.0

2.8

2.6

2.3

2.2

2.0

1.8

1.7

Unit: A

#28

2.4

2.3

2.1

1.9

1.8

1.6

1.4

1.3

Standards ––––––––––––––––––––––

Recognized E60389

436

Recommended Resources

Amplitude modulation and detection circuit

Single channel infrared remote control receiving circuit

DC motor energy consumption braking circuit_2

20HZ-20KHZ variable audio oscillator circuit diagram

Telephone splitter circuit diagram

820e computer motherboard circuit diagram_52
