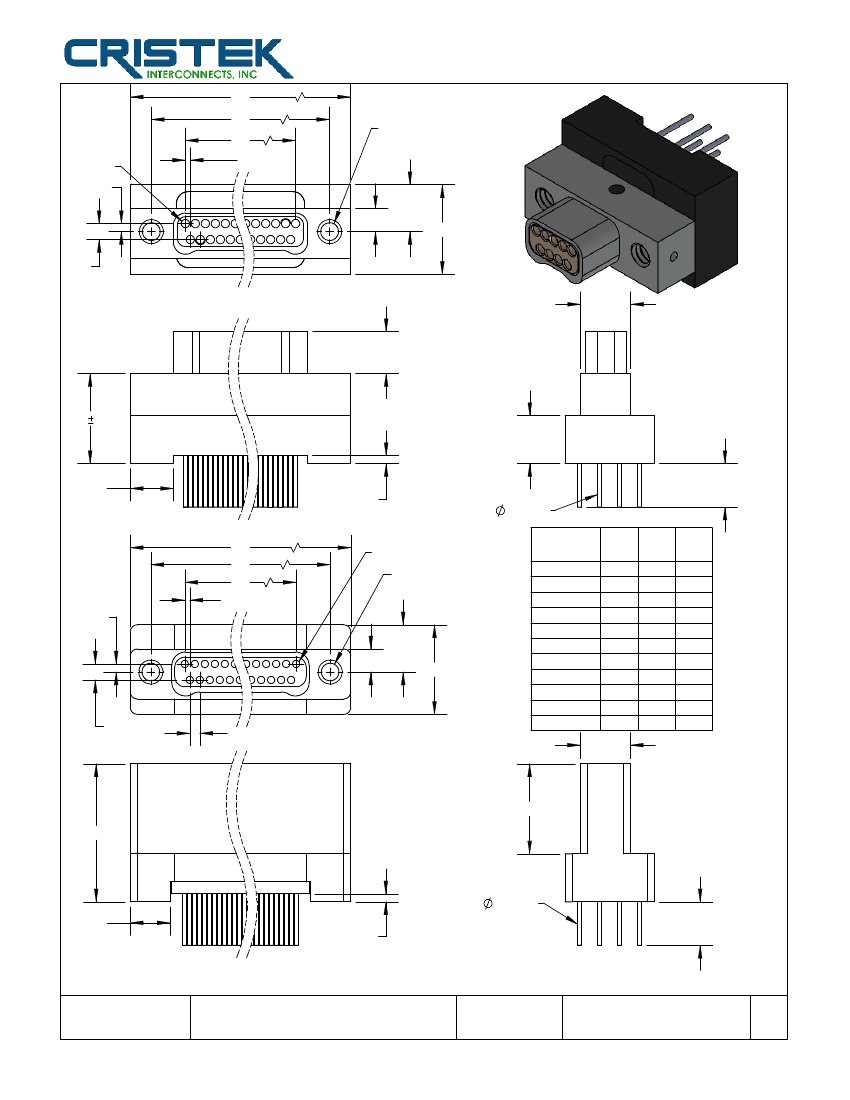

SERIES
BVN2
NANO METAL SHELL DUAL ROW
VERTICAL BOARD MOUNT
A
B
C
POS 1
.020
.118
.0575
.225
.0125
2x #0-80 UNF-2B
THREADED HOLE
.040
.125
.105
.225 .010
.120
SEE TERMINATION
OPTIONS
.010 TYP
.108
.020
PLUG
A
B
C
.0125
.020
.118
.0575
.225
POS 1
2x #0-80 UNF-2B
THREADED HOLE
NO. OF
CONTACTS
9
15
21
25
31
37
51
65
69
85
91
A
.375
.450
.525
.575
.650
.725
.900
1.075
1.125
1.377
1.452
B
.270
.345
.420
.470
.545
.620
.795
.970
1.020
1.246
1.321
C
.100
.175
.250
.300
.375
.450
.625
.800
.850
1.050
1.125
.040
.025
.125
.225
.345
.010 TYP
.108
.020
SEE TERMINATION
OPTIONS
RECEPTACLE
(FOR PLUG AND RECEPTACLE PCB LAYOUTS, SEE SHEETS 3 AND 4)
TOLERANCE: .XXX ±.005
.XX ±.01
ANGLE ±1°
TITLE
NANO METAL SHELL
DUAL ROW VERTICAL
BOARD MOUNT
DWG. NO.
SHT
REV
1
OF
4
BVN2
E
888.265.9162
CRISTEK.COM
SERIES
BVN2
NANO METAL SHELL DUAL ROW
VERTICAL BOARD MOUNT
1
6
5
9
1
9
8
15
1
12
11
1
13
5
9
1
9
1
17
15
16
31
21
1
20
21 14
25
19
37
25
9
8
15
6
1
11
21
15
9
21
19
37
1 13
12 25
1
25
1
20
14
16
31
1
17
31
1
27
37
26
51
31
26
51
37
1
27
51
1
34
33
65
33
65
51
1
34
65
1
36
35
69
35
69
65
1
36
69
1
44
43
85
43
85
69
1
44
85
1
47
46
91
46
91
85
1
47
91
91
PLUG FACE
RECEPTACLE FACE

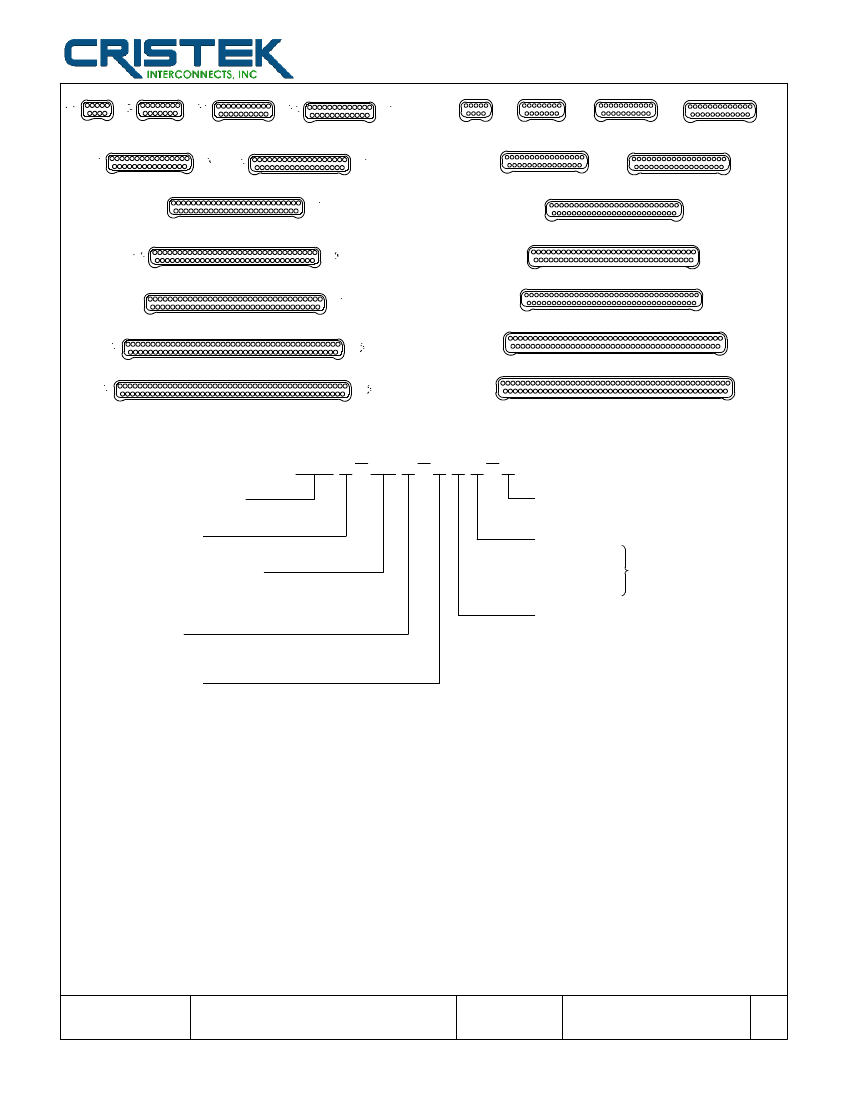

BVN 2
NANO METAL SHELL
VERTICAL BOARD MOUNT
BODY STYLE
2 = DUAL ROW
NUMBER OF CONTACTS
09 25 51 85
15 31 65 91
21 37 69
GENDER
P = PLUG, PIN CONTACTS
S = RECEPTACLE, SOCKET CONTACTS
HARDWARE
T = THREADED HOLE
XX X
T X X
T
PCB MOUNTING METHOD
T = #0-80 THREADED INSERT
TERMINATIONS
1 = .109 ±.015
2 = .140 ±.015
3 = .172 ±.015
4 = .190 ±.015
ALL 30 AWG
HOT SOLDER DIPPED
SHELL FINISH
ALUMINUM
A = CADMIUM
B = NICKEL
C = ZINC-NICKEL
G = GOLD
STAINLESS STEEL
P = PASSIVATE
TITANIUM
T = TITANIUM (FINISH N/A)
MATERIALS AND FINISHES ARE IAW MIL-DTL-32139
FOR DETAILS SEE MIL SPEC OR WWW.CRISTEK.COM
1. MATERIALS:
SHELL - ALUMINUM ALLOY OR STAINLESS STEEL
OR TITANIUM
INSULATOR - LIQUID CRYSTAL POLYMER OR
GLASS FILLED THERMOPLASTIC
CONTACT - COPPER ALLOY
3. SPECIFICATIONS:
4. ADDITIONAL INFORMATION:
2. FINISH:
SHELL - ELECTROLESS NICKEL OR CADMIUM OVER
ELECTROLESS NICKEL OR PASSIVATE OR
GOLD OR ZINC-NICKEL
CONTACT - GOLD OVER NICKEL
CURRENT RATING ------------------ 1 AMP MAX
FOR OTHER TERMINATIONS, CONTACT CRISTEK.
TEMPERATURE RATING ---------- -55° C TO +125° C
INSULATION RESISTANCE -------- 5000 MEGOHMS
5. SIZE 85 & 91 HARDWARE IS #2-56
DWV AT SEA LEVEL ---------------- 250 VAC
DWV AT 70,000 FT ALTITUDE --- 100 VAC
CONTACT RESISTANCE ------------ 30 mV DROP @ 1 A, 10 mA
CONTACT RETENTION ------------- 2 LBS AXIAL LOAD
ENGAGEMENT FORCE ------------- 5 oz MAX
SEPARATION FORCE --------------- 0.4 oz MIN
TOLERANCE: .XXX ±.005
.XX ±.01
ANGLE ±1°
TITLE
NANO METAL SHELL
DUAL ROW VERTICAL
BOARD MOUNT
DWG. NO.
SHT
REV
2
OF
4
BVN2
E
888.265.9162
CRISTEK.COM
SERIES
BVN2
NANO METAL SHELL DUAL ROW
VERTICAL BOARD MOUNT
.085
1
2
6
3
4
8
7
9
9
5
.020
.085
1
2
3
4
5
6
7
8
.020
.085
1
2
12
3
4
5
6
7
9 11
8 10
.020
11 13 15
10 12 14
14 16 18 20
13 15 17 19 21
.0975
9
.0975
15
.0975
21
.0125 TYP
.025 TYP
.0375 TYP
.050 TYP
.020
.085
.020
1
2
17
3
4
5
6
7
9 11 13 15
8 10 12 14 16
14
.085
1
2
3
4
5
6
7
9 11 13
8 10 12
19 21 23 25 27 29 31
18 20 22 24 26 28 30
16 18 20 22 24
15 17 19 21 23 25
.0975
31
.085
.020
1
2
3
4
5
6
7
9 11 13 15 17 19
8 10 12 14 16 18
.0975
25
.020
1
2
3
4
5
6
7
9 11 13 15 17 19 21 23 25
8 10 12 14 16 18 20 22 24 26
.085
20
22 24 26 28 30 32 34 36
21 23 25 27 29 31 33 35 37
27
29 31 33 35 37 39 41 43 45 47 49 51
28 30 32 34 36 38 40 42 44 46 48 50
.0975
.0975
37
.085
1
2
34
3
4
5
6
7
9 11 13 15 17 19 21 23 25 27 29 31 33
8 10 12 14 16 18 20 22 24 26 28 30 32
36 38 40 42 44 46 48 50 52 54 56 58 60 62 64
51
.020
35 37 39 41 43 45 47 49 51 53 55 57 59 61 61 65
.0975
65
.085
1
2
36
3
4
5
6
7
9 11 13 15 17 19 21 23 25 27 29 31 33 35
8 10 12 14 16 18 20 22 24 26 28 30 32 34
.020
38 40 42 44 46 48 50 52 54 56 58 60 62 64 66 68
37 39 41 43 45 47 49 51 53 55 57 59 61 63 65 67 69
.0975
69
.020
1
2
44
3
4
5
6
7
9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43
8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42
.098
46 48 50 52 54 56 58 60 62 64 66 68 70 72 74 76 78 80 82 84
45 47 49 51 53 55 57 59 61 63 65 67 69 71 73 75 77 79 81 83 85
.1105
.098
1
2
47
85
3
5
7
9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43 45
.020
4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46
49 51 53 55 57 59 61 63 65 67 69 71 73 75 77 79 81 83 85 87 89 91
.1105
48 50 52 54 56 58 60 62 64 66 68 70 72 74 76 78 80 82 84 86 88 90
91

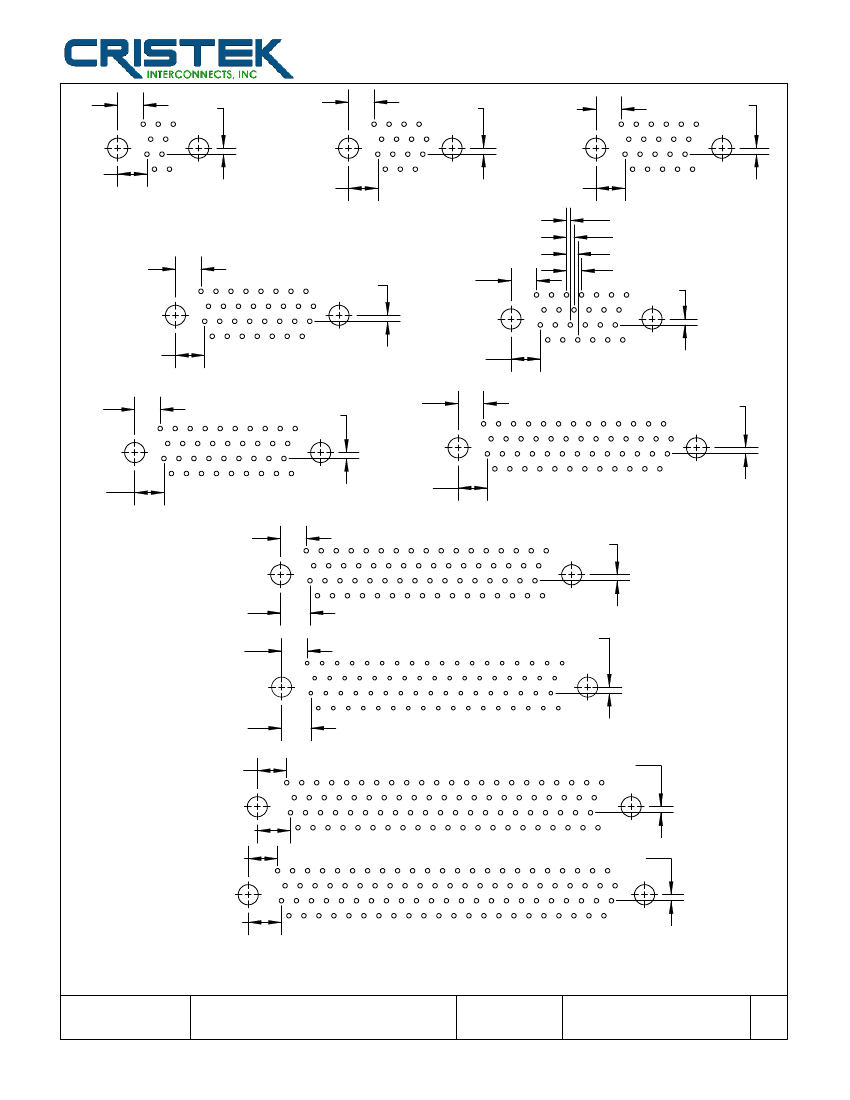

BVN2 PLUG PCB LAYOUTS
.050 X .050 GRID PATTERN OFFSET .025 (EACH ROW)
TOLERANCE: .XXX ±.005
.XX ±.01
ANGLE ±1°
TITLE
NANO METAL SHELL
DUAL ROW VERTICAL
BOARD MOUNT
DWG. NO.
SHT
REV
3
OF
4
BVN2
E
888.265.9162
CRISTEK.COM
SERIES
BVN2
NANO METAL SHELL DUAL ROW
VERTICAL BOARD MOUNT
.085
5
2
9
3
4
7
8
6
15
1
.020
.085
8
7
6
5
4
3
2
1
.085
.020
11 9
10 8
21
7
6
5
4
3
2
1
.020
13 11 9
14 12 10
19 17 15 13
20 18 16 14 12
.0975
.0975
.0125 TYP
.025 TYP
.0375 TYP
.050 TYP
13 11 9
12 10 8
25
7
6
5
4
3
2
1
9
15
.0975
21
.085
.085
16 14 12 10 8
15 13 11 9
31
7
6
5
4
3
2
1
.020
23 21 19 17 15
24 22 20 18 16 14
29 27 25 23 21 19 17
30 28 26 24 22 20 18
.0975
25
.020
19 17 15 13 11 9
18 16 14 12 10 8
37
7
6
5
4
3
2
1
.0975
31
.020
26 24 22 20 18 16 14 12 10 8
25 23 21 19 17 15 13 11 9
51
7
6
5
4
3
2
1
.085
.085
35 33 31 29 27 25 23 21
36 34 32 30 28 26 24 22 20
49 47 45 43 41 39 37 35 33 31 29 27
50 48 46 44 42 40 38 36 34 32 30 28
.0975
.0975
37
.085
33 31 29 27 25 23 21 19 17 15 13 11 9
32 30 28 26 24 22 20 18 16 14 12 10 8
65
7
6
5
4
3
2
51
1
63 61 59 57 55 53 51 49 47 45 43 41 39 37 35
64 62 60 58 56 54 52 50 48 46 44 42 40 38 36 34
.0975
.085
65
35 33 31 29 27 25 23 21 19 17 15 13 11 9
34 32 30 28 26 24 22 20 18 16 14 12 10 8
69
7
6
5
4
3
2
1
.020
67 65 63 61 59 57 55 53 51 49 47 45 43 41 39 37
68 66 64 62 60 58 56 54 52 50 48 46 44 42 40 38 36
.0975
.098
69
.020
43 41 39 37 35 33 31 29 27 25 23 21 19 17 15 13 11 9
42 40 38 36 34 32 30 28 26 24 22 20 18 16 14 12 10 8
85
7
6
5
4
3
2
1
83 81 79 77 75 73 71 69 67 65 63 61 59 57 55 53 51 49 47 45
84 82 80 78 76 74 72 70 68 66 64 62 60 58 56 54 52 50 48 46 44
.1105
.098
85
46 44 42 40 38 36 34 32 30 28 26 24 22 20 18 16 14 12 10 8
91
6
4
2
.020
45 43 41 39 37 35 33 31 29 27 25 23 21 19 17 15 13 11 9 7 5 3 1
89 87 85 83 81 79 77 75 73 71 69 67 65 63 61 59 57 55 53 51 49 47
90 88 86 84 82 80 78 76 74 72 70 68 66 64 62 60 58 56 54 52 50 48
.1105
91

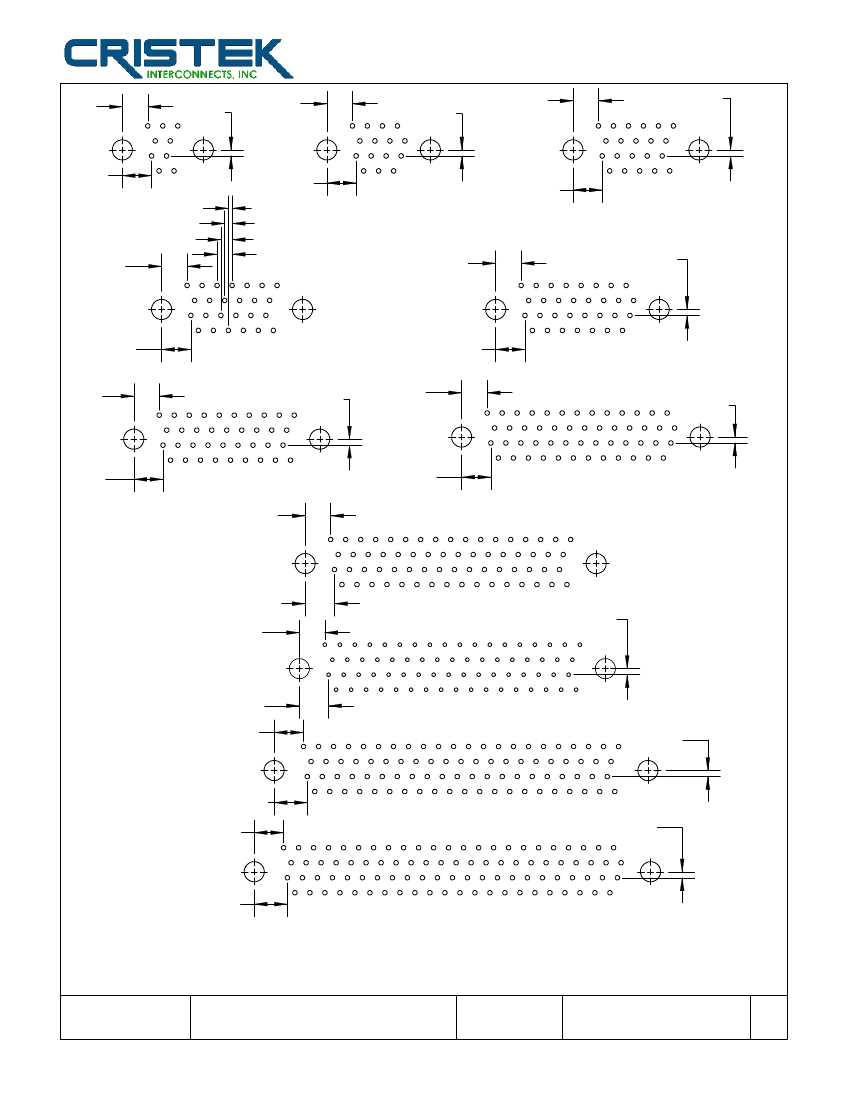

BVN2 RECEPTACLE PCB LAYOUTS
.050 X .050 GRID PATTERN OFFSET .025 (EACH ROW)
TOLERANCE: .XXX ±.005
.XX ±.01
ANGLE ±1°
TITLE
NANO METAL SHELL
DUAL ROW VERTICAL
BOARD MOUNT
DWG. NO.
SHT
REV
4
OF
4
BVN2
E
888.265.9162
CRISTEK.COM
