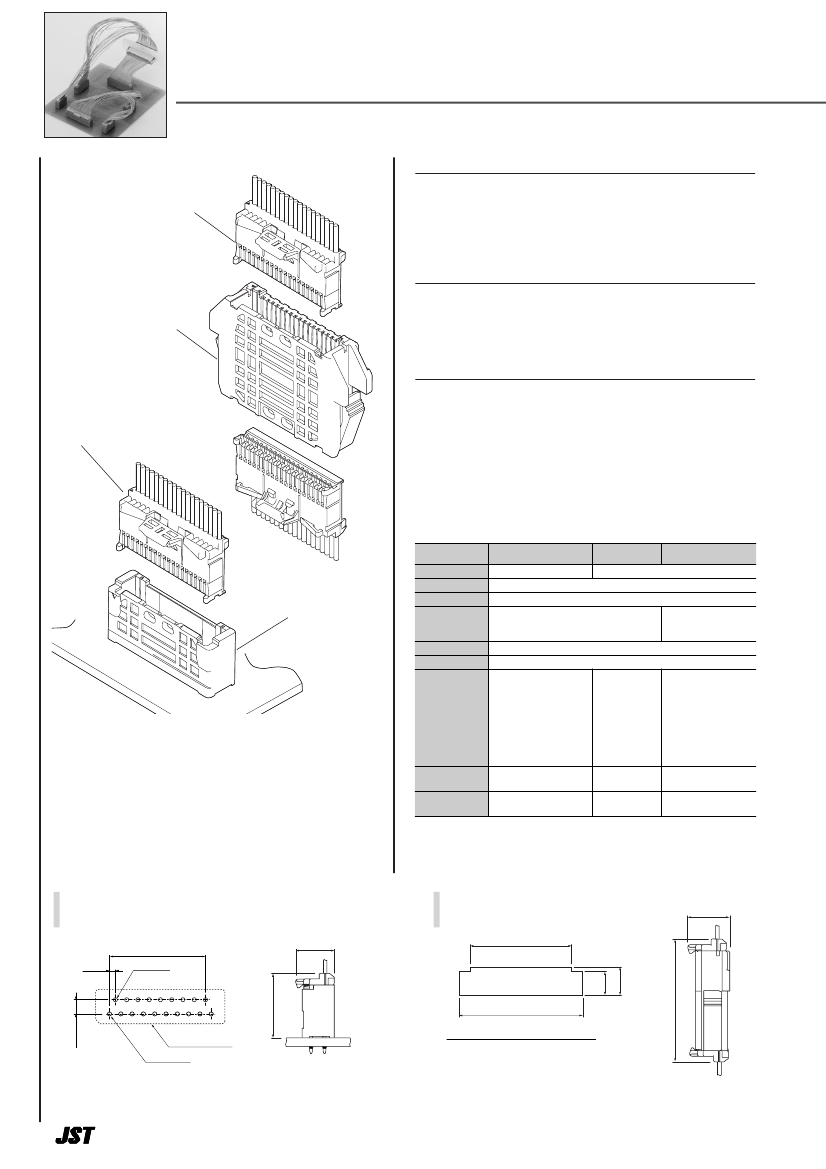

1.0mm pitch/Disconnectable Insulation displacement and Crimp style connectors
CS connector
• Secure locking structure
• Realization of multi-circuits by low insertion
force
• Countermeasure for unexpected prying
insertion
CSH connector
• Housing lances
• Interchangeability
• Realized current rating of 2A with AWG#26
TCS connector
• Secure locking structure
• Countermeasure for unexpected prying
insertion
CS
FAMILY SERIES / CSR CSH CS TCS CONNECTOR
•
•
•
IDC style CSR connector
Crimp style CSH connector
TCS connector for W-B
connector
IDC style CSR connector
Crimp style CSH connector
Standards ––––––––––––––––––––––
1
0
Recognized E60389
Certified LR20812
Specifications ––––––––––––––––––
CSR · CS connector
CS connector Header
Current rating
Voltage rating
Temperature rise
Contact
resistance
CSH · CS
TCS connector
connector
1.8A (AWG#27)
2A (AWG #26)
50V AC · DC
-25°C to +85°C (including temperature rise)
This is a 1.0mm pitch insulation
displacement connector with the secure
locking structure to prevent coming off the
connector and incomplete mating. 1.8A in
rated current was realized by using AWG#27.
The various wide usage can be provided,
since multi-IDC-harnesses by automatic IDC
machine, crimping type, and header for wire
to wire connection are available.
CS connector
Odd circuit number from 3 to 11 circuits.
: 6.7
Odd circuit number from 13 to 31 circuits.
: 7.2
A
±0.05
1
±0.05
φ0.7
＋0.1
0
Initial value / 25mΩ max.
Initial value / 15mΩ max.
After environmental
After environmental testing
testing / 50mΩ max.
/ 30mΩ max.
Insulation resistance
500MΩ min.
Withstanding voltage
500V AC/minute
UL11079,UL3619,
UL3855,UL11030
AWG#27 #28
・
AWG#30 to #26
Applicable wire
Conductor / 7-strands,
Insulation O.D.
tincoated annealed copper
/ 0.6 to 0.8mm
Insulation O.D.
/ 0.65 to 0.73mm
(Contact JST for details.)
Applicable PC
board thickness
Applicable panel
thickness
1.6mm
-
1.6mm
-
-
0.8 to 2.0mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
TCS connector
Odd circuit number from 3 to 11 circuits.
: 7.4
Odd circuit number from 13 to 31 circuits.
: 7.9
E
＋0.1
0
6.1
±0.05
5
±0.05
11.9
D
±0.05
2.5
±0.05
Connector outline
Circuit No.1
Panel hole dimensions
(Applicable panel thickness: t=0.8 to 2.0mm)
Note: 1. The above figure is the figure viewed from the connector mounting side.
2. Tolerances are non-cumulative:
±
0.05mm for all centers.
3. Hole dimensions differ according to the kind of PC board and piercing method. The dimensions above should serve as a guideline. Contact JST for details.
Note: D, E dimensions: Refer to TCS connector
(Unit for wire-to-wire connection).
1
22.7
CS FAMILY SERIES / CSR
•
CSH
•
CS
•
TCS CONNECTOR
CSR connector socket
(3 circuits)
B
C
(5 circuits)
B
C
Circuits
3
5
7
9
11
13
15
17
19
Model No.
03CSR-8PK
05CSR-8PK
07CSR-8PK
09CSR-8PK
11CSR-8PK
13CSR-8PK
15CSR-8PK
17CSR-8PK
19CSR-8PK
21CSR-8PK
23CSR-8PK
25CSR-8PK
27CSR-8PK
29CSR-8PK
31CSR-8PK
A
Dimensions (mm)
B
C
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
32.0
7.2
6.7
Q’ty /
box
13,500
9,000
6,660
5,400
4,500
3,780
3,240
2,880
2,700
2,340
2,160
1,980
1,800
1,800
1,620
2.0
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
10.1
Circuit No.1
1
A
Circuit No.1
3.8
1
A
3.8
(7, 9, 11 circuits)
B
C
(13, 15, 17, 19 circuits)
B
C
10.1
21
23
25
27
10.1
10.1
29
31
Circuit
No.1
1
A
3.8
Circuit
No.1
1
A
3.8
Material and Finish
Contact: Copper alloy, tin-plated
Housing: PBT, UL94V-0, pink
(21, 23, 25, 27, 29, 31 circuits)
B
C
RoHS compliance
Circuit
No.1
1
A
3.8
CSH connector contact
Model No.
SCSH-002T-P0.2N
7.7
2.1
0.8
0.8
10.1
Applicable wire
mm
2
AWG#
0.05 to 0.13
30 to 26
Insulation O.D. (mm)
0.6 to 0.8
Q'ty /
reel
12,000
Material and Finish
Copper alloy, tin-plated
2.1
RoHS compliance
Crimping
machine Crimp applicator
MKS-L-10-3
−
Contact
Applicator
Dies
−
Crimp applicator with dies
−
SCSH-002T-P0.2N
AP-K2N
MK/SCSH-002-02 APLMK SCSH002-02
2
CS FAMILY SERIES / CSR
•
CSH
•
CS
•
TCS CONNECTOR
CSH connector housing
(11 circuits)
B
6.7
Circuits
11
13
Model No.
CSH-11-PK-N
CSH-13-PK-N
CSH-15-PK-N
CSH-17-PK-N
CSH-19-PK-N
CSH-25-PK-N
CSH-27-PK-N
Material
Dimensions (mm)
A
B
10.0
12.0
14.0
16.0
18.0
24.0
26.0
12.0
14.0
16.0
18.0
20.0
26.0
28.0
Q’ty /
box
1,000
1,000
1,000
500
500
500
500
10.1
15
17
19
Circuit
No.1
A
1
3.8
25
27
(13, 15, 17, 19 circuits)
B
7.2
Housing: PBT, UL94V-0, pink
RoHS compliance
10.1
Circuit
No.1
A
1
3.8
(25, 27 circuits)
B
7.2
Circuit
No.1
A
10.1
1
3.8

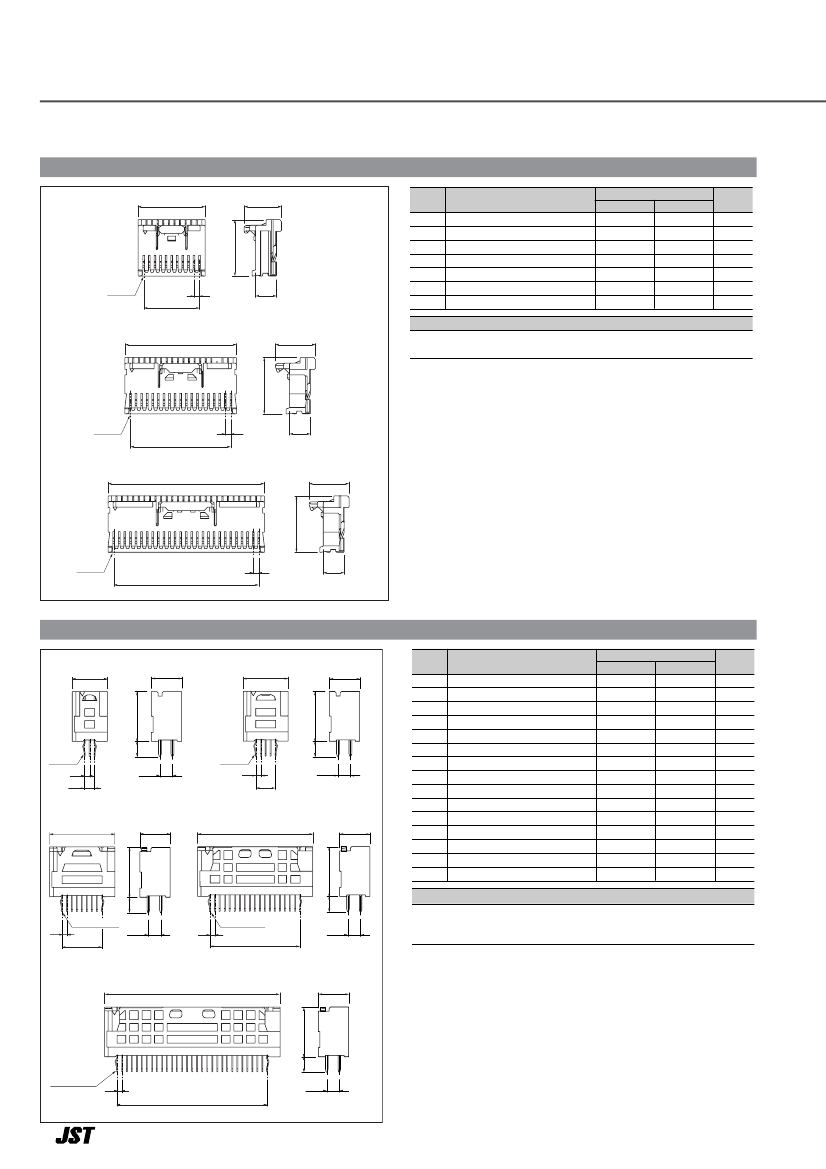

CS connector through-hole type shrouded header
(3 circuits)
B
6
(5 circuits)
B
6
Circuits
3
5
7
9
11
13
2.5
Model No.
B03B-CSRK
B05B-CSRK
B07B-CSRK
B09B-CSRK
B11B-CSRK
B13B-CSRK
B15B-CSRK
B17B-CSRK
B19B-CSRK
B21B-CSRK
B23B-CSRK
B25B-CSRK
B27B-CSRK
B29B-CSRK
B31B-CSRK
Dimensions (mm)
A
B
2.0
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
7.0
9.0
11.0
13.0
15.0
17.0
19.0
21.0
23.0
25.0
27.0
29.0
31.0
33.0
35.0
Q’ty /
box
10,800
7,920
6,480
5,520
4,800
4,080
3,600
3,360
3,120
2,880
2,640
2,400
2,160
2,160
1,920
9.8
Circuit
No.1
1
A
3
Circuit
No.1
2.5
1
A
3
9.8
15
17
19
21
23
6
(7, 9, 11 circuits)
B
6
(13, 15, 17, 19 circuits)
B
25
27
29
9.8
9.8
31
Material and Finish
3
3
Circuit No.1
2.5
A
Circuit No.1
2.5
A
1
1
Housing: Glass-filled PA 66, UL94V-0, red
Contact: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
RoHS compliance
This product displays (LF)(SN) on a label.
(21, 23, 25, 27, 29, 31 circuits)
B
6
Circuit No.1
1
A
3
2.5
3
9.8
CS FAMILY SERIES / CSR
•
CSH
•
CS
•
TCS CONNECTOR

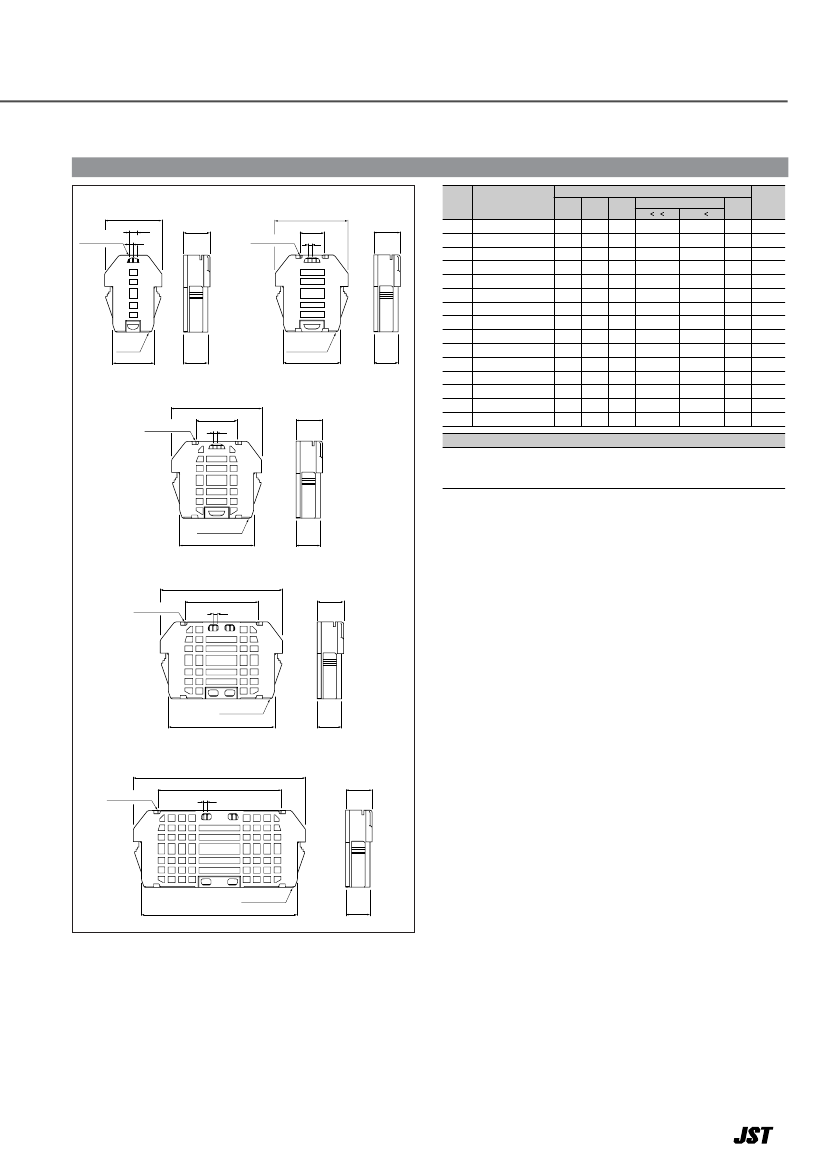

TCS connector (Unit for wire-to-wire connection)
(3 circuits)
B
A
Circuit No.1
1
6.4
Circuit No.1
(5, 7 circuits)
B
A
1
6.4
Circuits
3
5
7
9
11
13
15
17
19
Model No.
BU03P-TCS-LE
BU05P-TCS-LE
BU07P-TCS-LE
BU09P-TCS-LE
BU11P-TCS-LE
BU13P-TCS-LE
BU15P-TCS-LE
BU17P-TCS-LE
BU19P-TCS-LE
BU21P-TCS-LE
BU23P-TCS-LE
BU25P-TCS-LE
BU27P-TCS-LE
BU29P-TCS-LE
BU31P-TCS-LE
A
2.0
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
B
13.8
15.8
17.8
19.8
21.8
23.8
25.8
27.8
29.8
31.8
33.8
35.8
37.8
39.8
41.8
Dimensions (mm)
D
C
t0.8
<
D
<
t1.2 t1.2 < D
<
t2.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
28.0
30.0
32.0
34.0
36.0
38.0
10.7
12.7
14.7
16.7
18.7
20.7
22.7
24.7
26.7
28.7
30.7
32.7
34.7
36.7
38.7
11.0
13.0
15.0
17.0
19.0
21.0
23.0
25.0
27.0
29.0
31.0
33.0
35.0
37.0
39.0
E
6.2
8.2
10.2
12.2
14.2
16.2
18.2
20.2
22.2
24.2
26.2
28.2
30.2
32.2
34.2
Q’ty /
box
300
250
250
250
200
200
150
150
150
100
100
100
100
100
100
Circuit
No.1
C
5.9
Circuit No.1
C
5.9
21
23
25
27
(9, 11 circuits)
B
A
Circuit No.1
1
6.4
29
31
Material and Finish
Housing: PBT, UL94V-0, light blue
Contact: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
RoHS compliance
This product displays (LF)(SN) on a label.
Circuit No.1
C
5.9
(13, 15, 17, 19 circuits)
B
A
Circuit No.1
1
6.4
Circuit No.1
C
5.9
(21, 23, 25, 27, 29, 31 circuits)
B
A
Circuit No.1
1
6.4
Circuit No.1
C
5.9
4
