BZH16/A0420/13: DescriptionMains Power Connector, 4A, 250VAC, Male, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size61KB，1 Pages; ManufacturerBULGIN; Websitehttp://www.bulgin.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

BZH16/A0420/13 Overview

Mains Power Connector, 4A, 250VAC, Male, Solder Terminal, ROHS COMPLIANT

BZH16/A0420/13 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	STANDARDS: UL, CSA, VDE
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	4A, 250VAC
Manufacturer's serial number	BZH
Installation type	PANEL
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

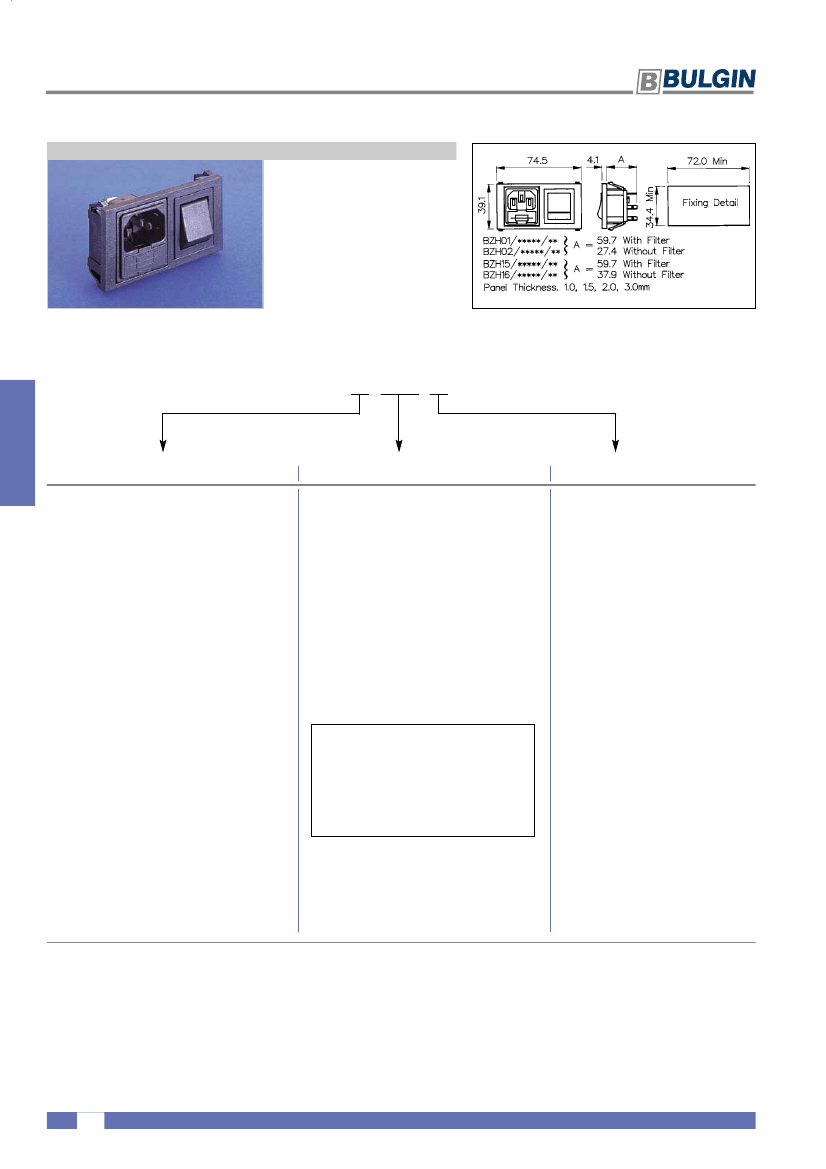

POLYSNAP

®

POWER INLET MODULES

C14 IEC Fused Inlet - Horizontal

HORIZONTAL MODULE ARRANGEMENT

Fused Inlet with 2.8mm or

6.3mm tags

Double Pole Switch Variations

Filtered Inlet Option

Options of I/O marked

switches

BZH01/Z0000/10

IEC CONNECTORS

How to Order

BZH xx / xxxxx / xx

Type of Inlet / Outlet

Single Fused C14 Power Inlet (cold condition),

2.8 or 6.3mm tabs:

01

= PF0011/63

02

= PF0011/28

Twin Fused C14 Power Inlet (cold condition),

2.8 or 6.3mm tabs:

15

= PF0033/63

16

= PF0033/28

Filtered or Non Filtered Inlet

Z0000 = Non Filtered

Axxxx = Standard

Bxxxx = Medical

Cxxxx = High Performance Standard

(Single Fuse Version only)

Combination of Other Components

Neon Indicator:

03

= Red Neon Indicator

Double Pole Switch:

10

= D.P Switch

.

Double Pole Neon Switch:

11

= D.P Red Neon Switch

.

12

= D.P Green Neon Switch

.

Double Pole High Inrush Switch:

13

= D.P High Inrush Switch

.

Double Pole Switch marked I/O:

70

= D.P Switch (I/O)

.

Double Pole Neon Switch Marked (I/O):

76

= D.P Red Neon Switch (I/O)

.

77

= D.P Green Neon Switch (I/O)

.

Double Pole High Inrush Switch Marked

(I/O):

78

= D.P High Inrush Switch (I/O)

.

B1

= D.P High Inrush Green Neon Switch

.

(I/O)

For Filtered inlet use 6th to 9th characters from

filter ordering code see pages 115-118.

E.g. BZH01/A0620/10

Note: For technical details of individual components please see page 92

106

www.bulgin.co.uk
