BZH01/A0630/01 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BZH01/A0630/01

BZH01/A0630/01: DescriptionMains Power Connector, 6A, 250VAC, Male, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size63KB，1 Pages; ManufacturerBULGIN; Websitehttp://www.bulgin.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

BZH01/A0630/01 Overview

Mains Power Connector, 6A, 250VAC, Male, Solder Terminal, ROHS COMPLIANT

BZH01/A0630/01 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS: IEC/EN; VDE; UL; CSA
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	6A, 250VAC
Manufacturer's serial number	BZH
Installation type	PANEL
Options	GENERAL PURPOSE
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

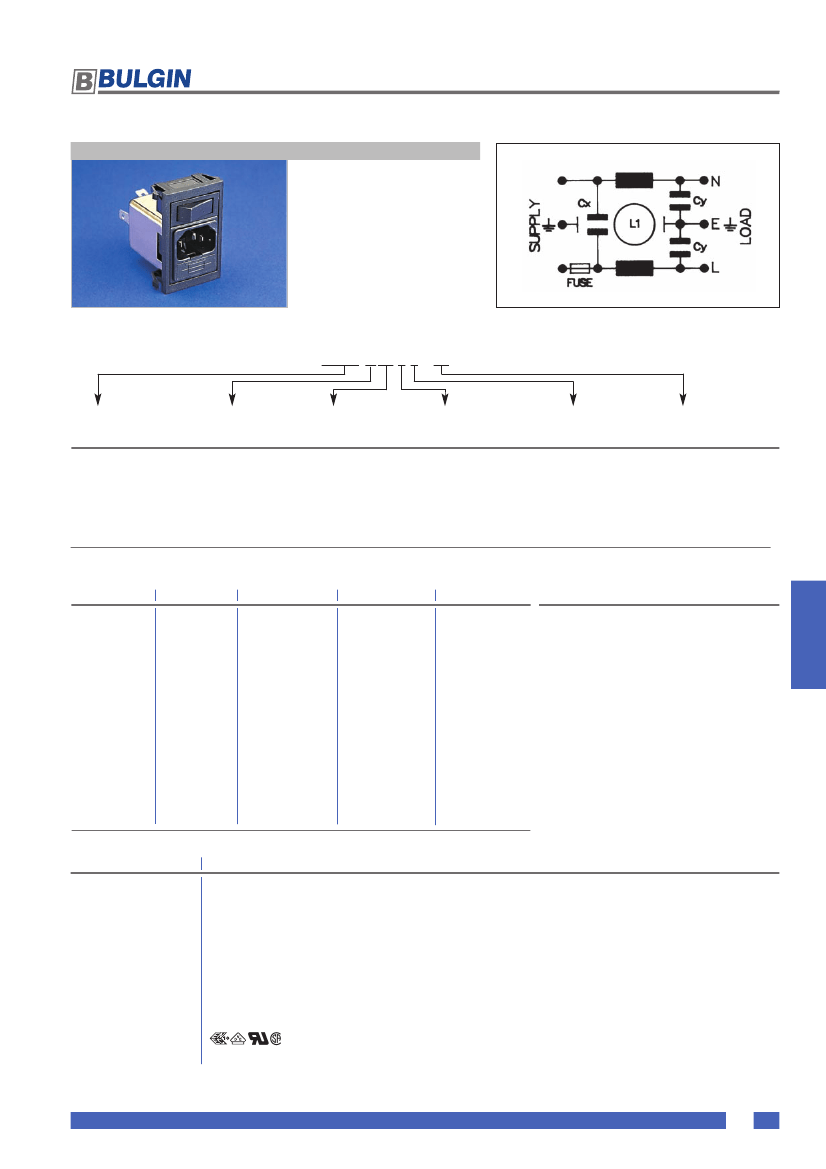

POLYSNAP

POWER INLET MODULES

C14 Inlet Single Fuse - Standard Filter

EMI FILTER OPTIONS

For Polysnap modules BZV01,

BZV02, BZH01, BZH02,

BZH11, BZH12, BZH19,

BZH20, BVA01, BVA02,

BVB01, BVB02

PF0011 style single fuse IEC

inlet

Using PS21/A style filter

Standard Attenuation Filter

Bxxxx/A xx x x / xx

Polysnap Part No.

From Polysnap Selection

Filter Type

A = Standard

Rating

01 = 1A

03 = 3A

06 = 6A

L/C Circuit

2 = Version 2

3 = Version 3

Additional

Components

0 = None

Polysnap Part No.

From Polysnap Selection

Rating

1 AMP

“

3 AMP

“

6 AMP

“

10 AMP

“

Version

Part No. Example

BZV01/A0630/01 =

2 x 12mH

2 x 1.8mH

2 x 6.5mH

2 x 0.7mH

2 x 2mH

1 x 47nF

1 x 15nF

1 x 47nF

1 x 15nF

1 x 47nF

2 x 2.2nF

BZV style Polysnap module with PF0011 single

fused (5 x 20mm) IEC power inlet, filter rated at

6 amp, L/C circuit version 3 (L1 = 2 x 2.0mH, Cx

= 1 x 47nF, Cy = 2 x 2.2nF), 6.3mm tabs and

single pole switch.

Filter Specification

Max. Working Voltage:

Earth Leakage Current:

Temperature Range:

Max. Ambient Temp.:

(@ Full Load)

Test Voltage:

Approvals:

Attenuation Curves:

See PS21/A filter, page 140

250V a.c. 50-400Hz

<0.35mA (250V. 50Hz)

–25ºC to +85ºC

40ºC (derate linearly to 0A @ 85ºC)

2700V d.c. 2 secs. Lines to Earth

1100V d.c. 2 secs. Live to Neutral

www.elektron-bulgin.com

127

IEC CONNECTORS
