B9P-VS: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,; CategoryThe connector The connector; File Size64KB，2 Pages; ManufacturerJST

Download Datasheet Parametric Compare View All

B9P-VS Overview

Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,

B9P-VS Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TOP ENTRY
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER COPPER
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	3.96 mm
Termination type	SOLDER
Total number of contacts	9
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

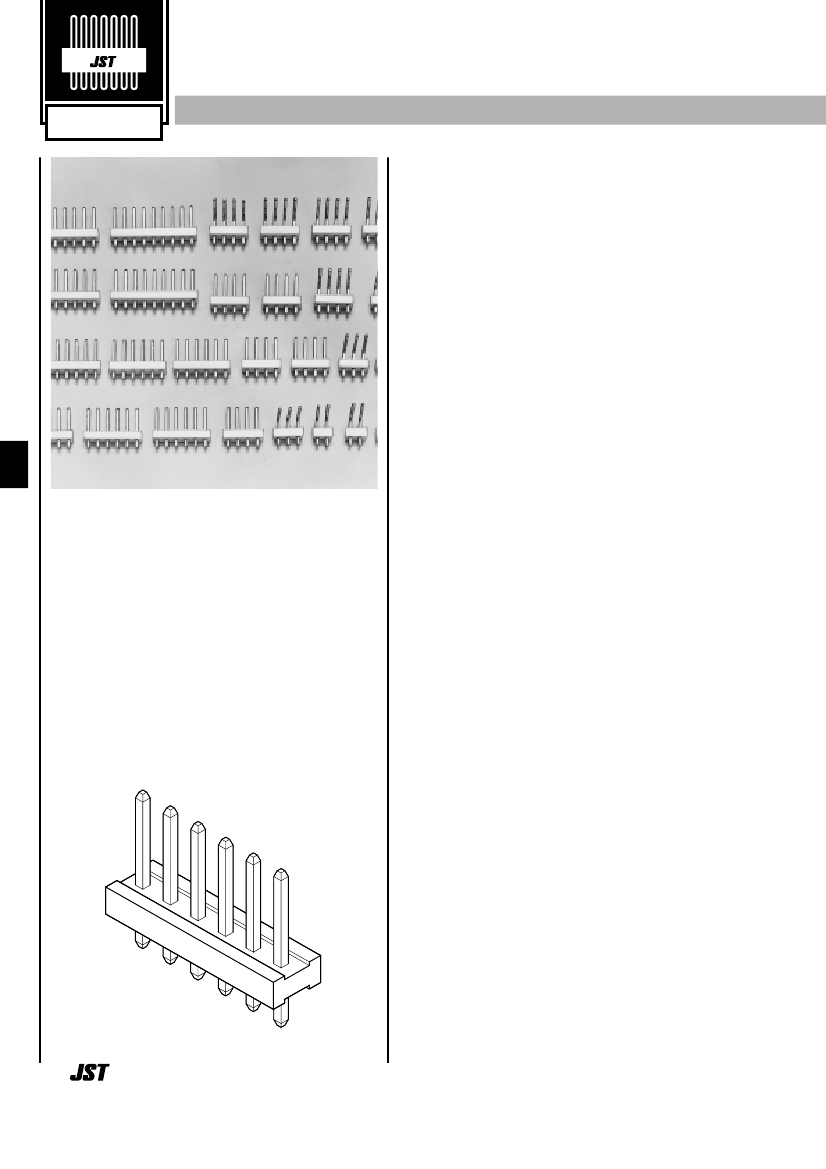

HEADER

3.96mm

(.156") pitch

Headers

This header can mate with a receptacle or

as a connector for the direct

interconnection of printed circuit boards.

Specifications –––––––––––––––––––

• Post: Brass, copper-undercoated, tin/lead-plated

• Wafer: Nylon 66, UL94V-0, natural (white)

• Pitch: 3.96mm(.156")

* Contact JST for details.

Standards ––––––––––––––––––––––

454

Recognized E60389

Certified LR20812

B9P-VS Related Products

	B9P-VS	B4P-VS	B7P-VS	B8P-VS	B2P-VS	B3P-VS	B6P-VS	B5P-VS
Description	Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,	Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	TOP ENTRY	TOP ENTRY	TOP ENTRY	TOP ENTRY	TOP ENTRY	TOP ENTRY	TOP ENTRY	TOP ENTRY
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER	TIN OVER COPPER
Contact completed and terminated	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm	3.96 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	9	4	7	8	2	3	6	5
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	-	-
