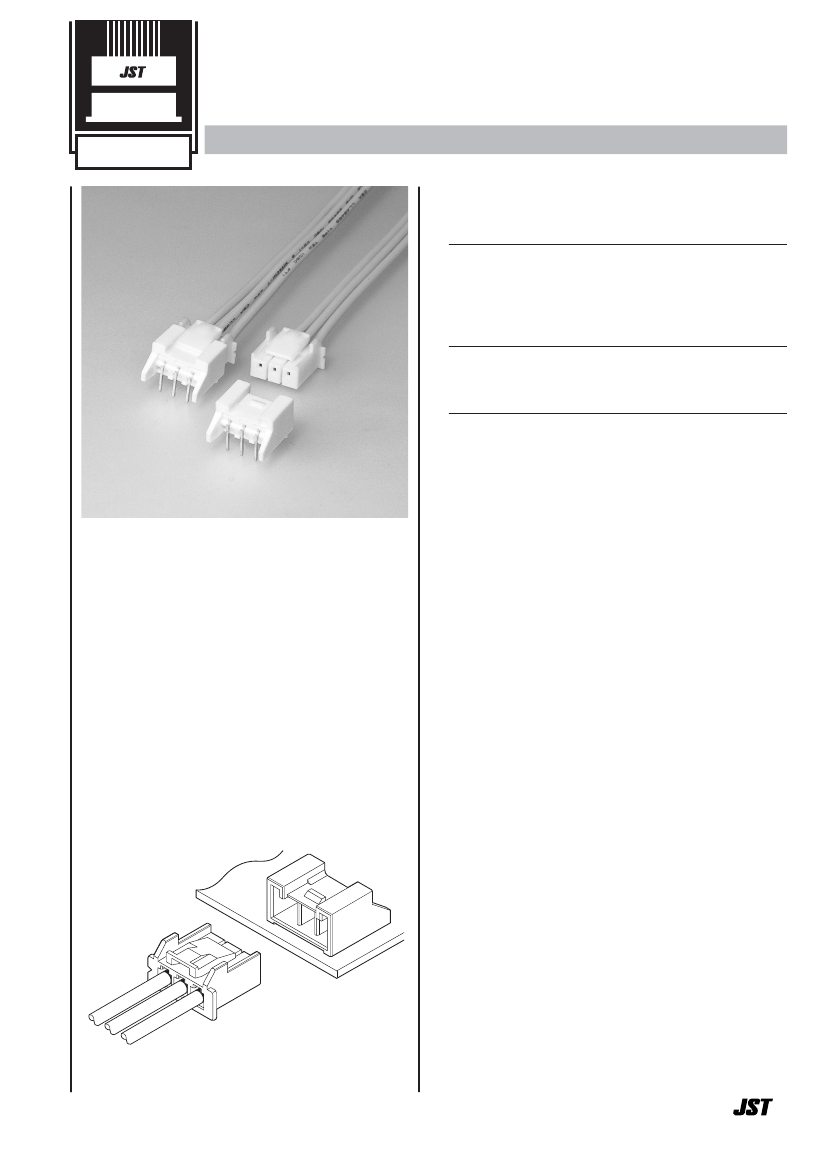

Crimp
VU
CONNECTOR
Disconnectable Crimp style connectors
3.96mm
pitch
Features ––––––––––––––––––––––––
• Secure locking device
The housing has a locking device to securely hold the header,
preventing accidental disconnection, because of external force
that might result from the routing of wires or of vibration, inverse
insertion and mating with incorrect circuit.
• Shrouded header
Shrouded header provides the longer creepage distance and
countermeasure for distorted extraction of connector.
• Flanged press pin
Header pin is the flanged press pin, preventing accidental
removal of the pins due to distorted extraction of connector.
VU connector is small type 3.96mm pitch
PC board connector for large current and
has the high reliability in a power supply
circuit, considering the fully shrouded
connector header structure against
"vibrating connector" and "distorted
extraction".
Specifications –––––––––––––––––––
• Current rating: 5A AC, DC (AWG #18)
• Voltage rating: 250V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m
Ω
max.
After environmental testing/20m
Ω
max.
• Insulation resistance: 1,000M
Ω
min.
• Withstanding voltage: 1,500V AC/minute
• Applicable wire: AWG #22 to #18
• Applicable PC board thickness: 1.6mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
Standards ––––––––––––––––––––––
0
1
Recognized E60389
Certified LR20812
1
VU
CONNECTOR
Contact –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
10.8
5.7
4.6
Model No.
SVU-21T-P0.6
Applicable wire
mm
2
AWG#
0.33
to
0.83
22
to
18
Insulation O.D.(mm) Q'ty / reel
1.7
to
3.0
4,000
3.5
Material and Finish
Phosphor bronze, tin-plated (reflow treatment)
2.3
RoHS compliance
Housing –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
B
A
3.96
9.4
Circuits
3
Model No.
VURP-03V-S
A
Dimensions (mm)
B
15.84
Q'ty / bag
500
7.92
Material
PA 66, UL94V-0, natural (white)
RoHS compliance
13.6
Shrouded header –––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Top entry type
B
9.2
Circuits
3
Model No.
Top entry type Side entry type
B03B-VUSS-1 S03B-VUSS-1
Dimensions (mm)
A
B
7.92
15.84
Q'ty / box
Top entry type Side entry type
200
200
Material and Finish
10.5
Pin: Copper alloy, copper-undercoated, tin-plated (reflow treatment)
Wafer: Glass-filled PBT, UL94V-0, natural (white)
RoHS compliance
This product displays (LF)(SN) on a label.
3.4
3.96
A
1.5
3.0
(4.7)
Side entry type
B
9.2
10.5
3.96
A
15.0
3.4
2
9.0
2.5
VU
CONNECTOR
PC board layout
(viewed from component side)
and Assembly layout ––––––––––––––––––
Top entry type
A±0.05
P:3.96±0.05
Connector outline
(4.7)
Circuit No.1
1.5±0.05
9.7
φ
0.9
+0.1
0
φ
1.2
+0.1
0
Side entry type
φ
1.2
+0.1
0
Connector outline
20.4
9.0±0.05
3.0±0.05
A±0.05
P:3.96±0.05
3±0.05
15.9
Circuit No.1
φ
0.9
+0.1
0
Note:
1. Tolerances are non-cumulative: ±0.05mm for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method.
The dimensions above should serve as a guideline. Contact JST for details.
Crimping machine, Applicator–––––––––––––––––––––––––––––––––––––––––––––––
Contact
SVU-21T-P0.6
Crimping
machine
AP-K2N
Crimp applicator
MKS-L
—
Dies
MK/SVU-21-06
—
Crimp applicator with dies
APLMK SVU21-06
—
9.7
3
Mobile and portable
