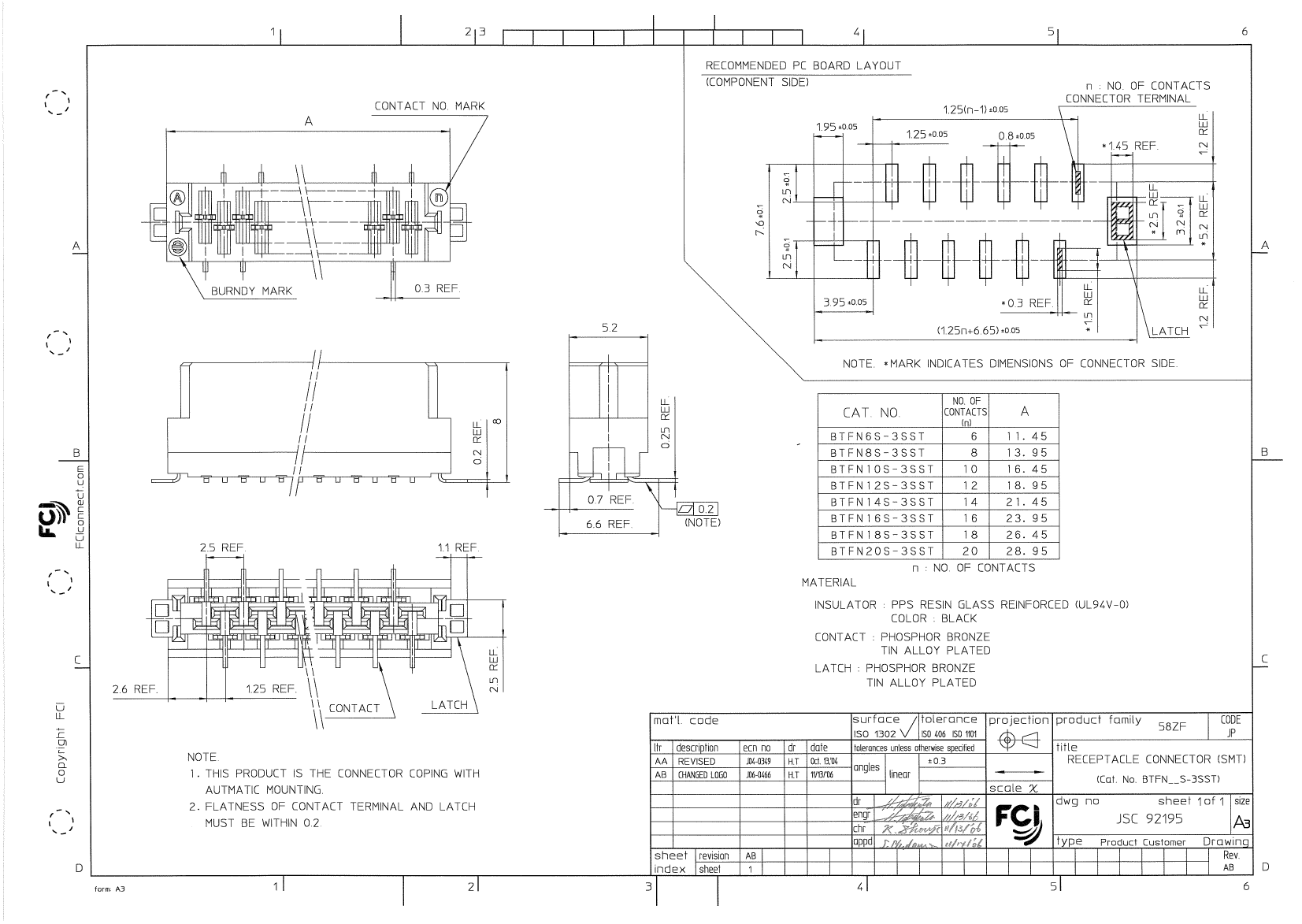

BTFN12S-3SST: DescriptionBoard Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.098 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle; CategoryThe connector The connector; File Size117KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

BTFN12S-3SST Overview

Board Connector, 12 Contact(s), 2 Row(s), Female, Straight, 0.098 inch Pitch, Surface Mount Terminal, Black Insulator, Receptacle

BTFN12S-3SST Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LATCHED
body width	0.205 inch
subject depth	0.315 inch
body length	0.746 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	20 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
MIL compliance	NO
Manufacturer's serial number	BTFN
Plug contact pitch	0.098 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	5.1054 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	12
UL Flammability Code	94V-0
Base Number Matches	1
