REVISION AL
DO NOT
SCALE FROM
THIS PRINT
C3
BTE-XXX-XX-X-D-XX
No OF POSITIONS
-020, -040, -060,
**[-080, *-090, -100, -120]
(PER ROW)
*-03 BODY STYLE ONLY
**SEE NOTE 12
BODY STYLE
-01: .1680[4.267]
-02: .2861[7.264]
-03: .4042[10.266]
OPTION
-A: ALIGNMENT PINS
(USE BTE-XXX-XX-D-A)
-LC: LOCKING CLIPS
(USE LC-08-TM-01)
-K: POLYIMIDE FILM
(N/A ON STYLES -07 & -08)
(USE K-500-300, SEE FIG. 2)
(SEE NOTE 11)
-TR: TAPE & REEL (80 POS MAX)
[N/A ON STYLE -05, -06, -07 & -08]
-FL: FRICTION LOCK (SEE FIG. 4, SHEET 3)
(USE BTE-XXX-01-D-X-FL)
(AVAIL ON LEAD STYLE -01 ONLY,
-020 THRU -100 POSITIONS ONLY)
((No OF POSITIONS x .0315[.800]) +.1575[4.000]) REF
.0945 2.400
01
((No OF POSITIONS -1) x .0315[.800])
.003[.08]
.1550 3.937
REF
02
.2350 5.969
REF

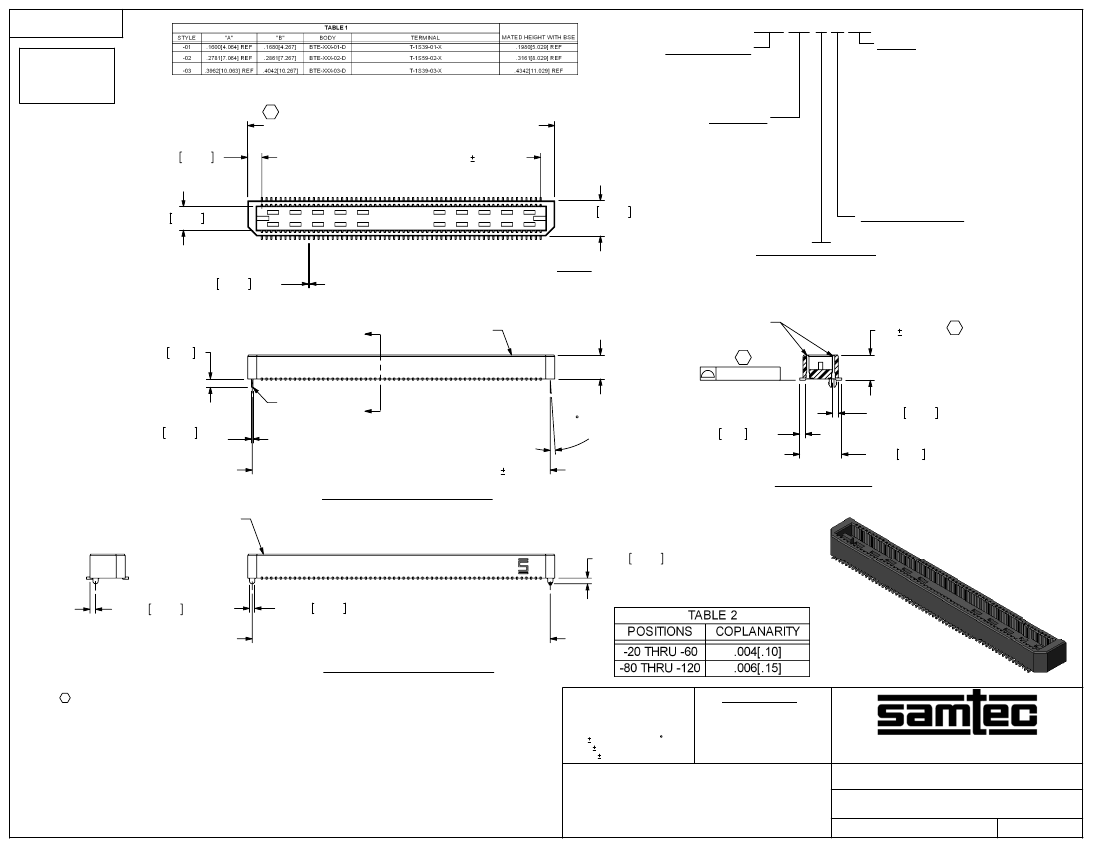

FIG. 1
.0080 0.203
REF
BTE-060-01-X-D-LC SHOWN
ROW SPECIFICATION
-D: DOUBLE (USE BTE-XXX-XX-D-X
& BTEH-XXX-XX-D-X)
PLATING SPECIFICATION
-F: FLASH SELECTIVE GOLD WITH MATTE TIN TAILS (USE T-1SXX-XX-F) (SEE NOTE 10)
-L: LIGHT SELECTIVE GOLD WITH MATTE TIN TAILS (USE T-1SXX-XX-L) (SEE NOTE 10)
-H: HEAVY GOLD (USE T-1SXX-XX-H)
-C: ELECTRO-POLISHED SELECTIVE (USE T-1SXX-XX-C)
T-1S39-XX-X
.003[.08]
C1
-04: .6010[15.265]
-05: .7190[18.263]
-06: .8370[21.260]
-07: .9542 [24.237]
-08: 1.1511[29.238]
-09: .5224 [13.269]
"A"
.055 1.40
BTE-XXX-XX-D
"B"
.001[.03]
(SEE NOTE 8)
"A"
LC-08-TM-01
.010 0.254 REF
(-LC WIDTH)
((No OF POSITIONS x .0315[.800]) + .0975[2.477])
.003[.08]
C2
SEE TABLE 2
"A"
2 MAX SWAY
(ANY DIRECTION)
.0375 0.953
.037 0.94 REF
.280 7.11 REF
-LC: LOCKING CLIP OPTION
BTE-XXX-XX-D-A
SECTION "A"-"A"
.0375 0.952
REF
.0375 0.953
REF
.0350 0.889
DIA REF
((No OF POSITIONS x .0315[.800]) + .0975[2.477]) REF
-A: ALIGNMENT PIN OPTION
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. NOTE DELETED.
3. BURR ALLOWANCE: .0015[.038] MAX.
4. NOTE DELETED.
5. MINIMUM PUSHOUT FORCE: 6 OZ.
6. NOTE DELETED.
7. PARTS TO BE MOLD TO POSITION.
8. MAX VARIANCE OF .002[.05].
9. BTE-XXX-03-D BODY CAN BE SUBSTITUTED FOR BTE-XXX-03-D-A.
10. -L PLATING CAN BE SUBSTITUTED FOR -F PLATING.
11. IF PART OPTION IS PACKAGED IN TRAY, USE K-DOT-.276-.375-.005.
12. FOR NEW APPLICATIONS REQUIRING THESE POSITIONS, PLEASE CONTACT SAMTEC
INTERCONNECT PROCESSING GROUP.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.XX: .01 [.3]
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1.5:1
INSULATOR: LCP, COLOR: BLACK
TERMINAL: PHOS BRONZE
.8mm DOUBLE ROW TERMINAL ASSEMBLY
DWG. NO.
BTE-XXX-XX-X-D-XX
03/22/1999
SHEET
1
OF
3
c:\enterprisevault\DWG\MISC\MKTG\BTE-XXX-XX-X-D-XX-MKT.SLDDRW
BY:
DEAN P
REVISION AL
FIG. 2
-K: POLYIMIDE FILM PAD
[USE K-500-300]
(SEE NOTE 11)
(No OF POSITIONS x .0315[.800] + .1575[4.000] REF
({(No OF POSITIONS x .0315
[.800] + .1575 [4.000])
-.275 [6.99] }/ 2) .020[.51]
.02 0.5
.275 6.99
"R"

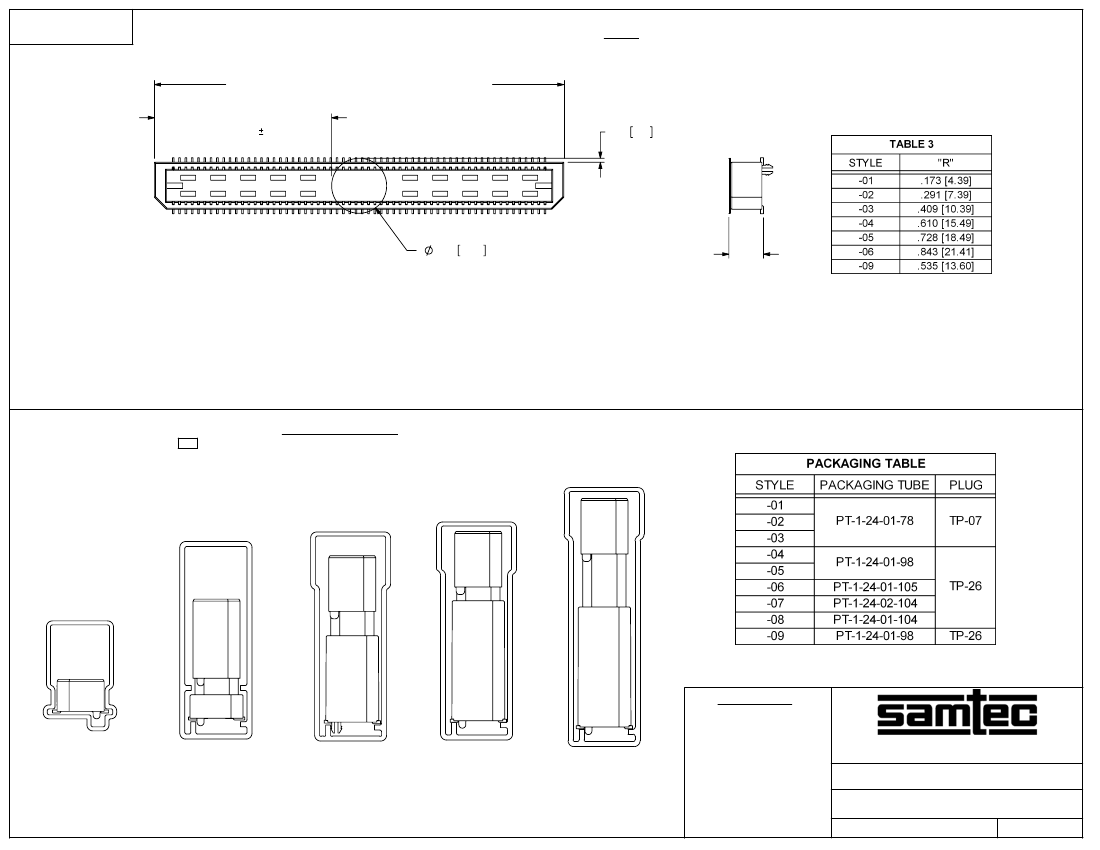

PACKAGING VIEW
AL
[PARTS NEED TO BE LOADED PER PACKAGING VIEWS]
[-05 LEADSTYLE PARTS WITH KAPTON TO BE
LOADED WITH KAPTON RESTING ON THE TUBE RIBS].
[STYLE -07]
[STYLE -08]
[STYLES -04, -05 & -09]
[STYLE -06]
[STYLES -01, -02 & -03]
c:\enterprisevault\DWG\MISC\MKTG\BTE-XXX-XX-X-D-XX-MKT.SLDDRW
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
TUBE: PT-1-24-01-78
PLUG: TP-07
TUBE: PT-1-24-01-98
PLUG: TP-26
TUBE: PT-1-24-01-105
PLUG: TP-26
TUBE: PT-1-24-02-104
PLUG: TP-26
TUBE: PT-1-24-01-104
PLUG: TP-26
DO NOT SCALE DRAWING
.8mm DOUBLE ROW TERMINAL ASSEMBLY
DWG. NO.
SHEET SCALE: 2:1
BTE-XXX-XX-X-D-XX
03/22/1999
SHEET
2
OF
3
BY:
DEAN P
REVISION AL
01
FIG. 3
BTE-060-06-X-D-LC SHOWN
[DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG. 1]
02
"B"
BTEH-XXX-XX-D
BTE-XXX-02-D-A
(SEE NOTE 9, SHEET 1)
T-1S51-XX-X
.2781 7.064
REF
C4
"C"
.001[.03]
(SEE NOTE 8,
SHEET 1)
.003[.08]

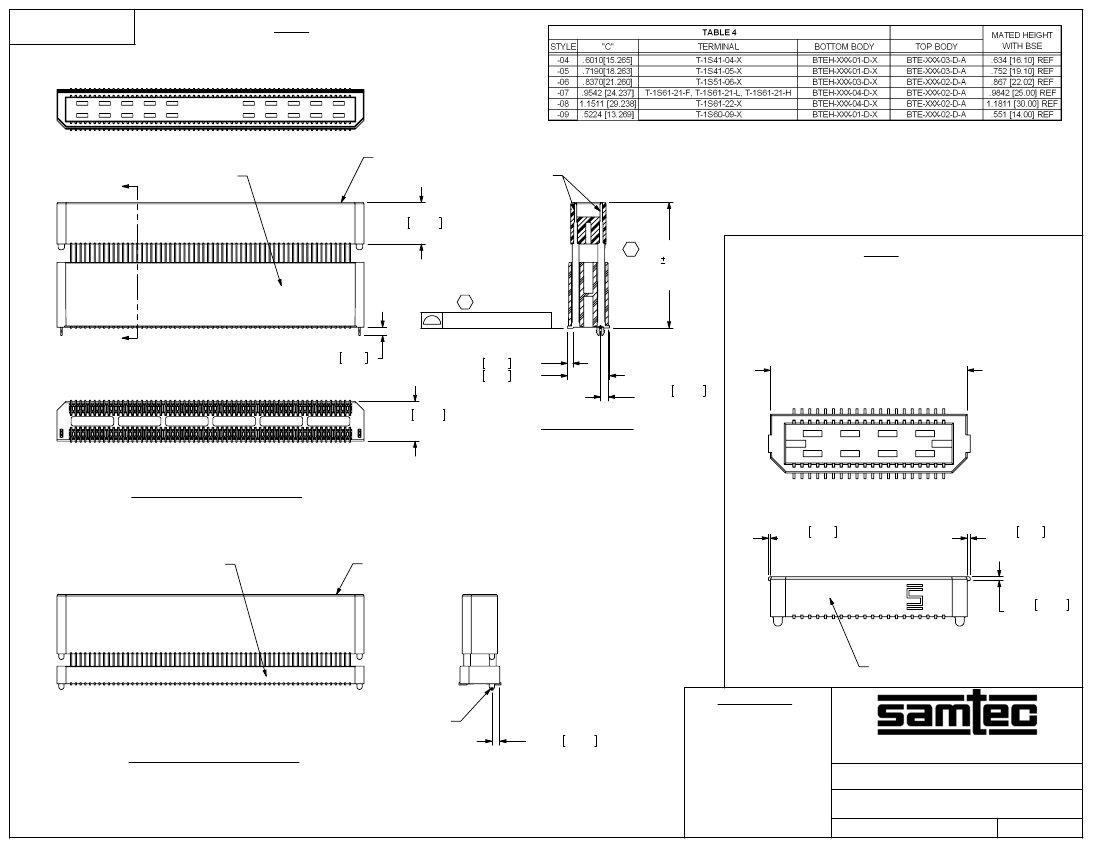

FIG. 4
-FL OPTION
BTE-020-01-X-D-A-FL SHOWN
(AVAILABLE ON -01 LEAD STYLE ONLY,
-020 THRU -100 POSITIONS ONLY)
[DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG. 1]
C5
SEE TABLE 2, SHEET 1
"B"
.055 1.40
.037 0.94 REF
.281 7.14 REF
.0525 1.334
REF
((No OF POSITIONS x .0315[.800])
+.1575[4.000]) REF
.2650 6.731
REF
SECTION "B"-"B"
-LC: LOCKING CLIP OPTION
.008 0.20
REF
BTEH-XXX-XX-D-A
BTE-XXX-XX-D-A
.012 0.30
REF
.015 0.381
REF
BTE-XXX-01-D-X-FL
PROPRIETARY NOTE
R
-A: ALIGNMENT PIN OPTION
[STYLE -04, -05, -06, -07, -08 & -09]
.0525 1.334
REF
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DO NOT SCALE DRAWING
.8mm DOUBLE ROW TERMINAL ASSEMBLY
DWG. NO.
SHEET SCALE: 1.5:1
BTE-XXX-XX-X-D-XX
03/22/1999
SHEET
3
OF
3
c:\enterprisevault\DWG\MISC\MKTG\BTE-XXX-XX-X-D-XX-MKT.SLDDRW
BY:
DEAN P
