B60-012-020-HIBAA datasheet, PDF

Datasheet> All Categories > The connector> The connector> B60-012-020-HIBAA

B60-012-020-HIBAA: DescriptionTelecom and Datacom Connector, 12 Contact(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size234KB，4 Pages; ManufacturerMitsumi Electric Co., Ltd.

Download Datasheet Parametric Compare View All

B60-012-020-HIBAA Overview

Telecom and Datacom Connector, 12 Contact(s), Male, Right Angle, Solder Terminal

B60-012-020-HIBAA Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Connector type	TELECOM AND DATACOM CONNECTOR
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Manufacturer's serial number	B60
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Termination type	SOLDER
Total number of contacts	12
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

MITSUMI

角型コネクタ

Rectangular Connectors

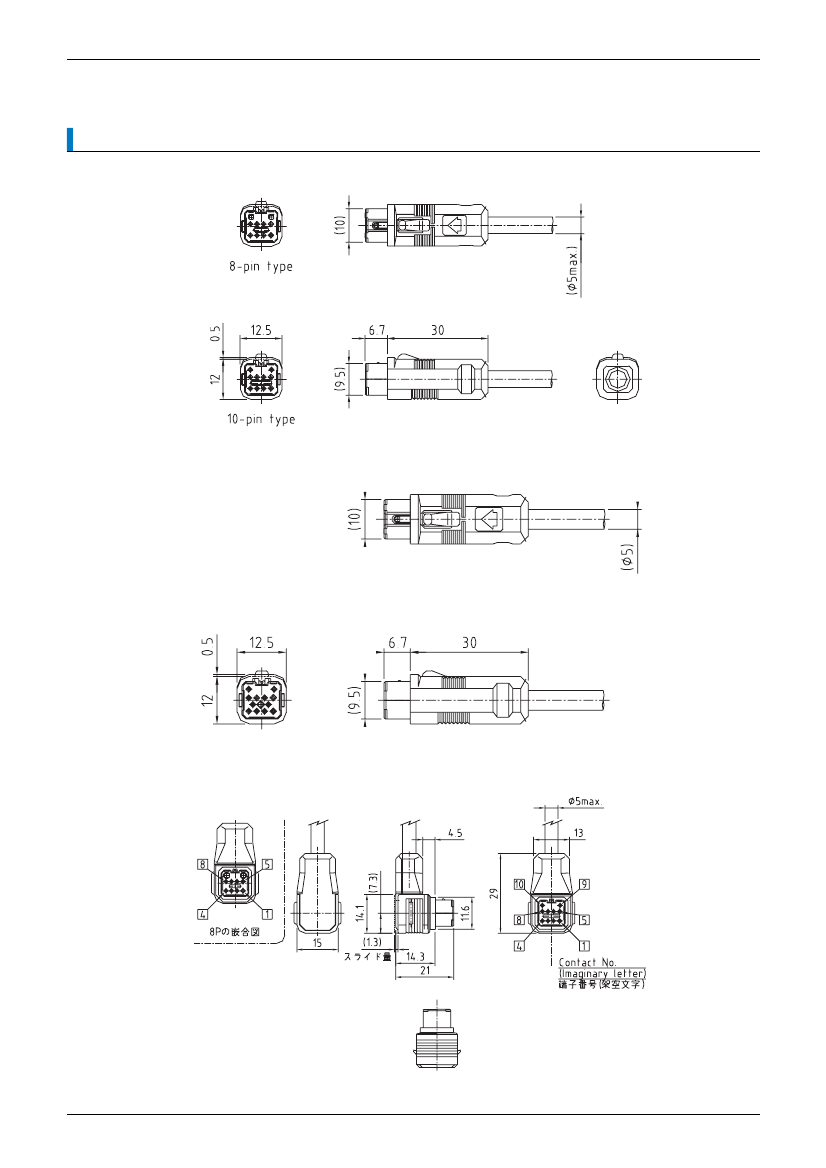

IAM-B59・D06・D54, CAM-B60 Series

特長／FEATURES

1. 8極、

10極、

12極の外部イ

ンタフ

ェースコネク

タで、

IAM-B59はケーブルAss'yタ

イプのスレー ½ケッ

トト

ト、

IAM-D06はケーブルAss'yタ

イプのL型½ケッ

ト

（上出し）IAM-D54はL型½ケッ（左出し）CAM-

、

ト

、

B60はアグルタプのプラグです。

ン

イ

2. 信号用端子の他に2極の電源用端子を設けていま

す。

3. 極数違いの誤挿入防止キーを設けています。

4. ロク機構があり、

ッ

確実な嵌合状態が望めます。

1. IAM-B59 and IAM-D06 are 8 pins, 10 pins and

12 pins externalinterface connectors. IAM-B59

is a cable assembly straight socket, and IAM-

D06 is a cable assembly L socket (Upper out).

IAM-D54 is L socket (left out). CAM-B60 is an

angle plug.

2. In addition to signal terminals, two pins power

terminals are provided.

3. Provided with a key to prevent insertion in

sockets with a different terminal count.

4. A lock device ensures reliable interfitting.

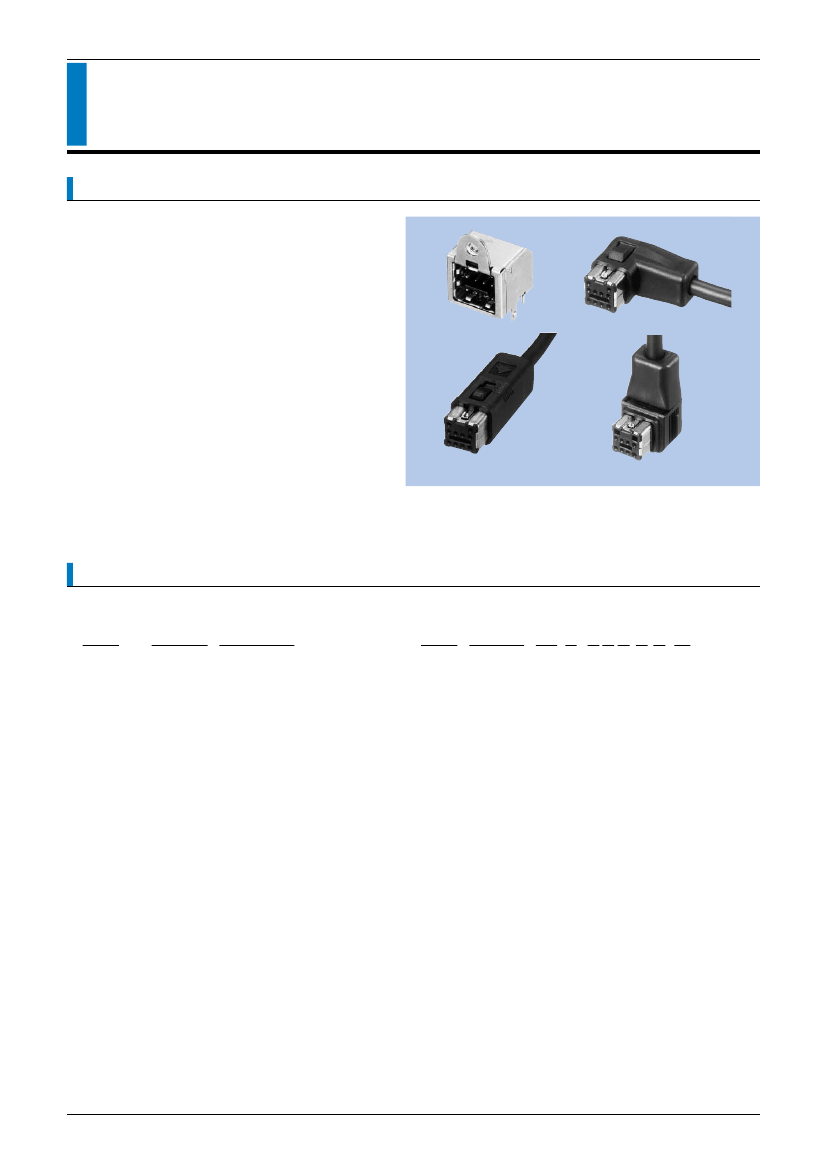

Connectors

CAM-B60

IAM-D54

IAM-B59

IAM-D06

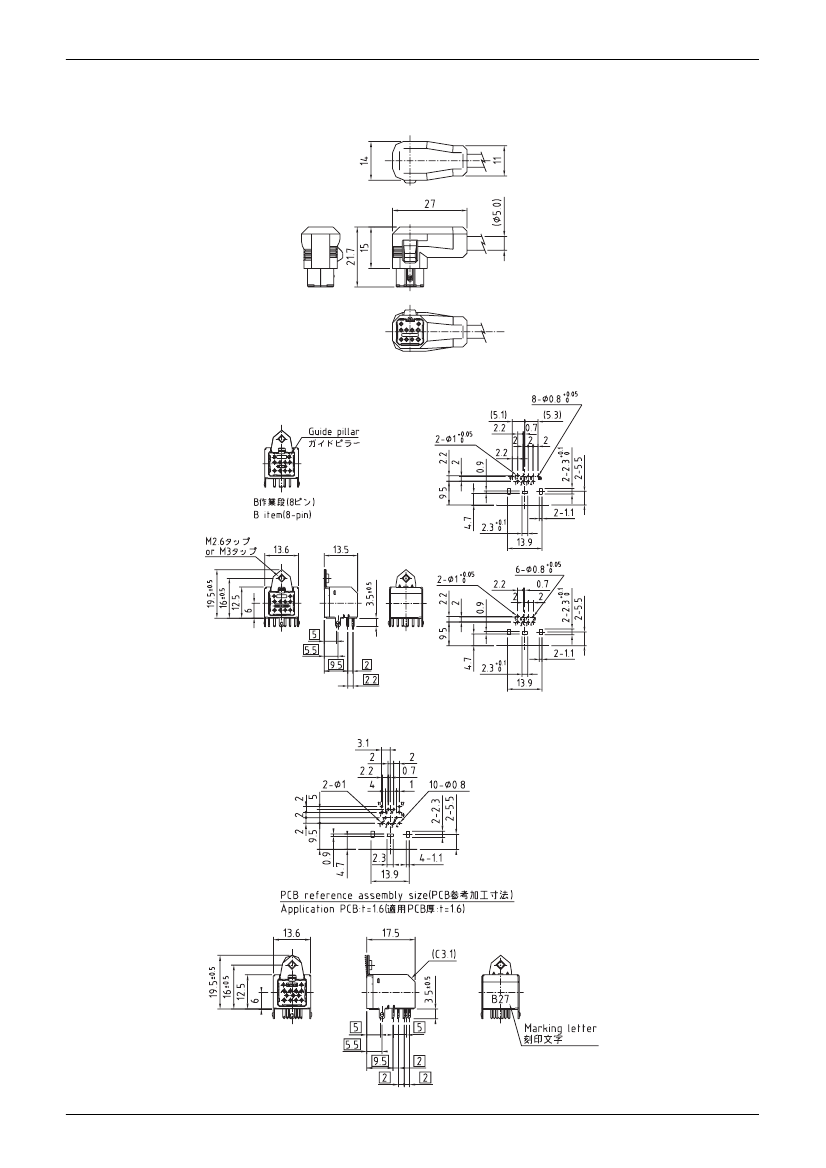

品名構成／HOW TO ORDER

1. IAM-B59, D06, D54 Series

2. CAM-B60 Series

□□□-□□□-□□□□

①

②

③

B 6 0 - □ □ □ - 0 2 0 - H I B A A- □

①

②

③ ④ ⑤⑥⑦ ⑧ ⑨ ⑩

①シリーズ名

（B59 スレータプ、：

：トトイ D06 上出しアグル、 ①シリーズ名

ン

（B60）

/Series

No.

（B60）

D54 左出しアグル）

：

ン

②極数

（008 8極、：

：

010 10極、：

012 12極）

Series No.

（B59

Straight type, D06 Upper out

：

No. of contacts 008 8pins, 010 10pins, 012 12pins）

（：

：

D54 Left out）

：

③ハウジング材質：

（02 PBT）

／Housing

material

：

（02

PBT）

②極数

（008 8極、：

：

010 10極、：

012 12極）

④ULグレー（0 UL94V-0）

ド：

/UL

grade 0 UL94V-0）

（：

No. of contacts 008 8pins, 010 10pins, 012 12pins）

⑤コタトのメキ種類：ダッ

（：

：

ンク

ッ

（H ハンメキ）

③½品番号/Product

Specifications

Contact Plating types H：Solder Plating）

（

⑥コタトのメ

ンク

ッキ厚

（I：1.0μm）

Contact plating thickness I

：

1.0μm）

（

⑦コタト½状

ンク

（B：ン

アグル）

Contact tail style

（B：Angle）

⑧嵌合側の付属品

（A：

なし）

Accessory for Connector outside

（A：None）

⑨基板側の付属品

（A：

なし）

Accessory for Connector inside

（A：None）

⑩シールケースラ

ド

フンジ

（無記号ありM2.6、：

：

I なし、：

B M3）

Shield case flange No symbol

：

with M2.6,

（

：

without, B：M3）

B60-012-020-HIBAA Related Products

	B60-012-020-HIBAA	B60-008-020-HIBAA-B	B60-010-020-HIBAA-I	B60-010-020-HIBAA-B	B60-008-020-HIBAA-I	B60-010-020-HIBAA	B60-008-020-HIBAA	B60-012-020-HIBAA-B	B60-012-020-HIBAA-I
Description	Telecom and Datacom Connector, 12 Contact(s), Male, Right Angle, Solder Terminal	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal	Telecom and Datacom Connector, 10 Contact(s), Male, Right Angle, Solder Terminal	Telecom and Datacom Connector, 10 Contact(s), Male, Right Angle, Solder Terminal	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal	Telecom and Datacom Connector, 10 Contact(s), Male, Right Angle, Solder Terminal	Telecom and Datacom Connector, 8 Contact(s), Male, Right Angle, Solder Terminal	Telecom and Datacom Connector, 12 Contact(s), Male, Right Angle, Solder Terminal	Telecom and Datacom Connector, 12 Contact(s), Male, Right Angle, Solder Terminal
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	B60	B60	B60	B60	B60	B60	B60	B60	B60
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	12	8	10	10	8	10	8	12	12
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1	1	1
Maker	-	Mitsumi Electric Co., Ltd.	Mitsumi Electric Co., Ltd.	Mitsumi Electric Co., Ltd.	Mitsumi Electric Co., Ltd.	Mitsumi Electric Co., Ltd.	Mitsumi Electric Co., Ltd.	-	-
