Crimp
PA
CONNECTOR

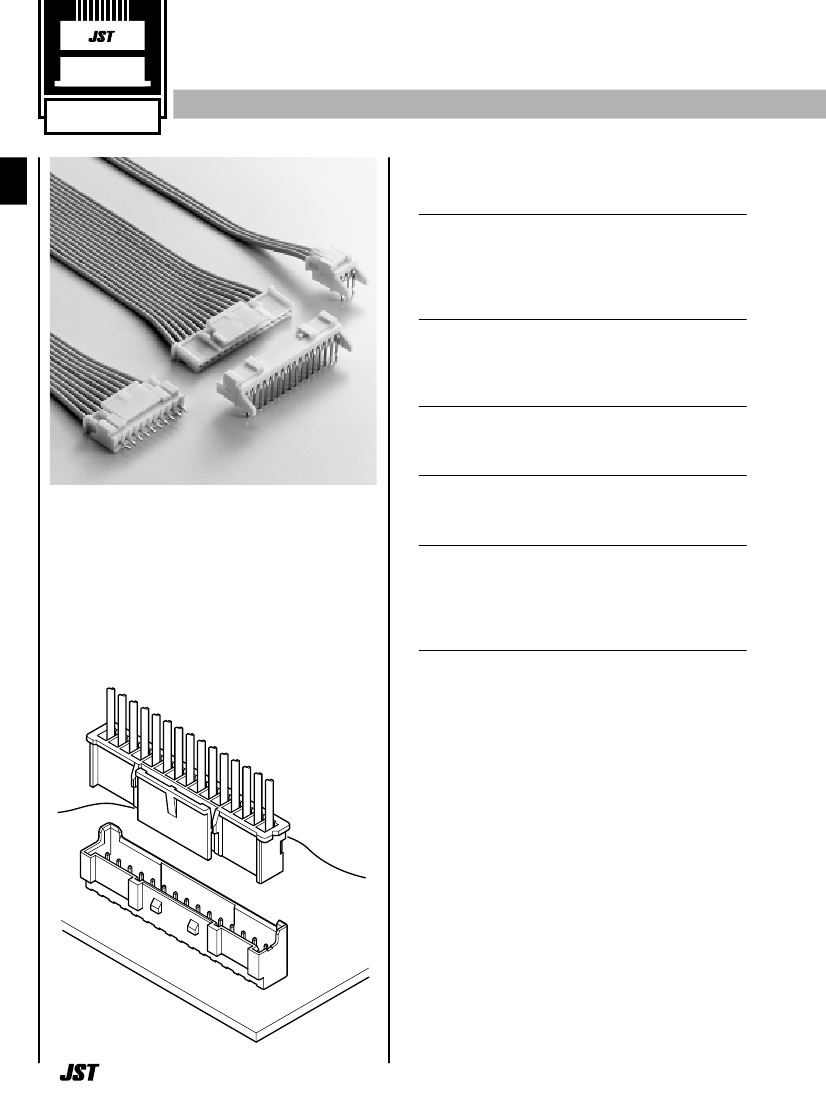

Disconnectable Crimp style connectors
Features –––––––––––––––––––––––
• Locking device
The housing has a locking device to securely hold the header,
preventing accidental disconnection because of external forces
that might result from the routing of wires during assembly
process or of vibration.
2.0mm
(.079") pitch
• Reliable contacts
The box contact supplies stable contact performance even
under conditions of vibration, distortion, low voltage or low
current.
• Low insertion force
Header pins are reflow-treated, which provides low insertion
force.
• Insertion guide mechanism
Header has housing insertion guides for easy and secure
insertion.
• Flanged press pin
Top entry type header has flanged press pins, preventing
accidental removal of the pins that might result from the
distorted unmating especially in the case of small no. of
circuits.
• Polarizing boss
Top entry type headers with polarizing bosses are also
available.
H
T
JS
Specifications ––––––––––––––––––
• Current rating: 3.0A AC, DC
• Voltage rating: 250V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m
Ω
max.
After environmental testing/20m
Ω
max.
• Insulation resistance:
1,000MΩ min.
• Withstanding voltage: 800V AC/minute
• Applicable wire: AWG #28 to #22
• Applicable PC board thickness: 1.6mm(.063")
* Contact JST for details.
26
PA
CONNECTOR
Contact –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Model No.
1.5(.059)
Applicable wire
mm
2
AWG #
0.08 to 0.21
0.13 to 0.33
28 to 24
26 to 22
Insulation O.D.
mm(in.)
0.9 to 1.5(.035 to .059)
1.0 to 1.5(.039 to .059)
Q’ty /
reel
8,000
SPHD-002T-P0.5
SPHD-001T-P0.5
Material and Finish
6.5(.256)
2.85(.112)
1.3(.051)
Phosphor bronze, tin-plated
Contacts are interchangeable with those of the PAD connector.
Housing ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
2 to 9 circuits
B
A
[2.0(.079)]
2.0
(.079)
1.5(.059)
Circuits
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Model No.
5.8(.228)
4.6(.181)
Circuit
No.1
10 to 15 circuits
B
A
[2.0(.079)]
2.0
(.079)
5.8(.228)
4.6(.181)
PAP-02V-(
PAP-03V-(
PAP-04V-(
PAP-05V-(
PAP-06V-(
PAP-07V-(
PAP-08V-(
PAP-09V-(
PAP-10V-(
PAP-11V-(
PAP-12V-(
PAP-13V-(
PAP-14V-(
PAP-15V-(
PAP-16V-(
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
Dimensions mm(in.)
A
B
2.0 (.079)
6.0 (.236)
4.0 (.157)
8.0 (.315)
6.0 (.236)
10.0 (.394)
8.0 (.315)
12.0 (.472)
10.0 (.394)
14.0 (.551)
12.0 (.472)
16.0 (.630)
14.0 (.551)
18.0 (.709)
16.0 (.630)
20.0 (.787)
18.0 (.709)
22.0 (.866)
20.0 (.787)
24.0 (.945)
22.0 (.866)
26.0(1.024)
24.0 (.945)
28.0(1.102)
26.0(1.024)
30.0(1.181)
28.0(1.102)
32.0(1.260)
30.0(1.181)
34.0(1.339)
Q’ty /
bag
5,000
5,000
5,000
5,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
7.3(.287)
8.0(.315)
7.3(.287)
8.0(.315)
Material and Finish
Nylon66, UL94V-0
( ) stands for the color of housing.
S:natural(white)
K:black
Circuit
No.1
16 circuits
B
A
[2.0(.079)]
2.0
(.079)
5.8(.228)
4.6(.181)
Circuit
No.1
7.3(.287)
8.0(.315)
27
PA
CONNECTOR
Shrouded header –––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Circuits
Model No.
With a boss
Without a boss
B02B-PAFYK-A
B02B-PA(
)K
B03B-PA(
)K
B04B-PA(
)K
B05B-PA(
)K
B06B-PA(
)K
B07B-PA(
)K
B08B-PA(
)K
B09B-PA(
)K
B10B-PA(
)K
B11B-PA(
)K
B12B-PA(
)K
B13B-PA(
)K
B14B-PA(
)K
B15B-PA(
)K
B16B-PA(
)K
Dimensions mm(in.)
A
B
B02B-PAFYK-1A
2.0 (.079)
6.0 (.236)
B02B-PA(
)K-1
2.0 (.079)
6.0 (.236)
4.0 (.157)
B03B-PA(
)K-1
8.0 (.315)
6.0 (.236) 10.0 (.394)
B04B-PA(
)K-1
B05B-PA(
)K-1
8.0 (.315) 12.0 (.472)
B06B-PA(
)K-1
10.0 (.394) 14.0 (.551)
B07B-PA(
)K-1
12.0 (.472) 16.0 (.630)
B08B-PA(
)K-1
14.0 (.551) 18.0 (.709)
B09B-PA(
)K-1
16.0 (.630) 20.0 (.787)
B10B-PA(
)K-1
18.0 (.709) 22.0 (.866)
B11B-PA(
)K-1
20.0 (.787) 24.0 (.945)
B12B-PA(
)K-1
22.0 (.866) 26.0(1.024)
B13B-PA(
)K-1
24.0 (.945) 28.0(1.102)
B14B-PA(
)K-1
26.0(1.024) 30.0(1.181)
B15B-PA(
)K-1
28.0(1.102) 32.0(1.260)
B16B-PA(
)K-1
30.0(1.181) 34.0(1.339)
Q’ty /
bag
1,000
1,000
1,000
1,000
500
500
500
500
500
500
250
250
250
250
250
250
Top entry type
2
to
9
circuits
B
A
Circuit
No.1
5.3(.209)
2 (Note1)
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
0.5(.020)
2.0
(.079)
0.8(.031)dia.
1.5(.059)
1.2(.047)
3.0
7.7
(.118) (.303)
5.9(.232)
1.7(.067)
10
to
15
circuits
B
A
Circuit
No.1
5.3(.209)
Material
Post:Copper alloy, copper-undercoated, tin/lesd-plated
Wafer:Glass-filled PBT, UL94V-0 ( ) stands for the color of water.
S:natural(white) K:black
(Note1) Nylon 66, UL94V-0, vivid yellow
0.5(.020)
0.8(.031)dia.
2.0 1.5(.059)
(.079)
B
A
Circuit
No.1
1.2(.047)
3.0
7.7
(.118) (.303)
5.9(.232)
1.7(.067)
16
circuits
5.3(.209)
1.2(.047)
3.0
7.7
(.118) (.303)
0.5(.020)
0.8(.031)dia.
2.0 1.5(.059)
(.079)
5.9(.232)
1.7
(.067)
28
PA
Circuits
Model No.
S02B-PA(
S03B-PA(
S04B-PA(
S05B-PA(
S06B-PA(
S07B-PA(
S08B-PA(
S09B-PA(
S10B-PA(
S11B-PA(
S12B-PA(
S13B-PA(
S14B-PA(
S15B-PA(
S16B-PA(
)K-2
)K-2
)K-2
)K-2
)K-2
)K-2
)K-2
)K-2
)K-2
)K-2
)K-2
)K-2
)K-2
)K-2
)K-2
CONNECTOR
Shrouded header on radial-tape –––––––––––––––––––––––––––––––––––––––––––––
Side entry type
2
to
9
circuits
B
A
2.0(.079)
6.5(.256)
2
3
4
5
6
7
8
9
7.7(.303)
6.1(.240)
10
8.2(.323)
11.7(.461)
5.9(.232)
11
12
13
14
15
16
Circuit
No.1
Dimensions mm(in.)
A
B
2.0 (.079)
6.0 (.236)
4.0 (.157)
8.0 (.315)
6.0 (.236)
10.0 (.394)
8.0 (.315)
12.0 (.472)
10.0 (.394)
14.0 (.551)
12.0 (.472)
16.0 (.630)
14.0 (.551)
18.0 (.709)
16.0 (.630)
20.0 (.787)
18.0 (.709)
22.0 (.866)
20.0 (.787)
24.0 (.945)
22.0 (.866)
26.0(1.024)
24.0 (.945)
28.0(1.102)
26.0(1.024)
30.0(1.181)
28.0(1.102)
32.0(1.260)
30.0(1.181)
34.0(1.339)
Q’ty /
box
1,000
1,000
500
500
500
500
250
250
250
250
250
250
250
200
200
10
to
15
circuits
B
A
2.0(.079)
6.5(.256)
Material and Finish
Post:Copper alloy, copper-undercoated, tin/lesd-plated
Wafer:Glass-filled PBT, UL94V-0 ( ) stands for the color of water.
S:natural(white) K:black
7.7(.303)
6.1(.240)
6.5(.256)
Circuit
No.1
16
circuits
B
A
2.0(.079)
7.7(.303)
6.1(.240)
Circuit
No.1
PC board layout
(viewed from soldering side)
and Assembly layout –––––––––––––––––––
Top entry type
5.8(.228)
8.2(.323)
11.7(.461)
5.9(.232)
8.2(.323)
11.7(.461)
5.9(.232)
Side entry type
13.8(.543)
2.0±0.05
(.079
±.002
)
0
0.7
±0.1
dia
0
+.004
(.028
0
)
1.0
0
dia
+.004
(.039
0
)
+0.1
9.8(.386)
1.1
+0.1
dia
0
(.043
+.004
0
)
2.0±0.05
(.079+.002)
2.1±0.05
(.083±.002)
1.7±0.05
(.067±.002)
0.7
0
dia
+.004
(.028
0
)
+0.1
8.2(.323)
29
7.0(.276)
A±0.05(A±.002)
1.5±0.05(.059±.002)
A±0.05(A±.002)
1.5±0.05(.059±.002)
