BM13B-GVHS-TB(LF)(SN)

Description
Board Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal, ROHS COMPLIANT
CategoryThe connector    The connector
File Size106KB,3 Pages
ManufacturerJST
Environmental Compliance
Download Datasheet Parametric View All

BM13B-GVHS-TB(LF)(SN) Overview

Board Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, Surface Mount Terminal, ROHS COMPLIANT

BM13B-GVHS-TB(LF)(SN) Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
Other featuresSHROUDED
Connector typeBOARD CONNECTOR
Contact to complete cooperationTIN OVER COPPER
Contact completed and terminatedTIN OVER COPPER
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee3
MIL complianceNO
Manufacturer's serial numberGVH
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch1.25 mm
Termination typeSURFACE MOUNT
Total number of contacts13
UL Flammability Code94V-0
Base Number Matches1
1.25mm pitch/Disconnectable Crimp style connectors
Side feed type
Side entry type
GVH
CONNECTOR
Emboss Tape

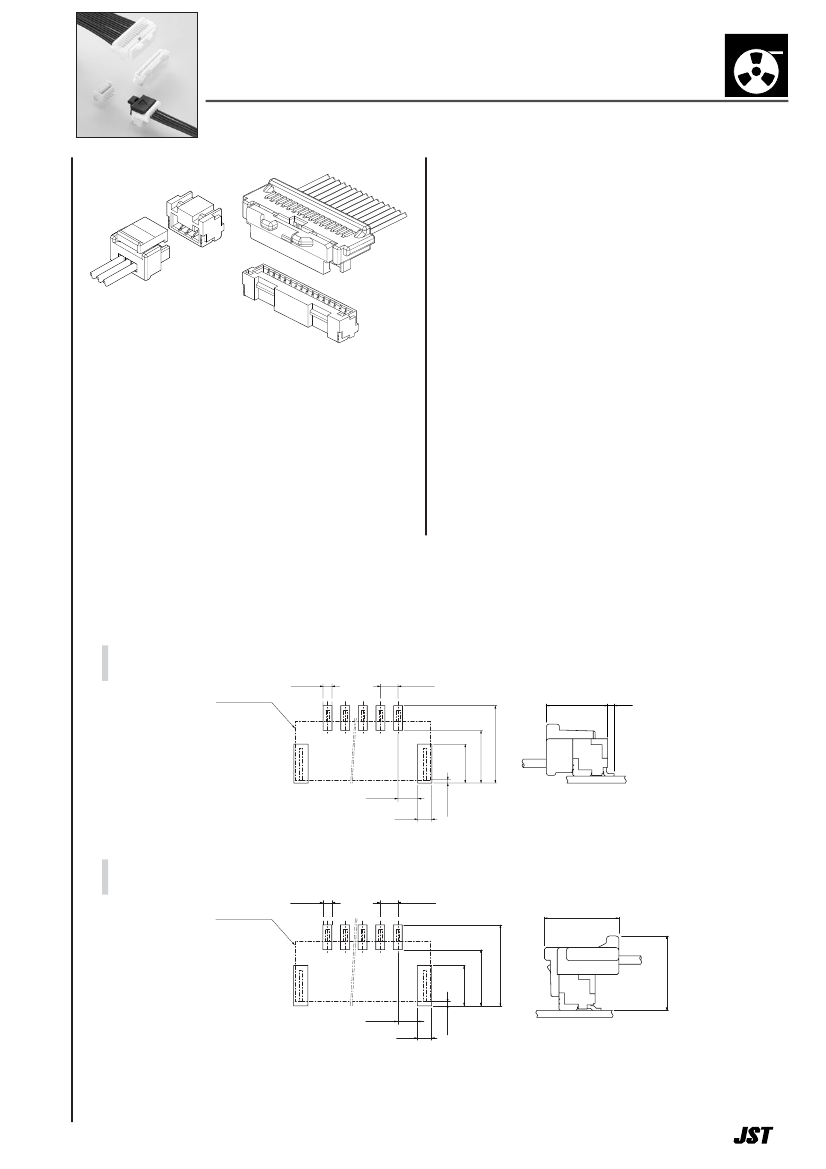

Specifications
–––––––––––––––––––
• Current rating: 1.0A AC, DC (AWG #26)
• Voltage rating: 50V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/ 30mΩ max.
After environmental testing/ 50mΩ max.
• Insulation resistance: 100MΩ min.
• Withstanding voltage: 500V AC/minute
• Applicable wire: Conductor size/ AWG #30 to #26
Insulation O.D./ 0.8 to 1.0mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
This connector can be mounted on the same
PC board layout as GH connector, and has
the sucking area on the top of connector
without suction tape. The side feed type for
drawing out the wire laterally that considers
the workability of mating and normal side
entry type has been developed.
• Secure locking structure
• Prevention of contact deformation
• Sucking area
Standards
––––––––––––––––––––––
0
Recognized E 60389
Side entry type
0.6
±
0.05
Header outline
1.25
±
0.05
7.15
0.8
1
±
0.1
Side feed type
0.6
±
0.05
Header outline
1.25
±
0.05
2 to 4 circuits : 8.35
5 to 8 circuits : 8.75
9 to 15 circuits : 9.55
0.25
±
0.1
1.35
±
0.1
2.7
±
0.1
3.7
±
0.1
3.9
±
0.1
5.6
±
0.1
5.4
±
0.1
1
±
0.1
Note: 1. The above figure is the figure viewed from the connector mounting side.
2. Tolerances are non-cumulative: ±0.05mm for all centers.
3. The dimensions above should serve as a guideline. Contact JST for details.

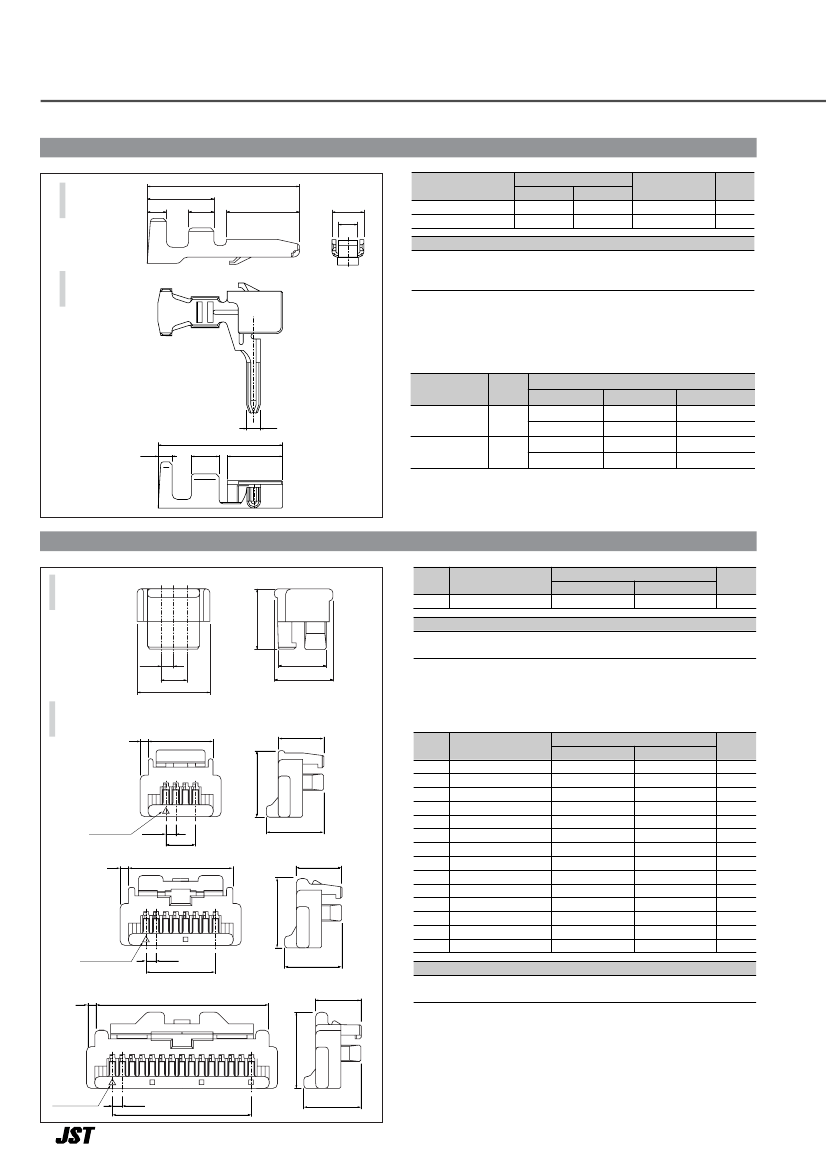

0.3
±
0.1
1.35
±
0.1
2.8
±
0.1
8.8
1
