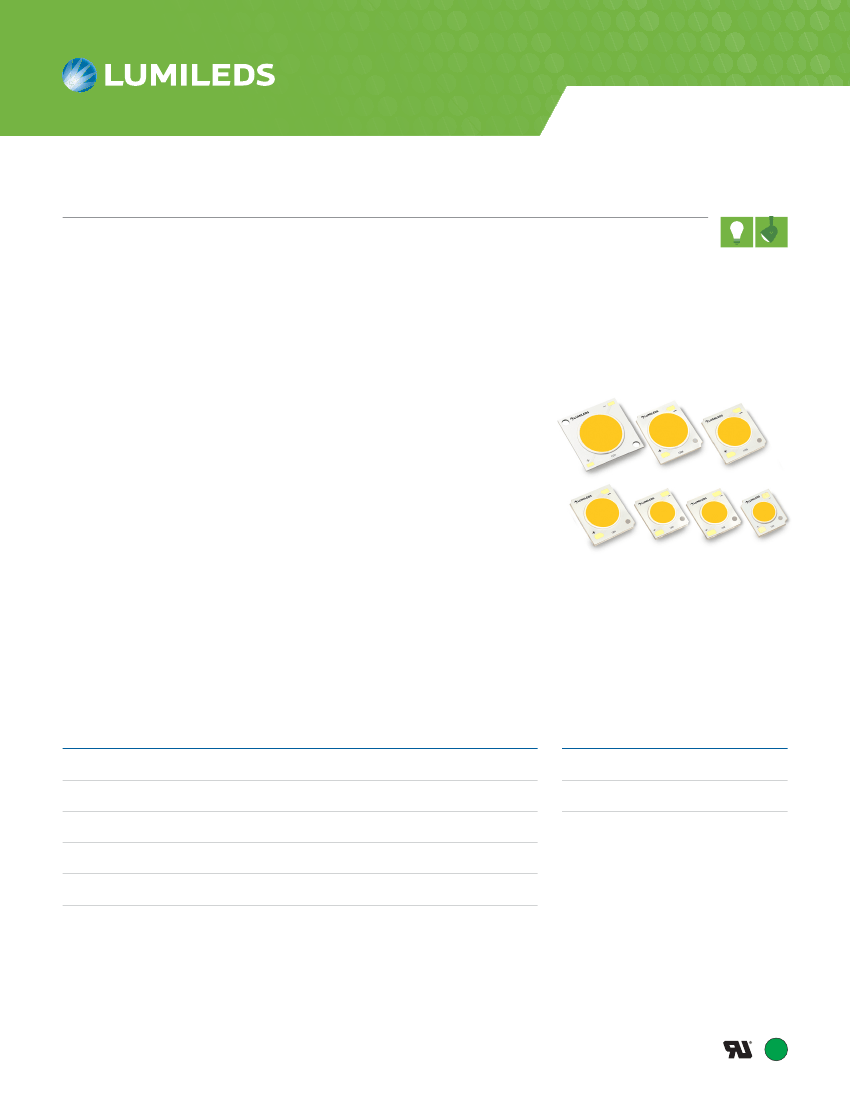

General IllumInatIon
luXeon coB with
crispWhite technology line
Retail lighting that makes an impact
LUXEON CoB with CrispWhite Technology creates the most impactful
retail lighting ever available, by revealing the richest whites, vibrant reds
and colors that pop. LUXEON CoB with CrispWhite Technology delivers
the warm saturated colors of high 90CRI solutions while creating the
natural crisp whiteness by activating the fluorescent whitening agents in
paints and fabrics to properly display merchandise in retail shops; ideal
for CDM/CMH replacements.
Features and BeneFIts
Lumen packages from 500 to 5,000 lumens for a range of options
Industry’s smallest light emitting surface for highest flux densities
Up to 4x better thermal resistance than competitors enabling smaller heat
sinks and higher lumens
Contains violet LEDs and does NOT contain UV LEDs for minimal amount
of damage, much lower than that from traditional CDM shop lighting
Mouse bites for M2 and M3 makes it easy to work with
PrImary aPPlIcatIons
Lamps
Spotlights
COMPLIANT
RoHS
DS138 LUXEON CoB with CrispWhite Technology Product Datasheet ©2015 Lumileds Holding B.V. All rights reserved.
Table of Contents
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Part Number Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Average Lumen Maintenance Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Environmental Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Product Performance and Characterization Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Mechanical Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Characteristic Curves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Typical Forward Current Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Typical Relative Luminous Flux vs. Forward Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Typical Radiation Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Color Bin Definition. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Package Info and Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
DS138 LUXEON CoB with CrispWhite Technology Product Datasheet 20150225 ©2015 Lumileds Holding B.V. All rights reserved.
i
General Information
Part Number Nomenclature
LUXEON CoB with CrispWhite Technology is tested and binned hot at T
j
= 85°C with a current pulse duration of 20ms.
The part number designation is explained as follows:
L H C A – B B C C – D D E E C R S P (Traditional)
Where:
A — designates the generation of the product family
B B — designates ANSI color point (e.g. 30 for 3000K)
C C — designates minimum CRI level (e.g. 90 for minimum 90CRI)
D D E E — designates product configuration (e.g. 1203 for the 1,000 - 2,000 lumen package)
C R S P — designates LUXEON CoB with CrispWhite Technology
L 2 C A – B B C C D D E E F F G G G (New Part Number Scheme for New Products)
Where:
A — designates the generation of the product family
B B — designates ANSI color point (e.g. 30 for 3000K)
C C — designates minimum CRI level (e.g. 80 for minimum 80CRI)
D D E E — designates product configuration (e.g. 1202 for the low lumen package)
F F — designates light emitting surface (e.g. 06 for 6mm LES)
G G G — designates manufacturing technology (e.g. AC0 for crisp white)
Therefore 3000K, 90 CRI LUXEON CoB with CrispWhite Technology products will be:
LHC1–3090–1203CRSP
L2C1–3090120206AC0
CAT codes of LUXEON CoB with CrispWhite Technology:
3S: color within 3-step MacAdam ellipse color definition
Average Lumen Maintenance Characteristics
Lumen maintenance for solid-state lighting devices (LEDs) is typically defined in terms of the percentage of
initial light output remaining after a specified period of time. Lumileds projects that LUXEON CoB with CrispWhite
Technology will deliver—on average—70% lumen maintenance (L70) at 50,000 hours of operation at its nominal,
tested conditions. Observation of design limits included in this data sheet is required in order to achieve this
projected lumen maintenance. This performance is based on independent test data, Lumileds historical data from
tests run on similar material systems, and internal LUXEON reliability testing.
Environmental Compliance
Lumileds is committed to providing environmentally friendly products to the solid-state lighting market. LUXEON CoB
with CrispWhite Technology is compliant to the European Union directives on the restriction of hazardous substances
in electronic equipment, namely the RoHS and REACH directives. Lumileds will not intentionally add the following
restricted material to the LUXEON CoB with CrispWhite Technology: lead, mercury, cadmium, hexavalent chromium,
polybrominated biphenyls (PBB) or polybrominated diphenyl ethers (PBDE).
DS138 LUXEON CoB with CrispWhite Technology Product Datasheet 20150225 ©2015 Lumileds Holding B.V. All rights reserved.
2
Product Performance and Characterization Guide
Table 1. Performance and Electrical Characteristics
Part Number
L2C1-309012006AC0
LHC1-3090-1202CRSP
LHC1-3090-1203CRSP
LHC1-3090-1204CRSP
LHC1-3090-1205CRSP
LHC1-3090-1208CRSP
LHC1-3090-1211CRSP
Nominal
CCT
3000K
3000K
3000K
3000K
3000K
3000K
3000K
CRI
[1]
Min.
90
90
90
90
90
90
90
Typ.
92
92
92
92
92
92
92
Test Current I
f
(mA)
200
200
300
450
600
900
1200
Luminous Flux
[1, 2]
Min. (lm)
550
550
850
1250
1700
2500
3400
Typ. (lm)
600
625
950
1400
1900
2800
3750
Efficacy
Typ. (lm/W)
85
90
90
90
90
90
90
LES
[3]
(mm)
6.5
9
9
13
13
15
19
Notes for Table 1:
1. Lumileds maintains a tolerance of ±6.5% on luminous flux, ±2 on CRI.
2. Maximum luminous flux is 10% above typical luminous flux.
3. Light Emitting Surface (LES) is the inner diameter (phosphor area) inside the dam.
Table 2. Optical Characteristics
Nominal
CCT
L2C1-xxxx120206xCx
LHC1 - xxxx - xxxxCRSP
Typical Total Included Angle
[1]
u
0.90V
135°
135°
Typical Viewing Angle
[2]
2u
1/2
115°
115°
Notes for Table 2:
1. Total angle at which 90% of total luminous flux is captured.
2. Viewing angle is the off axis angle from lamp centerline where the luminous intensity is
½
of the peak value.
Electrical Characteristics
Table 3. Electrical Characteristics
Forward Voltage (V)
[1, 2]
Part
Number
Nominal
CCT
Min.
33
33
33
33
33
33
33
Typ.
35.5
35.5
35.5
35.5
35.5
35.5
35.5
Max.
38
38
38
38
38
38
38
Typical Temperature
Coefficient of Forward
Voltage
[1]
(mV/°C)
DV
F
/
DT
J
-16
-16
-16
-16
-16
-16
-16
Typical Thermal
Resistance
Junction to Case
[3]
(°C/W)
Ru
J-C
0.98
0.91
0.70
0.53
0.45
0.29
0.23
L2C1-xxxx120206AC0
LHC1-xxxx-1202CRSP
LHC1-xxxx-1203CRSP
LHC1-xxxx-1204CRSP
LHC1-xxxx-1205CRSP
LHC1-xxxx-1208CRSP
LHC1-xxxx-1211CRSP
3000K
3000K
3000K
3000K
3000K
3000K
3000K
Notes for Table 3:
1. Measured between T
j
= 25°C and T
j
= 105°C at test current.
2. Voltage tester tolerance ±2%.
3. Junction temperature to back of the PCB and measurement tolerance of
~10%.
DS138 LUXEON CoB with CrispWhite Technology Product Datasheet 20150225 ©2015 Lumileds Holding B.V. All rights reserved.
3
Absolute Maximum Ratings
Table 4. Operating Condition and Ratings
Parameter
DC Forward Current
ESD Sensitivity
Storage Temperature
LED Junction Temperature
[1]
Operating Case Temperature at Nominal Current
Reverse Voltage
Maximum Performance
2x test current
[2]
< 8000V Human Body Model (HBM) Class 3A JESD22-A114-E
< 400V Machine Model (MM) Class B JESD22-A115-B
-40°C - 120°C
125°C
-40°C - 105°C
LUXEON CoB with CrispWhite Technology is not designed to be driven in reverse bias
Notes for Table 4:
1. Proper current derating must be observed to maintain junction temperature below the maximum, please see application brief for additional information on thermal measurement guidelines.
2. Residual periodic variations due to power conversion from alternating current (AC) to direct current (DC), also called “ripple’, with frequencies
≥
100 Hz and amplitude ±20% are acceptable,
assuming the average current throughout each cycle does not exceed 2x test I
f
.
DS138 LUXEON CoB with CrispWhite Technology Product Datasheet 20150225 ©2015 Lumileds Holding B.V. All rights reserved.
4
