CE83M-1M000 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> CE83M-1M000

CE83M-1M000: DescriptionOscillator, 1MHz Min, 100MHz Max, 1MHz Nom; CategoryPassive components oscillator; File Size42KB，2 Pages; ManufacturerRaltron; Websitehttp://www.raltron.com/; Environmental Compliance

Download Datasheet Parametric View All

CE83M-1M000 Overview

Oscillator, 1MHz Min, 100MHz Max, 1MHz Nom

CE83M-1M000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	SMDIP6,.4
Reach Compliance Code	compliant
Installation features	SURFACE MOUNT
Number of terminals	6
Maximum operating frequency	100 MHz
Minimum operating frequency	1 MHz
Nominal operating frequency	1 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC
Encapsulate equivalent code	SMDIP6,.4
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	35 mA
Nominal supply voltage	5 V
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

HIGH STABILITY CRYSTAL OSCILLATORS

SERIES CX8000

FEATURES

WIDE FREQUENCY RANGE

STABILITY TO ±5 PPM

CUSTOM SPECIFICATIONS

SPECIFICATIONS

FREQUENCY RANGE

1.00 MHz TO 100.00 MHz

FREQUENCY STABILITY OVER TEMPERATURE ±5 PPM TO ±50 PPM MAX AT VCC = +5.0 VDC AND STANDARD LOAD

RANGE (REFERENCED TO25°C)

(SEE TABLE 1 FOR STABILITY OVER TEMPERATURE RANGE)

0°C TO +50°C (NARROW)

0°C TO +70°C (STANDARD)

-40°C TO +85°C (EXTENDED)

AT VCC = +5.0 VDC AND STANDARD LOAD

-40°C TO +85°C

±4 PPM MAX FOR THE FIRST YEAR

±2 PPM MAX PER YEAR THEREAFTER

TTL, HCMOS, OR ACMOS (SEE TABLE 2)

NORMAL: 40/60 % TIGHT: 45/55 %

±3 PPM MAX FOR 10% VARIATION AT VCC = +5.0 VDC AT 25°C

+5.0 VDC ±5% (3.3 VDC AVAILABLE)

±5 PPM MAX FOR 5% VARIATION AT VCC = +5.0 VDC

AND STANDARD LOAD AT 25°C

35 mA MAX AT VCC = +5.0 VDC AND STANDARD LOAD AT 25°C

-0.5 TO +7.0 VDC FOR VCC AND VC (N0N DESTRUCTIVE)

CONTROL PIN 2: HIGH OR OPEN (+2.0 VDC MIN) OUTPUT PIN 4: ENABLED

CONTROL PIN 2: LOW OR GND (+0.8 VDC MAX) OUTPUT PIN 4: DISABLED (HIGH Z)

-40°C TO +85°C

SEE GRAPH FOR PHASE NOISE CHARACTERISTICS

OPERATING TEMPERATURE RANGE

STORAGE TEMPERATURE RANGE

AGING CHARACTERISTICS

OUTPUT WAVEFORM OPTIONS

SYMMETRY

FREQUENCY STABILITY OVER

LOAD VARIATION

SUPPLY VOLTAGE

FREQUENCY STABILITY OVER

SUPPLY VOLTAGE VARIATION

SUPPLY CURRENT

ABSOLUTE VOLTAGE RANGE

ENABLE/DISABLE FUNCTION

STORAGE TEMPERATURE RANGE

PHASE NOISE (TYPICAL)

TEMPERATURE RANGE DESIGNATIONS

TABLE 1

CODE

TEMPERATURE

RANGE

0°C TO +50°C

0°C TO +70°C

-40°C TO +85°C

TEMPERATURE

STABILITY

± 5 PPM

± 10 PPM

± 15 PPM

± 20 PPM

± 25 PPM

± 10 PPM

± 15 PPM

± 20 PPM

± 25 PPM

± 35 PPM

± 50 PPM

± 20 PPM

± 25 PPM

± 30 PPM

± 35 PPM

± 50 PPM

OUTPUT AND LOAD CHARACTERISTICS

TABLE 2

TTL/HCMOS COMPATIBLE

SYMMETRY: 40/60% TO 60/40% AT +1.4 VDC

VOH: +2.4 VDC MIN

VOL: +0.4 VDC MAX

RISE/FALL TIME: 10 ns WITH STANDARD LOAD (20% TO 80%)

TTL/HCMOS COMPATIBLE

SYMMETRY: 40/60% TO 60/40% AT 50% LEVEL

VOH: +4.5 VDC MIN

VOL: +0.5 VDC MAX

RISE/FALL TIME: 5 ns WITH STANDARD LOAD (20% TO 80%)

ACMOS TO DRIVE 3 GATES AT TTL LEVELS

SYMMETRY: 40/60% TO 60/40% AT 50% LEVEL

VOH: +4.5 VDC MIN

VOL: +0.5 VDC MAX

RISE/FALL TIME: 5 ns WITH 30 pF LOAD (20% TO 80%)

TTL - 10 TTL LOADS

HCMOS - 15 pF MAX

ACMOS - 15 pF MAX

MECHANICAL CHARACTERISTICS

MECHANICAL SHOCK

THERMAL SHOCK

RANDOM VIBRATION

GROSS LEAK

HERMETIC SEAL

SOLDERING CONDITIONS

MECHANICAL

MIL-STD-202, METHID 213, CONDITION E

MIL-STD-883, METHOD 1011, CONDITION A

MIL-STD-883, METHOD 2007, CONDITION A

100% LEAK TESTED IN DEIONIZED WATER

LEAK RATE LESS THAN 0.05 PPM ATM x cc/s OF HELIUM

240° C ±5 s MAXIMUM FOR 10 s

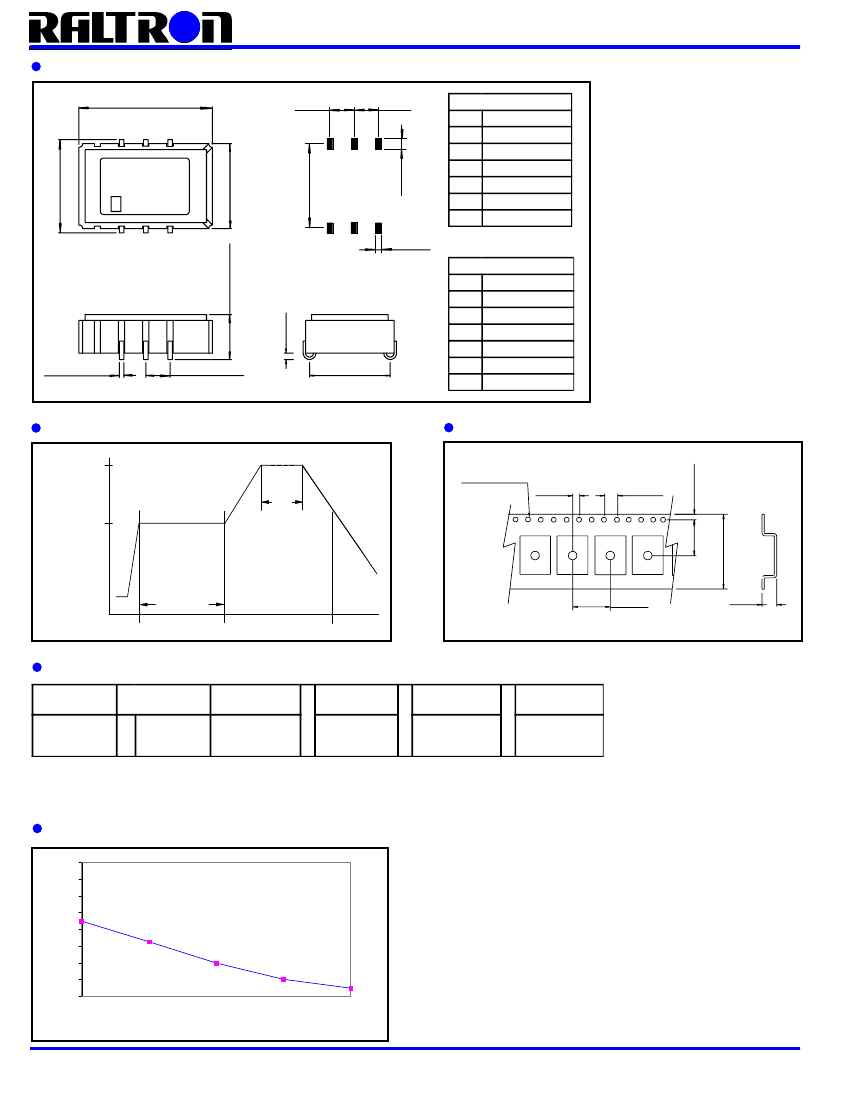

SURFACE MOUNT, 6 PIN PER OUTLINE DRAWING

Raltron Electronics Corporation 10651 NW 19th St. Miami, Florida 33172 U.S.A.

Tel: 305-593-6033 Fax: 305-594-3973 e-mail: sales@raltron.com Internet: http://www.raltron.com
