MAMX-090950-1277LT
Silicon Double Balanced HMIC Mixer
850 - 1050 MHz
Features
•
•
•
•
•
•
+21 dBm Typical Input IP3
8.3 dB Typical Conversion Loss
+5 to +10 dBm LO Drive
Fully Balanced Passive Mixer
Low Cost Miniature Plastic MLP Package
Lead Free (RoHS* Compliant) with 260°C Re-
flow Capability
•
100% Matte Tin Plating
Rev. V2

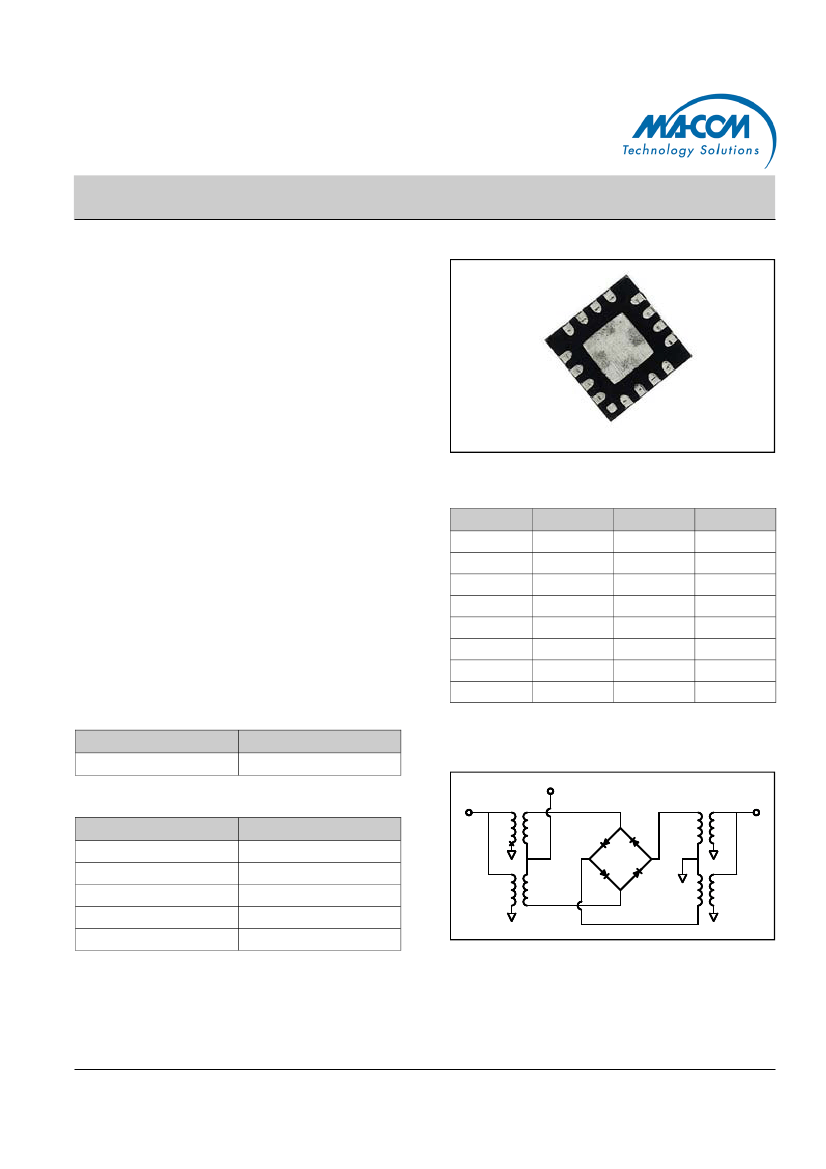

MLP 3mm Package - Circuit Side
Description
M/A-COM’s MAMX-090950-1277LT is a 850 - 1050
MHz silicon monolithic double balanced mixer in a
low cost miniature surface mount MLP 3 mm, 16
lead plastic package. The die uses M/A-COM’s
unique HMIC silicon/glass process to realize low
loss passive elements while retaining the advan-
tages of medium barrier silicon Schottky barrier
diodes.
PIN Configuration
3
PIN
1
2
Function
N/C
N/C
LO
N/C
N/C
N/C
N/C
N/C
PIN
9
10
11
12
13
14
15
16
Function
N/C
RF
N/C
N/C
N/C
IF
N/C
N/C
Applications
These mixers are well suited for GSM and CDMA
Cellular basestation applications where small size
and high performance are required. Typical Appli-
cations include frequency conversion, modulation,
and demodulation in wireless receivers and trans-
mitters.
3
4
5
6
7
8
Ordering Information
Model No.
MAMX-090950-1277LT
3. Center area is ground
Package
Tape and Reel
1,2
Schematic
IF
RF
LO
Absolute Maximum Ratings
Parameter
Operating Temperature
Storage Temperature
Incident LO Power
Incident RF Power
Soldering Temperature
Maximum Rating
-65°C to +125°C
-65°C to 150°C
+20 dBm
+20 dBm
+260°C max.
1. Exceeding these limits may cause permanent damage.
2. Please refer to application note M538 for surface mounting
instructions
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAMX-090950-1277LT
Silicon Double Balanced HMIC Mixer
850 - 1050 MHz
Electrical Specifications @ 25°C
Parameter
Conversion Loss
L - R Isolation
L - I Isolation
R - I Isolation
LO VSWR
RF VSWR
IF VSWR
Input IP3
Input 1 dB
Compression
IF 1 dB Bandwidth
Rev. V2
Frequency Range
900 MHz
850 - 1050 MHz
900 MHz
850 - 1050 MHz
900 MHz
850 - 1050 MHz
900 MHz
850 - 1050 MHz
900 MHz
850 - 1050 MHz
900 MHz
850 - 1050 MHz
DC - 400 MHz
900 MHz
850 - 1050 MHz
900 MHz
850 - 1050 MHz
DC - 400 MHz
Test Conditions
LO Drive = +7 dBm
RF = -10 dBm, IF = 60 MHz
LO Drive = +7 dBm
RF Level = -10 dBm
LO Drive = +7 dBm
RF Level = -10 dBm
LO Drive = +7 dBm
RF Level = -10 dBm
LO Drive = +7 dBm
RF Level = -10 dBm
LO Drive = +7 dBm
RF Level = -10 dBm
LO Drive = +7 dBm
RF Level = -10 dBm
LO Drive = +7 dBm
RF = -10 dBm, IF = 60 MHz
LO Drive = +7 dBm
IF = 60 MHz
LO = 900 MHz @ +7 dBm
Units
dB
dB
dB
dB
dB
dB
dB
dB
Ratio
Ratio
Ratio
Ratio
Ratio
Ratio
dBm
dBm
dBm
dBm
MHz
Min.
—
—
—
—
—
—
—
—
—
—
—
—
—
—
17.8
16.9
—
—
0
Typ.
8.2
8.5
65
62
46
46
23
23
1.5:1
1.5:1
1.3:1
1.5:1
1.5:1
1.5:1
21.0
20.5
4.3
4.3
—
Max.
8.9
9.5
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
—
400
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAMX-090950-1277LT
Silicon Double Balanced HMIC Mixer
850 - 1050 MHz

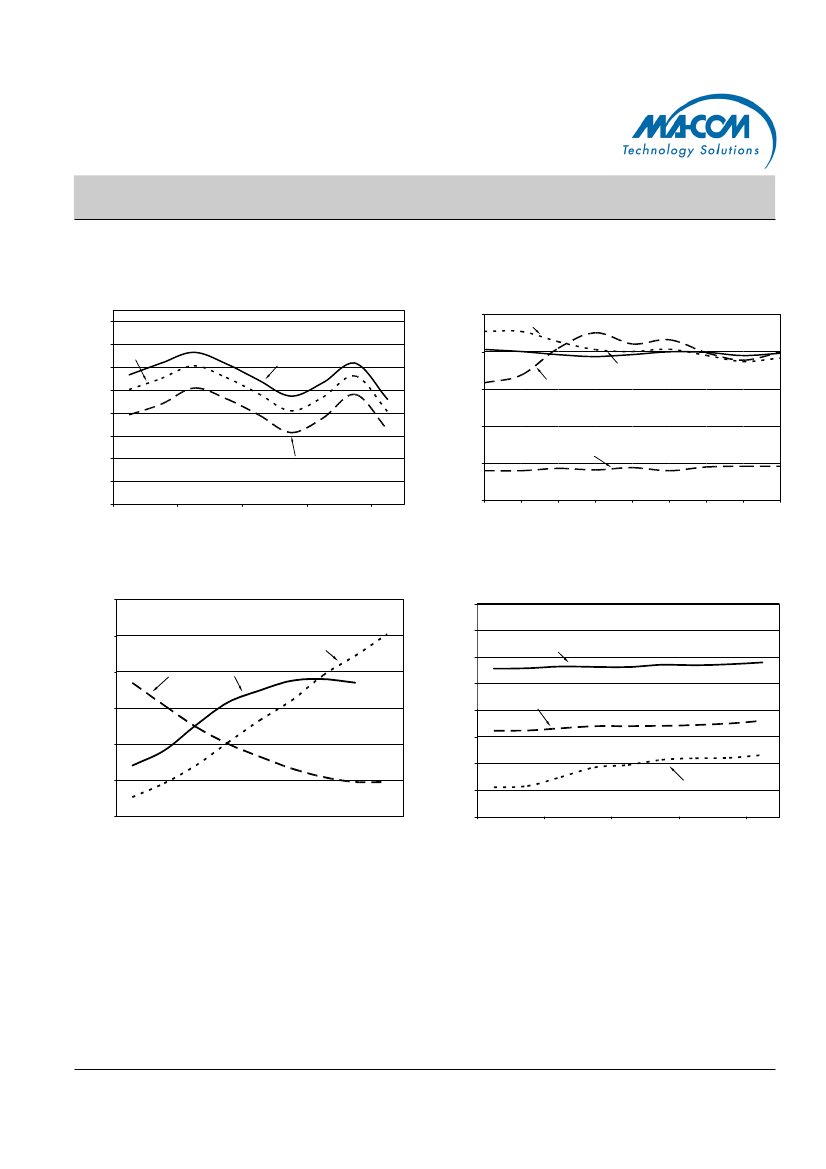

Typical Performance Curves
Conversion Loss vs. Frequency
LO Drive = +5/+7/+9 dBm, RF = -10 dBm, IF = 60 MHz
-7.9
-8.1
Rev. V2
Input 1 dB & P1dB vs. Frequency
LO Drive = +5/+7/+9 dBm, RF = -10 dBm, IF = 60 MHz
25
PLO = 7dBm
PLO = 7dBm
-8.3
20
PLO = 9dBm
PLO = 9dBm
PLO = 5dBm
LOSS (DB)
IP3 (dBm)
-8.5
-8.7
-8.9
15
10
1db Compression
-9.1
-9.3
-9.5
850
875
900
925
950
PLO = 5dBm
5
975
1000
1025
1050
0
850
875
900
925
950
975
1000
1025
1050
FREQUENCY (MHz)
FREQUENCY (MHz)
VSWR vs. Frequency
LO Drive = +7 dBm, RF = -10 dBm, IF = 60 MHz
2.20
Isolation vs. Frequency
LO Drive = +7 dBm, RF = -10 dBm
0
-10
2.00
I Port
R Port
-20
R-I
ISOLATION(dB)
1.80
L Port
-30
-40
-50
-60
VSW R
1.60
L-I
1.40
1.20
-70
L-R
1.00
850
875
900
925
950
975
1000
1025
1050
-80
850
875
900
925
950
975
1000
1025
1050
50
100
150
200
250
300
350
400
FREQUENCY (MHz)
FREQUENCY (MHz)
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MAMX-090950-1277LT
Silicon Double Balanced HMIC Mixer
850 - 1050 MHz

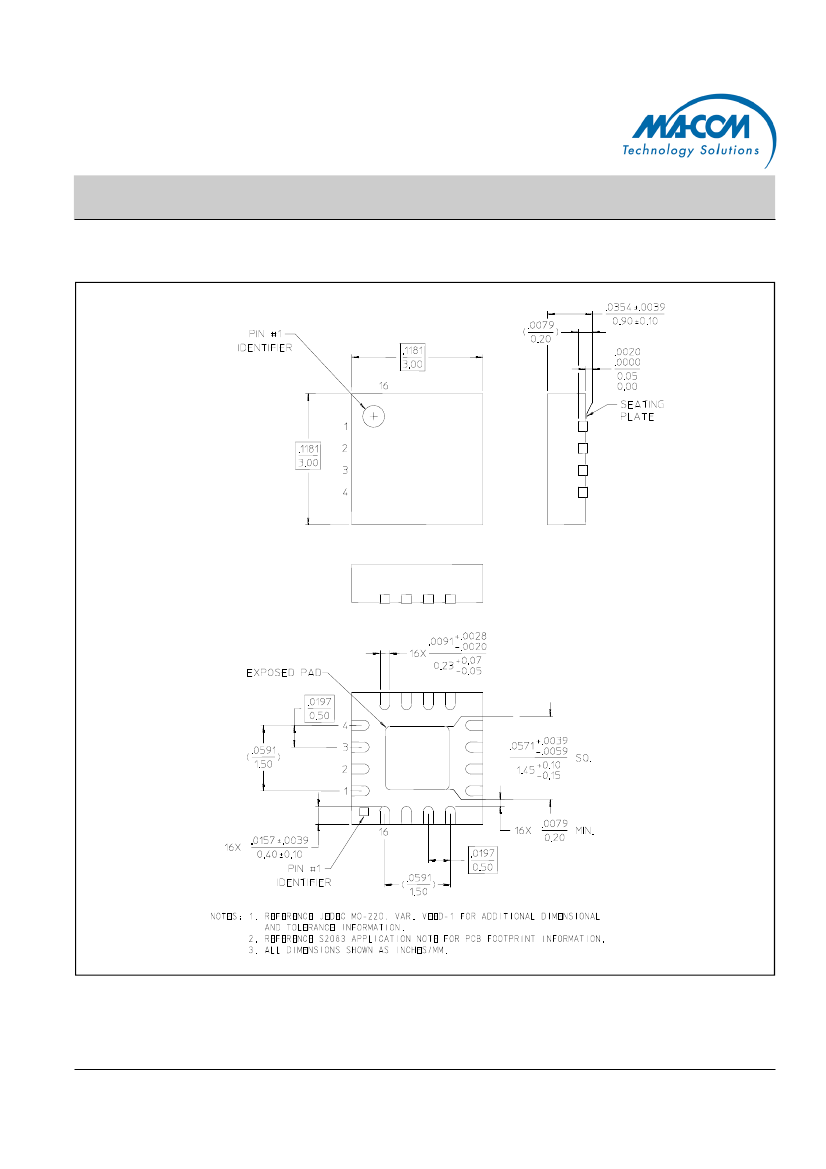

MAMX-090950-1277LT Outline
3mm FQFP - 16 Lead Saw Singulated
Rev. V2
4
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.43537383
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
