CS-8164TV datasheet, PDF - EEWORLD Datasheet

CS-8164TV: DescriptionFixed Positive LDO Regulator, 2 Output, PZFM5,; CategoryPower/power management The power supply circuit; File Size291KB，8 Pages; ManufacturerCHERRY; Websitehttp://www.cherry-semi.com

Download Datasheet Parametric Compare View All

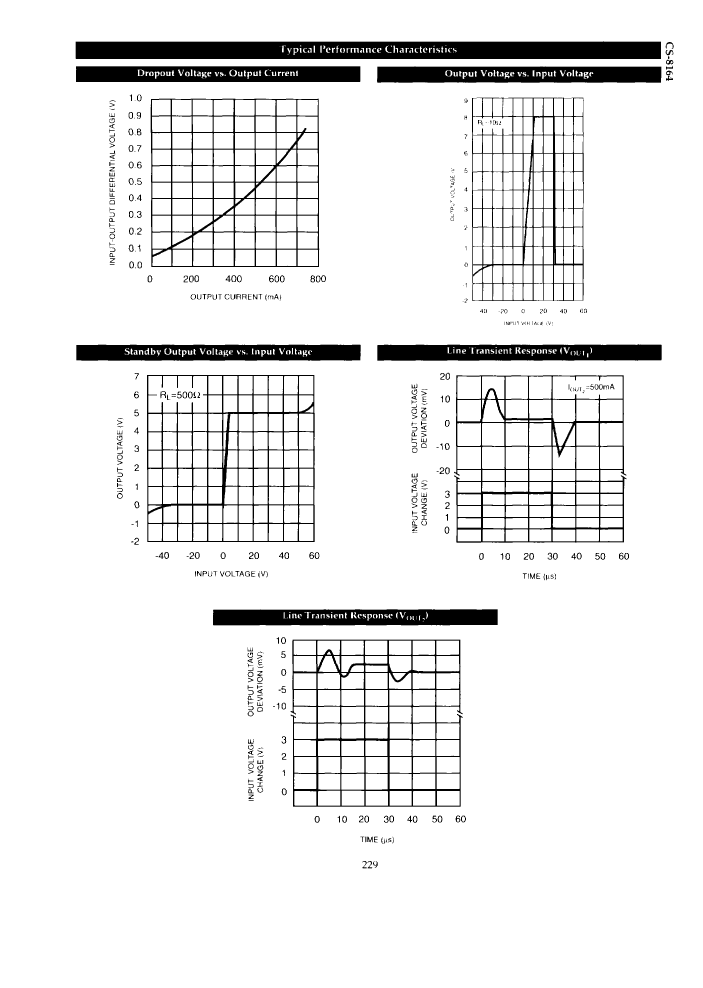

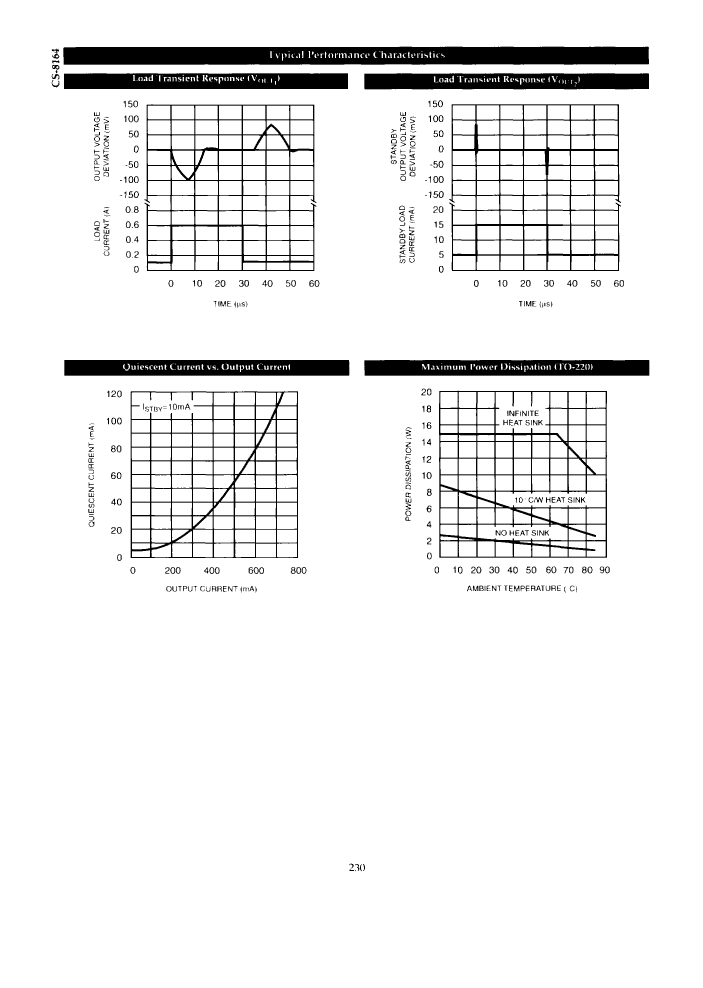

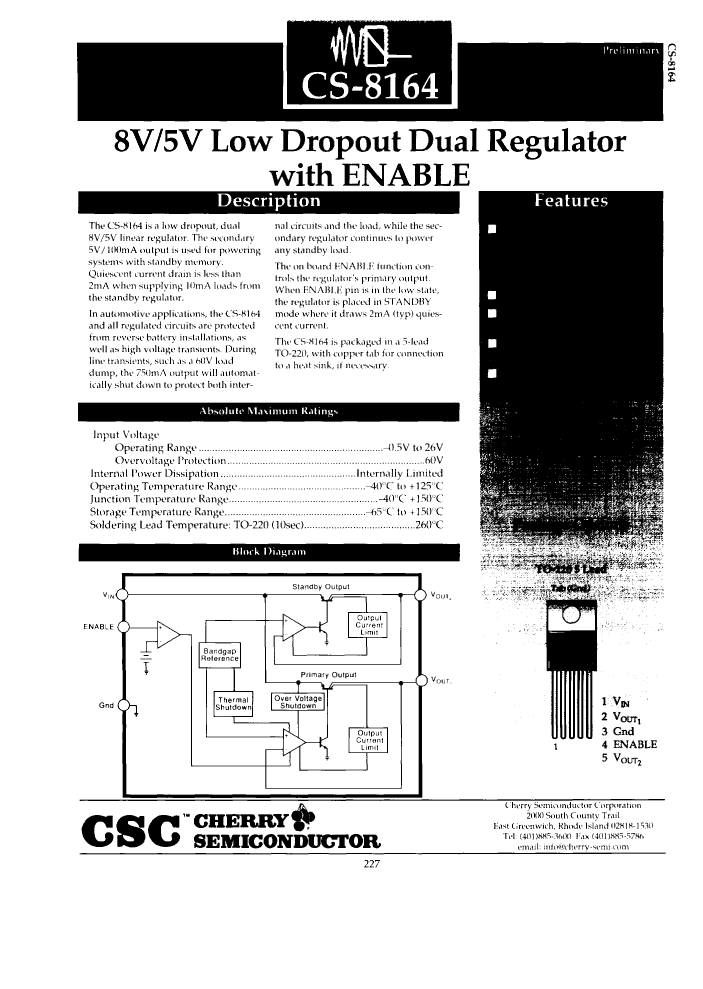

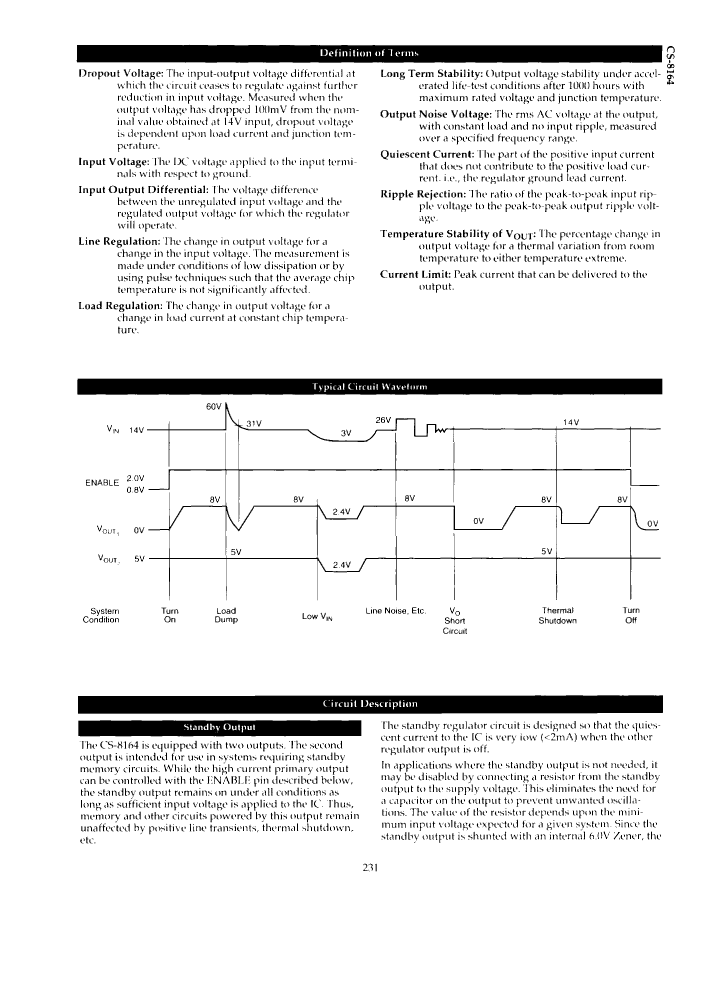

CS-8164TV Overview

Fixed Positive LDO Regulator, 2 Output, PZFM5,

Parameter Name	Attribute value
Reach Compliance Code	unknown
Maximum input voltage	26 V
Minimum input voltage	13 V
JESD-30 code	R-PZFM-T5
Number of functions	1
Output times	2
Number of terminals	5
Working temperatureTJ-Max	150 °C
Working temperature TJ-Min	-40 °C
Maximum output current 1	0.5 A
Maximum output current 2	0.01 A
Maximum output voltage 1	8.4 V
Minimum output voltage 1	7.6 V
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Regulator type	FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	ZIG-ZAG
Base Number Matches	1

	CS-8164TV	CS-8164T	CS-8164TH
Description	Fixed Positive LDO Regulator, 2 Output, PZFM5,	Fixed Positive LDO Regulator, 2 Output, PSFM5,	Fixed Positive LDO Regulator, 2 Output, PZFM5,
Reach Compliance Code	unknown	unknown	unknown
Maximum input voltage	26 V	26 V	26 V
Minimum input voltage	13 V	13 V	13 V
JESD-30 code	R-PZFM-T5	R-PSFM-T5	R-PZFM-T5
Number of functions	1	1	1
Output times	2	2	2
Number of terminals	5	5	5
Working temperatureTJ-Max	150 °C	150 °C	150 °C
Working temperature TJ-Min	-40 °C	-40 °C	-40 °C
Maximum output current 1	0.5 A	0.5 A	0.5 A
Maximum output current 2	0.01 A	0.01 A	0.01 A
Maximum output voltage 1	8.4 V	8.4 V	8.4 V
Minimum output voltage 1	7.6 V	7.6 V	7.6 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR	FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR	FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR
surface mount	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	ZIG-ZAG	SINGLE	ZIG-ZAG
Base Number Matches	1	1	1
