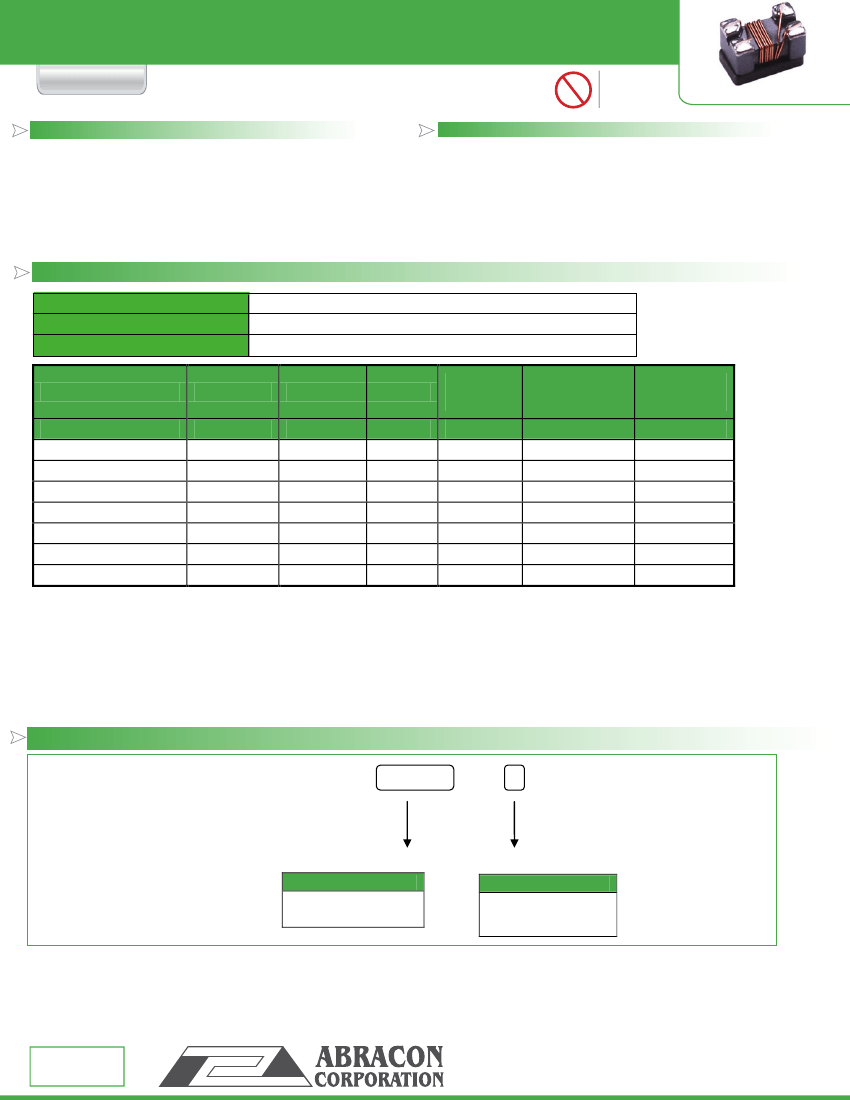

Chip Wire Wound Common Mode Choke

ACM-31

FEATURES:

APPLICATIONS:

RoHS

Compliant

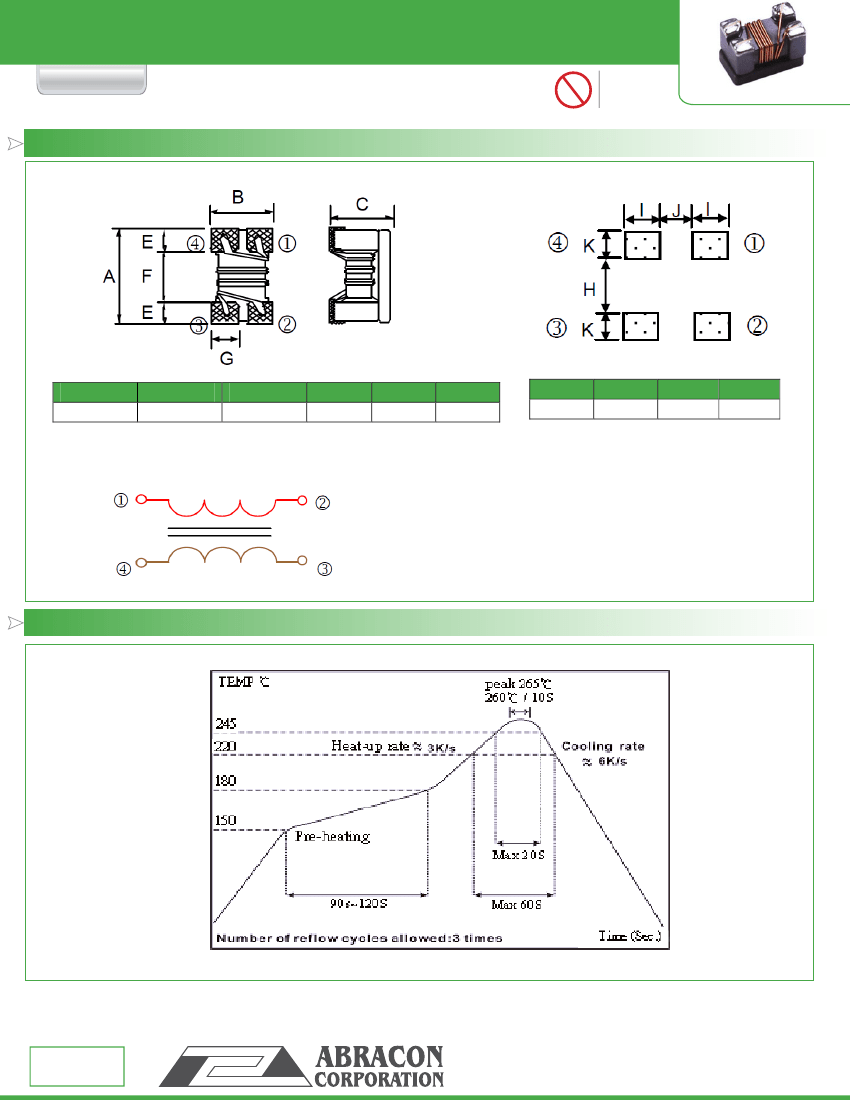

3.2 x 1.6 x 1.8mm

| | | | | | | | | | | | | |

•

Small size with ferrite base

•

Two line type wire wound

•

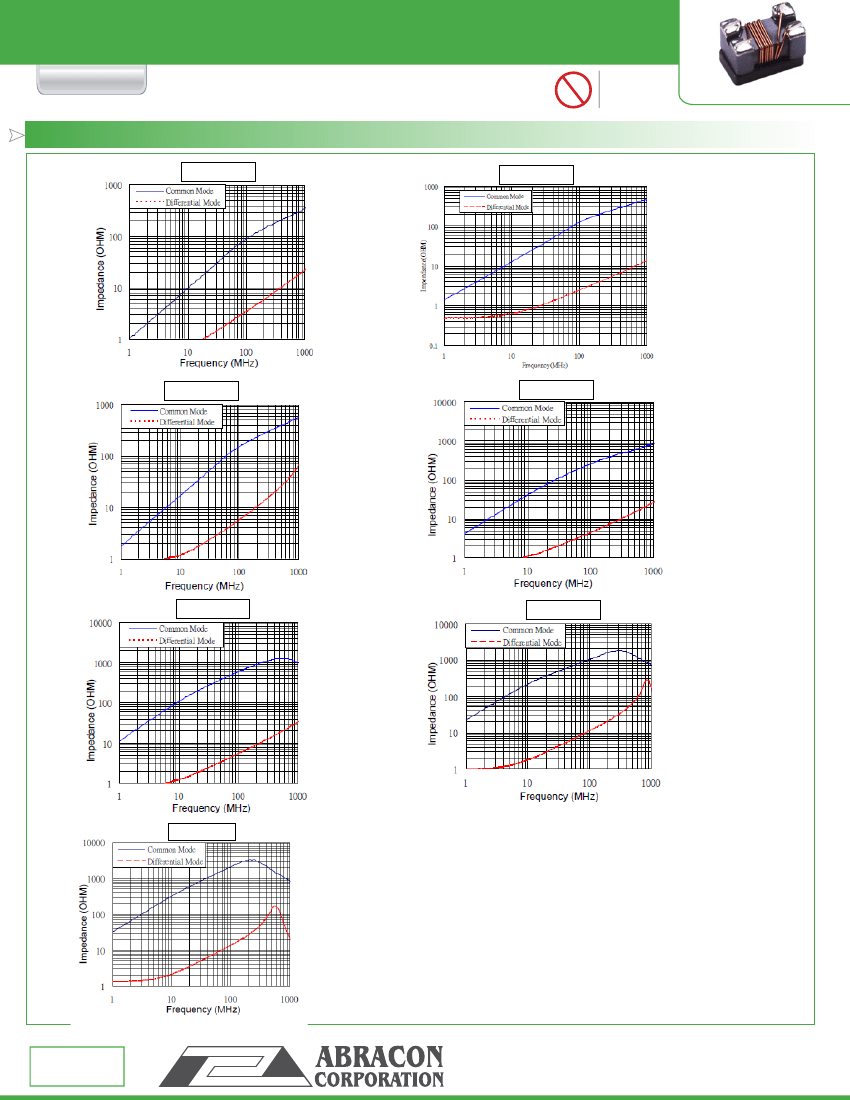

High common-mode impedance at noise band and low

differential-mode impedance at signal band

•

Suitable for high-speed signal.

•

EMI and Noise Suppression

•

USB Line Filter for Personal Computers and Peripheral

•

IEEE 1394 Line for Personal Computers, DVC, STB

•

Low-Voltage Differential Signal (LVDS) for LCD panels

STANDARD SPECIFICATIONS

Abracon P/N:

Operating Temperature & Humidity:

Storage Temperature & Humidity:

ACM-31

-40˚C to +85˚C

22˚C to 28˚C, Humidity < 80%RH (In tape and reel)

DCR

(max.)

0.30

0.40

0.50

0.80

1.00

1.20

IDC

370

340

310

260

230

200

Rated

Voltage

Vdc

Withstanding

Voltage

Vdc

125

Insulation

Resistance

MΩ (min.)

Part Number

Units

ACM-31-900

ACM-31-121

ACM-31-161

ACM-31-261

ACM-31-601

ACM-31-102

ACM-31-222

Ω ± 20%

120

160

260

600

1000

2200

Test Conditions

Impedance:

LCR Meter HP 4291B, 100MHz

DCR:

Micro-Ohm meter (GOM-801G)

Withstand Voltage (VDC):

125Vdc, 60 sec, 0.5mA

Rated Voltage (VDC):

50Vdc, 1 – 5 sec

Insulation Resistance (I.R):

1mA, 1 min

PART IDENTIFICATION:

ACM-31 -

M-

Impedance Code

Please refer to the

table above

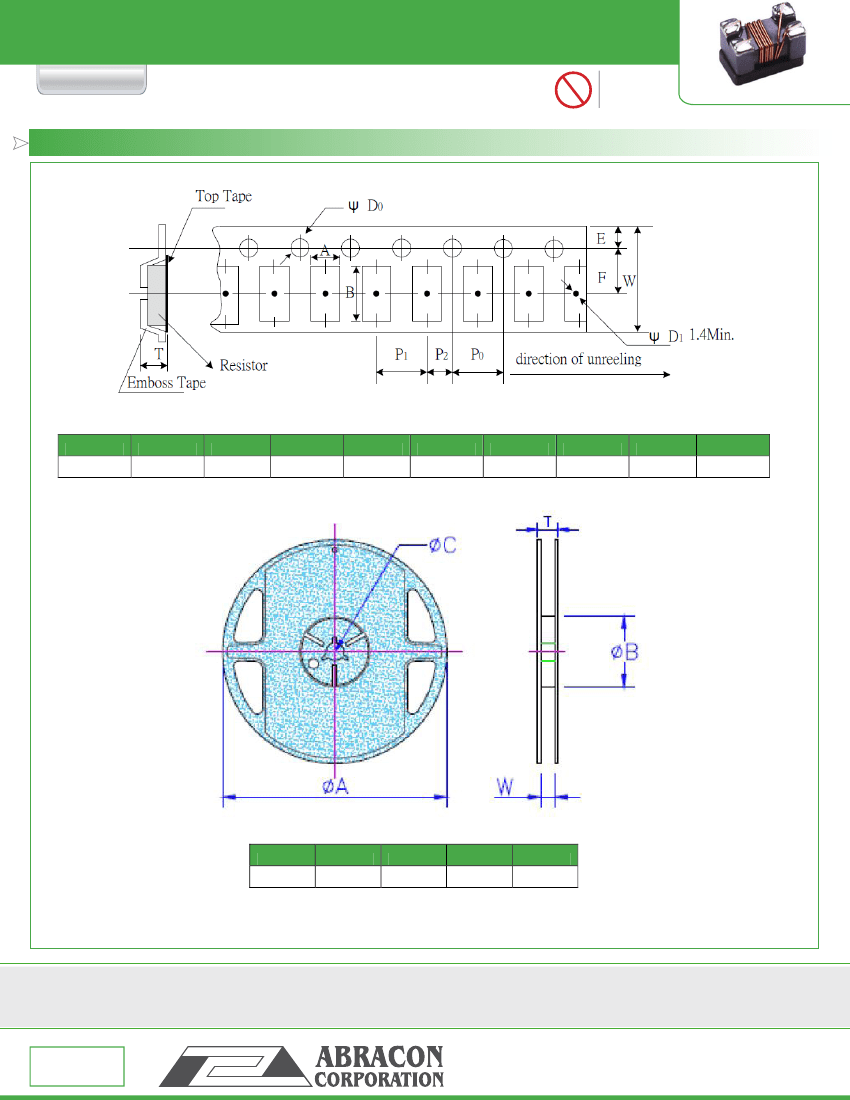

Blank: bulk

T: Tape and Reel

(2k pcs/reel)

Packaging

ABRACON IS

ISO 9001 / QS 9000

ISO 9001:2008

CE RTIFIED

Revised: 01.28.13

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
