REVISION A
Pb THIS PRODUCT MANUFACTURED
WITH LEAD-FREE PROCESSING
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
CABLE CALLOUT
BE25X-XXXXX-XX.X-XX-XXXX
OVERALL CABLE LENGTH (MILLIMETERS)
(SEE NOTES 8 & 9)
0100-9999 [3.9 - 393.7]
(STOCKED LENGTHS AS FOLLOWS)
-0152: (6 INCHES)
-0305: (12 INCHES)
-0457: (18 INCHES)
-0914: (36 INCHES)
No. OF PHASE MATCHED CABLES
-00: NO PHASE MATCHING
-02: (1 PAIR)
-04: (2 PAIRS)
-06: (3 PAIRS)
-08: (4 PAIRS)
DO NOT
SCALE FROM
THIS PRINT

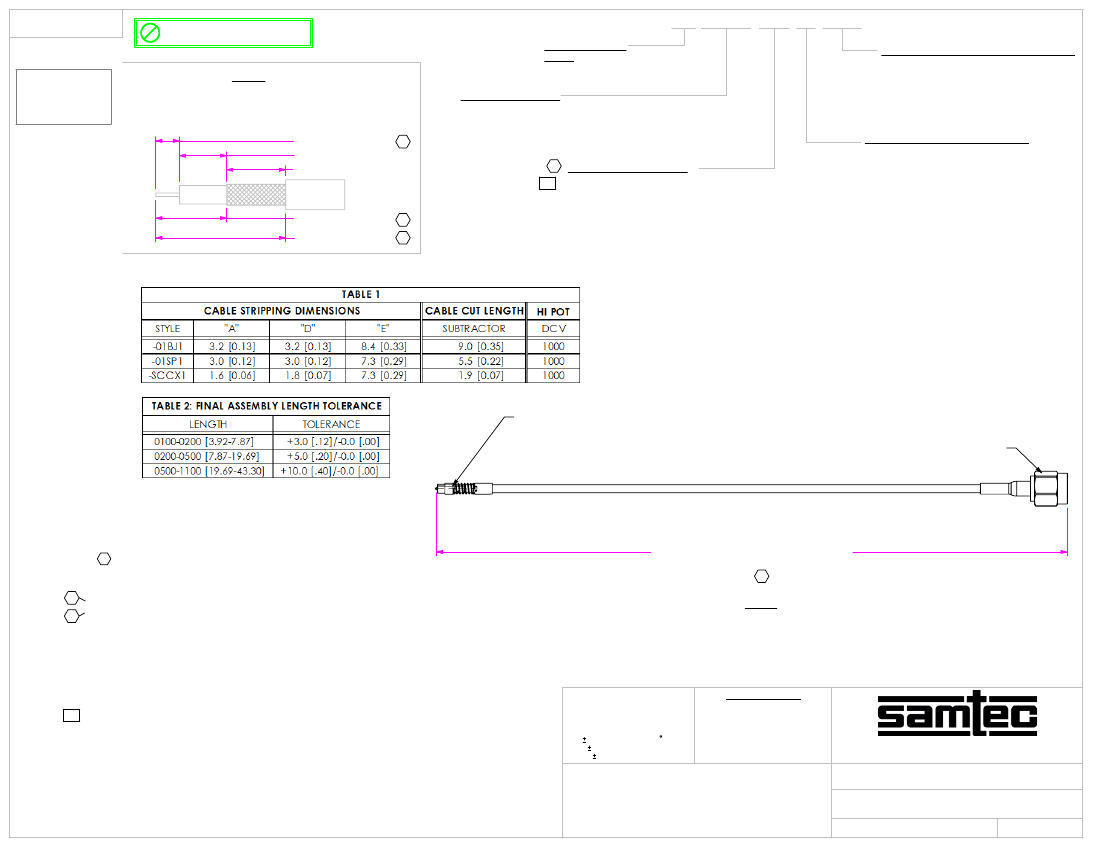

CABLE STRIPPING DIMENSIONS
PER CONFIGURATIONS
(SEE TABLE 1)(SEE NOTES 10, 11,12,13)
"A" mm
"B" mm
"C" mm
C
FIG. 2
END 1
25M: CCA-25M (TEMP-FLEX CABLE)
25S: MWC-2550-01
(SAMTEC MICROWAVE CABLE)
END 2 CONNECTOR
-01BJ1: SMA-J-C-X-ST-BH5 (SEE SHEET 2)
-01SP1: SMA-P-C-X-ST-CA5 (SEE SHEET 2)
***-SCC31: PRB3-P-C-X-ST-CA5 (STD. FERRULE)(SEE SHEET 2)
****-SCC41: PRB4-P-C-X-ST-CA5 (STD. FERRULE)(SEE SHEET 2)
C
PHASE MATCHING SPEC
-00.0: NO PHASE MATCHING
A
* -01.5: 1.5 PICO-SECOND
**-03.0: 3.0 PICO-SECONDS
-06.0: 6.0 PICO-SECONDS
-10.0: 10.0 PICO-SECONDS
* NOT AVAILABLE WITH -0457 AND -0914 CABLE LENGTH
**NOT AVAILABLE WITH -0914 CABLE LENGTH
***NOT AVAILABLE WITH 25S CABLE
****NOT AVAILABLE WITH 25M CABLE
"D" mm
"E" mm
C
C
END 1
(25M: PRB3-P-C-H-ST-CA5
25S: PRB4-P-C-H-ST-CA5)
END 2
(VARIABLE, SEE PART CALLOUT)
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION
2. CABLE CUT LENGTH:
= (LENGTH: XXXX) - (SUBTRACTOR FOR END 1) - (SUBTRACTOR FOR END 2)
(SEE TABLE 1 FOR SUBTRACTORS)
C 3. ASSEMBLY TO BE 100% TESTED FOR OPENS & SHORTS
C 4. ASSEMBLY TO BE 100% HI-POT TESTED PER TABLE 1
5. AFTER FINAL ELECTRICAL TESTS, LABEL EACH CABLE ASSEMBLY WITH 1 LABEL -ET
6. CRITICALS ON CONNECTOR PRINTS TO BE CHECKED IN PROCESS.
7. FINISHED ASSEMBLIES TO BE PACKAGED PER PACKAGING STANDARD CO-HD-WI-3033-M.
- LOCKWASHERS, NUTS, AND GASKETS TO BE SHIPPED UNASSEMBLED.
8. CABLE STOCKED IN INCHES, 1 INCH = 25.4 MILLIMETERS
9. CABLE LENGTHS LONGER THAN 1000 MILLIMETERS ARE NOT SUPPORTED BY S.I. TEST DATA
10. PRODUCTION OF STRIP AND TIN FOR CENTER DIELECTIC USE: A
11. PRODUCTION OF STRIP AND TIN FOR SHIELD USE: D=A+B
12. PRODUCTION OF STRIP AND TIN FOR JACKET USE: E=A+B+C
A
13. DIM "A", "B", AND "C" HAVE A MINIMUM VALUE OF 0.0mm & A MAXIMUM VALUE OF 9.9mm.
LENGTH: XXXX
(SEE TABLE 2 FOR TOLERANCE)
(SEE NOTE 2 FOR CABLE CUT LENGTH)
C
BE25X-01SPX-01SPX-XXXX SHOWN
FIG. 1
C:\EnterpriseVault\DWG\MISC\MKTG\BE25X-XXXXX-XX.X-XX-XXXX-MKT.SLDDRW
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN
MILLIMETERS [INCHES].
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
TOLERANCES ARE:
DECIMALS
.X: 0.3 [.01]
2
.XX: 0.13 [.005]
.XXX: 0.051 [.0020]
ANGLES
MATERIAL:
SEE END 1 AND END 2 ASSEMBLY PRINTS
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
BULLSEYE 25X CABLE ASSEMBLY
BE25X-XXXXX-XX.X-XX-XXXX
TALON Z
01/07/2010
BY:
SHEET
1
OF
2
REVISION A

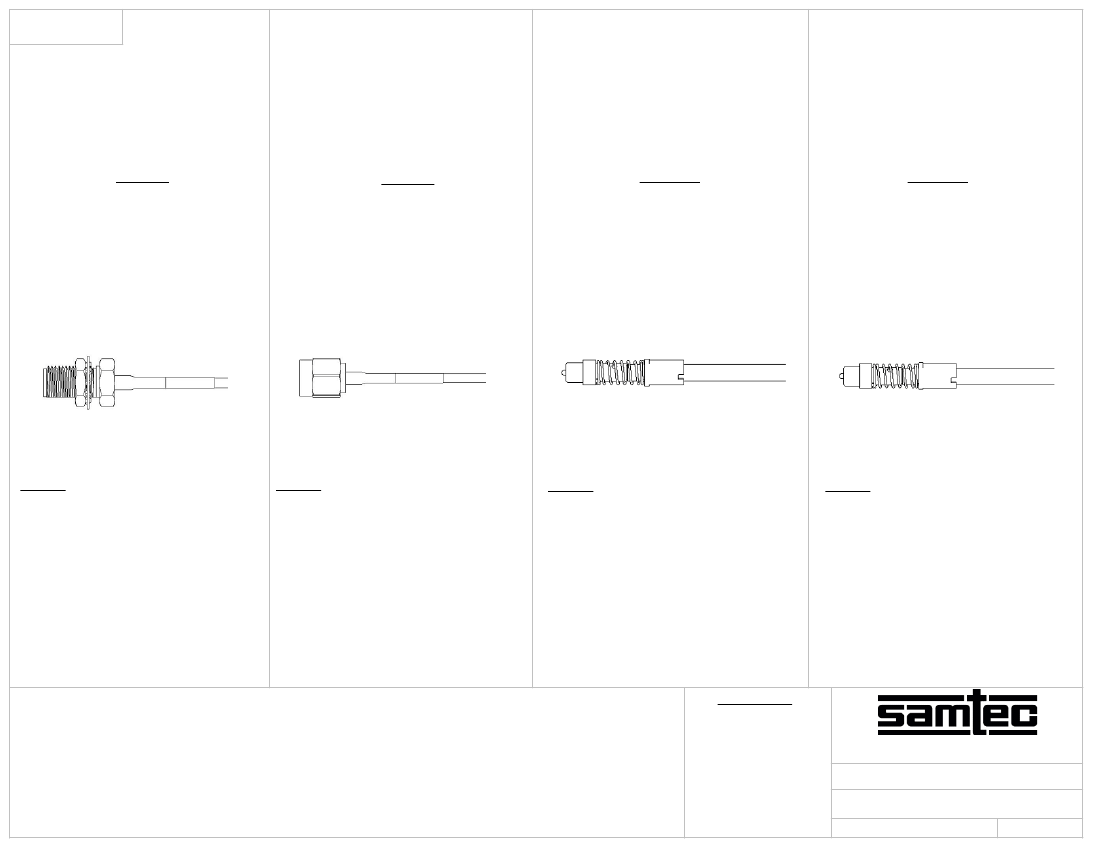

(STRAIGHT BULKHEAD JACK)
(USE DRAWING No.
SMA-J-C-X-ST-BH5
FOR ASSEMBLY INSTRUCTIONS)
-01BJ1
(STRAIGHT PLUG)
(USE DRAWING No.
SMA-P-C-X-ST-CA5
FOR ASSEMBLY INSTRUCTIONS)
-01SP1
(ROUND TIP/STD. FERRULE)
(USE DRAWING No.
PRB3-P-C-X-ST-CA5
FOR ASSEMBLY INSTRUCTIONS)
-SCC31
(ROUND TIP/STD. FERRULE)
(USE DRAWING No.
PRB4-P-C-X-ST-CA5
FOR ASSEMBLY INSTRUCTIONS)
-SCC41
PLATING
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N:
SMA-J-C-H-ST-BH5)
PLATING
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N:
SMA-P-C-H-ST-CA5)
PLATING
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N:
PRB3-P-C-H-ST-CA5)
PLATING
1: 30μ" MIN. GOLD CENTER CONTACT
3μ" MIN. GOLD OUTER CONTACT
3μ" MIN. GOLD REMAINING METAL PARTS
(END CONNECTOR P/N:
PRB4-P-C-H-ST-CA5)
NOTE: ALL CRITICAL DIMENSIONS ON SMA-J-C-X-ST-
BH5
NOTE: ALL CRITICAL DIMENSIONS ON SMA-P-C-X-ST-CA5
THAT APPLY MUST BE VERIFIED.
THAT APPLY MUST BE VERIFIED.
NOTE: ALL CRITICAL DIMENSIONS ON PRB3-P-C-X-ST-CA5 NOTE: ALL CRITICAL DIMENSIONS ON PRB4-P-C-X-ST-CA5
THAT APPLY MUST BE VERIFIED.
THAT APPLY MUST BE VERIFIED.
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail: info@SAMTEC.com
code: 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
BULLSEYE 25X CABLE ASSEMBLY
BE25X-XXXXX-XX.X-XX-XXXX
01/07/2010
SHEET
2
OF
2
C:\EnterpriseVault\DWG\MISC\MKTG\BE25X-XXXXX-XX.X-XX-XXXX-MKT.SLDDRW
BY:
TALON Z
