M1422LPS-30C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> M1422LPS-30C

M1422LPS-30C: DescriptionSRAM Module, 128KX8, 30ns, CMOS; Categorystorage storage; File Size226KB，5 Pages; ManufacturerCypress Semiconductor

Download Datasheet Parametric Compare View All

M1422LPS-30C Overview

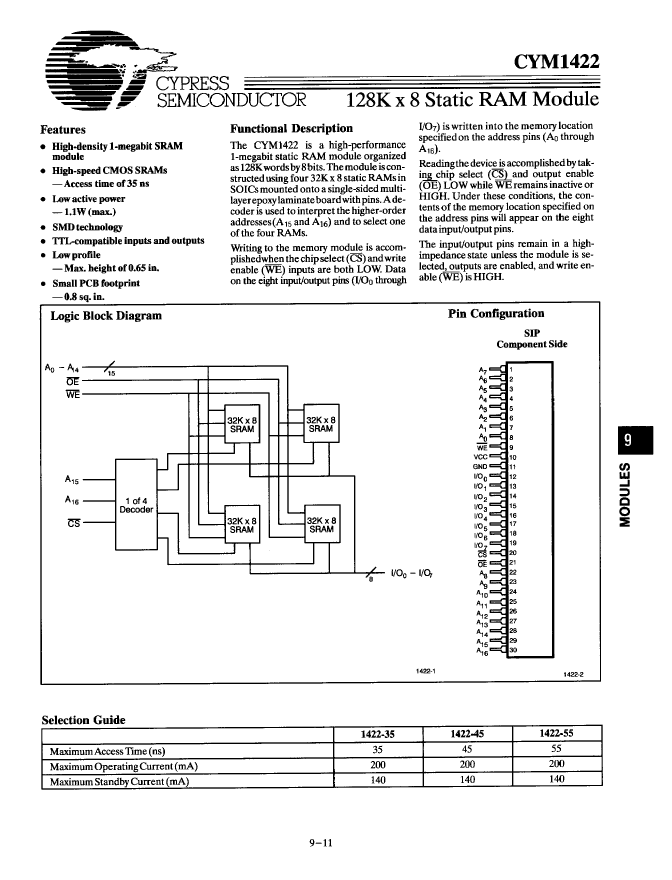

SRAM Module, 128KX8, 30ns, CMOS

M1422LPS-30C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
Maximum access time	30 ns
I/O type	COMMON
JESD-609 code	e0
memory density	1048576 bit
Memory IC Type	SRAM MODULE
memory width	8
Number of terminals	30
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SIP30,.2
Parallel/Serial	PARALLEL
power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.016 A
Minimum standby current	2 V
Maximum slew rate	0.23 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm
Terminal location	SINGLE
Base Number Matches	1

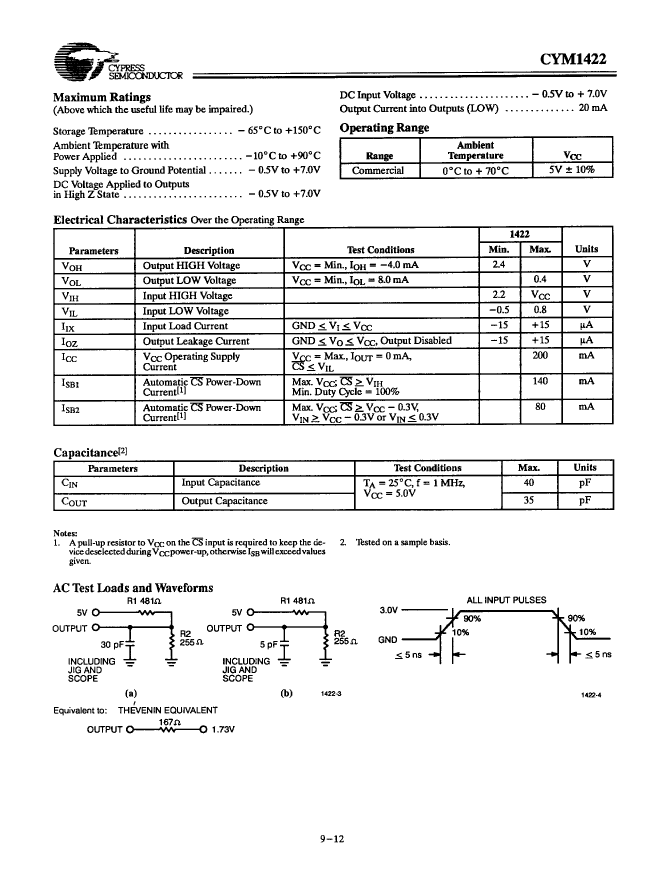

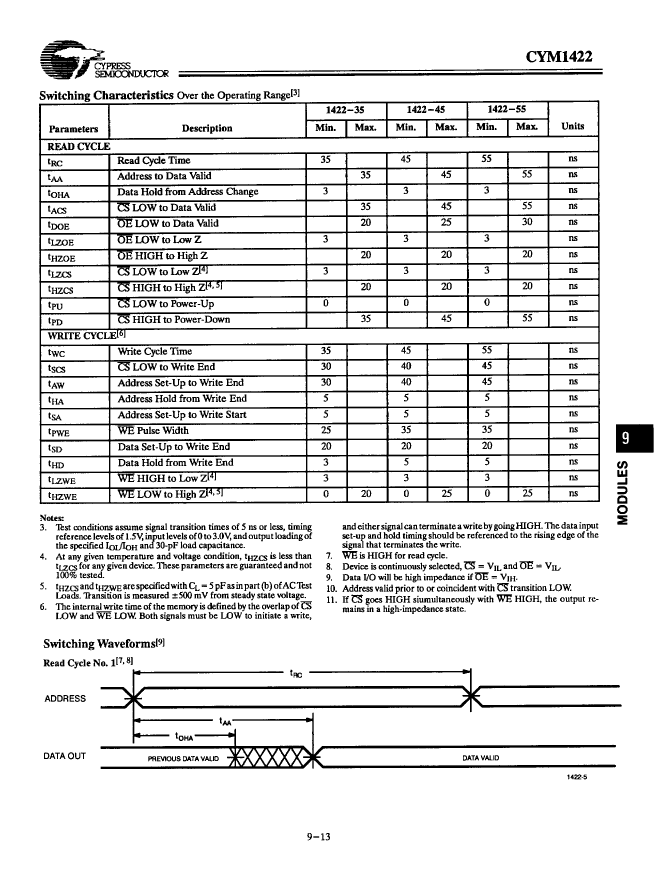

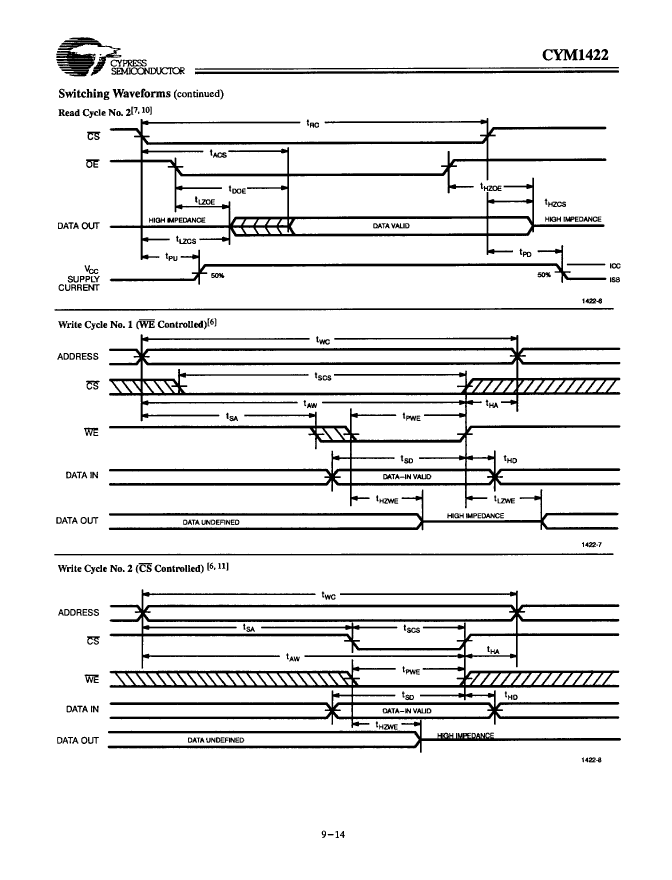

Preview

Download Datasheet

View All

M1422LPS-30C Related Products

	M1422LPS-30C	M1422LPS-55C	M1422LPS-35C	M1422PS-55C	M1422PS-35C	M1422LPS-45C	M1422PS-30C	M1422PS-45C
Description	SRAM Module, 128KX8, 30ns, CMOS	SRAM Module, 128KX8, 55ns, CMOS	SRAM Module, 128KX8, 35ns, CMOS	SRAM Module, 128KX8, 55ns, CMOS	SRAM Module, 128KX8, 35ns, CMOS	SRAM Module, 128KX8, 45ns, CMOS	SRAM Module, 128KX8, 30ns, CMOS	SRAM Module, 128KX8, 45ns, CMOS
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Maximum access time	30 ns	55 ns	35 ns	55 ns	35 ns	45 ns	30 ns	45 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
memory density	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit
Memory IC Type	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE	SRAM MODULE
memory width	8	8	8	8	8	8	8	8
Number of terminals	30	30	30	30	30	30	30	30
word count	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words
character code	128000	128000	128000	128000	128000	128000	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	128KX8	128KX8	128KX8	128KX8	128KX8	128KX8	128KX8	128KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	SIP30,.2	SIP30,.2	SIP30,.2	SIP30,.2	SIP30,.2	SIP30,.2	SIP30,.2	SIP30,.2
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.016 A	0.016 A	0.016 A	0.08 A	0.08 A	0.016 A	0.08 A	0.08 A
Minimum standby current	2 V	2 V	2 V	4.5 V	4.5 V	2 V	4.5 V	4.5 V
Maximum slew rate	0.23 mA	0.23 mA	0.23 mA	0.23 mA	0.23 mA	0.23 mA	0.23 mA	0.23 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Base Number Matches	1	1	1	1	1	1	1	1
