MASW-007075-000100
GaAs SPDT Absorptive Switch with
ASIC Driver, DC-3.0 GHz
Features
•
•
•
•
•
•
•
•
•
•
•
•
Typical Isolation: 36 dB (2,000 MHz)
Typical Insertion Loss: 1.8 dB (2,000 MHz)
Integral ASIC TTL/CMOS Driver
Low DC Power Consumption
50 Ohm Nominal Impedance
Tape and Reel Packaging Available
Test Boards Available
Lead-Free SOW-24 Package
100% Matte Tin Plating over Copper
Halogen-Free “Green” Mold Compound
260°C Reflow Compatible
RoHS* Compliant Version of SW65-0114
Rev. V4
Functional Block Diagram
PIN 1 RFC
GND
GND
GND
GND
RF2
GND
GND PIN 24
GND
GND
GND
GND
RF1
GND
GND
GND
GND
GND
C1 PIN 13
Description
M/A-COM's MASW-007075-000100 is a GaAs MMIC
absorptive SPDT switch with an integral silicon ASIC
driver. This device is in a 24-lead plastic package.
This switch offers excellent broadband performance
and repeatability from DC to 3 GHz, while
maintaining low DC power dissipation. The MASW-
007075-000100 is ideally suited for wireless
infrastructure applications. Also available in ceramic
package with improved performance.
VEE
GND
VCC
GND
PIN 12 C2
Pin Configuration
Pin No.
1
Function
RFC
GND
GND
GND
GND
RF2
GND
V
EE
GND
V
CC
GND
C2
Pin No.
13
14
15
16
17
18
19
20
21
22
23
24
Function
C1
GND
GND
GND
GND
GND
RF1
GND
GND
GND
GND
GND
Ordering Information
Part Number
MASW-007075-000100
MASW-007075-0001TR
MASW-007075-0001TB
2
3
Package
Bulk Packaging
1000 piece reel
Sample Test Board
4
5
6
7
8
9
10
11
12
Note: Reference Application Note M513 for reel size
information.
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MASW-007075-000100
GaAs SPDT Absorptive Switch with
ASIC Driver, DC-3.0 GHz
Electrical Specifications: T
A
= 25°C, Z
0
= 50Ω
Parameter
Insertion Loss
Isolation
(All arms off)
VSWR
T
rise
T
fall
T
off
T
on
Transients
1 dB Compression
Input IP
3
V
CC
V
EE
V
IL
V
IH
lin (Input Leakage Current)
Icc
(Quiescent Supply Current)
ΔIcc
(Additional Supply Current Per
TTL Input Pin)
I
EE
Rev. V4
Test Conditions
DC - 3.0 GHz
DC - 3.0 GHz
DC - 3.0 GHz
On
Off
10%/90%, 90%/10%
1
50% TTL to 90%/10% RF
In-band (peak to peak)
.05 GHz
.5 - 3.0 GHz
Two tone inputs
0.05 GHz
up to +5 dBm 0.5 - 3.0 GHz
—
—
LOW-level input voltage
HIGH-level input voltage
Vin = V
CC
or GND
Vcntrl = V
CC
or GND
V
CC
= Max, Vcntrl = V
CC
- 2.1 V
Units
dB
dB
Min
—
33
Typ
1.8
36
Max
2.2
—
—
—
ns
ns
mV
dBm
dBm
dBm
dBm
V
V
V
V
uA
uA
mA
—
—
—-
—
—
—
—
—
—
+4.5
-8.0
0.0
2.0
-1.0
—
—
1.7:1
2.1:1
15
50
50
+20
+27
+35
+46
+5.0
-5.0
—
—
—
250
—
2.2:1
2.2:1
50
150
150
—
—
—
—
+5.5
-4.75
0.8
5.0
1.0
400
1.0
V
EE
min to max, Vin = V
IL
or V
IH
mA
-1.0
-0.2
—
1. Decoupling capacitors (.01 µF) are required on the power supply lines.
Absolute Maximum Ratings
2,3
Parameter
Max. Input Power
0.05 GHz
0.5 - 3.0 GHz
4
V
CC
V
EE
V
CC
- V
EE
Vin
5
Operating Temperature
Storage Temperature
Handling Procedures
Please observe the following precautions to avoid
damage:
Absolute Maximum
+27 dBm
+34 dBm
-0.5V
≤
V
CC
≤
+7.0V
-8.5V
≤
V
EE
≤
+0.5V
-0.5V
≤
V
CC
- V
EE
≤
14.5V
-0.5V
≤
Vin
≤
V
CC
+ 0.5V
-40ºC to +85ºC
-65ºC to +125ºC
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
devices.
Truth Table
TTL Control Input
C1
1
0
C2
0
1
2
2. Exceeding any one or combination of these limits may
cause permanent damage to this device.
3. M/A-COM does not recommend sustained operation near
these survivability limits.
4. When the RF input is applied to the terminated port, the
absolute maximum power is +30 dBm.
5. Standard CMOS TTL interface, latch-up will occur if logic
signal is applied prior to power supply.
RF Common To:
RF1
On
Off
RF2
Off
On
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MASW-007075-000100
GaAs SPDT Absorptive Switch with
ASIC Driver, DC-3.0 GHz
Typical Performance Curves
Insertion Loss vs. Frequency
2.0
Rev. V4
Isolation Loss vs. Frequency
90
80
Insertion Loss (dB)
1.5
70
Isolation (dB)
0.0
0.5
1.0
1.5
2.0
2.5
3.0
60
50
40
30
20
1.0
0.5
0.0
10
0
0.0
0.5
1.0
1.5
2.0
2.5
3.0
Frequency (GHz)
-55C
25C
85C
Frequency (GHz)
RFC VSWR vs. Frequency
2.2
RF1-RF2 VSWR vs. Frequency
2.2
2.0
2.0
1.8
RF1 - RF2 VSWR
RFC VSWR
1.8
1.6
1.4
1.2
1.0
1.6
1.4
1.2
1.0
0.0
0.5
1.0
1.5
2.0
2.5
3.0
0.0
0.5
1.0
1.5
2.0
2.5
3.0
Frequency (GHz)
ON
OFF
Frequency (GHz)
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 •
Europe
Tel: +353.21.244.6400
is considering for development. Performance is based on target specifications, simulated results,
•
India
Tel: +91.80.4155721
•
China
Tel: +86.21.2407.1588
and/or prototype measurements. Commitment to develop is not guaranteed.
Visit www.macomtech.com for additional data sheets and product information.
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MASW-007075-000100
GaAs SPDT Absorptive Switch with
ASIC Driver, DC-3.0 GHz

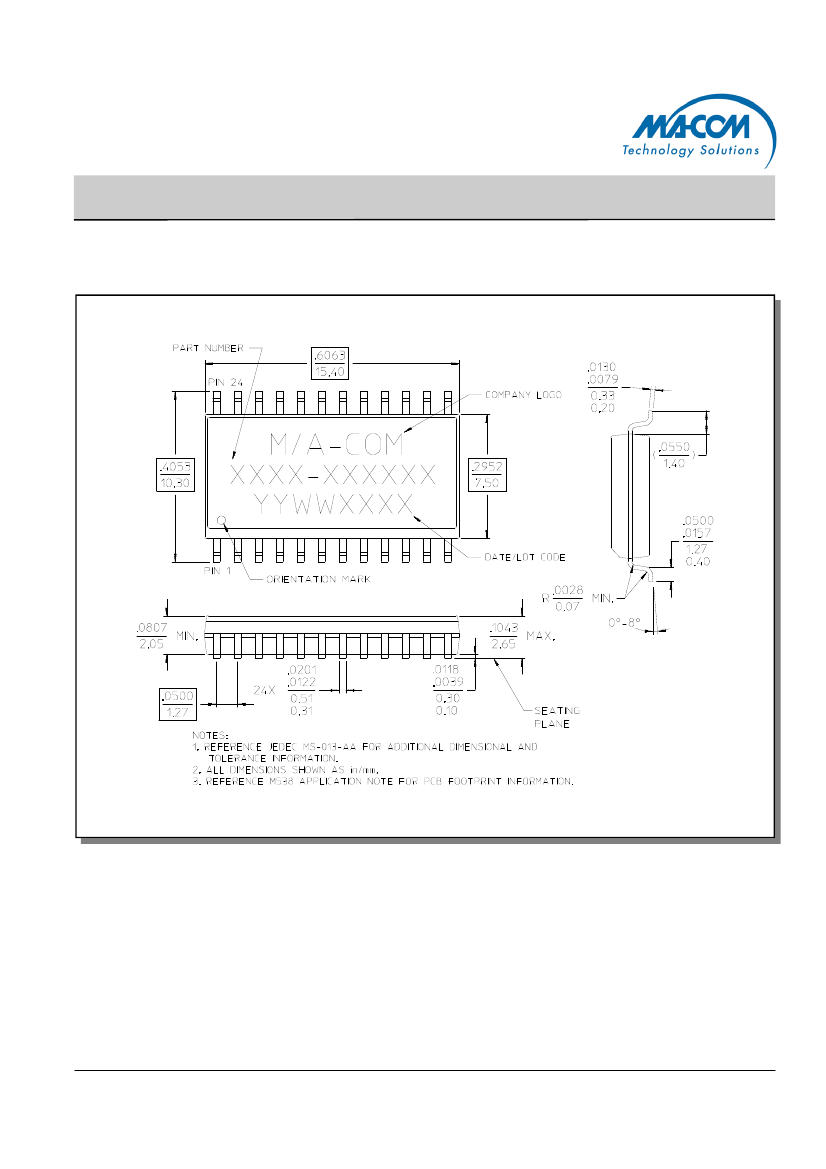

Lead-Free,
