MASWSS0006
GaAs SPDT 2.5 V High Power Switch
DC - 3.0 GHz
Features
•
Low Voltage Operation: 2.5 V
•
Excellent Harmonics: <-67 dBc at +34 dBm & 1.0
GHz
•
Low Insertion Loss: 0.40 dB at 1.0 GHz
•
High Isolation: 20 dB at 2.0 GHz
•
SOT-26 Package
•
0.5 micron GaAs PHEMT Process
Rev. V4
Functional Schematic
PIN 1
PIN 6
RF1
V1
RFC
39 pF
100pF
V2
100pF
39 pF
GND
RF2
Description
M/A-COM’s MASWSS0006 is a GaAs PHEMT
MMIC single pole double throw (SPDT) high power
switch in a low cost SOT-26 package.
The
MASWSS0006 is ideally suited for applications
where high power, low control voltage, low insertion
loss, high isolation, small size and low cost are re-
quired.
Typical applications are for GSM and DCS handset
systems that connect separate transmit and receive
functions to a common antenna, as well as other
related handset and general purpose applications.
This part can be used in all systems operating up to
3.0 GHz requiring high power at low control voltage.
The MASWSS0006 is fabricated using a 0.5 micron
gate length GaAs PHEMT process. The process
features full passivation for performance and reliabil-
ity.
39 pF
100pF
Pin Configuration
Pin No.
1
2
3
4
5
6
Pin Name
RF1
GND
RF2
V2
RFC
V1
Description
RF Port 1
RF Ground
RF Port 2
Control 2
RF Common Port
Control 1
Absolute Maximum Ratings
2,3
Parameter
Input Power
(0.5 - 3.0 GHz, 2.5 V Control)
Voltage
Operating Temperature
Absolute Maximum
+38 dBm
±8.5 volts
-40°C to +85°C
-65°C to +150°C
Ordering Information
1
Part Number
MASWSS0006
MASWSS0006TR
MASWSS0006TR-3000
MASWSS0006SMB
Package
Bulk Packaging
1000 piece reel
3000 piece reel
Sample Test Board
Storage Temperature
2. Exceeding any one or combination of these limits may cause
permanent damage to this device.
3. M/A-COM does not recommend sustained operation near
these survivability limits.
1. Reference Application Note M513 for reel size information.
Truth Table
4,5
V1
1
0
V2
0
1
ANT– RF1
On
Off
ANT - RF2
Off
On
4. Differential voltage, V (state 1) - V (State 0), must be +2.5 V
minimum.
5. 0 = -5 V to 2.5 V, 1 = -2.5 V to +5 V.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MASWSS0006
GaAs SPDT 2.5 V High Power Switch
DC - 3.0 GHz

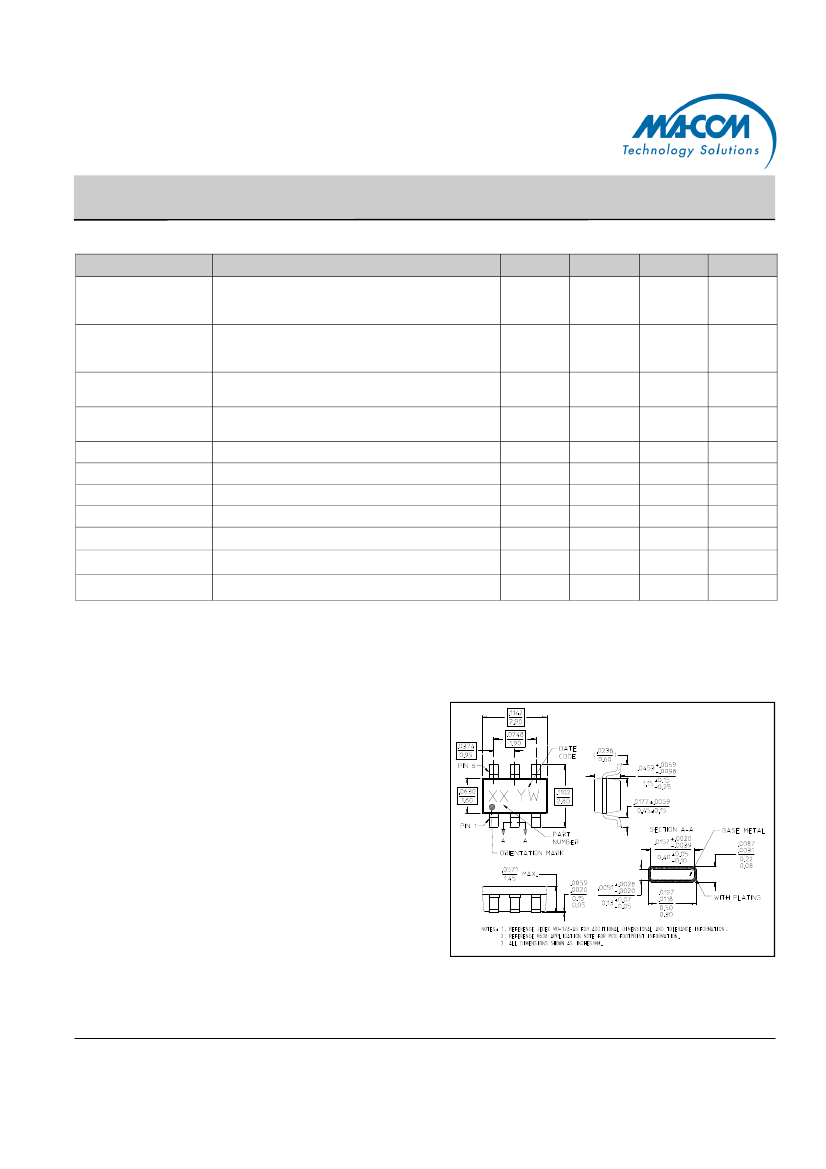

Electrical Specifications: T
A
= 25°C, V
C
= 0 V / 2.5 V, Z
0
= 50
Ω
6
Parameter
Insertion Loss
7
Rev. V4
Test Conditions
DC – 1.0 GHz
1.0 – 2.0 GHz
2.0 - 3.0 GHz
DC – 1.0 GHz
1.0 – 2.0 GHz
2.0 - 3.0 GHz
DC – 2.0 GHz
2.0 - 3.0 GHz
Two Tone, +26 dBm / tone, 5 MHz Spacing
> 50 MHz
—
1.0 GHz, P
IN
= +34 dBm
1.0 GHz, P
IN
= +34 dBm
10% to 90% RF, 90% to 10% RF
50% control to 90% RF, and 50% control to 10% RF
In Band
Units
dB
dB
dB
dB
dB
dB
dB
dB
dBm
dBm
dBc
dBc
uS
uS
mV
uA
Min.
—
—
—
23.0
17.5
—
—
—
—
—
—
—
—
—
—
—
Typ.
0.40
0.50
0.75
26
20
16
20
16
57
39
-75
-75
0.04
0.06
50
—
Max.
0.65
0.75
—
—
—
—
—
—
—
-67
-67
—
—
—
50
Isolation
Return Loss
IP3
P0.1dB
2
nd
Harmonic
3
rd
Harmonic
Trise, Tfall
Ton, Toff
Transients
Gate Leakage
6. External DC blocking capacitors are required on all RF ports.
7. Insertion Loss can be optimized by varying the DC blocking capacitor value, e.g. 1000 pF for 100 - 500 MHz, 100 pF for 0.5 - 3.0 GHz.
Qualification
Qualified to M/A-COM specification REL-201,
Process Flow –2.
SOT-26 Plastic Package
†
Handling Procedures
Please observe the following precautions to avoid
damage:
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
devices.
† Meets JEDEC moisture sensitivity level 1 requirements
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MASWSS0006
GaAs SPDT 2.5 V High Power Switch
DC - 3.0 GHz

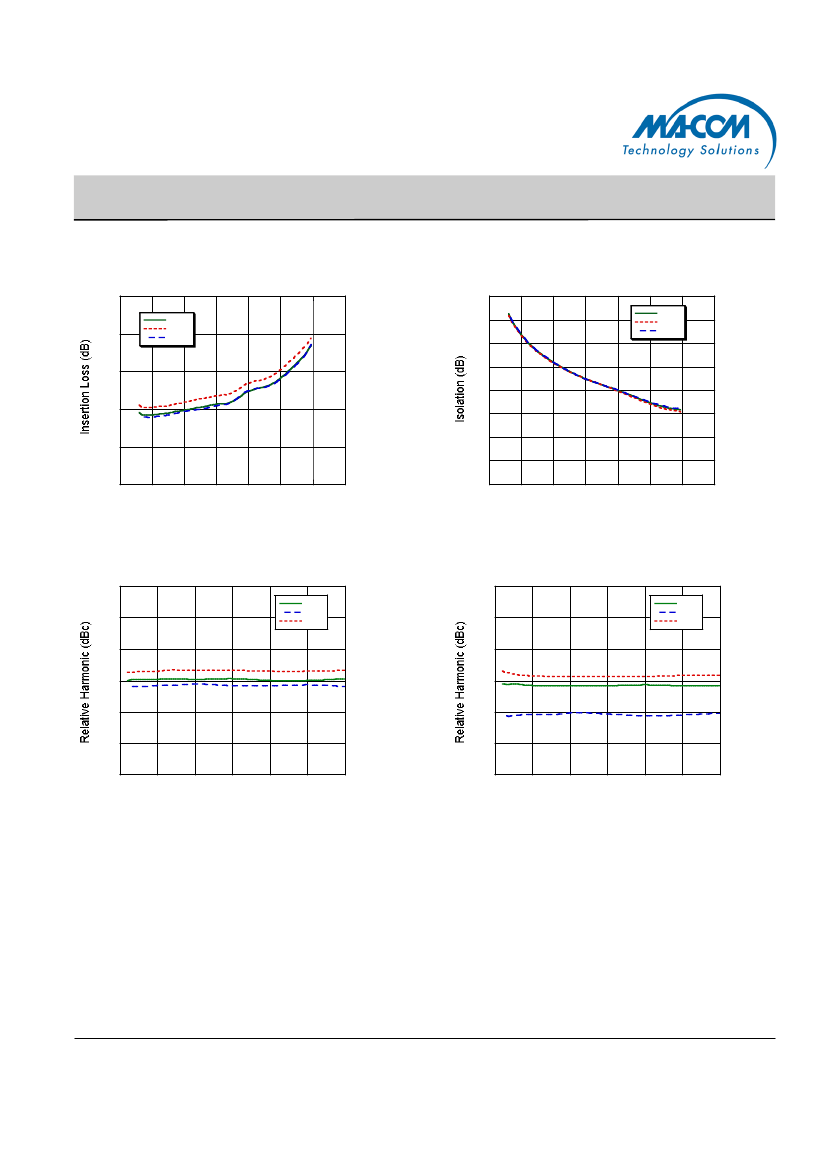

Typical Performance Curves vs. Temperature, 100 pF blocking capacitors
Insertion Loss vs. Frequency
1.0
+25°C
+85°C
-40°C
Rev. V4
Isolation vs. Frequency
40
35
30
25
20
+25°C
+85°C
-40°C
0.8
0.6
0.4
15
10
0.2
5
0.0
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
0
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
Frequency (GHz)
Frequency (GHz)
2nd Harmonic vs. Control Voltage,
Pin = 34 dBm CW, 1 GHz
-60
25°C
-40°C
85°C
3rd Harmonic vs. Control Voltage,
Pin = 34 dBm CW, 1 GHz
-60
25°C
-40°C
85°C
-65
-65
-70
-70
-75
-75
-80
-80
-85
-85
-90
2.0
2.5
3.0
3.5
4.0
4.5
5.0
-90
2.0
2.5
3.0
3.5
4.0
4.5
5.0
V (V)
C
V (V)
C
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
