MASWSS0065
GaAs SP3T 2.6 V CDMA-GPS Switch
DC - 2.5 GHz
Features
•
•
•
•
•
•
Unbalanced (asymmetric) RF Paths
Low Cross Modulation
Low Insertion Loss: 0.5 dB at 1.0 GHz
High Isolation: 20 dB at 2.0 GHz
3 mm 12-lead PQFN Package
0.5 micron GaAs PHEMT Process
Rev. V2
Functional Schematic
GND
ANT
39 pF
Pin 12
Pin 1
V1
GND
V3
CELL
39 pF
Description
M/A-COM’s MASWSS0065 is an industry leading
GaAs PHEMT MMIC single pole three throw (SP3T)
CDMA-GPS switch in a 3 mm 12-lead PQFN pack-
age.
The MASWSS0065 is uniquely configured to enable
switching from a common antenna port to CDMA
cellular, CDMA PCS, or GPS ports. The design is
asymmetric and has been fully optimized for excel-
lent cross modulation performance in CELL and
PCS paths while still maintaining excellent insertion
loss and isolation.
The MASWSS0065 is fabricated using a 0.5 micron
gate length GaAs PHEMT process. The process
features full passivation for performance and reliabil-
ity.
1
GPS
39 pF
GND
GND
GND
Pin Configuration
Pin No.
1
2
3
Pin Name
V1
GPS
GND
GND
PCS
V2
GND
CELL
V3
GND
ANT
GND
GND (paddle)
2
PCS
39 pF
Description
Control 1
GPS Receive
RF Ground
RF Ground
PCS Transmit/Receive
Control 2
RF Ground
Cellular Transmit/Receive
Control 3
RF Ground
Antenna Port
RF Ground
RF Ground
Ordering Information
Part Number
MASWSS0065TR-3000
MASWSS0065SMB
4
Package
3000 Piece Reel
Sample Test Board
5
6
7
8
9
10
11
12
13
1. Reference Application Note M513 for reel size information.
2. The exposed pad centered on the package bottom must be
connected to RF and DC ground.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
V2
MASWSS0065
GaAs SP3T 2.6 V CDMA-GPS Switch
DC - 2.5 GHz
Electrical Specifications: T
A
= 25°C, V
C
= 0 V/2.6 V, Z
0
= 50 Ohms
3
Parameter
Insertion Loss
4
CELL Path
GPS Path
PCS Path
Isolation (CELL Path)
Rev. V2
Test Conditions
820 MHz
1.5 GHz
1.9 GHz
820 MHz
1.5 GHz
1.9 GHz
820 MHz
1.5 GHz
1.9 GHz
820 MHz
1.5 GHz
1.9 GHz
All RF ports, DC – 2.5 GHz
Two Tones, +22 dBm / tone, 1 MHz Spacing, 820 MHz
Two Tones, +22 dBm / tone, 1 MHz Spacing, 1880 MHz
Cell Band: Two-tone signal input: Tx1 = +22 dBm @ 820 MHz,
Tx2 = +22 dBm @ 821 MHz,
RX interfere = -30 dBm @ 869 MHz.
PCS Band: Two-tone signal input: Tx1 = +18 dBm @ 1880 MHz,
Tx2 = +18 dBm @ 1881 MHz,
RX interfere = -30 dBm @ 1960 MHz.
820 MHz
1.5 GHz
1.9 GHz
10% to 90% RF, 90% to 10% RF
50% control to 90% RF, and 50% control to 10% RF
In Band
|Vc| = 2.6 V
Units
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dBm
dBm
Min.
—
—
—
27
—
—
29
—
—
25
—
—
—
—
—
Typ.
0.5
0.75
0.5
30
26
24
32
27
25
27
22
20
20
58
59
Max.
0.7
0.95
0.7
—
—
—
—
—
—
—
—
—
—
—
—
Isolation (GPS Path)
Isolation (PCS Path)
Return Loss
IP3
CELL Path
PCS Path
Cross Modulation
CELL Path
Cross Modulation
PCS Path
P0.1 dB
CELL Path
GPS Path
PCS Path
Trise, Tfall
Ton, Toff
Transients
Control Current
dBm
—
-113
—
dBm
—
-115
—
dBm
dBm
dBm
µS
µS
mV
µA
—
—
—
—
—
—
—
37
35
35
0.05
0.07
50
5
—
—
—
—
—
—
20
3. For positive voltage control, external DC blocking capacitors are required on all RF ports.
4. Insertion loss can be optimized by varying the DC blocking capacitor value, e.g. 1000 pF for 100 MHz - 1 GHz, 39 pF for 0.5 GHz - 3 GHz.
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MASWSS0065
GaAs SP3T 2.6 V CDMA-GPS Switch
DC - 2.5 GHz

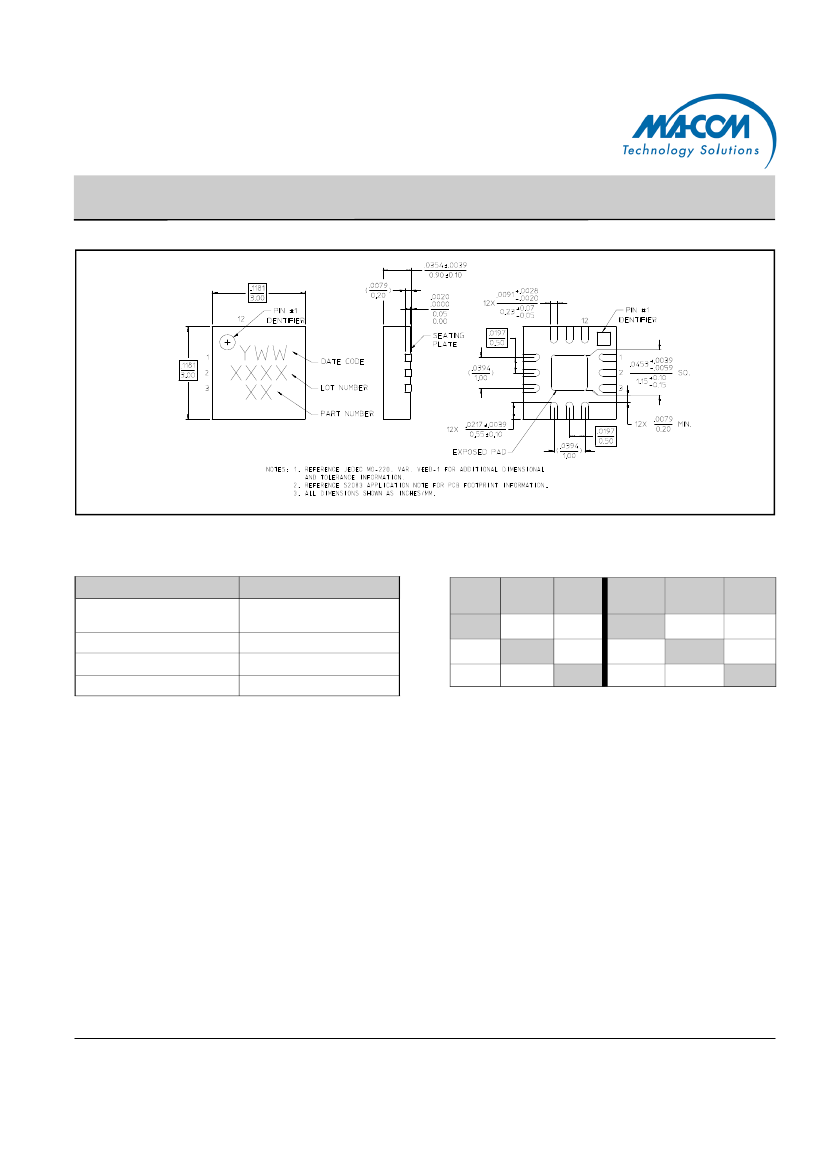

3 mm 12-Lead PQFN
Rev. V2
Absolute Maximum Ratings
5,6
Parameter
Input Power
(0.5 - 2.5 GHz, 2.6 V Control)
Operating Voltage
Operating Temperature
Storage Temperature
Truth Table
7,8,9
V1
1
0
0
Absolute Maximum
+35 dBm
+8.5 volts
-40°C to +85°C
-65°C to +150°C
V2
0
1
0
V3
0
0
1
ANT–
GPS
On
Off
Off
ANT -
PCS
Off
On
Off
ANT -
CELL
Off
Off
On
5. Exceeding any one or combination of these limits may cause
permanent damage to this device.
6. M/A-COM does not recommend sustained operation near
these survivability limits.
7. For positive voltage control, external DC blocking capacitors
are required on all RF ports.
8. Differential voltage, V(state 1) - V(state 0), must be +2.6 V
minimum, but must not exceed +8.5 V.
9. 0 = -5 V to +2.4 V, 1 = -2.4 V to +5 V.
Handling Procedures
Please observe the following precautions to avoid
damage:
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
devices.
3
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MASWSS0065
GaAs SP3T 2.6 V CDMA-GPS Switch
DC - 2.5 GHz

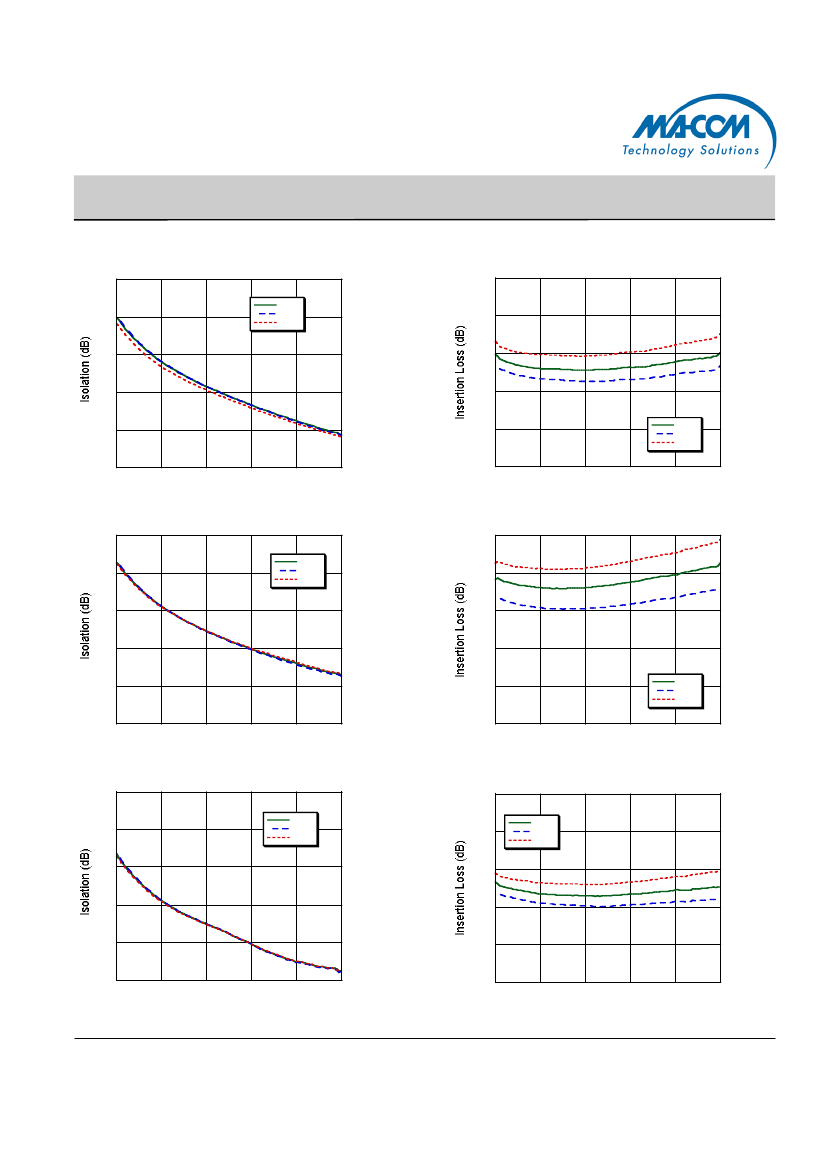

Typical Performance Curves
Cell Path Isolation
40
+25°C
-40°C
+85°C
Rev. V2
Cell Path Insertion Loss
1.0
35
0.8
30
0.6
25
0.4
20
0.2
+25°C
-40°C
+85°C
15
0.5
1.0
1.5
2.0
2.5
3.0
0.0
0.5
1.0
1.5
2.0
2.5
3.0
Frequency (GHz)
Frequency (GHz)
GPS Path Isolation
40
+25°C
-40°C
+85°C
GPS Path Insertion Loss
1.0
35
0.8
30
0.6
25
0.4
20
0.2
+25°C
-40°C
+85°C
15
0.5
1.0
1.5
2.0
2.5
3.0
0.0
0.5
1.0
1.5
2.0
2.5
3.0
Frequency (GHz)
Frequency (GHz)
PCS Path Isolation
40
+25°C
-40°C
+85°C
PCS Path Insertion Loss
1.0
35
0.8
+25°C
-40°C
+85°C
30
0.6
25
0.4
20
0.2
15
0.5
1.0
1.5
2.0
2.5
3.0
0.0
0.5
1.0
1.5
2.0
2.5
3.0
Frequency (GHz)
4
Frequency (GHz)
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
