MASWSS0115-DIE: Description0 MHz - 3000 MHz RF/MICROWAVE SGL POLE DOUBLE THROW SWITCH, 0.55 dB INSERTION LOSS; CategoryWireless rf/communication Radio frequency and microwave; File Size133KB，4 Pages; ManufacturerMACOM; Websitehttp://www.macom.com; Environmental Compliance

Download Datasheet Parametric Compare View All

MASWSS0115-DIE Overview

0 MHz - 3000 MHz RF/MICROWAVE SGL POLE DOUBLE THROW SWITCH, 0.55 dB INSERTION LOSS

MASWSS0115-DIE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	MACOM
Reach Compliance Code	compli
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	34 dBm
Maximum insertion loss	0.55 dB
JESD-609 code	e3
Maximum operating frequency	3000 MHz
Minimum operating frequency
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
RF/Microwave Device Types	SPDT
Terminal surface	Matte Tin (Sn)

Preview

Download Datasheet

View All

MASWSS0115

GaAs SPDT Switch

DC - 3.0 GHz

Features

•

Insertion Loss: 0.3 dB @ 2.4 GHz

Isolation: 22 dB @ 2.4 GHz

Power Consumption: <5

μA

@ +2.3V

Lead-Free SOT-363 Package

Halogen-Free Mold Compound

260°C Reflow Compatible

RoHS* Compliant Version of SW-485

Rev. V6

Functional Schematic

C=39pF

RFC

Description

M/A-COM’s MASWSS0115 is a GaAs PHEMT

MMIC single pole, double throw (SPDT) switch in a

low cost, lead-free SC-70 (SOT-363) surface mount

plastic package. The MASWSS0115 is ideally suited

for applications where very small size and low cost

are required.

Typical applications are dual band systems which

require switching between small signal components

such as filter banks, single-band LNAs, converters,

etc. This part can be used for low power, low loss

requirements in all systems operating up to 3 GHz,

including PCS, GSM, DCS, Blue Tooth, and other

receive chain applications.

The MASWSS0115 is fabricated using a 0.5 micron

gate length GaAs PHEMT process. The process

features full passivation for performance and

reliability.

RF1

GND

RF2

PIN 1

C=39pF

Pin Configuration

Pin No.

Function

RF1

GND

RF2

RFC

Description

RF Port 1

Ground

RF Port 2

Control 2

RF Input

Control 1

Ordering Information

1,2

Part Number

MASWSS0115

MASWSS0115TR-3000

MASWSS0115SMB

MASWSS0115-DIE

Package

Bulk packaging

3000 piece reel

Sample Board

Separated Die on

Grip Ring

Absolute Maximum Ratings

4,5

Parameter

Input Power (0.5 - 3.0 GHz)

2.5 V Control

5 V Control

Voltage

Operating Temperature

Storage Temperature

Absolute Maximum

+27 dBm

+34 dBm

± 8.5 volts

-40 °C to +85 °C

-65 °C to +150 °C

1. Reference Application Note M513 for reel size information.

2. All sample boards include 5 loose parts.

3. Die quantity varies.

4. Exceeding any one or combination of these limits may cause

permanent damage to this device.

5. M/A-COM does not recommend sustained operation near

these survivability limits.

* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.

ADVANCED:

Data Sheets contain information regarding a product M/A-COM Technology Solutions

•

North America

Tel: 800.366.2266 / Fax: 978.366.2266

is considering for development. Performance is based on target specifications, simulated results,

•

Europe

Tel: 44.1908.574.200 / Fax: 44.1908.574.300

and/or prototype measurements. Commitment to develop is not guaranteed.

•

Asia/Pacific

Tel: 81.44.844.8296 / Fax: 81.44.844.8298

PRELIMINARY:

Data Sheets contain information regarding a product M/A-COM Technology

Visit www.macomtech.com for additional data sheets and product information.

Solutions has under development. Performance is based on engineering tests. Specifications are

typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.

M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make

Commitment to produce in volume is not guaranteed.

changes to the product(s) or information contained herein without notice.

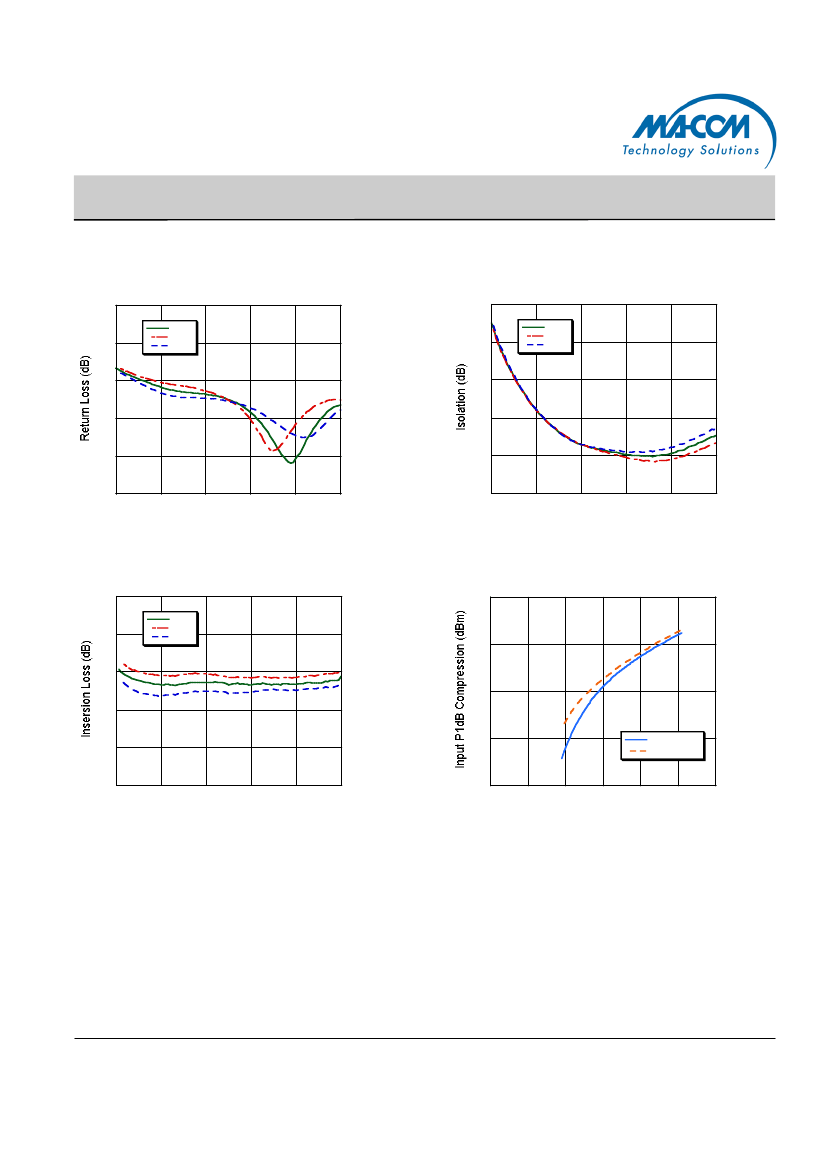

MASWSS0115-DIE Related Products

	MASWSS0115-DIE	MASWSS0115	MASWSS0115SMB
Description	0 MHz - 3000 MHz RF/MICROWAVE SGL POLE DOUBLE THROW SWITCH, 0.55 dB INSERTION LOSS	0 MHz - 3000 MHz RF/MICROWAVE SGL POLE DOUBLE THROW SWITCH, 0.55 dB INSERTION LOSS	0 MHz - 3000 MHz RF/MICROWAVE SGL POLE DOUBLE THROW SWITCH, 0.55 dB INSERTION LOSS
structure	COMPONENT	COMPONENT	COMPONENT
Maximum insertion loss	0.55 dB	0.55 dB	0.5500 dB
Maximum operating frequency	3000 MHz	3000 MHz	3000 MHz
Maximum operating temperature	85 °C	85 °C	85 Cel
Minimum operating temperature	-40 °C	-40 °C	-40 Cel
Is it lead-free?	Lead free	Lead free	-
Is it Rohs certified?	conform to	conform to	-
Maker	MACOM	MACOM	-
Reach Compliance Code	compli	compli	-
Characteristic impedance	50 Ω	50 Ω	-
Maximum input power (CW)	34 dBm	34 dBm	-
JESD-609 code	e3	e3	-
RF/Microwave Device Types	SPDT	SPDT	-
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	-
