MASWSS0192
GaAs SPDT Switch
DC - 3.0 GHz
Features
•
Test and Measurement and Low/Medium Power
Telecommunication Applications
•
Low Insertion Loss: 0.18 dB @ 1 GHz
•
Moderate Isolation: 25 dB @ 1 GHz
•
Low Power Consumption: < 2
μA
@ 2.5 V
•
Fast Settling for Low Gate Lag Requirements
•
Lead-Free SC-70 (SOT-363) Package
•
100% Matte Tin Plating over Copper
•
Halogen-Free “Green” Mold Compound
•
RoHS* Compliant and 260°C Reflow Compatible
Rev. V1
Functional Schematic
C=39pF
V1
RFC
V2
Description
M/A-COM’s MASWSS0192 is a GaAs PHEMT
MMIC SPDT switch in a lead-free SC-70 (SOT-363)
surface mount plastic package. The MASWSS0192
is ideally suited for applications where very small
size and low cost are required.
The MASWSS0192 can be used for low / medium
power, low loss requirements in all systems
operating up to 3 GHz, including PCS, GSM, DCS,
Blue Tooth, T&M, and other receive chain applica-
tions.
The MASWSS0192 is fabricated using a 0.5 micron
gate length GaAs PHEMT process. The process
features full passivation for performance and
reliability.
RF1
GND
RF2
PIN 1
C=39pF
C=39pF
Pin Configuration
Pin No.
1
2
3
4
5
6
Pin Name
RF1
GND
RF2
V2
RFC
V1
Description
RF Port 1
Ground
RF Port 2
Control 2
RF Input
Control 1
Ordering Information
1
Part Number
MASWSS0192
MASWSS0192TR-3000
MASWSS0192SMB
1.
Package
Bulk Packaging
3000 piece reel
Sample Board
Absolute Maximum Ratings
2,3
Parameter
Input Power (0.5 - 3.0 GHz)
2.5 V Control
5.0 V Control
Operating Voltage
Operating Temperature
Storage Temperature
2.
3.
Absolute Maximum
+25 dBm
+34 dBm
+8.5 volts
-40 °C to +85 °C
-65 °C to +150 °C
Reference Application Note M513 for reel size information.
Exceeding any one or combination of these limits may
cause permanent damage to this device.
M/A-COM does not recommend sustained operation near
these survivability limits.
* Restrictions on Hazardous Substances, European Union Directive 2002/95/EC.
1
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MASWSS0192
GaAs SPDT Switch
DC - 3.0 GHz
Electrical Specifications: T
A
= 25°C, V
C
= 0 V / 2.5 V
4
, P
IN
= +10 dBm, Z
0
= 50
Ω
5
Parameter
Insertion Loss
6
Isolation
VSWR
IP2
IP3
P1dB
Trise, Tfall
Ton, Toff
Transients
Control Current
R
ON
Gate Lag
4.
5.
6.
Rev. V1
Test Conditions
DC - 1.0 GHz
DC - 3.0 GHz
DC - 1.0 GHz
DC - 3.0 GHz
DC - 1.0 GHz
DC - 3.0 GHz
1 GHz, Two Tone, +7 dBm / tone, 20 MHz Spacing, 3 V
1 GHz, Two Tone, +7 dBm / tone, 20 MHz Spacing, 3 V
V
C
= 0.2 V / 2.7 V
V
C
= 0.2 V / 3.0 V
10% to 90% RF and 90% to 10% RF
50% control to 90% RF, 50% control to 10% RF
In-band
—
t > 90 mS after OFF to ON Switching (settled)
|ΔRon| between 15 µS and 90 mS after OFF to ON Switching
Units
dB
dB
dB
dB
Ratio
Ratio
dBm
dBm
dBm
dBm
nS
nS
mV
µA
Ω
Ω
Min.
—
—
20.0
9.5
—
—
—
—
—
—
—
—
—
—
—
—
Typ.
0.18
0.35
24.0
13.5
1.1:1
1.2:1
93
53
27.5
28.5
22
5
36
0.20
2.50
0.15
Max.
0.40
0.60
—
—
—
—
—
—
—
—
—
—
—
5
4.7
0.7
Alternate voltage operation of V
C
= 0 V / 5 V or -5 V / 0 V will yield similar insertion loss, isolation, VSWR, switching, R
ON
, and gate lag
results.
For positive voltage control, external DC blocking capacitors are required on all RF ports.
Insertion loss can be optimized by varying the DC blocking capacitor value, e.g. 1000 pF for 100 MHz - 1 GHz, 39 pF for 0.5 - 3 GHz.
Truth Table
7,8
Control
V1
1
0
7.
8.
Qualification
RFC-RF1
On
Off
Control
V2
0
1
RFC-RF2
Off
On
Qualified to M/A-COM specification REL-201,
Process Flow –2.
Handling Procedures
Please observe the following precautions to avoid
damage:
Differential voltage, V (state 1) - V (state 0), must be 2.5 V
minimum, but must not exceed 8.5 V.
0 = 0 V to 0.5 V; 1 = 2.5 V to 5 V or
0 = -5 V to -2.5 V, 1 = -0.5 to 0 V.
Static Sensitivity
Gallium Arsenide Integrated Circuits are sensitive
to electrostatic discharge (ESD) and can be
damaged by static electricity. Proper ESD control
techniques should be used when handling these
devices.
2
ADVANCED:
Data Sheets contain information regarding a product M/A-COM Technology Solutions
•
North America
Tel: 800.366.2266 / Fax: 978.366.2266
is considering for development. Performance is based on target specifications, simulated results,
•
Europe
Tel: 44.1908.574.200 / Fax: 44.1908.574.300
and/or prototype measurements. Commitment to develop is not guaranteed.
•
Asia/Pacific
Tel: 81.44.844.8296 / Fax: 81.44.844.8298
PRELIMINARY:
Data Sheets contain information regarding a product M/A-COM Technology
Visit www.macomtech.com for additional data sheets and product information.
Solutions has under development. Performance is based on engineering tests. Specifications are
typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.
M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make
Commitment to produce in volume is not guaranteed.
changes to the product(s) or information contained herein without notice.
MASWSS0192
GaAs SPDT Switch
DC - 3.0 GHz

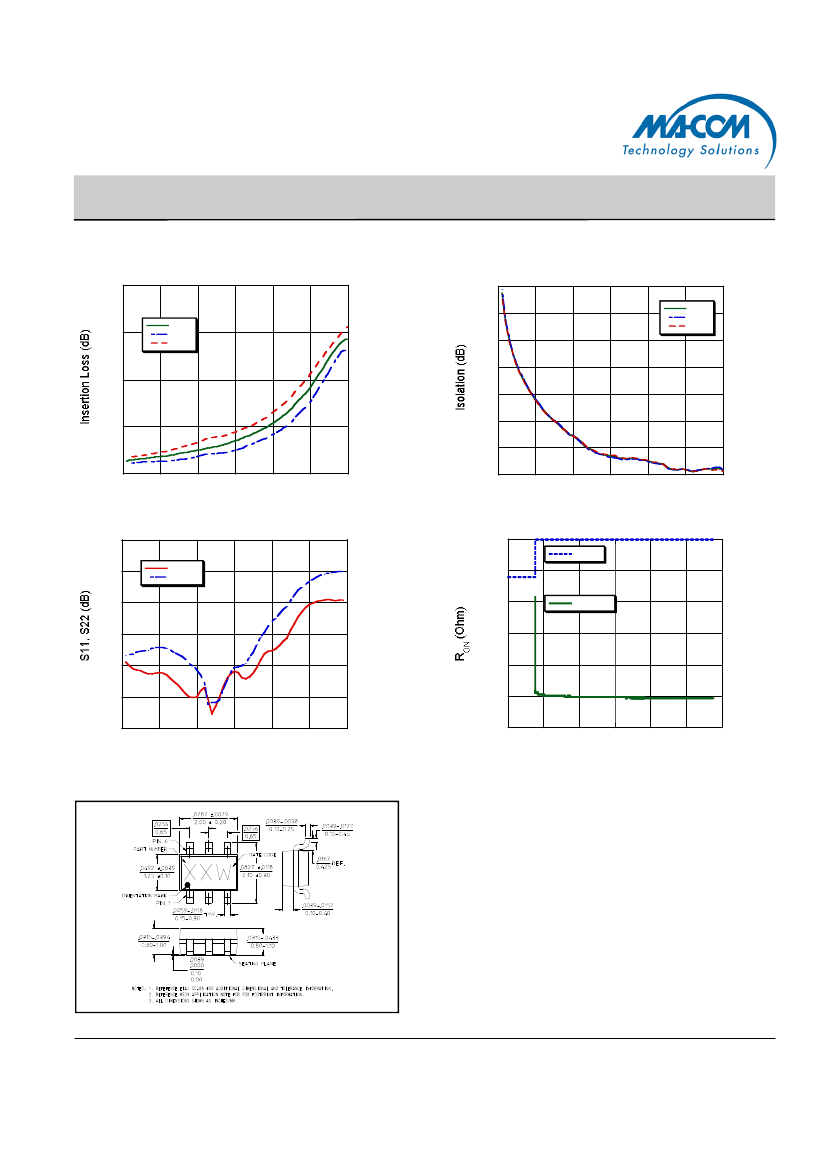

Typical Performance Curves
Insertion Loss
2.0
Rev. V1
Isolation
45
40
+25°C
-40°C
+85°C
1.5
+25°C
-40°C
+85°C
35
30
1.0
25
20
15
0.5
0.0
0
1
2
3
4
5
6
10
0
1
2
3
4
5
6
Frequency (GHz)
Frequency (GHz)
S11, S22
-5
S22 (dB)
S11 (dB)
Gate Lag (R
ON
vs. Time) Including V
CTL
, 0-3 V Step
5.0
Vcontrol
-10
4.5
-15
4.0
Ron (Ohm)
-20
3.5
-25
3.0
-30
2.5
-35
0
1
2
3
4
5
6
2.0
0.00
0.02
0.04
0.06
0.08
0.10
0.12
Frequency (GHz)
Time (S)
Lead-Free
SC-70 (SOT-363)
†
3
† Reference Application Note M538 for lead-free solder reflow recommendations.
