CMKTC825ALEADFREE datasheet, PDF

Datasheet> All Categories > Discrete semiconductor> diode> CMKTC825ALEADFREE

CMKTC825ALEADFREE: DescriptionZener Diode, 6.2V V(Z), 5%, 0.325W, Silicon, Unidirectional, ULTRAMINI-6; CategoryDiscrete semiconductor diode; File Size523KB，2 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric Compare View All

CMKTC825ALEADFREE Overview

Zener Diode, 6.2V V(Z), 5%, 0.325W, Silicon, Unidirectional, ULTRAMINI-6

CMKTC825ALEADFREE Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	R-PDSO-G6
Contacts	6
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
JESD-30 code	R-PDSO-G6
JESD-609 code	e3
Humidity sensitivity level	1
Number of components	1
Number of terminals	6
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.325 W
Certification status	Not Qualified
Nominal reference voltage	6.2 V
surface mount	YES
technology	ZENER
Terminal surface	MATTE TIN (315)
Terminal form	GULL WING
Terminal location	DUAL
Maximum time at peak reflow temperature	10
Maximum voltage tolerance	5%
Working test current	7.5 mA
Base Number Matches	1

Preview

Download Datasheet

View All

CMKTC825A

CMKTC825E

SURFACE MOUNT

TEMPERATURE COMPENSATED

SILICON ZENER DIODE

w w w. c e n t r a l s e m i . c o m

DESCRIPTION:

The CENTRAL SEMICONDUCTOR CMKTC825A and

CMKTC825E are 6.2 volt, temperature compensated

Zener reference diodes. These devices are ideal for

applications requiring long term voltage stability over

the specified temperature range.

CMKTC825A MARKING CODE: CT25

CMKTC825E MARKING CODE: C25E

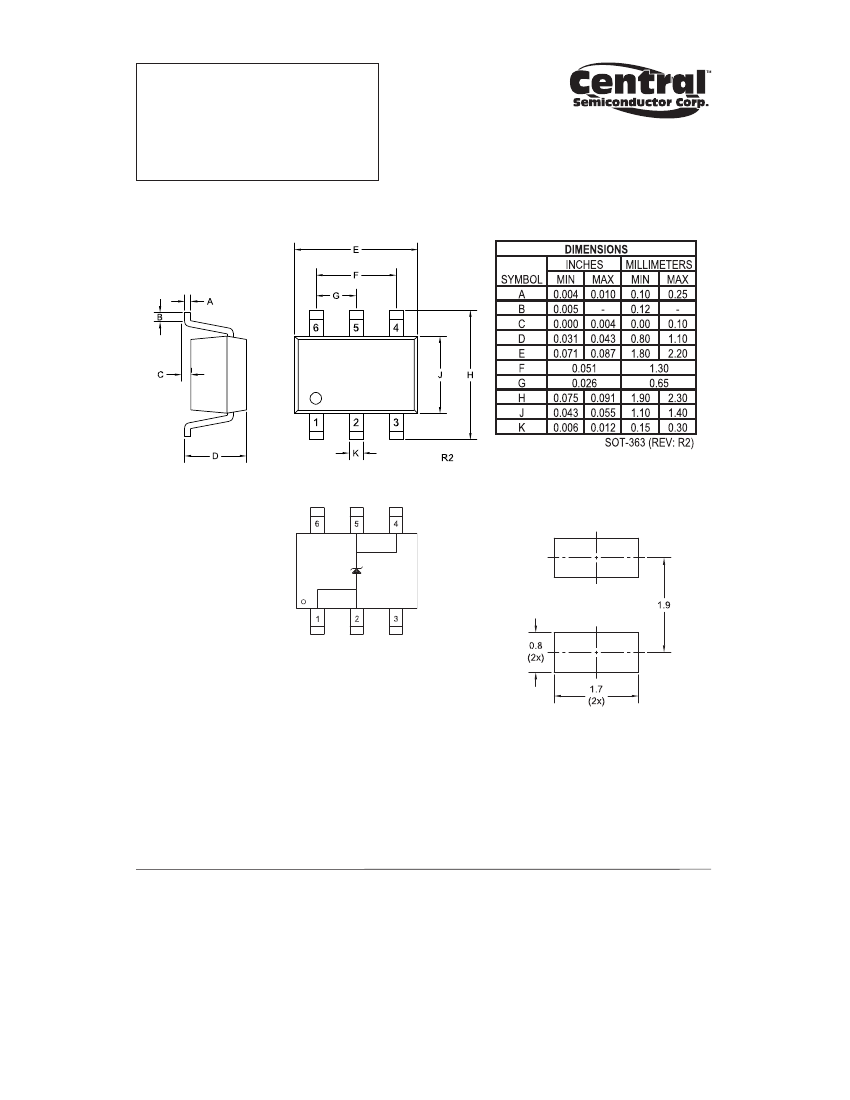

SOT-363 CASE

MAXIMUM RATINGS:

(TA=25°C)

Power Dissipation

Operating and Storage Junction Temperature

Tolerance

SYMBOL

TJ, Tstg

325

-65 to +150

±5

MAX

6.51

UNITS

°C

UNITS

ELECTRICAL CHARACTERISTICS:

(TA=25°C unless otherwise noted)

SYMBOL

TEST CONDITIONS

MIN

NOM

IZ=7.5mA

5.89

6.20

ΔVZ*

IZ=7.5mA

IZ=7.5mA (CMKTC825A)

IZ=7.5mA (CMKTC825E)

* The maximum allowable voltage change observed at the specified temperatures of

-55°C, 0°C, 25°C, 75°C, and 100°C

R5 (13-January 2010)
