150-003-22-Z-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 150-003-22-Z-2

150-003-22-Z-2: DescriptionCircular Connector, 10 Contact(s), Polyethylene Polyurethane, Male, Plug; CategoryThe connector The connector; File Size79KB，2 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

150-003-22-Z-2 Overview

Circular Connector, 10 Contact(s), Polyethylene Polyurethane, Male, Plug

150-003-22-Z-2 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	SHIELDED
Back shell type	SOLID
Body/casing type	PLUG
Connector type	CIRCULAR CONNECTOR
Contact to complete cooperation	SILVER
Contact completed and terminated	SILVER
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	CB
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYETHYLENE POLYURETHANE
Total number of contacts	10
Base Number Matches	1

Preview

Download Datasheet

View All

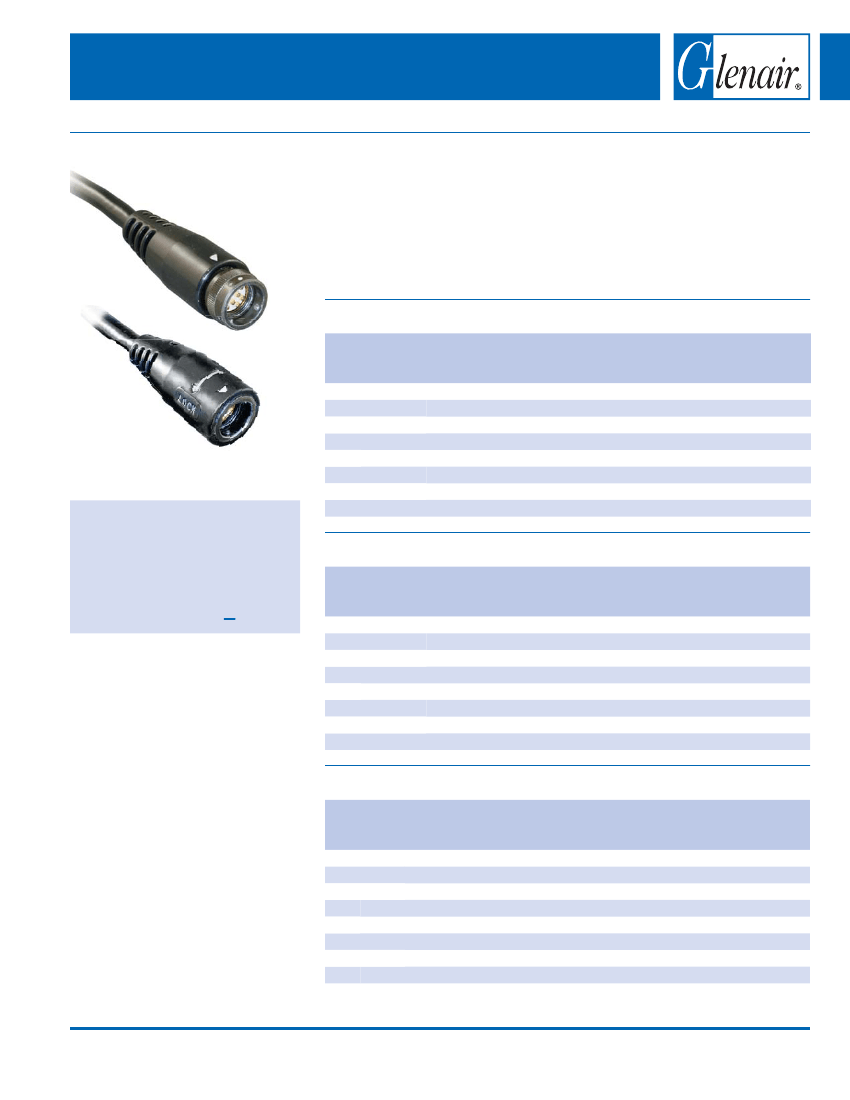

CB Series “PogoPin” Connectors

CB Series Pigtail Cordsets, Overmolded

Single-ended CB Series overmolded cordsets feature polyamide strain

relief and polyurethane cable jacket. Cable braid shield is terminated directly to

connector body for excellent EMI performance. Watertight overmolding meets

IP68/ MIL-STD-810 immersion requirements. -30°C to +85°C.

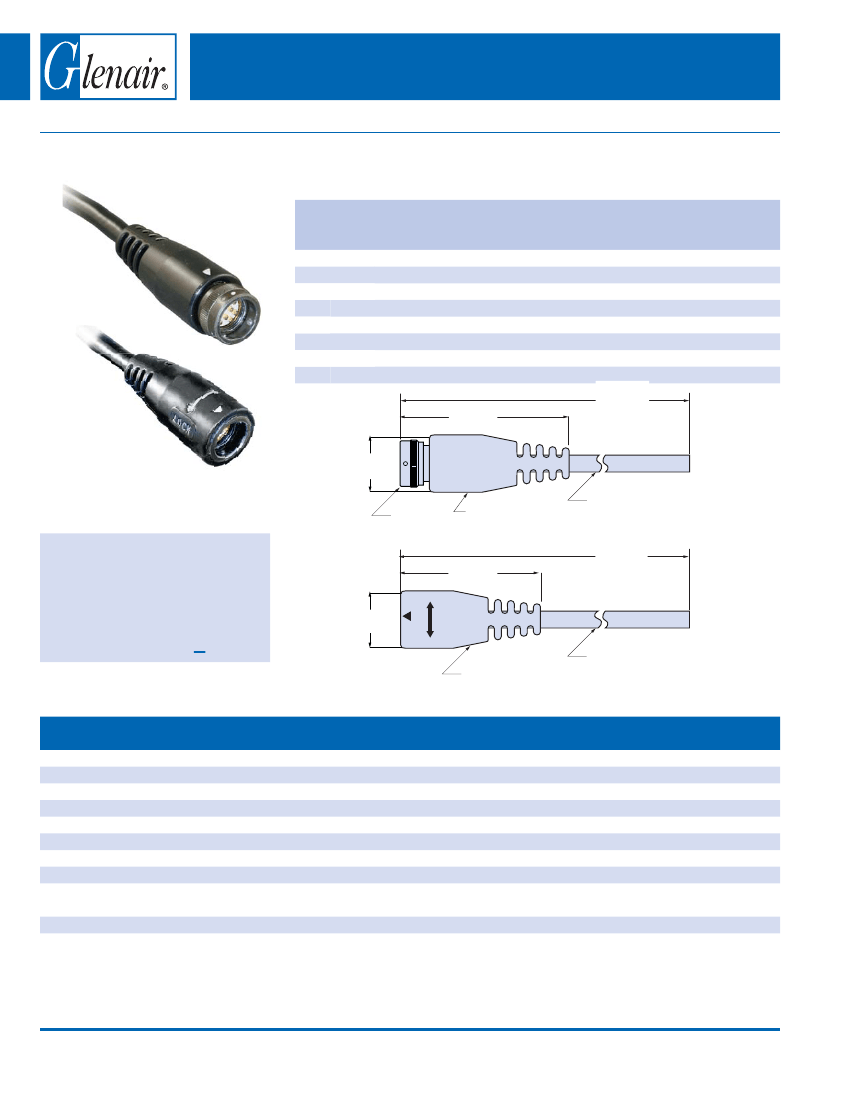

Style 1

Standard pigtail cordset. Connector

is exposed and extends from

overmolding.

Pigtail cordset with plug connector recessed

into overmolding. Molded-in alignment

indicator and lock-unlock arrow. Not

mateable with in-line shrouded receptacles.

7 Pin Pigtail Cordset, #22 AWG Conductors

Polarizing

Length in Position 1

Fig. Meters

(Blue)

Fig. 1

150-001-22-1-1

Fig. 1

150-001-22-1-2

Fig. 1

150-001-22-1-3

Fig. 1

150-001-22-1-4

Fig. 2

150-002-22-1-1

Fig. 2

150-002-22-1-2

Fig. 2

150-002-22-1-3

Fig. 2

150-002-22-1-4

Polarizing

Position 2

(Yellow)

150-001-22-2-1

150-001-22-2-2

150-001-22-2-3

150-001-22-2-4

150-002-22-2-1

150-002-22-2-2

150-002-22-2-3

150-002-22-2-4

Polarizing

Position 3

(Green)

150-001-22-3-1

150-001-22-3-2

150-001-22-3-3

150-001-22-3-4

150-002-22-3-1

150-002-22-3-2

150-002-22-3-3

150-002-22-3-4

Polarizing

Position 4

(Pink)

150-001-22-4-1

150-001-22-4-2

150-001-22-4-3

150-001-22-4-4

150-002-22-4-1

150-002-22-4-2

150-002-22-4-3

150-002-22-4-4

Style 2

Low Smoke/Zero Halogen

Cable Jacket

Add code “L” to the part

number to specify LSZH jacket.

Example:

150-001L-22-1-1

7 Pin Pigtail Cordset, #24 AWG Conductors

Polarizing

Length in Position 1

Fig. Meters

(Blue)

Fig. 1

150-001-24-1-1

Fig. 1

150-001-24-1-2

Fig. 1

150-001-24-1-3

Fig. 1

150-001-24-1-4

Fig. 2

150-002-24-1-1

Fig. 2

150-002-24-1-2

Fig. 2

150-002-24-1-3

Fig. 2

150-002-24-1-4

Polarizing

Position 2

(Yellow)

150-001-24-2-1

150-001-24-2-2

150-001-24-2-3

150-001-24-2-4

150-002-24-2-1

150-002-24-2-2

150-002-24-2-3

150-002-24-2-4

Polarizing

Position 3

(Green)

150-001-24-3-1

150-001-24-3-2

150-001-24-3-3

150-001-24-3-4

150-002-24-3-1

150-002-24-3-2

150-002-24-3-3

150-002-24-3-4

Polarizing

Position 4

(Pink)

150-001-24-4-1

150-001-24-4-2

150-001-24-4-3

150-001-24-4-4

150-002-24-4-1

150-002-24-4-2

150-002-24-4-3

150-002-24-4-4

10 Pin Pigtail Cordset, #22 AWG Conductors

Polarizing

Length Position N

Fig. Meters (White)

Fig. 1

150-003-22-N-1

Fig. 1

150-003-22-N-2

Fig. 1

150-003-22-N-3

Fig. 1

150-003-22-N-4

Fig. 2

150-004-22-N-1

Fig. 2

150-004-22-N-2

Fig. 2

150-004-22-N-3

Fig. 2

150-004-22-N-4

Polarizing

Position W

(Blue)

150-003-22-W-1

150-003-22-W-2

150-003-22-W-3

150-003-22-W-4

150-004-22-W-1

150-004-22-W-2

150-004-22-W-3

150-004-22-W-4

Polarizing

Position X

(Violet)

150-003-22-X-1

150-003-22-X-2

150-003-22-X-3

150-003-22-X-4

150-004-22-X-1

150-004-22-X-2

150-004-22-X-3

150-004-22-X-4

Polarizing

Position Y

(Chrome Yel.)

150-003-22-Y-1

150-003-22-Y-2

150-003-22-Y-3

150-003-22-Y-4

150-004-22-Y-1

150-004-22-Y-2

150-004-22-Y-3

150-004-22-Y-4

Polarizing

Position Z

(Dark Red)

150-003-22-Z-1

150-003-22-Z-2

150-003-22-Z-3

150-003-22-Z-4

150-004-22-Z-1

150-004-22-Z-2

150-004-22-Z-3

150-004-22-Z-4

Printed in U.S.A.

All dimensions in millimeters (mm). Information subject to change without notice.

CAGE Code 06324

GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com
