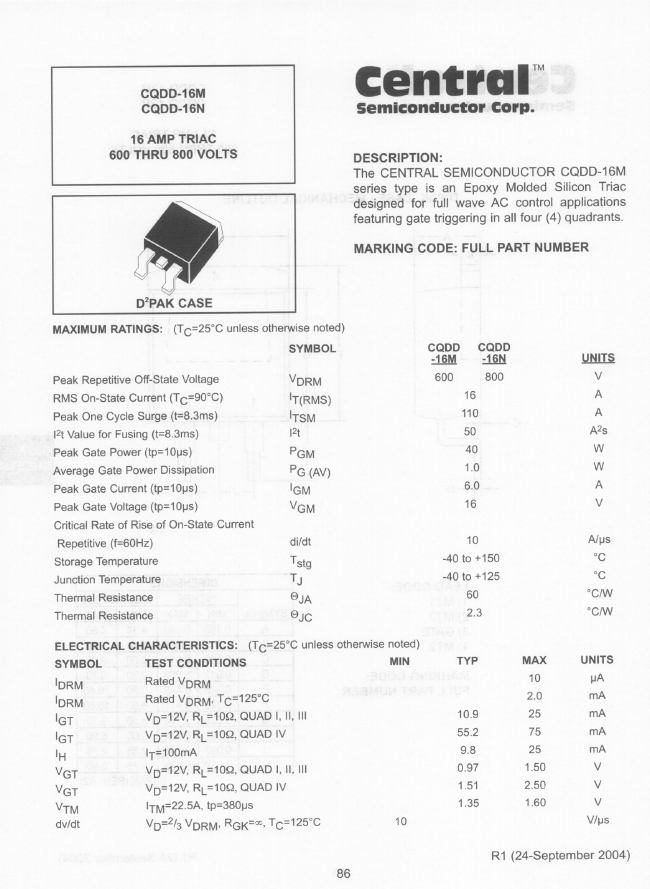

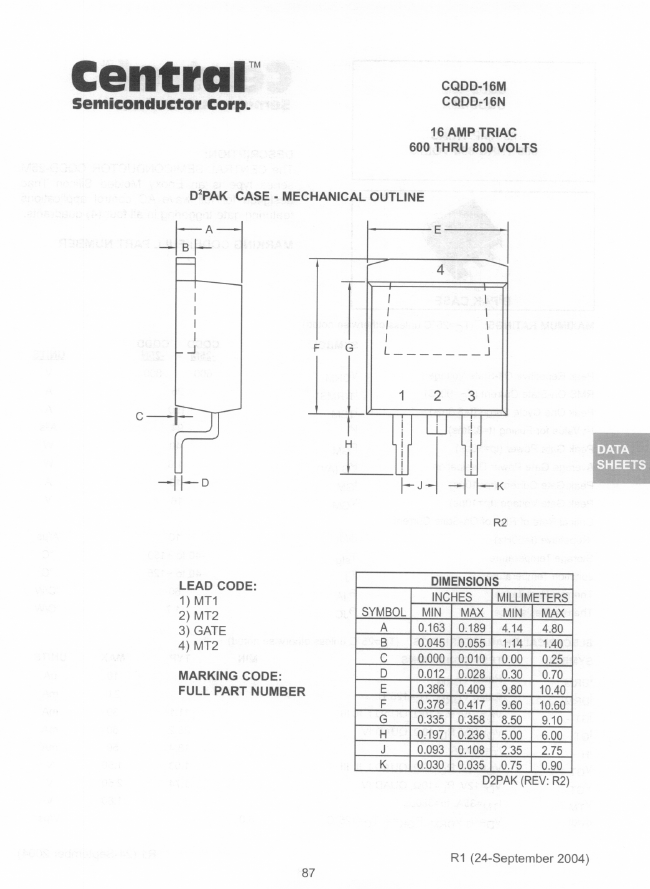

4 Quadrant Logic Level TRIAC, 800V V(DRM), 16A I(T)RMS, PLASTIC, D2PAK-3
| Parameter Name | Attribute value |
| Parts packaging code | D2PAK |
| package instruction | SMALL OUTLINE, R-PSSO-G2 |
| Contacts | 3 |
| Reach Compliance Code | compliant |
| Shell connection | MAIN TERMINAL 2 |
| Configuration | SINGLE |
| Critical rise rate of minimum off-state voltage | 10 V/us |
| Maximum DC gate trigger current | 75 mA |
| Maximum DC gate trigger voltage | 2.5 V |
| Maximum holding current | 25 mA |
| JESD-30 code | R-PSSO-G2 |
| JESD-609 code | e0 |
| Maximum leakage current | 2 mA |
| Number of components | 1 |
| Number of terminals | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -40 °C |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Certification status | Not Qualified |
| Maximum rms on-state current | 16 A |
| Off-state repetitive peak voltage | 800 V |
| surface mount | YES |
| Terminal surface | TIN LEAD |
| Terminal form | GULL WING |
| Terminal location | SINGLE |
| Trigger device type | 4 QUADRANT LOGIC LEVEL TRIAC |
| Base Number Matches | 1 |
| CQDD-16NBK | CQDD-16MBK | CQDD-16MTR13 | CQDD-16NTR13 | |
|---|---|---|---|---|
| Description | 4 Quadrant Logic Level TRIAC, 800V V(DRM), 16A I(T)RMS, PLASTIC, D2PAK-3 | 4 Quadrant Logic Level TRIAC, 600V V(DRM), 16A I(T)RMS, PLASTIC, D2PAK-3 | 4 Quadrant Logic Level TRIAC, 600V V(DRM), 16A I(T)RMS, PLASTIC, D2PAK-3 | 4 Quadrant Logic Level TRIAC, 800V V(DRM), 16A I(T)RMS, PLASTIC, D2PAK-3 |
| Parts packaging code | D2PAK | D2PAK | D2PAK | D2PAK |
| package instruction | SMALL OUTLINE, R-PSSO-G2 | SMALL OUTLINE, R-PSSO-G2 | SMALL OUTLINE, R-PSSO-G2 | SMALL OUTLINE, R-PSSO-G2 |
| Contacts | 3 | 3 | 3 | 3 |
| Reach Compliance Code | compliant | compliant | compliant | compliant |
| Shell connection | MAIN TERMINAL 2 | MAIN TERMINAL 2 | MAIN TERMINAL 2 | MAIN TERMINAL 2 |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE |
| Critical rise rate of minimum off-state voltage | 10 V/us | 10 V/us | 10 V/us | 10 V/us |
| Maximum DC gate trigger current | 75 mA | 75 mA | 75 mA | 75 mA |
| Maximum DC gate trigger voltage | 2.5 V | 2.5 V | 2.5 V | 2.5 V |
| Maximum holding current | 25 mA | 25 mA | 25 mA | 25 mA |
| JESD-30 code | R-PSSO-G2 | R-PSSO-G2 | R-PSSO-G2 | R-PSSO-G2 |
| JESD-609 code | e0 | e0 | e0 | e0 |
| Maximum leakage current | 2 mA | 2 mA | 2 mA | 2 mA |
| Number of components | 1 | 1 | 1 | 1 |
| Number of terminals | 2 | 2 | 2 | 2 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -40 °C | -40 °C | -40 °C | -40 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum rms on-state current | 16 A | 16 A | 16 A | 16 A |
| Off-state repetitive peak voltage | 800 V | 600 V | 600 V | 800 V |
| surface mount | YES | YES | YES | YES |
| Terminal surface | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD |
| Terminal form | GULL WING | GULL WING | GULL WING | GULL WING |
| Terminal location | SINGLE | SINGLE | SINGLE | SINGLE |
| Trigger device type | 4 QUADRANT LOGIC LEVEL TRIAC | 4 QUADRANT LOGIC LEVEL TRIAC | 4 QUADRANT LOGIC LEVEL TRIAC | 4 QUADRANT LOGIC LEVEL TRIAC |
| Base Number Matches | 1 | 1 | 1 | 1 |
