CD54HCT125H datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> CD54HCT125H

CD54HCT125H: DescriptionBus Driver, 1-Func, 4-Bit, True Output, CMOS,; Categorylogic logic; File Size105KB，2 Pages; ManufacturerRCA

Download Datasheet Parametric Compare View All

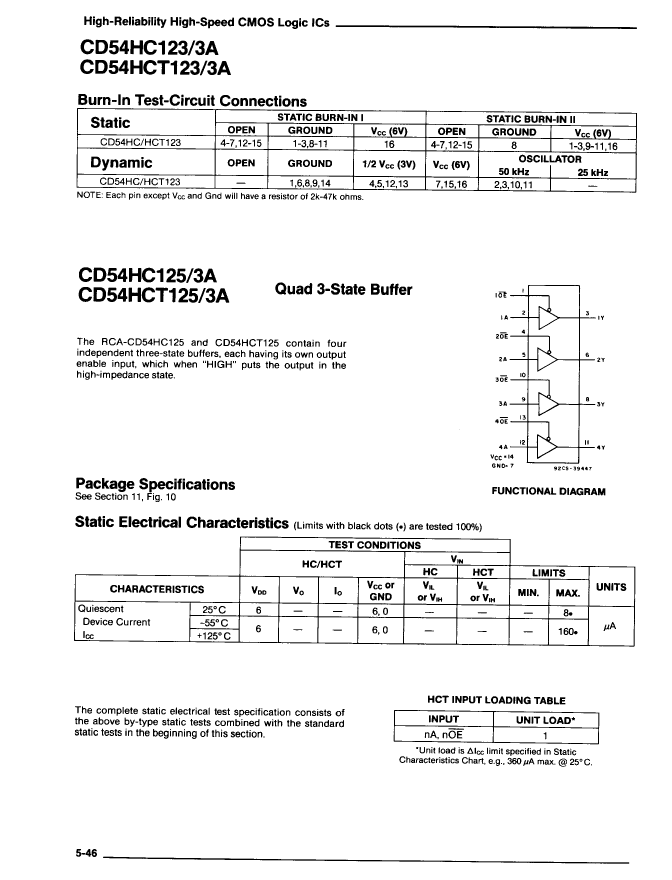

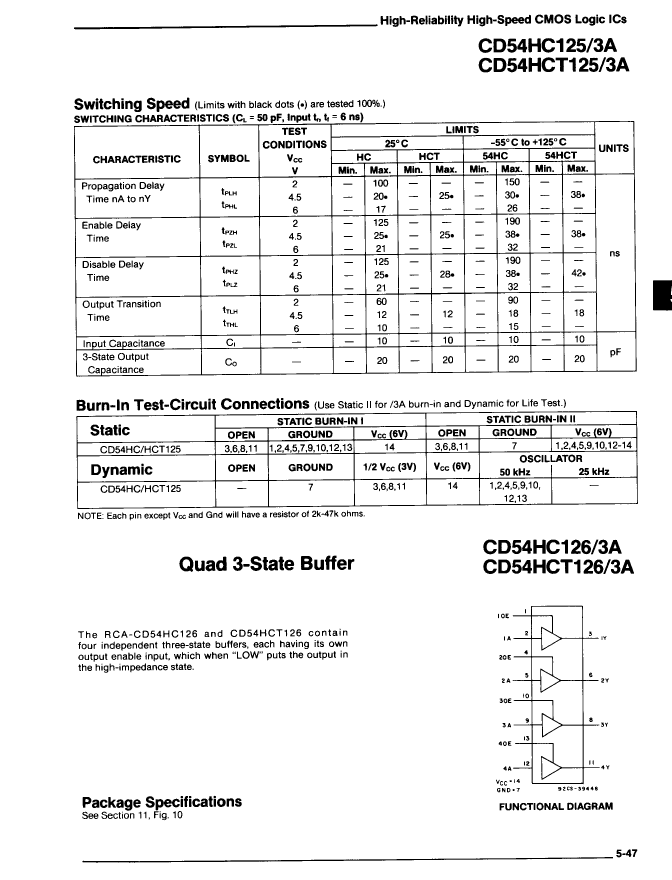

CD54HCT125H Overview

Bus Driver, 1-Func, 4-Bit, True Output, CMOS,

CD54HCT125H Parametric

Parameter Name	Attribute value
package instruction	, DIE OR CHIP
Reach Compliance Code	unknown
Control type	ENABLE LOW
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.006 A
Number of digits	4
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Encapsulate equivalent code	DIE OR CHIP
power supply	5 V
Prop。Delay @ Nom-Sup	38 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
technology	CMOS
Temperature level	MILITARY
Base Number Matches	1

Preview

Download Datasheet

View All

CD54HCT125H Related Products

	CD54HCT125H	CD54HC125F/3A	CD74HCT125E	CD74HCT125EX	CD54HCT125F/3A	CD54HCT125FX	CD54HCT125F/4	CD74HCT125M96
Description	Bus Driver, 1-Func, 4-Bit, True Output, CMOS,	Bus Driver, 1-Func, 4-Bit, True Output, CMOS, CDIP14	Bus Driver, 1-Func, 4-Bit, True Output, CMOS, PDIP14,	Bus Driver, 1-Func, 4-Bit, True Output, CMOS, PDIP14,	Bus Driver, 1-Func, 4-Bit, True Output, CMOS, CDIP14	Bus Driver, 1-Func, 4-Bit, True Output, CMOS, CDIP14	Bus Driver, 1-Func, 4-Bit, True Output, CMOS, CDIP14	Bus Driver, 1-Func, 4-Bit, True Output, CMOS, PDSO14,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Control type	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW	ENABLE LOW
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
MaximumI(ol)	0.006 A	0.006 A	0.006 A	0.006 A	0.006 A	0.006 A	0.006 A	0.006 A
Number of digits	4	4	4	4	4	4	4	4
Number of functions	1	1	1	1	1	1	1	1
Maximum operating temperature	125 °C	125 °C	85 °C	85 °C	125 °C	125 °C	125 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-40 °C	-40 °C	-55 °C	-55 °C	-55 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Encapsulate equivalent code	DIE OR CHIP	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	DIP14,.3	SOP14,.25
power supply	5 V	2/6 V	5 V	5 V	5 V	5 V	5 V	5 V
Prop。Delay @ Nom-Sup	38 ns	30 ns	31 ns	31 ns	38 ns	38 ns	38 ns	31 ns
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	INDUSTRIAL	INDUSTRIAL	MILITARY	MILITARY	MILITARY	INDUSTRIAL
package instruction	, DIE OR CHIP	-	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	DIP, DIP14,.3	SOP, SOP14,.25
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	-	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	5 V	-	5 V	5 V	5 V	5 V	5 V	5 V
Is it Rohs certified?	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	-	RCA	-	-	RCA	RCA	RCA	RCA
JESD-30 code	-	R-XDIP-T14	R-PDIP-T14	R-PDIP-T14	R-XDIP-T14	R-XDIP-T14	R-XDIP-T14	R-PDSO-G14
JESD-609 code	-	e0	e0	e0	e0	e0	e0	e0
Number of terminals	-	14	14	14	14	14	14	14
Package body material	-	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY
encapsulated code	-	DIP	DIP	DIP	DIP	DIP	DIP	SOP
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE
surface mount	-	NO	NO	NO	NO	NO	NO	YES
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	-	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
