CGS193T200X5R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> CGS193T200X5R

CGS193T200X5R: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 50% +Tol, 10% -Tol, 19000uF, Chassis Mount, ROHS COMPLIANT; CategoryPassive components capacitor; File Size633KB，8 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]; Environmental Compliance

Download Datasheet Parametric View All

CGS193T200X5R Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CGS193T200X5R	-	-	View	Buy Now

CGS193T200X5R Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 200V, 50% +Tol, 10% -Tol, 19000uF, Chassis Mount, ROHS COMPLIANT

CGS193T200X5R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	19000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	76.2 mm
dielectric materials	ALUMINUM (WET)
ESR	11 mΩ
leakage current	11.7 mA
length	149.225 mm
Installation features	CHASSIS MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Screw Ends
polarity	POLARIZED
positive tolerance	50%
Rated (DC) voltage (URdc)	200 V
ripple current	19100 mA
surface mount	NO
Terminal pitch	31.7 mm
Terminal shape	BINDING POST
Base Number Matches	1

Preview

Download Datasheet

View All

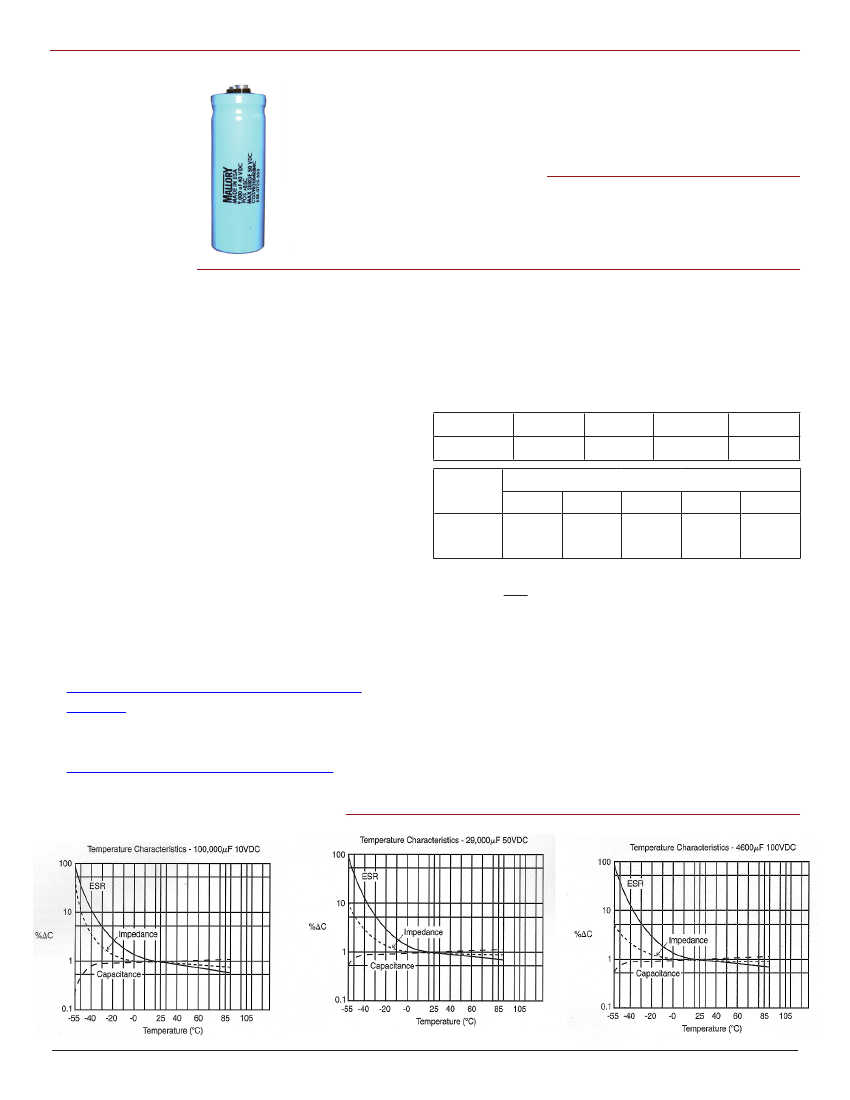

Type CGS

High-Cap Screw Terminal Aluminum Electrolytic Capacitor

High CV, Screw Terminal Capacitors

Type CGS screw terminal, aluminum electrolytic ca-

pacitors have a high CV rating and are suitable for use

in most demanding applications requiring high cur-

rent fltering or energy storage.

Highlights

• High CV rating

• High current fltering

• Screw terminal

RoHS Compliant

Capacitance Range:

Voltage Range:

Capacitance Tolerance:

Operating Temperature:

Ripple Current Multipliers:

75 to 1,500,000 µF

6.3 to 500 WVdc

–10% +75% (6.3 - 150 WVdc)

–10% +50% (200 - 450 WVdc)

–40 ºC to +85 ºC

Ambient Temperature

+45 ºC

2.24

+55 ºC

2.00

+65 ºC

1.73

+75 ºC

1.41

+85 ºC

1.00

Specifcations

Rated

Voltage

16 to 150

200 to 500

60 Hz

0.9

1.0

Ripple Multiplier

120 Hz

300 Hz

1.15

1.25

1000 Hz

1.25

1.40

10 kHz

1.30

1.50

DC Leakage Current:

Click here to see: Hardware & Mounting

Options

QA Stability Test:

Click here to see: Mechanical Details

I = .006 √ CV

Not to exceed 6.0 mA max. after 5 minutes

C = Capacitance in µF

V = Rated Voltage

I = Leakage current in mA

Apply WVdc for 2000 h @ 85 ºC

• Capacitance change ± 10% from initial limits

• DC leakage current: 200% of limit

• ESR: 175% of limit

Typical Performance Curves
