CN2A2TTED1803F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> CN2A2TTED1803F

CN2A2TTED1803F: DescriptionArray/Network Resistor, Isolated, Metal Glaze/thick Film, 0.1W, 180000ohm, 100V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0810, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size137KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/; Environmental Compliance

Download Datasheet Parametric View All

CN2A2TTED1803F Overview

Array/Network Resistor, Isolated, Metal Glaze/thick Film, 0.1W, 180000ohm, 100V, 1% +/-Tol, 200ppm/Cel, Surface Mount, 0810, CHIP, ROHS COMPLIANT

CN2A2TTED1803F Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	SMT, 0810
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Chip
Component power consumption	0.1 W
The first element resistor	180000 Ω
JESD-609 code	e3
Installation features	SURFACE MOUNT
Network Type	ISOLATED
Number of components	1
Number of functions	2
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.6 mm
Package length	2.54 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	2 mm
method of packing	TR, EMBOSSED PLASTIC, 10 INCH
Rated power dissipation(P)	0.1 W
Rated temperature	70 °C
resistance	180000 Ω
Resistor type	ARRAY/NETWORK RESISTOR
size code	0810
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	1%
Operating Voltage	100 V
Base Number Matches	1

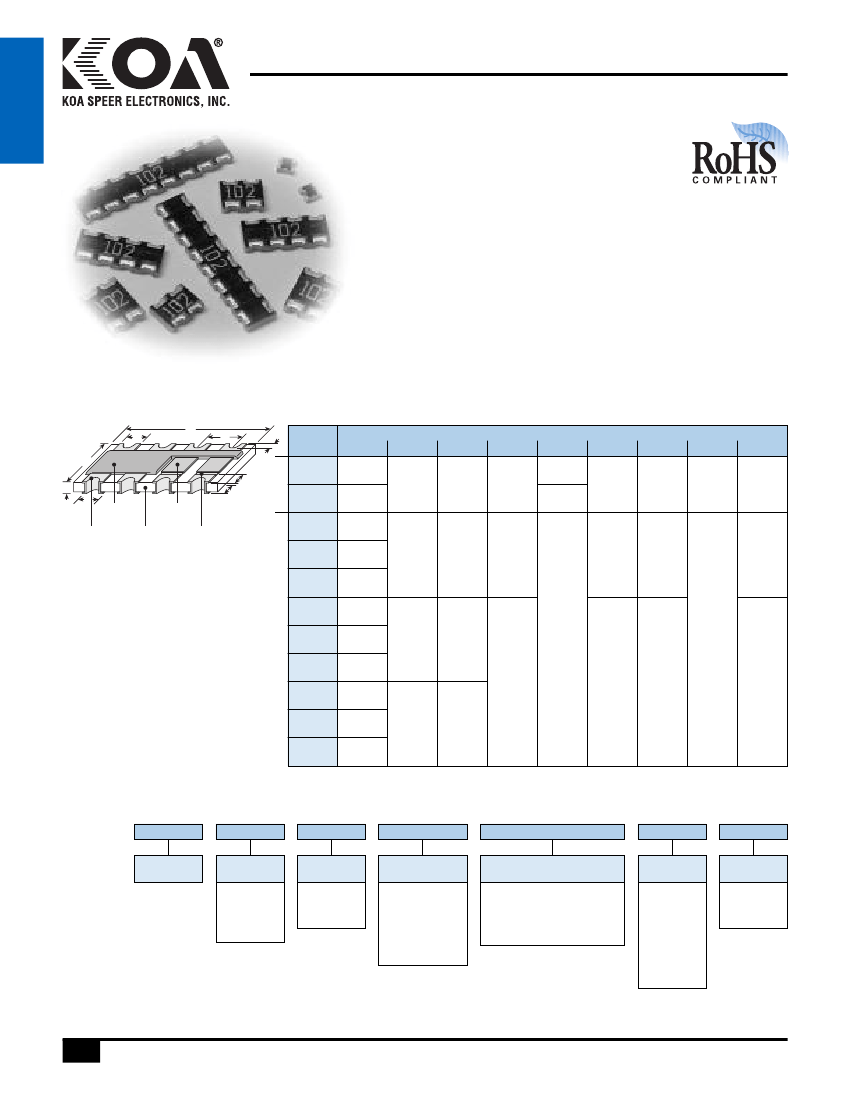

Preview

Download Datasheet

View All

concave termination with square corners

resistor array

Protective

Coating

Resistive

Film

Inner

Electrode

NEW

resistors

Electrode

Ceramic

Substrate

features

•

Manufactured to type RK73 standards

Less board space than individual chips

Isolated resistor elements

Marking: Marked with resistance value 1E, no marking

Products with lead-free terminations meet EU RoHS

requirements. Pb located in glass material, electrode

and resistor element is exempt per Annex 1, exemption

5 of EU directive 2005/95/EC

dimensions and construction

Size

Code

1E2

1E4

1J2

1J4

1J8

2A2

2A4

2A8

2B2

2B4

2B8

Dimensions

inches

(mm)

a (top)

a (bot.)

p (ref.)

.020

(0.5)

.039±.004

.014±.004

(1.0±0.1)

.039±.004 .008±.004 .010±.004

(0.35±0.1)

.012±.004 .012±.006 .003±.002

.079±.004

(1.0±0.1) (0.2±0.1) (0.25±0.1)

.018±.004

(0.3±0.1) (0.3±0.1) (0.07±0.05)

(2.0±0.1)

(0.45±0.1)

.063±.008

(1.6±0.2)

.126±.008 .063±.008 .012±.008 .016±.004

(3.2±0.2) (1.6±0.2) (0.3±0.2) (0.4±0.1)

.252±.008

(6.4±0.2)

0.1±.008

(2.54±0.2)

0.2±.008 .079±.008 .016±.008

(5.08±0.2) (2.0±0.2) (0.4±0.2)

0.4±.008

(10.16±0.2)

0.1±.008

(2.54±0.2)

0.2±.008 .126±.008 .020±.012

(5.08±0.2) (3.2±0.2) (0.5±0.3)

0.4±.008

(10.16±0.2)

.022±.004

(0.55±0.1)

.024±.004

(0.6±0.1)

.031±.004 .030±.006

(0.8±0.1) (0.75±0.15)

.006±.004

(0.15±0.1)

.020±.004 .016±.006

(0.5±0.1) (0.4±0.15)

.031

(0.8)

.050

(1.27)

ordering information

New Part #

Type

Size

NEW

For further information on packaging,

please refer to Appendix A.

Elements

Termination

Material

T: Sn

(Other termination

styles may be

available, please

contact factory

for options)

Packaging

TE: 7" embossed plastic

TD: 7" paper tape

TED: 10" embossed plastic

TDD: 10" paper tape

101

Nominal

Resistance

2 significant

figures + 1

multiplier for

±2 & ±5%

3 significant

figures + 1

multiplier

for ±1%

Tolerance

F: ±1%

G: ±2%

J: ±5%

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

11/06/09

KOA Speer Electronics, Inc.

• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
