MBR0540 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> MBR0540

Preview

MBR0540: Description0.5 A, 40 V, SILICON, SIGNAL DIODE; Categorysemiconductor Discrete semiconductor; File Size45KB，2 Pages; ManufacturerSHANGHAI SHANGLANG ELECTRONIC TECHNOLOGY CO., LTD.

Download Datasheet Parametric Compare View All

MBR0540 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MBR0540	-	-	View	Buy Now

MBR0540 Overview

0.5 A, 40 V, SILICON, SIGNAL DIODE

MBR0540 Parametric

Parameter Name	Attribute value
Number of terminals	2
Number of components	1
Processing package description	PLASTIC PACKAGE-2
state	DISCONTINUED
packaging shape	Rectangle
Package Size	SMALL OUTLINE
surface mount	Yes
Terminal form	GULL WING
terminal coating	tin lead
Terminal location	pair
Packaging Materials	Plastic/Epoxy
Craftsmanship	SCHOTTKY
structure	single
Diode component materials	silicon
Maximum power consumption limit	0.4100 W
Diode type	Signal diode
Maximum repetitive peak reverse voltage	40 V
Maximum average forward current	0.5000 A

Preview

Download Datasheet

View All

Shanghai Lunsure Electronic

Technology Co.,Ltd

Tel:0086-21-37185008

Fax:0086-21-57152769

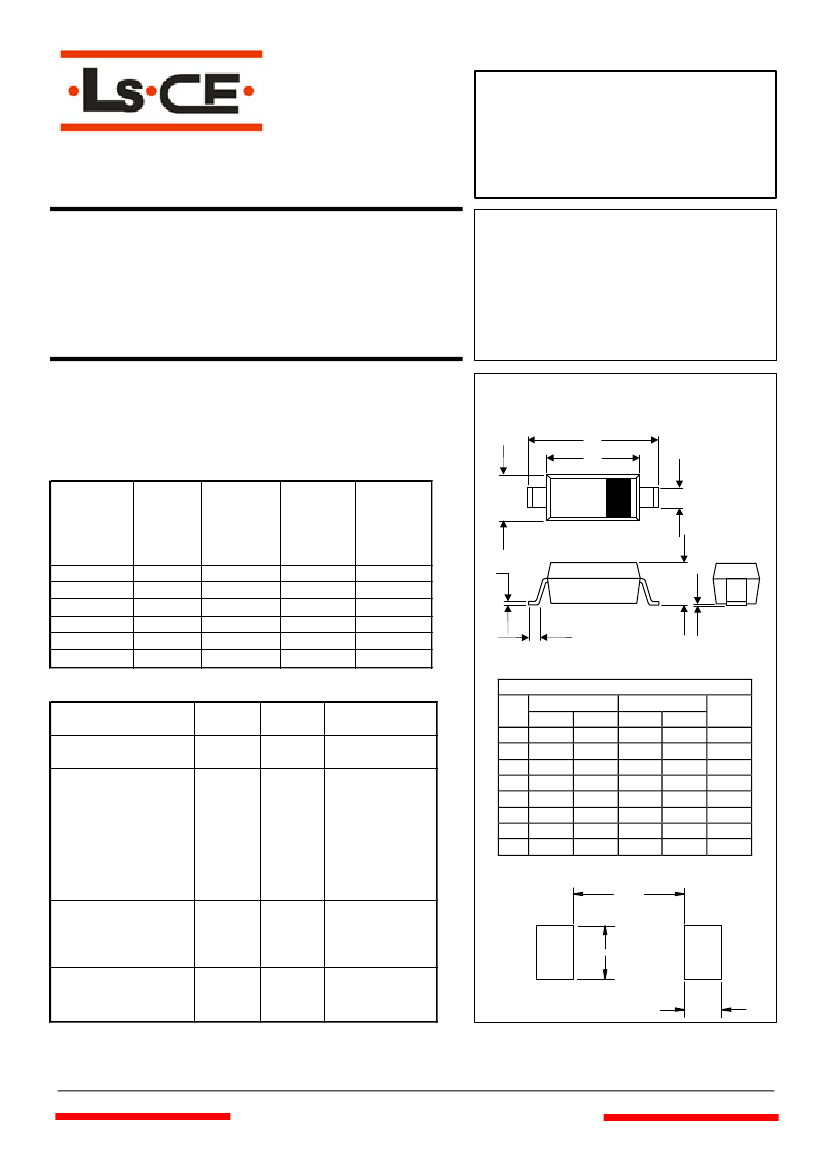

MBR0520

THRU

MBR05100

0.5 Amp

Schottky Rectifier

20 to 100 Volts

Features

l

High Current Capability

Extremely Low Thermal Resistance

For Surface Mount Application

Higher Temp Soldering: 250 C for 10 Seconds At Terminals

Low Forward Voltage

o

Maximum Ratings

l

Operating Temperature: -55 C to +150 C

Storage Temperature: -55 C to +150 C

Maximum Thermal Resistance: 5 C/W Junction to Lead

Maximum

Recurrent

Peak

Reverse

Voltage

20V

30V

40V

60V

80V

100V

Maximum

RMS

Voltage

14V

21V

28V

42V

56V

70V

Maximum

DC

Blocking

Voltage

20V

30V

40V

60V

80V

100V

H

C

o

SOD123

A

B

E

Catalog

Number

MBR0520

MBR0530

MBR0540

MBR0560

MBR0580

MBR05100

Device

Marking

R2

R3

R4

R6

R8

RA

D

J

G

Electrical Characteristics @ 25

o

C Unless Otherwise Specified

Average Forward

Current

Peak Forward Surge

Current

Maximum

Instantaneous

Forward Voltage

MBR0520

MBR0530

MBR0540

MBR0560

MBR0580-05100

Maximum DC

Reverse Current At

Rated DC Blocking

Voltage

Typical Junction

Capacitance

DIM

I

F(AV)

I

FSM

0.5A

5.5A

T

J

=115 C

8.3ms half sine

A

B

C

D

E

G

H

J

o

V

F

0.45V

0.55V

0.70V

0.80V

0.2mA

I

FM

=0.5A

T

A

=25

o

C

DIMENSIONS

INCHES

MM

MIN

MAX

MIN

MAX

.140

.152

3.55

3.85

.100

.112

2.55

2.85

.055

.071

1.40

1.80

-----

.053

-----

1.35

.012

.031

0.30

.78

.006

-----

0.15

-----

.01

-----

.25

-----

.006

-----

.15

SUGGESTED SOLDER

PAD LAYOUT

0.093"

NOTE

I

R

T

J

=25 C

0.048”

o

C

J

30pF

Measured at

1.0MHz,

V

R

=4.0 V

0.036”

www.cnelectr.com

MBR0540 Related Products

	MBR0540	MBR0530	MBR0580	MBR05100	MBR0560	MBR0520
Description	0.5 A, 40 V, SILICON, SIGNAL DIODE	0.5 A, 30 V, SILICON, SIGNAL DIODE	0.5 A, 30 V, SILICON, SIGNAL DIODE	0.5 A, 30 V, SILICON, SIGNAL DIODE	0.5 A, 30 V, SILICON, SIGNAL DIODE	0.5 A, 20 V, SILICON, SIGNAL DIODE
Number of terminals	2	2	2	2	2	-
Number of components	1	1	1	1	1	-
Processing package description	PLASTIC PACKAGE-2	CASE 425-04, 2 PIN	CASE 425-04, 2 PIN	CASE 425-04, 2 PIN	CASE 425-04, 2 PIN	-
state	DISCONTINUED	DISCONTINUED	DISCONTINUED	DISCONTINUED	DISCONTINUED	-
packaging shape	Rectangle	Rectangle	Rectangle	Rectangle	Rectangle	-
Package Size	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	-
surface mount	Yes	Yes	Yes	Yes	Yes	-
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	-
terminal coating	tin lead	tin lead	tin lead	tin lead	tin lead	-
Terminal location	pair	pair	pair	pair	pair	-
Packaging Materials	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	Plastic/Epoxy	-
Craftsmanship	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	-
structure	single	single	single	single	single	-
Diode component materials	silicon	silicon	silicon	silicon	silicon	-
Diode type	Signal diode	Signal diode	Signal diode	Signal diode	Signal diode	-
Maximum repetitive peak reverse voltage	40 V	30 V	30 V	30 V	30 V	-
Maximum average forward current	0.5000 A	0.5000 A	0.5000 A	0.5000 A	0.5000 A	-
