tile is broken into strips, the end plating is fired
on and the strips broken into individual
components. Final termination is made by
electroplating.
•
•
Thick film resistors with a high power
to size ratio, ideally suited to industrial
and general purpose use. A range from
1 ohm to 10 Mohms and tolerances of
1% and 5%. Also including zero ohm
links.
CRG chip resistors are suitable for
most applications, including high
frequency operation, owing to the short
lead structure and low capacitance.
STOCKISTS:
This product is stocked by RS and Micromark.
Telephone Tyco Passive Product Support Team ++ 44 (0) 1793 572484
Page 1 of 4
Website – passives.tycoelectronics.com
Email – passivesales@tycoelectronics.com
Product – Specification
TYPE CRG SERIES
SPECIFICATIONS
UNITS
Rated Power @ 70 °C
Resistance Range Min
Max
Tolerance
Code letter
Selection Series
Temperature Coefficient
Rated Power @ 70 °C
Resistance Range Min
Max
Tolerance
Code letter
Selection Series
Temperature Coefficient
Watts
Ohms
Ohms
%
10
1M0
1
F
E24
±100
1
st
April 2003
ISSUE 2
0402
0.063
1
9R1
5
J
E24
±350
10
3M3
5
J
E24
±200
10
1M0
1
F
E24
E96
±100
0603
0.1
1
9R1
5
J
E24
±350
10
10M
5
J
E24
±200
10
1M0
1
F
E24
E96
±100
0805
0.125
1
9R1
5
J
E24
±350
10
10M
5
J
E24
±200
ppm/°C
Watts
Ohms
Ohms
%
1206
10
1M0
1
F
E24
E96
±100
0.25
1
9R1
5
J
E24
±350
10
10M
5
J
E24
±200
10
1M0
1
F
E24
E96
±100
2010
0.5
1
9R1
5
J
E24
±350
10
10M
5
J
E24
±200
10
1M0
1
F
E24
E96
±100
2512
1
1
9R1
5
J
E24
±350
10
10M
5
J
E24
±200
ppm/°C
UNITS
Working Voltage
Maximum Overload Voltage
Operating Temperature Range
Climatic Category
Insulation Resistance Dry Min
Stability
Surface Temp Rise
Max
Zerohm
Current Max
Resistance Max
Volts
Volts
°C
Mohms
%
°C/W
Amps
0402
50
100
0603
75
150
0805
150
300
-55 to +125
55/125/56
1,000
3
400
1206
200
400
2010
200
400
2512
200
400
1
1
2
<20 mohm
2
2
2
DIMENSIONS
STYLE
0402
0603
0805
1206
2010
2512
L
1.0 ± 0.1
1.6 ± 0.1
2.1 ± 0.2
3.1 ± 0.2
5.0 ± 0.2
6.4 ± 0.2
W
0.5 ± 0.1
0.8 ± 0.1
1.3 ± 0.1
1.55 ± 0.1
2.5 ± 0.2
3.2 ± 0.2
t
0.35 ± 0.05
0.45 ± 0.1
0.5 ± 0.1
0.55 ± 0.1
0.6 ± 0.1
0.6 ± 0.1
a
0.2 ± 0.1
0.3 ± 0.2
0.4 ± 0.2
0.45 ± 0.2
0.6 ± 0.2
0.7 ± 0.2
b
0.25 ± 0.1
0.2 ± 0.1
0.3 ± 0.2
0.4 ± 0.2
0.6 ± 0.2
0.7 ± 0.2
DERATING CURVE
Telephone Tyco Passive Product Support Team ++ 44 (0) 1793 572484
Page 2 of 4
Website – passives.tycoelectronics.com
Email – passivesales@tycoelectronics.com
Product – Specification
TYPE CRG SERIES
MOUNTING
The resistors are suitable for processing on automatic placement equipment.
1
st
April 2003
ISSUE 2
MARKING
CRG0805, CRG1206, CRG2010, CRG2512
E24 series resistors are marked with a three digit code.
E96 series resistors are marked with a four digit code.
Zerohm components are marked '0'.
CRG0603
E24 5% series are marked with a three digit code.
E24 1% series are marked with a three digit code.
E96 series are marked with the international alphanumeric three character code (available on request).
EXCEPT 10, 11, 13, 15, 20 & 75 decades which are marked as the E24 series.
CRG0402
series unmarked.
STORAGE
Unopened reels should be stored within a temperature range of +5 °C to +25 °C, separated from any dust, chemicals and solvent based
materials. Non-adherence to this procedure could effect the solderability of this product.
PACKAGING

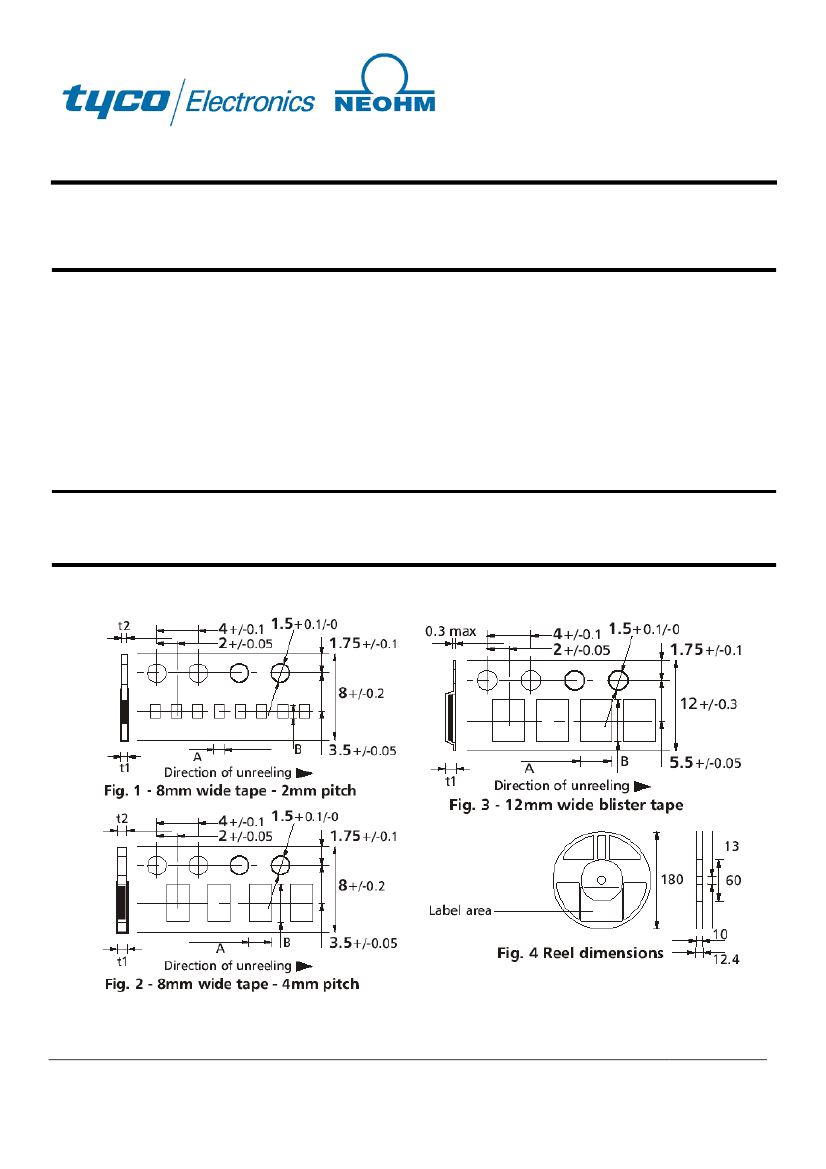

All chip resistors are supplied on reels. For details, see figures 1 - 4. Also available in bulk cassettes.
Telephone Tyco Passive Product Support Team ++ 44 (0) 1793 572484
Page 3 of 4
Website – passives.tycoelectronics.com
Email – passivesales@tycoelectronics.com
Product – Specification
TYPE CRG SERIES
PACKAGING (cont'd)
0402
Tape Width
Pitch
A
tol
B
tol
t1
tol
t2 max
Reel qty.
8
2
0.63
± 0.05
1.13
± 0.05
0.55
± 0.1
0.5
10000
1
st
April 2003
ISSUE 2
0603
8
4
1.1
± 0.2
1.9
± 0.2
0.7
± 0.1
0.8
5000
0805
8
4
1.65
± 0.2
2.4
± 0.2
0.9
± 0.1
1
5000
1206
8
4
2.0
± 0.15
3.6
± 0.2
0.9
± 0.1
1
5000
2010
12
4
2.9
± 0.1
5.3
± 0.1
1.0
± 0.1
-
4000
2512
12
4
3.4
± 0.1
6.6
± 0.1
1.0
± 0.1
-
4000
Larger reel sizes available on request.
PERFORMANCE CHARACTERISTICS
The evaluation of the performance characteristics is carried out with reference to IECQ specifications QC 400 000 and QC 400 100.
TEST REF
4.23
4.24
4.25.1
4.25.3
TEST REF
4.13
4.32
4.33
4.19
4.18
Long Term Tests ±(3% + 0.1 ohm)
Climatic sequence
Damp heat, steady state
Endurance at 70 °C
Endurance at 125 °C
Short Term Tests ±(1% + 0.05 ohm)
Overload
Adhesion
Bond strength of end face plating
Rapid change of temperature
Resistance to soldering heat
HOW TO ORDER
Orders for these components should include the following information:-
Type, tolerance code letter and value
e.g. CRG0603 J 1K0 (CRG0603ZR for zerohm links)
This publication is issued to provide outline information only and (unless specifically agreed to the contrary by the Company in writing) is not to form part of any order or be
regarded as a representation relating to the products or service concerned. We reserve the right to alter without notice the specification, design, price or conditions of
supply of any product or service. Whilst Tyco Electronics Components products are of the very highest quality and reliability, all electronic components can occasionally
be subject to failure. Where failure of a Tyco Electronics Components product could result in life threatening consequences, then the circuit and application must
be discussed with the Company. Such areas might include ECG, respiratory and other medical and nuclear applications and any non fail-safe applications circuit.
