Power Inductor< SMD Type: CDRH Series>
Type: CDRH2D23/HP
◆
Product Description
・3.2×3.2mm
Max.(L×W),2.5mm Max. Height.
・Inductance
range: 1.7½2.2μH
・Rated
current range:0.57A-2.05A
・In
addition to the standard versions of inductors shown here, custom inductors are available
to meet your exact requirements.
◆
Feature
・Magnetically
shielded construction.
・Ideally
used in Mobilephone,PDA,MP3,DSC/DVC,Portable DVD,etc as DC-DC Converter inductors.
・RoHS
Compliance.
◆

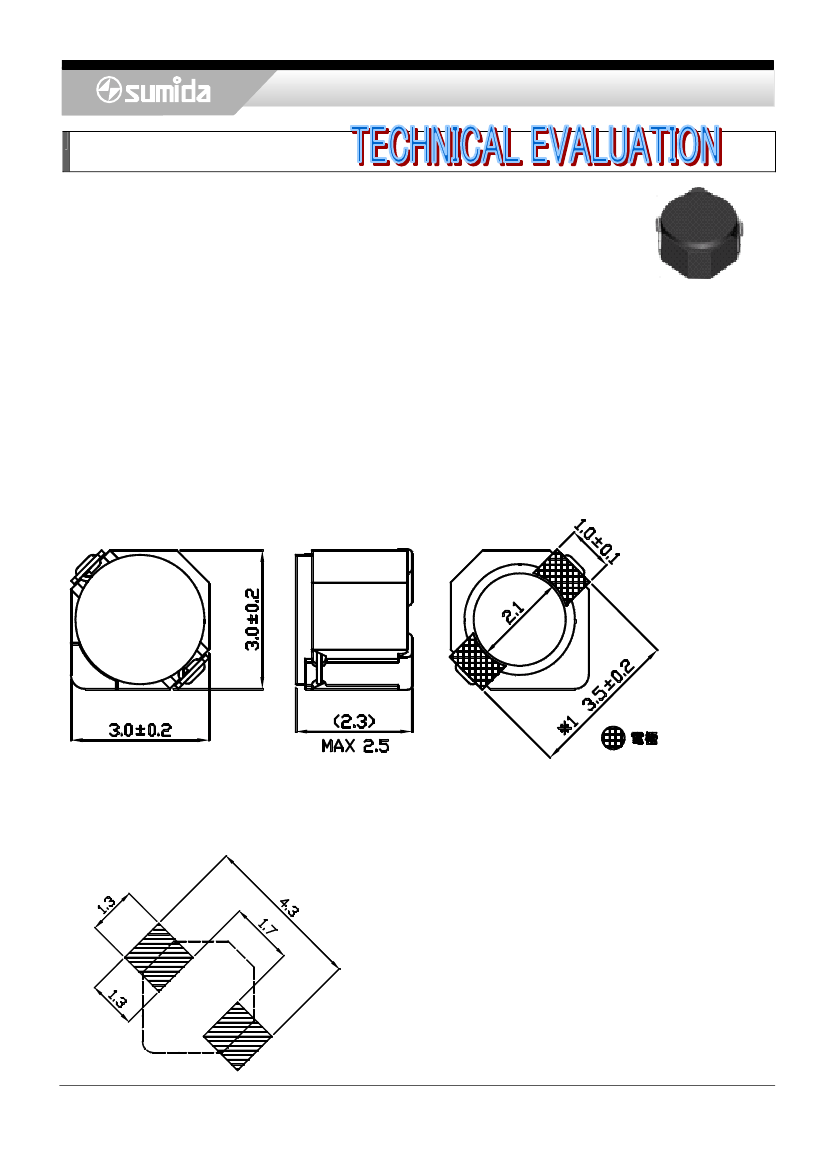

Dimensions (mm)
※
Not including terminal dimension.
◆
Land Pattern (mm)
Please refer to the sales offices on our website for a representative near you
www.sumida.com
1/2
Power Inductor< SMD Type: CDRH Series>
Type: CDRH2D23/HP
◆
Specification
Part Name
※
CDRH2D23HPNP-1R7N□
CDRH2D23HPNP-2R2N□
CDRH2D23HPNP-3R3N□
CDRH2D23HPNP-4R7N□
CDRH2D23HPNP-6R3N□
CDRH2D23HPNP-100N□
CDRH2D23HPNP-150N□
CDRH2D23HPNP-220N□
※
Description of Part Name
CDRH2D23HPNP-1R7N□
B
C
Box
Carrier Tape
Stamp
Inductance
［Within½
100kHz/1V
1.7μH±30％
2.2μH±30％
3.3μH±30％
4.7μH±30％
6.3μH±30％
10μH±30％
15μH±30％
22μH±30％
D.C.R.(mΩ)
Max.(Typ.)
(at 20℃)
44(35)
57(46)
81(65)
118(95)
153(123)
230(185)
343(275)
490(395)
Saturation Current
（A）※1
(at 20℃)
2.05
1.80
1.42
1.24
1.04
0.84
0.70
0.57
(at100℃)
1.40
1.20
1.00
0.84
0.75
0.55
0.48
0.40
Temperature
Rise current
(A)
※2
2.35
1.95
1.54
1.32
1.02
0.88
0.70
0.58
A
C
E
G
J
L
N
Q
※1.Saturation
Current: The DC current at which the inductance decreases to 65% of it's nominal value
※2
Temperature rise current:The DC current at which the temperature rise is
△t＝40℃.(Ta＝20℃)
