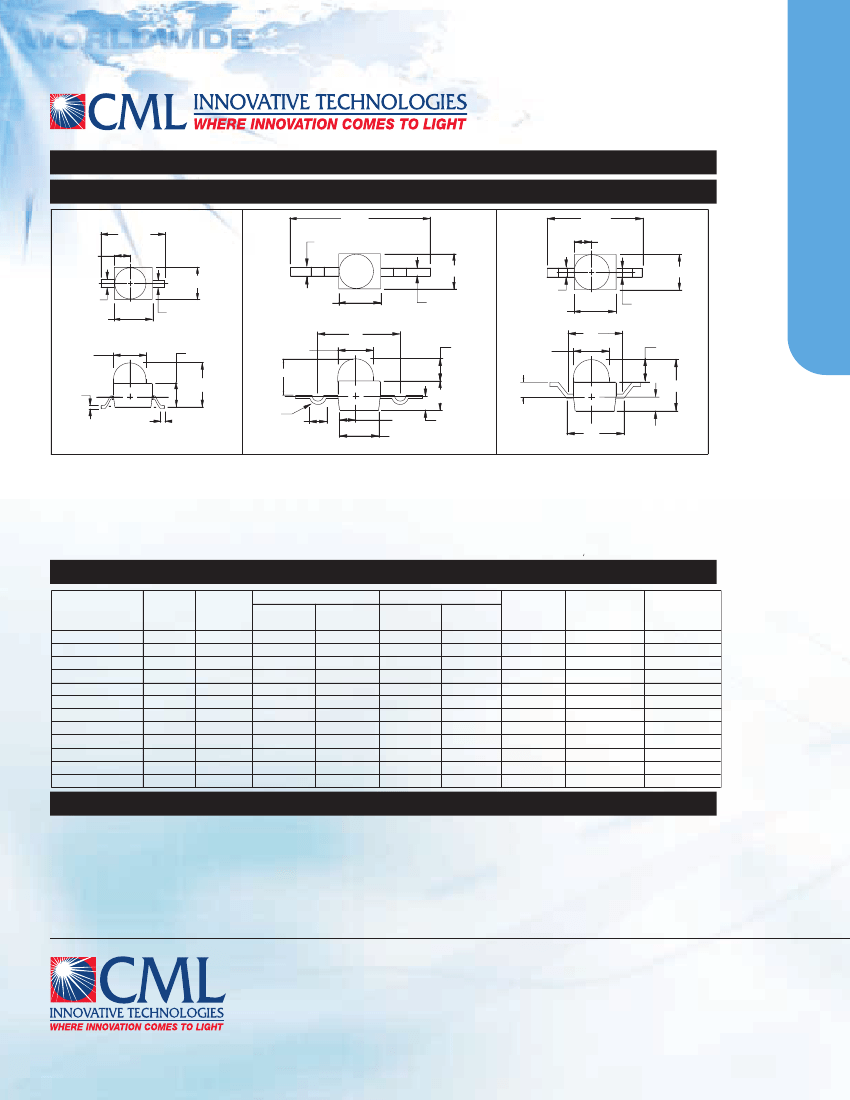

CMD95-21/TR7,TR9,TR10 Series SMT LEDs
DESCRIPTION AND FEATURES
7.62 MAX.
3.81±.10
0.5
1.10
1.10
6.0±0.1
*
See Note
*
See Note
0.5
0.4
2.1±0.1
4.64
1.40
Ø1.7±0.2
2.2±0.1
2.2±0.1
*
See Note
0.5
2.2±0.1
2.1±0.1
0.4
2.1±0.1
0.4
3.04
1.38±0.1
Ø1.7±0.2
1.34
Ø1.8±0.1
1.94±0.20
2.78±.10
0.76±0.1
.12
0.35 R
.21
1.10
1.10
2.50
75±0.1
4.60
1.34
0.75±0.1
2.7±0.2
CMD95-21/TR7
Gull Wing
CMD95-21/TR9
Yoke
CMD95-21/TR10
Z-bend
All dimensions in mm.
Surface Mount Technology
• Tape and reel packaged for high-speed
autoinsertion.
• Convection and vapor-phase reflow compatible.
• Compact form enables high density placement.
• 1000 pieces per reel.
• Gull wing, Yoke or Z-bend lead configurations.
Exceptional Reliability
• Stringent process controls assure quality.
• Extensive qualification testing to meet
strictest requirements.
• Designed to permit easy post-reflow solder
joint inspection.
Leading Edge LED Optoelectronic Performance
• Consistent high brightness.
*Cathode for VGC/VYC/VRC
Anode for SRC
ELECTRO-OPTICAL CHARACTERISTICS
P art Number
C MD95-21VG C /TR 7
C MD95-21VY C /TR 7
C MD95-21VR C /TR 7
C MD95-21S R C /TR 7
C MD95-21VG C /TR 9
C MD95-21VY C /TR 9
C MD95-21VR C /TR 9
C MD95-21S R C /TR 9
C MD95-21VG C /TR 10
C MD95-21VY C /TR 10
C MD95-21VR C /TR 10
C MD95-21S R C /TR 10
E mitted
C olor
G reen
Y ellow
R ed
R ed
G reen
Y ellow
R ed
R ed
G reen
Y ellow
R ed
R ed
Lens
C olor
C lear
C lear
C lear
C lear
C lear
C lear
C lear
C lear
C lear
C lear
C lear
C lear
Luminous Intensity
Min.
(mcd)
11.5
16.0
16.0
60.0
11.5
16.0
16.0
60.0
11.5
16.0
16.0
60.0
T yp.
(mcd)
19.5
25.0
25.0
100.0
19.5
25.0
25.0
100.0
19.5
25.0
25.0
100.0
F orward V oltage
T yp.
(V )
2.1
2.0
2.0
1.7
2.1
2.0
2.0
1.7
2.1
2.0
2.0
1.7
Max.
(V )
2.8
2.8
2.8
2.4
2.8
2.8
2.8
2.4
2.8
2.8
2.8
2.4
V iewing
Angle
(degrees)
25
25
25
25
25
25
25
25
25
25
25
25
P eak
Wavelength
(nm)
570
585
640
660
570
585
640
660
570
585
640
660
P ackage
T ype
S ingle
S ingle
S ingle
S ingle
S ingle
S ingle
S ingle
S ingle
S ingle
S ingle
S ingle
S ingle
ABSOLUTE MAXIMUM RATINGS
Green
Yellow
Red
Units
Power Dissipation...................................................105..................105...................100...............................mW
Storage...........................................................-40 to +100......-40 to +100......-40 to +100.............................°C
Operating Temperature.......................................-40 to +85.......-40 to +85........-40 to +85..............................°C
Peak Forward Current (1
µ
s @ 10% duty cycle)...........150..................150..................150.................................mA
Reverse Voltage (IR=100
µ
A)....................................5.0...................5.0...................5.0....................................V
Lead Solder Time @ 260°C........................................5......................5......................5...........................Seconds
Forward Current......................................................25....................30....................30..................................mA
