RoHS Compliant
Surface Mount Tactile
CS1102
Specifications
Electrical Ratings
Electrical Life
Contact Resistance
Actuation Force
Acutation Travel
50mA @ 50VDC
100,000 cycles typical
<50mΩ initial
100 ± 50gF
160 ± 50gF
260 ± 50gF
.25 ± .1mm
Dielectric Strength
Insulation Resistance
Storage Temperature
250Vrms min
>100MΩ min
-40ºC to 85ºC
Operating Temperature -40ºC to 85ºC
Materials
Specifications and availability subject to change without notice.
Actuator
Housing
Cover
Contacts
Terminals
4/6 Nylon
4/6 Nylon
Stainless Steel
Phosphor Bronze, Silver Plated
Brass, Silver Plated
Ordering Information
1. Series
CS1102
2. Actuator Length “L” mm
4.3
5.0
7.0
7.5
8.0
8.5
9.5
S2.4 = 2.4mm square head
S2.8 = 2.8mm square head
3. Actuation Force
F100 = 100gF
F160 = 160gF
F260 = 260gF
4. Terminal Options
Blank = Gull Wing
J = J Lead
5. Cap Options
Blank = No Cap
C01
C02
C03
C04
C05
Cap Colors
** See Cap Options for color availability
** Caps available with S2.8 actuator only
CS1102
9.5
F160

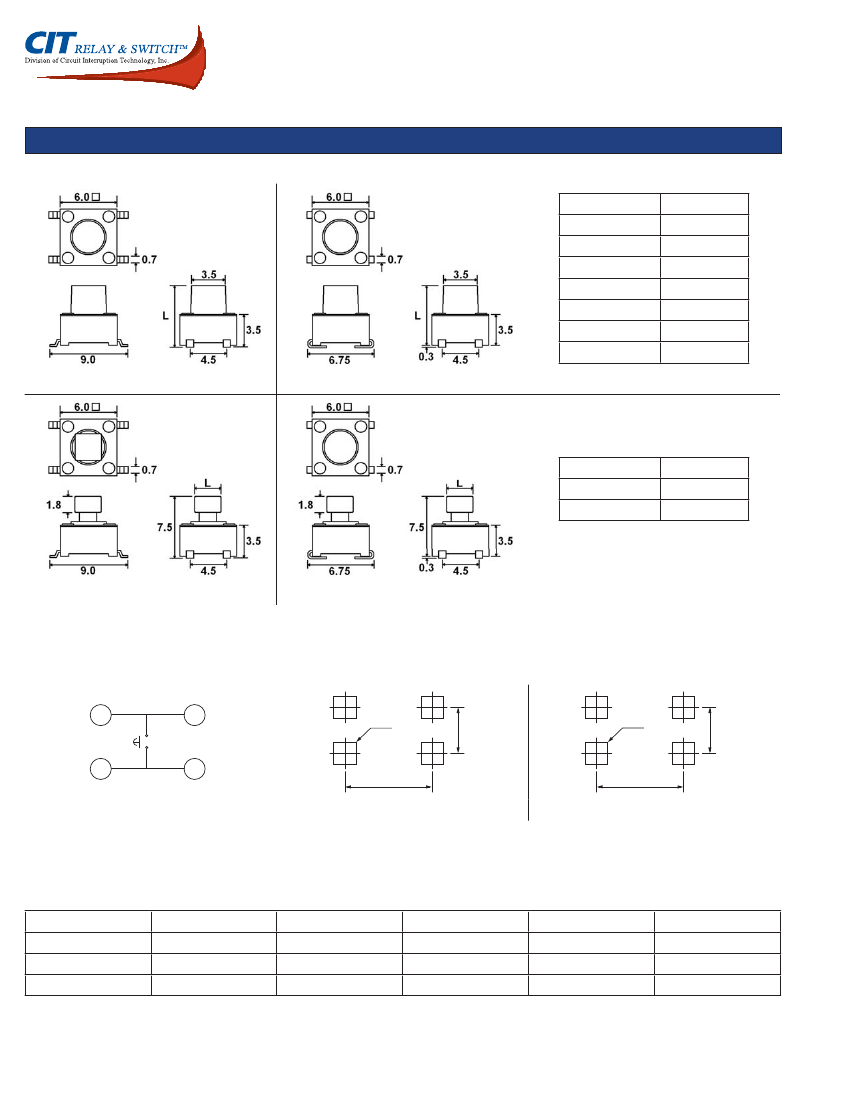

Dimensions shown in mm. Dimensions are shown for reference purposes only.
page 1
phone - 763.535.2339
www.citrelay.com
fax - 763.535.2194
Surface Mount Tactile
CS1102

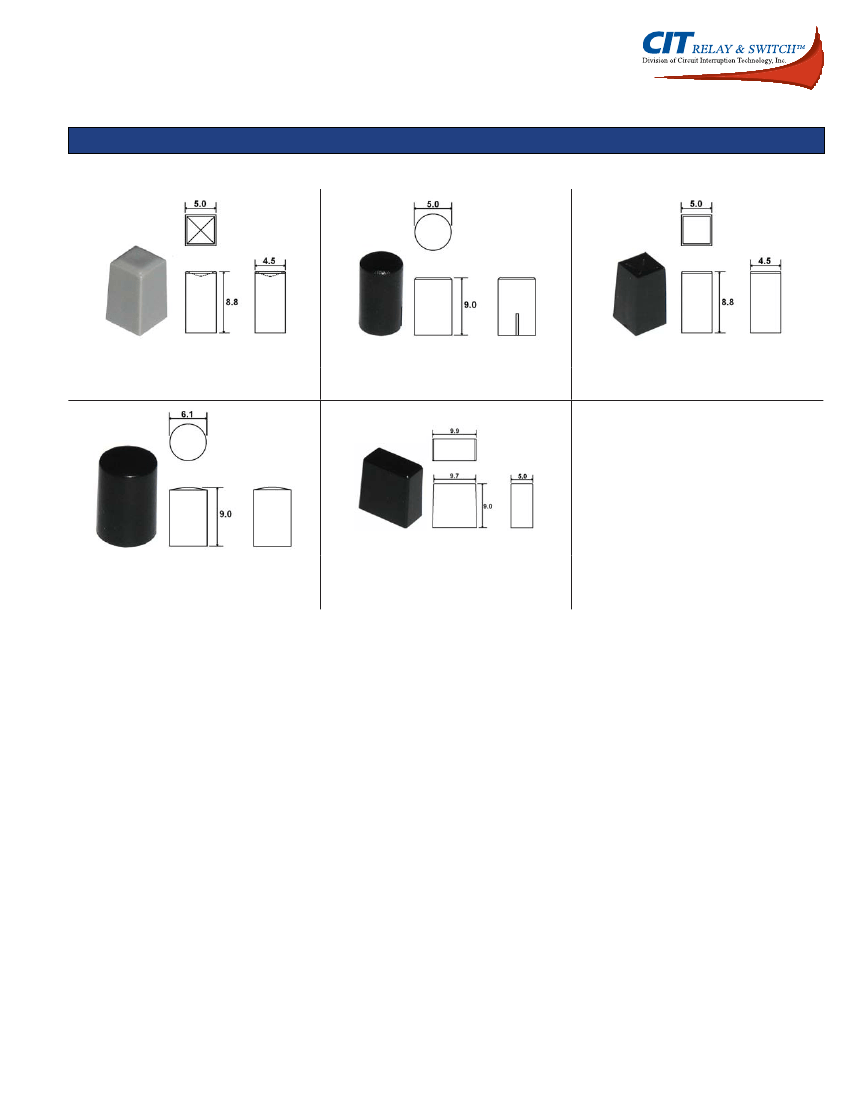

Cap Options for S2.8 Actuator
C01_
Specifications and availability subject to change without notice.
C02_
1 = White, 2 = Black, 3 = Red, 9 = Light Gray
Contact Factory for other available colors
C03_
1 = White, 2 = Black, 3 = Red, 9 = Light Gray
Contact Factory for other available colors
1 = White, 2 = Black, 3 = Red, 9 = Light Gray
Contact Factory for other available colors
C04_
1 = White, 2 = Black, 3 = Red, 9 = Light Gray
Contact Factory for other available colors
C05_
1 = White, 2 = Black, 3 = Red, 9 = Light Gray
Contact Factory for other available colors
Dimensions shown in mm. Dimensions are shown for reference purposes only.
