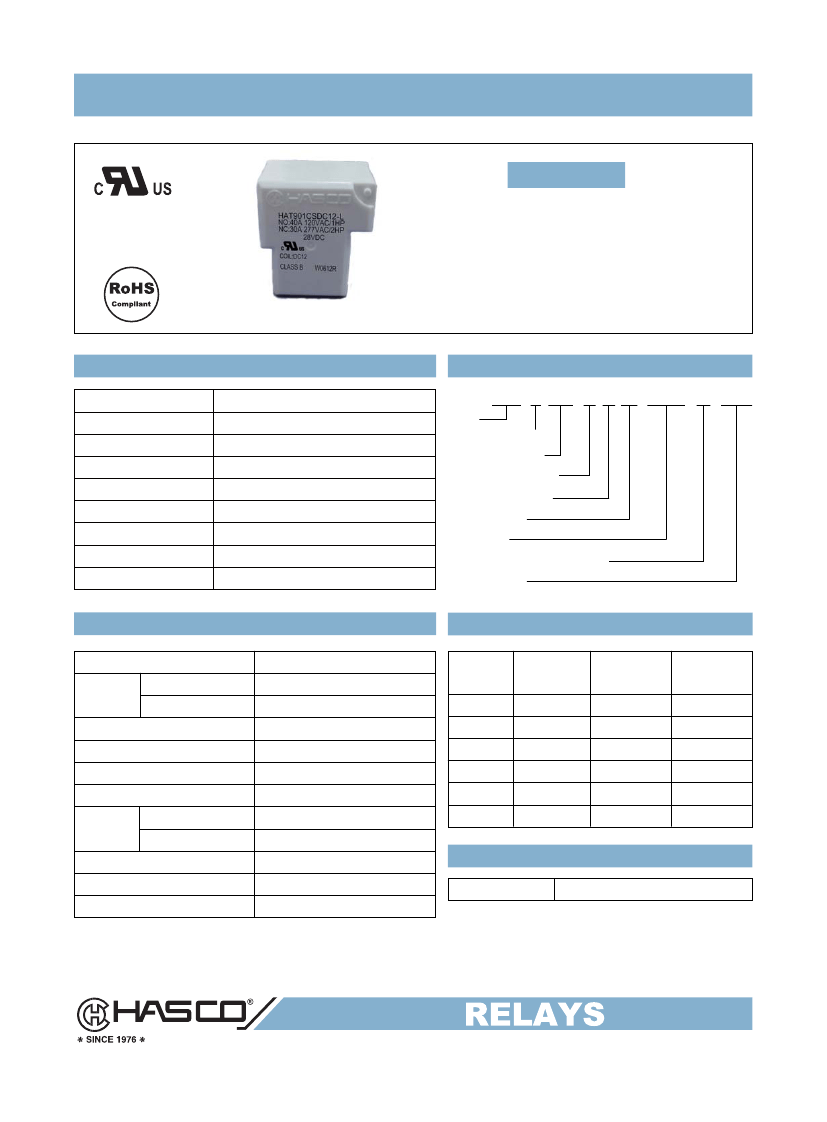

HAT901-L SERIES
LATCHING SPDT
FEATURES
30,40 Amp
File No.:E75887
・Large
switch capacity up to 40A
・Green
Energy Saving
Patent No.:201120133518.4
CONTACT RATINGS
Contact Arrangement
Contact Resistance
Contact Material
Contact Rating(Resistive)
Max. Switching Voltage
Max. Switching Current
Max. Switching Power
Mechanical Life
Electrical Life
1A、1C
50mΩ(1A 24VDC)
AgSnO，SiIver AIIoy
30/40A 277VAC 30A/28VDC
277VAC/28VDC
40A
7200VA/560W
1×10
7
times
1×10
5
times
ORDERING INFORMATION
HAT F 901 C S 30 DC12 - L - XXX
Model
F:Class F Nil:Class B
901:PCB Pins Only
A:SPST-NO C:SPDT
C:Covered S:Sealed
Nil:40A 30:30A
Coil Voltage
L:Latching LR=Reverse Polarity
Customer Code
Note:This relay do not have pin 6.
CHARACTERISTICS
Insulation Resistance
Dielectric
Strength
Between coil & contacts
Between open contacts
COIL DATA
1000MΩ（at 500VDC）
2000VAC 1min
1500VAC 1min
15ms max.
10ms max.
98% RH,40°C
-20°C ~ +85°C
98m/s
2
980m/s
2
10Hz to 55Hz 1.5mm DA
Approx. 26g
Sealed, Covered
Nominal
Voltage
VDC
5
6
9
12
24
48
Action/Reset
Voltage
VDC
4.0
4.8
7.2
9.6
19.2
38.4
Impulse
Width
ms
100
100
100
100
100
100
at 25°C
Coil
Resistance
Ω±10%
21
30
67.5
120
480
1920
Reacting time (at nomi. volt.)
Resetting time (at nomi. volt.)
Humidity
Ambient temperature
Shock
Resistance
Functional
Destructive
Vibration resistance
Unit weight
Construction
Notes: The data shown above are initial values.
COIL
Coil Power
1200mW
This datasheet is for customers' reference. All the specifications are subject to change without notice.
RELAYS & ELECTRONICS INT'L. CORP.
TEL:(516) 328-9292
FAX:(516)326-9125
www.hascorelays.com
email:info@hascorelays.com
37
HAT901-L SERIES
SAFETY APPROVAL RATINGS
UL&CUL
LATCHING SPDT
30,40 Amp
1HP/120VAC, 2HP/277VAC, 2HP/240VAC
NO 20A/277VAC Ballast, 30A/120VAC Ballast
NC
2HP/277VAC, 1HP/120VAC
10A/277VAC Ballast, 2A/120VAC Tungsten

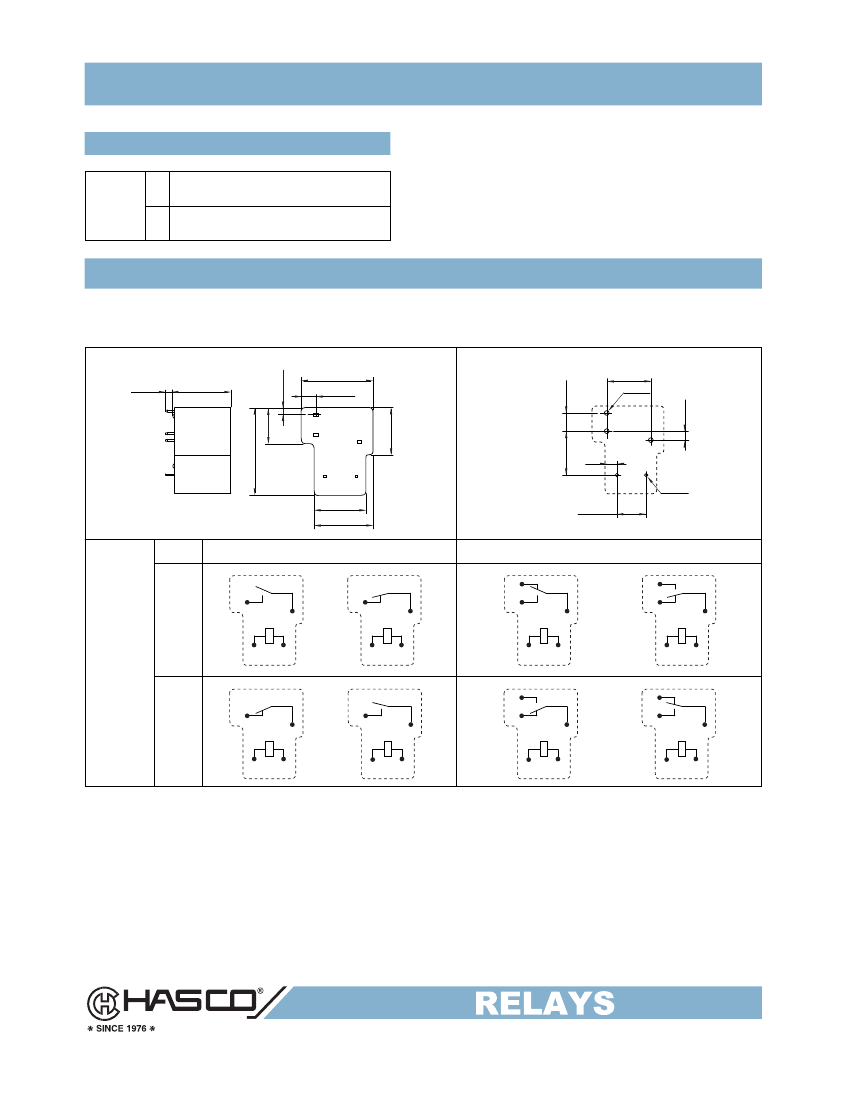

OUTLINE DIMENSIONS, WIRING DIAGRAM AND PC BOARD LAYOUT.
Outline Dimensions
.102(2.6)
1.079(27.4)
.189(4.8)
.692(17.6)
Unit: inch(mm)
PCB Layout
(Bottom view)
.299(7.6)
.701(17.8)
3-Φ2.1
.1(2.54)
.149(3.8)
2-Φ1.1
.402(10.2)
.169(4.3)
.775(19.7)
.496(12.6)
1.252(31.8)
.764(19.4)
.862(21.9)
1A
5
Straight
Polarity
Wiring
Diagram
(Bottom
view)
Reverse
Polarity
4
4
1
-
+
4
1
+
3
-
4
1
-
+
.598(15.2)
1C
5
4
1
+
3
-
3
2
2
3
2
2
5
1
-
+
4
1
+
-
2
4
1
-
+
5
4
1
+
3
-
2
3
2
3
3
2
Remark:1)
In case of no tolerance shown in outline dimension: outline dimension
≤1mm,tolerance
should be ±0.2mm; outline dimension
＞1mm
and
≤5mm,tolerance
should be ±0.3mm;outline dimension
＞5mm,
tolerance should be ±0.4mm.
2)
The tolerance without indicating for PCB layout is always ±0.1mm.
Notice
1.Relay is on the “reset” or “set” status when being released form stock, with the consideration of shock risen from transit and relay
mounting, relay would be changed to “set” or “reset” status, therefore, when application (connecting the power supply), please reset the
relay to “set” or “reset”status on request.
2.In order to maintain “set” or “reset” status, energized voltage to coil should reach the rated voltage, impulse width should be 5 times
more than “set” or “reset” time. Do not energize voltage to “set” coil and “reset” coil simultaneously. Long energized time (more than 1
min) should be avoided.
This datasheet is for customers' reference. All the specifications are subject to change without notice.
