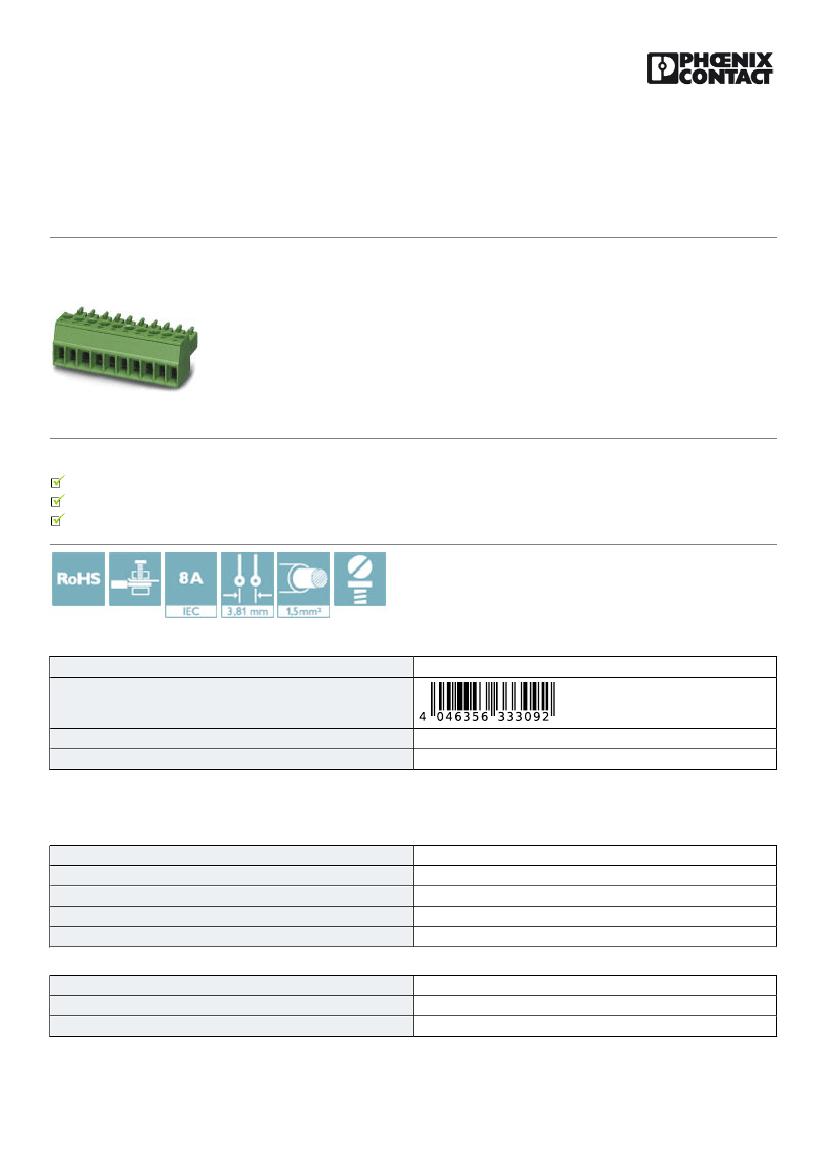

Printed-circuit board connector - MC 1,5/ 8-ST-3,81 CN1,8
BDNZX2 - 1755415
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB connector, nominal current: 8 A, number of positions: 8, pitch: 3.81 mm, connection method: Screw
connection with tension sleeve, color: green, contact surface: Tin
The figure shows a 10-position
version of the product
Your advantages
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
Key Commercial Data
Packing unit
GTIN
GTIN
Custom tariff number
4046356333092
85366990
1
Technical data
Dimensions
Length [ l ]
Width [ w ]
Height [ h ]
Pitch
Dimension a
16.1 mm
31.27 mm
11.1 mm
3.81 mm
26.67 mm
General
Range of articles
Number of positions
Connection method
MC 1,5/..-ST
8
Screw connection with tension sleeve
01/16/2019 Page 1 / 4
https://www.phoenixcontact.com/in/products/1755415
Printed-circuit board connector - MC 1,5/ 8-ST-3,81 CN1,8
BDNZX2 - 1755415
Technical data
General
Rated voltage (III/3)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
160 V
EN-VDE
8A
1.5 mm²
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Minimum AWG according to UL/CUL
Maximum AWG according to UL/CUL
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
0.25 mm²
0.25 mm²
0.5 mm²
28
16
0.08 mm²
0.5 mm²
0.08 mm²
0.75 mm²
0.25 mm²
0.34 mm²
0.5 mm²
0.5 mm²
30
14
Conductor cross section flexible, with ferrule without plastic sleeve max. 1.5 mm²
Standards and Regulations
Connection in acc. with standard
EN-VDE
CUL
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
01/16/2019 Page 2 / 4
https://www.phoenixcontact.com/in/products/1755415
Printed-circuit board connector - MC 1,5/ 8-ST-3,81 CN1,8
BDNZX2 - 1755415
Approvals
mm²/AWG/kcmil
0.2-1.5
VDE Gutachten mit
Fertigungsüberwachung
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
160 V
8A
0.2-1.5
40011723
EAC
D
300 V
8A
30-14
B.01742
cULus Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-20110128
B
300 V
8A
30-14
Phoenix Contact 2019 © - all rights reserved
http://www.phoenixcontact.com
01/16/2019 Page 4 / 4
