CF / CFM Series
Carbon Film Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions
Features:
•
•
•
•
•
•
•
•
•
•
General purpose resistor ideal for commercial/industrial applications
Flame retardant coatings standard
Flameproof version available as CFF
Panasert available on selected sizes - contact factory
Auto sequencing/insertion compatible
CFM (mini) ideal choice when size constraints apply
Cut and formed product is available on select sizes - contact factory
Standard lead wire for CF / CFM is copper plated steel,
with 100% tin over plate
100% tin plate on copper wire is available as type CFQ / CFQM
RoHS compliant, lead free and halogen free
Electrical Specifications - CF
Type / Code
CF18
CF14
CF12
CF1
CF2
(1) Lesser
Maximum
Maximum
Working
Overload
(1)
Voltage (V)
Voltage (V)
0.125
250
500
0.25
350
600
0.5
350
700
1
500
1000
2
500
1000
of √P*R or maximum working voltage.
Power Rating (W)
@ 70ºC
Dielectric
Withstanding
Voltage (V)
350
350
600
600
600
TCR (ppm/ºC) per Ohmic Range
< 10 Ω
10 Ω to 9.99K Ω
10 K Ω to 99K Ω
100 K Ω to 999K Ω
1M Ω and above
=
=
=
=
=
±400 ppm/ºC
0 ~ -400 ppm/ºC
0 ~ -500 ppm/ºC
0 ~ -850 ppm/ºC
0 ~ -1500 ppm/ºC
Ohmic Range (Ω) and Tolerance
2%
10 - 1 M
1-1M
10 - 1 M
1-1M
1-1M
5%
1 - 22 M
1 - 22 M
1 - 22 M
1 - 10 M
1 - 10 M
Electrical Specifications - CFM
Power Rating (W)
Type / Code
@ 70ºC
CFM14
CFM12
CFM1
0.25
0.5
1
Maximum
Working
Voltage (V)
250
350
600
Maximum
Overload
Voltage (V)
500
600
1000
Dielectric
Withstanding
Voltage (V)
350
350
600
TCR (ppm/ºC) per Ohmic Range
< 10 Ω
10 Ω to 9.99K Ω
10 K Ω to 99K Ω
100 K Ω to 999K Ω
1M Ω and above
=
=
=
=
=
±400 ppm/ºC
0 ~ -400 ppm/ºC
0 ~ -500 ppm/ºC
0 ~ -850 ppm/ºC
0 ~ -1500 ppm/ºC
Ohmic Range (Ω) and Tolerance
2%
1-1M
1-1M
1-1M
5%
1 - 10 M
1 - 10 M
1 - 10 M
(1) Lesser of √P*R or maximum working voltage.

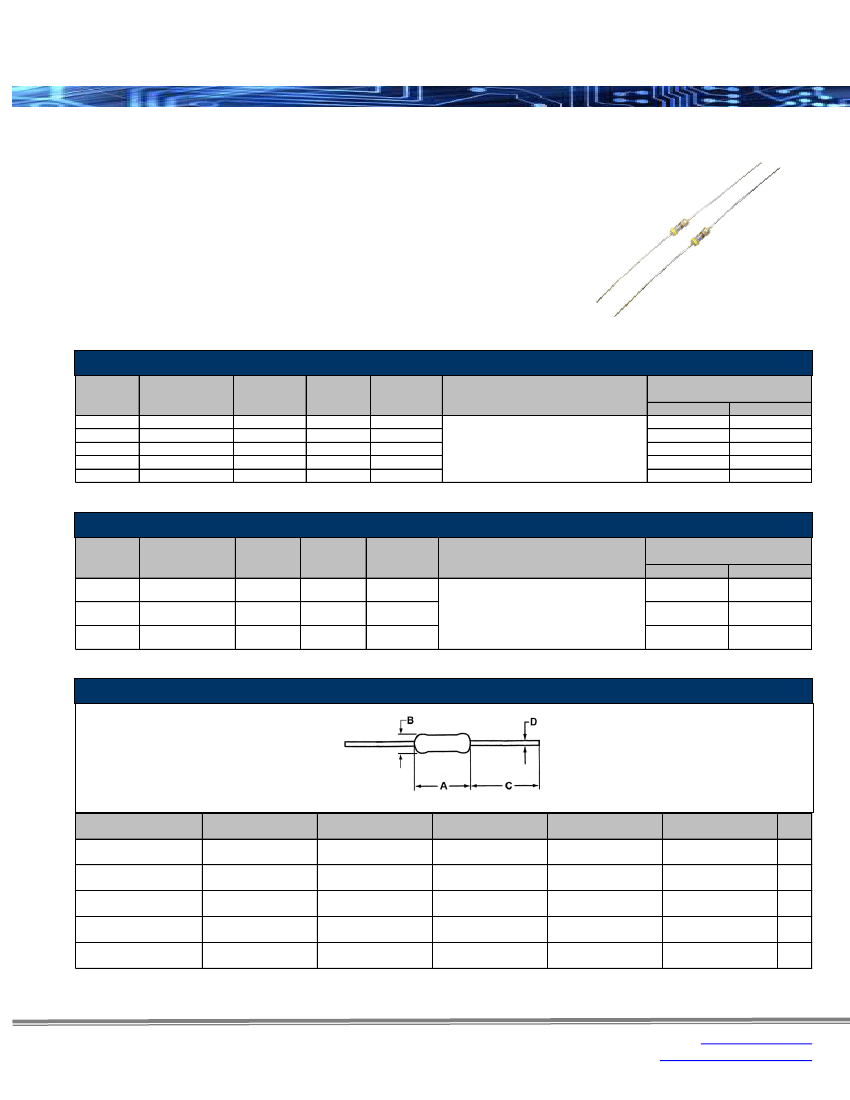

Mechanical Specifications – CF / CFQ
Type / Code
CF18 / CFQ18
CF14 / CFQ14
CF12 / CFQ12
CF1 / CFQ1
CF2 / CFQ2
A
Body Length
0.130 ± 0.012
3.30 ± 0.30
0.236 ± 0.012
6.00 ± 0.30
0.335 ± 0.039
8.50 ± 1.00
0.433 ± 0.039
11.00 ± 1.00
0.591 ± 0.039
15.00 ± 1.00
B
Body Diameter
0.067 ± 0.012
1.70 ± 0.30
0.091 ± 0.012
2.30 ± 0.30
0.106 ± 0.020
2.70 ± 0.50
0.177 ± 0.020
4.50 ± 0.50
0.197 ± 0.020
5.00 ± 0.50
C
Lead Length (Bulk)
1.102 ± 0.118
28.00 ± 3.00
1.102 ± 0.118
28.00 ± 3.00
1.102 ± 0.118
28.00 ± 3.00
1.181 ± 0.118
30.00 ± 3.00
1.339 ± 0.157
34.00 ± 4.00
D - Lead Diameter
CF / CFM
0.016 ± 0.003
0.40 ± 0.08
0.022 ± 0.003
0.55 ± 0.08
0.022 ± 0.003
0.55 ± 0.08
0.031 ± 0.004
0.80 ± 0.10
0.031 ± 0.004
0.80 ± 0.10
D - Lead Diameter
CFQ / CFQM
0.018 ± 0.003
0.45 ± 0.08
0.022 ± 0.003
0.55 ± 0.08
0.028 ± 0.004
0.70 ± 0.10
0.031 ± 0.004
0.80 ± 0.10
0.031 ± 0.004
0.80 ± 0.10
Unit
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
Rev Date: 08/05/2020
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
marketing@seielect.com
CF / CFM Series
Carbon Film Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions
Mechanical Specifications – CFM / CFQM
Type / Code
CFM14 / CFQM14
CFM12 / CFQM12
CFM1 / CFQM1
A
Body Length
0.130 ± 0.012
3.30 ± 0.30
0.236 ± 0.012
6.00 ± 0.30
0.354 ± 0.020
9.00 ± 0.50
B
Body Diameter
0.067 ± 0.012
1.70 ± 0.30
0.091 ± 0.012
2.30 ± 0.30
0.138 ± 0.020
3.50 ± 0.50
C
Lead Length (Bulk)
1.102 ± 0.118
28.00 ± 3.00
1.102 ± 0.118
28.00 ± 3.00
1.102 ± 0.118
28.00 ± 3.00
D - Lead Diameter
CF / CFM
0.016 ± 0.003
0.40 ± 0.08
0.022 ± 0.003
0.55 ± 0.08
0.028 ± 0.002
0.70 ± 0.05
D - Lead Diameter
CFQ / CFQM
0.018 ± 0.003
0.45 ± 0.08
0.022 ± 0.003
0.55 ± 0.08
0.028 ± 0.002
0.70 ± 0.05
Unit
inches
mm
inches
mm
inches
mm
Performance Characteristics
Test
Current Noise
Short Time Overload
Resistance to Solder Heat
Rapid Change of Temperature
Endurance at 70
°C
Terminal Strength
Damp Heat (Steady state)
Test Method
MIL-STD 202, Method 308
JIS C5201-1, IEC60115-1, 4.13
JIS C5201-1, IEC60115-1, 4.18
JIS C5201-1, IEC60115-1, 4.19
JIS C5201-1, IEC60115-1, 4.25.1
MIL-STD 202, Method 211
JIS C5201-1, IEC60115-1, 4.24
Typical Result
1 Ω
~
91K Ω 100K Ω
~
910K Ω
0.15μ V/V
0.32μ V/V
<
±
0.25%
< ± 0.3%
< ± 0.3%
< ± 1%
< ± 0.2%
< ± 1.5%
Test Limit
1M Ω
~
22M Ω 1 Ω
~
91K Ω 100K Ω
~
910K Ω
0.54μ V/V
0.2μ V/V
0.4μ V/V
≤ ± (0.75% + 0.05 Ω)
≤ ± (0.50% + 0.05 Ω)
≤ ± (1.00% + 0.05 Ω)
R < 100K Ω: ≤ ± (2.0% + 0.05 Ω)
≤ ± (0.50% + 0.05 Ω)
R < 100K Ω: ≤ ± (3.0% + 0.05 Ω)
1M Ω
~
22M Ω
0.6μ V/V
Operating temperature range is -55C to +155C

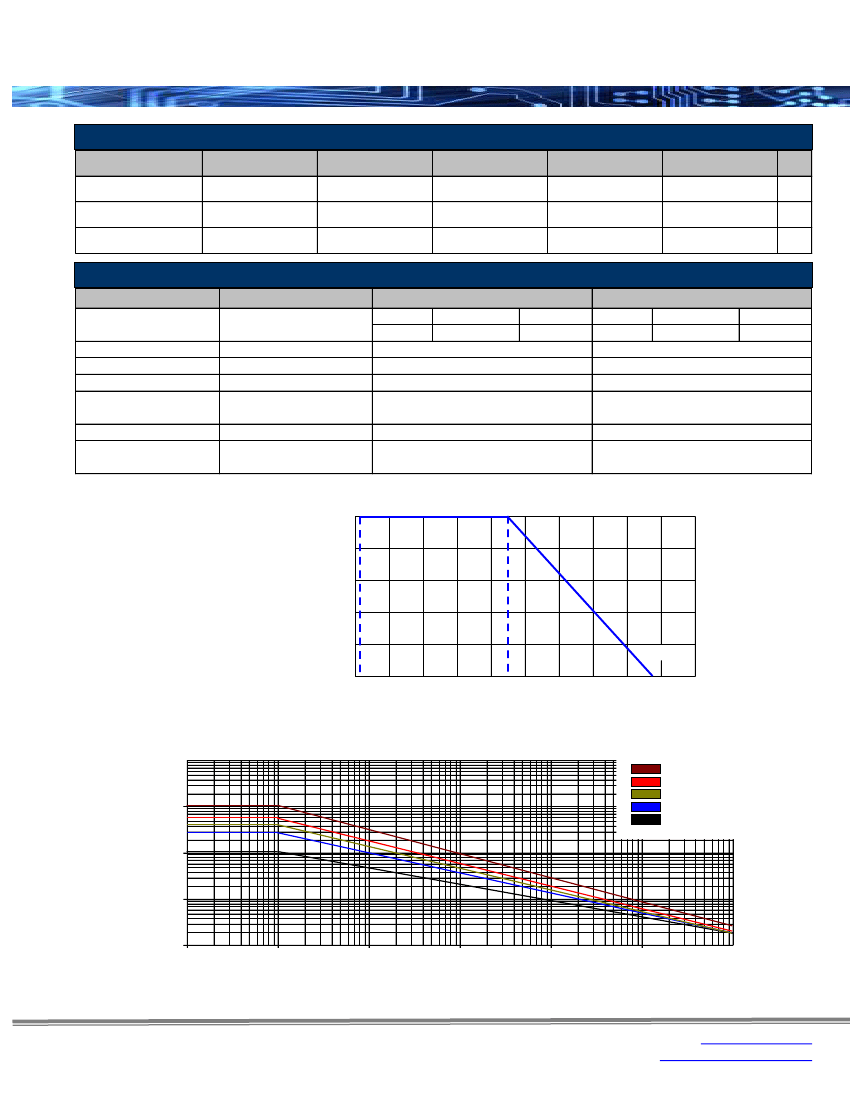

Power Derating Curve:
Power Load (%)
100
80
60
40
20
-55 ºC
70 ºC
155 ºC
0
-60
0
20
40
60
80
100
120
140
160
180
Ambient Temperature (ºC)
Single Pulse Power:
10K
CF, CFM Series One-Pulse Limitation Characteristics
CF2 1140W
CF1, CFM1 570W
CF12 430W
CFM12, CF14 285W
CFM14, CF18 115W
Pulse Applied Wattages (W)
1K
100
10
1
1μ
10μ
100μ
1m
10m
100m
1
Pulse Duration (sec)
Typical performance for reference only.
Rev Date: 08/05/2020
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
2
www.seielect.com
marketing@seielect.com
CF / CFM Series
Carbon Film Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions
Repetitive Pulse Data:
If repetitive pulses are applied to resistors, pulse wave form must be less than “Pulse limiting voltage”, “Pulse
limiting current” or “Pulse limiting wattage” calculated by the formula below.
Vp
lp
Pp
= K √P x R x T / t
= K √P / R x T / t
= K
2
x P x T / t
Where: Vp:
lp:
Pp:
P:
R:
T:
t:
K:
[Vr:
Pulse limiting voltage (V)
Pulse limiting current (A)
Pulse limiting wattage (W)
Power rating (W)
Nominal resistance (ohm)
Repetitive period (sec.)
Pulse duration (sec.)
Coefficient: 0.8
Rated Voltage (V), Ir: Rated Current (A)]
Note 1: If T > 10 → T = 10 (sec.), T / t > 1000 → T / t = 1000
Note 2: If T > 10 and T / t > 1000, “Pulse Limiting power (single pulse) is applied
Note 3: If Vp < Vr (lp < lr or Pp < P), Vr (lr, P) is Vp (lp, Pp)
Note 4: Pulse limiting voltage (Current, Wattage) is applied at less than rated ambient temperature. If
ambient temperature is more than the rated temperature (70°C), please decrease power rating according to
“Power Derating Curve”
Note 5: Please assure sufficient margin for use period and conditions for “Pulse limiting voltage”
Note 6: If the pulse waveform is not square wave, please judge after transform the waveform into square
wave according to the “Waveform Transformation to Square Wave”.

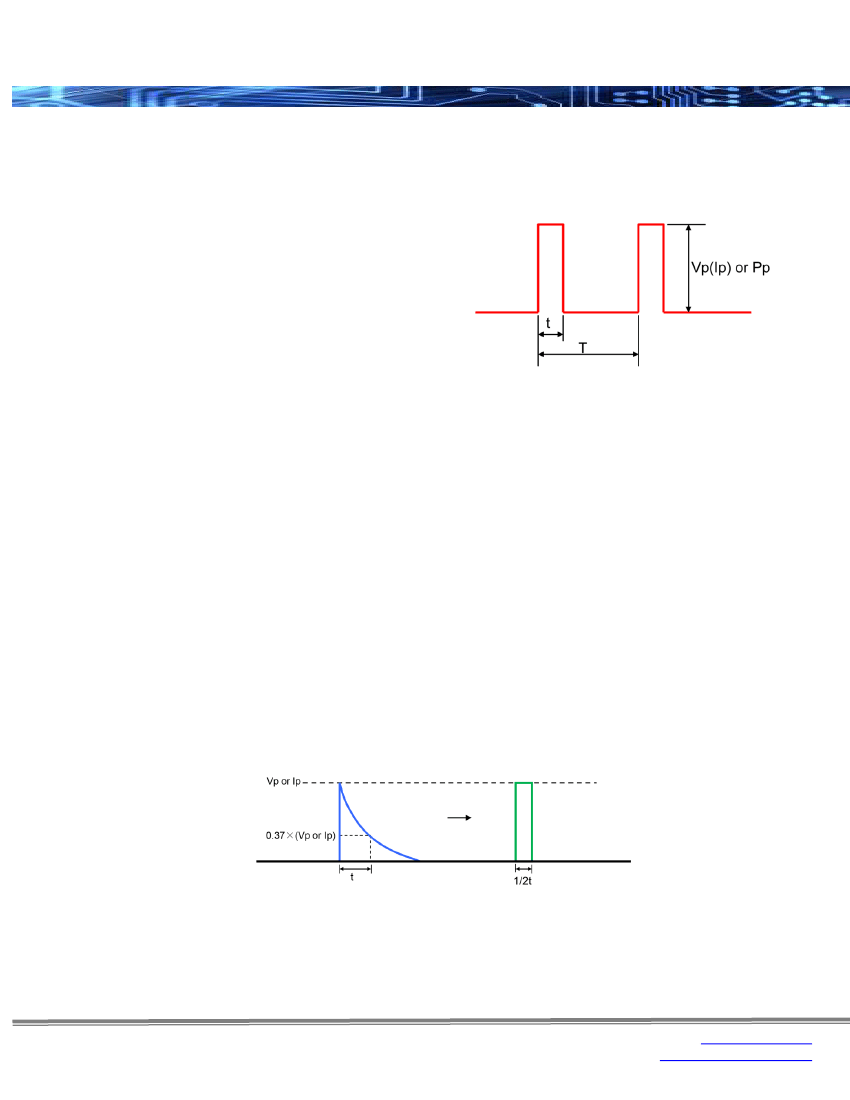

Waveform Transformation to Square Wave
1.
Discharge curve wave with time constant “t”
→
Square wave
Rev Date: 08/05/2020
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
3
www.seielect.com
marketing@seielect.com
CF / CFM Series
Carbon Film Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions

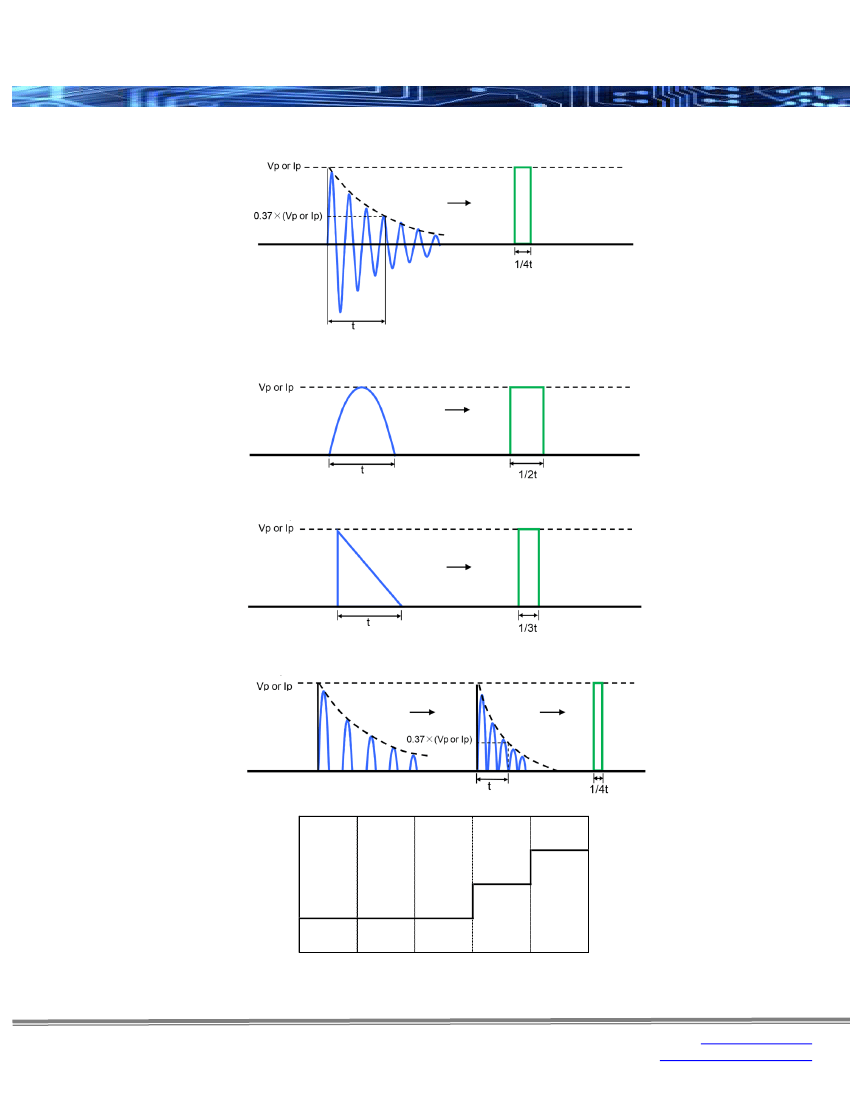

2.
Damping oscillation wave with time constant of envelope “t”
→
Square wave
3.
Half-wave rectification wave
→
Square wave
4.
Triangular wave
→
Square wave
5.
Special wave
→
Square wave
Current Noise:
Current Noice (
µV/V)
0.8
0.6
0.4
0.2
0
1K
10K
100K
1M
10M
Nominal Resistance (Ω)
Rev Date: 08/05/2020
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
4
www.seielect.com
marketing@seielect.com
CF / CFM Series
Carbon Film Resistor
Stackpole Electronics, Inc.
Resistive Product Solutions
Packaging Specifications
Type / Code
CF18 / CFQ18
CF14 / CFQ14
CF12 / CFQ12
CF1 / CFQ1
CF2 / CFQ2
CFM14 / CFQM14
CFM12 / CFQM12
CFM1 / CFQM1
Class
I
I
I
I
I
I
I
I
Tape
0.250
6.35
0.250
6.35
0.250
6.35
0.250
6.35
0.250
6.35
0.250
6.35
0.250
6.35
0.250
6.35
A Max
(1).
2.508
63.70
2.638
67.00
2.736
69.50
2.972
75.50
3.130
79.50
2.508
63.70
2.638
67.00
2.736
69.50
B Max
13.504
343.00
13.504
343.00
13.504
343.00
13.504
343.00
13.504
343.00
13.504
343.00
13.504
343.00
13.504
343.00
0.197
5.00
0.197
5.00
0.197
5.00
0.197
5.00
0.394
10.00
0.197
5.00
0.197
5.00
0.197
5.00
C
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
±
0.020
0.50
0.020
0.50
0.020
0.50
0.020
0.50
0.020
0.50
0.020
0.50
0.020
0.50
0.020
0.50
D
(2)
2.063 ± 0.079
52.40 ± 2.00
2.063 ± 0.079
52.40 ± 2.00
2.063 ± 0.079
52.40 ± 2.00
2.063 ± 0.079
52.40 ± 2.00
2.063 ± 0.079
52.40 ± 2.00
2.063 ± 0.079
52.40 ± 2.00
2.063 ± 0.079
52.40 ± 2.00
2.063 ± 0.079
52.40 ± 2.00
Unit
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
inches
mm
Dimension "E":
This is a non-critical dimension that does not have a tolerance in the standard.
Range of diameters is from 0.547 inches (13.90 mm) to 1.500 inches (38.10 mm).
(1) Reference value only. The "A" dimension shall be governed by the overall length of the taped component.
The distance between flanges shall be 0.059 inches (1.50 mm) to 0.315 (8.00 mm) greater than the overall component.
(2) The given dimension "D" expresses the standard width spacing. A 26 mm narrow spacing is available as option "N" packaging code.
Contact factory for more details.

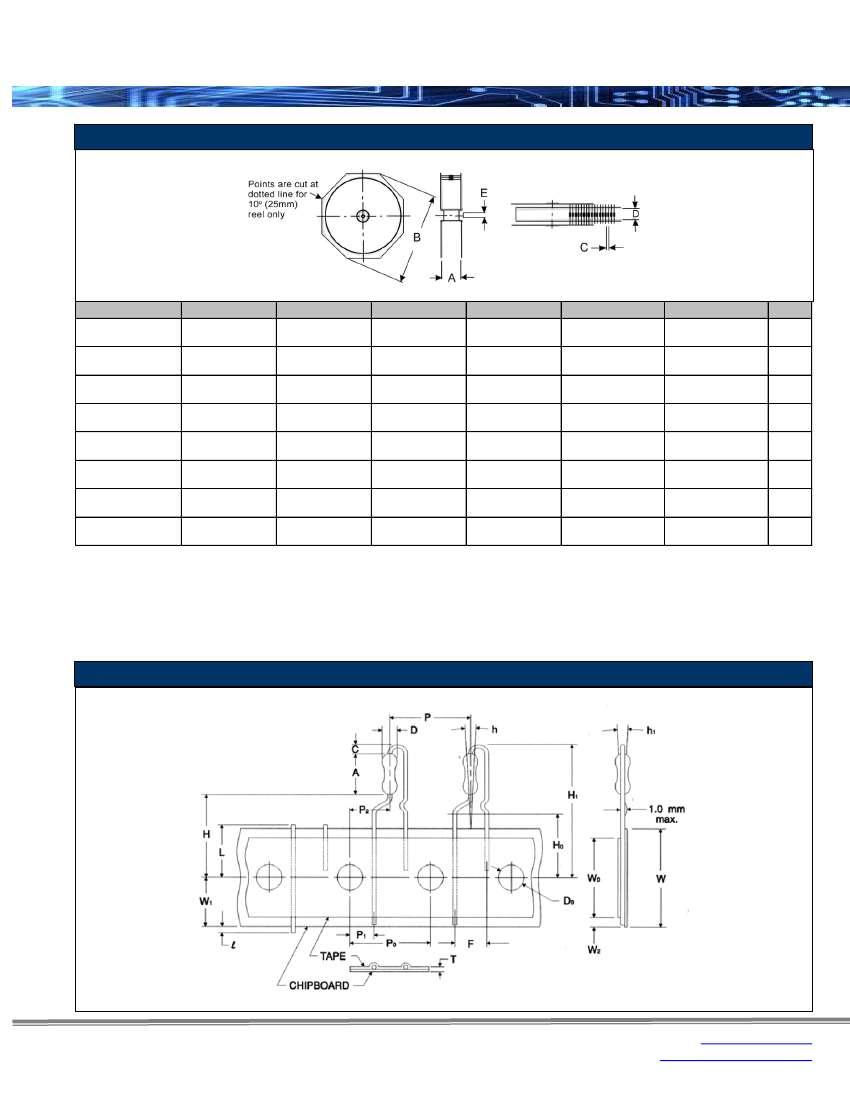

Radial Lead Taping Specifications (Pana-Sert PCF14)
Rev Date: 08/05/2020
This specification may be changed at any time without prior notice
Please confirm technical specifications before you order and/or use.
5
www.seielect.com
marketing@seielect.com
