Extract from the online
catalog
BCP-500- 2 GN
Order No.: 5441171

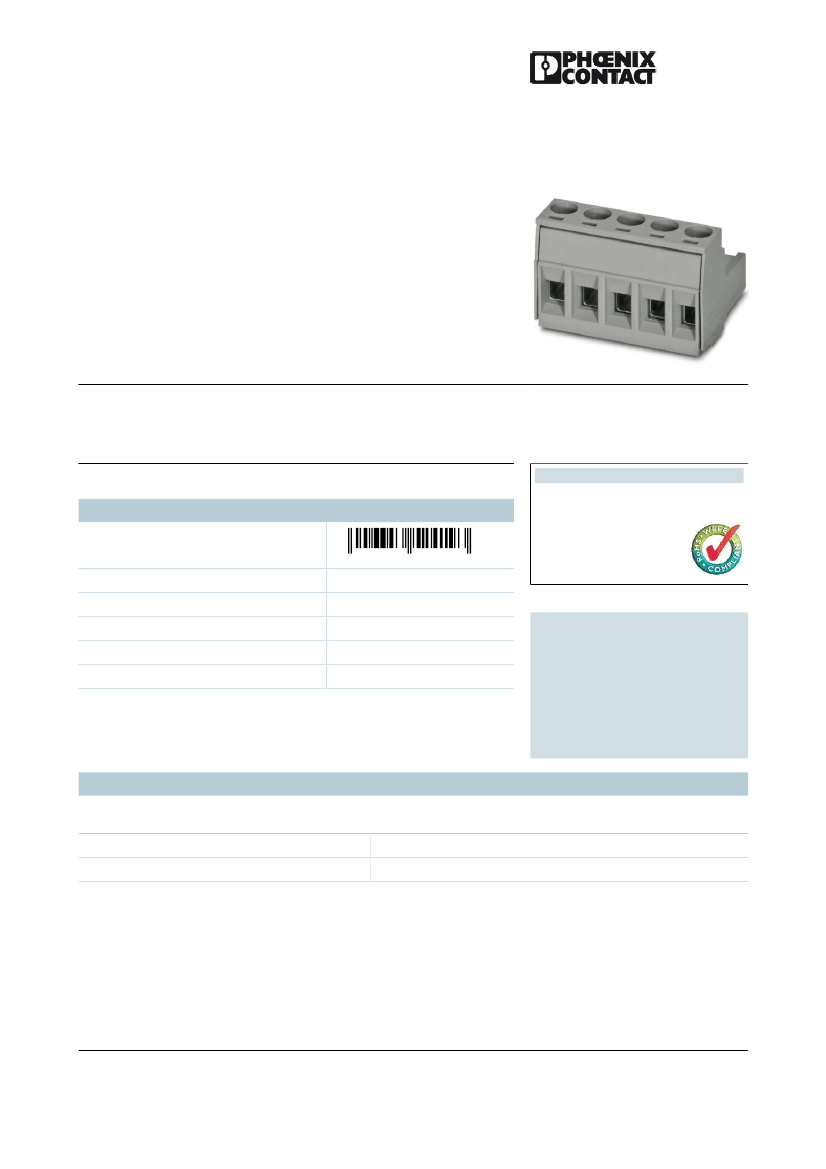

The figure shows a 5-pos. version of the product in gray
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=5441171
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320
V, Number of positions: 2, Pitch: 5 mm, Connection method: Screw
connection, Color: pastel green, Contact surface: Tin
Product notes
Commercial data
EAN
4
046356
524193
WEEE/RoHS-compliant since:
08/11/2009
sales group
Pack
Customs tariff
Gross weight in pieces
Net weight per piece
E624
100 Pcs.
85366990
0.00358 KG
0.00358 KG
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
Dimensions
Pitch
Dimension a
5 mm
5 mm
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 1 / 5
Aug 13, 2014
BCP-500- 2 GN
Order No.: 5441171
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=5441171
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Inflammability class according to UL 94
Stripping length
Number of positions
Screw thread
Tightening torque, min
Tightening torque max
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
2 conductors with same cross section, solid min.
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.25 mm²
2.5 mm²
0.25 mm²
2.5 mm²
24
12
0.2 mm²
BCP
I
4 kV
4 kV
4 kV
250 V
320 V
630 V
EN-VDE
12 A
2.5 mm²
12 A (with 2.5 mm² conductor cross section)
PA
V0
7 mm
2
M3
0.4 Nm
0.5 Nm
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 2 / 5
Aug 13, 2014
BCP-500- 2 GN
Order No.: 5441171
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=5441171
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded
min.
2 conductors with same cross section, stranded
max.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Certificates / Approvals
1 mm²
0.2 mm²
1.5 mm²
0.25 mm²
1 mm²
0.5 mm²
1.5 mm²
Certification
Certifications applied for:
Certification Ex:
cULus Recognized
Accessories
Item
General
1733169
EBP 2- 5
Insertion bridge, fully insulated, for connectors with 5.0 or 5.08
mm pitch, no. of positions: 2
Designation
Description
Marking
1051993
0804183
B-STIFT
SK 5/3,8:FORTL.ZAHLEN
Marker pen, for manual labeling of unprinted Zack strips, smear-
proof and waterproof, line thickness 0.5 mm
Marker cards, Card, white, labeled, Horizontal: Consecutive
numbers 1 - 10, 11 - 20, etc. up to 91 - (99)100, Mounting type:
Adhesive, for terminal block width: 5 mm, Lettering field: 5 x 3.8
mm
Marker cards, Card, white, unlabeled, can be labeled with: Marker
pen, Mounting type: Adhesive, for terminal block width: 5 mm,
Lettering field: 5 x 3.8 mm
0805409
SK 5/3,8:UNBEDRUCKT
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 3 / 5
Aug 13, 2014
BCP-500- 2 GN
Order No.: 5441171
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=5441171
Tools
1205053
SZS 0,6X3,5
Actuation tool, for ST terminal blocks, insulated, also suitable
for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-
component grip, with non-slip grip

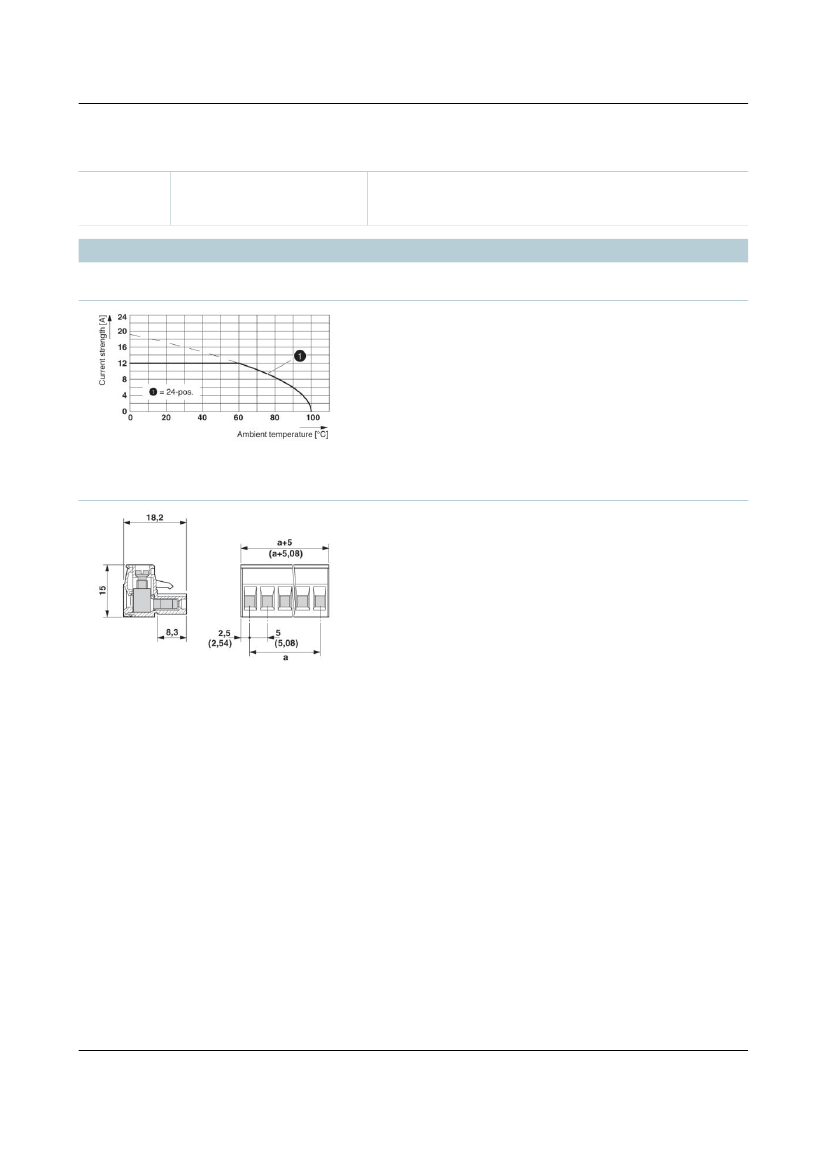

Drawings
Diagram
Dimensioned drawing
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 4 / 5
Aug 13, 2014
BCP-500- 2 GN
Order No.: 5441171
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=5441171
Address
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 12000
Fax +49 5235 3 41200
http://www.phoenixcontact.com
© 2014 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 5 / 5
Aug 13, 2014
