MC08FA750J-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> MC08FA750J-F

MC08FA750J-F: DescriptionCAPACITOR, MICA, 100 V, 0.000005 uF, SURFACE MOUNT, 0805; CategoryPassive components; File Size427KB，9 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]

Download Datasheet Parametric View All

MC08FA750J-F Overview

CAPACITOR, MICA, 100 V, 0.000005 uF, SURFACE MOUNT, 0805

MC08FA750J-F Parametric

Parameter Name	Attribute value
negative deviation	10 %
Minimum operating temperature	-55 Cel
Maximum operating temperature	125 Cel
positive deviation	10 %
Rated DC voltage urdc	100 V
Processing package description	ROHS COMPLIANT
each_compli	Yes
EU RoHS regulations	Yes
state	Active
Capacitor type	MICA CAPACITOR
capacitance	5.00E-6 µF
dielectric materials	MICA
jesd_609_code	e3
Manufacturer Series	MC
Installation features	SURFACE MOUNT
multi-layer	Yes
packaging shape	RECTANGULAR PACKAGE
Package Size	SMT
cking_method	BULK
series	MC
size code	0805
Temperature Coefficient	100+/-100ppm/Cel
terminal coating	TIN
Terminal shape	WRAPAROUND
heigh	1.4 mm
length	2 mm
width	1.25 mm

Preview

Download Datasheet

View All

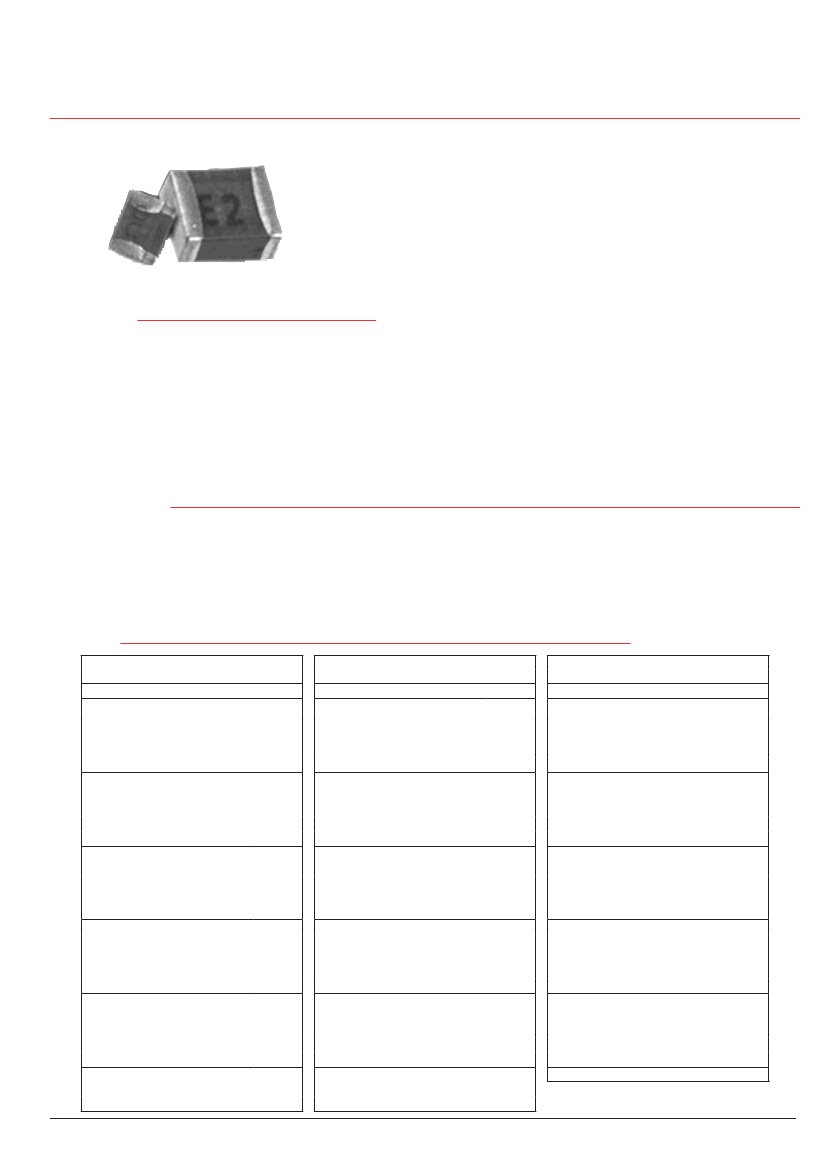

Types MC and MCN

Multilayer RF Capacitors

High-Frequency, High-Power, High-Voltage Chips with Nonmagnetic Option

Rugged ﬂexibility and compatibility with FR4 boards make Type

MC and MCN capacitors ideal for use where other multilayer

caps aren’t recommended because of cracking. The natural mica

dielectric retains its high-Q to many megahertz, so higher frequency

applications are limited by the circuit inductance, not the Type MC

capacitor. Nonmagnetic Type MCN chips are available for MRI

and other high frequency applications that often use more expensive

porcelain ceramic chips.

Highlights

•

Extremely high Q at UHF/VHF frequencies

Free from thermal cracking, FR4 compatible

Wave solderable

Nonmagnetic option

Exceed 2 mm bend test

Better than porcelain

High RF current — dV/dt 20,000 V/µs

Rock stable: No change with time, V & f

Voltages:

Capacitance Range:

Capacitance Tolerance:

Temperature Range:

Case Sizes:

Applications

•

MRI Coils and Generators

RF Instruments

Power Ampliﬁers

Tuned LCR Circuits

CATV

Ground and Flight Mobile Radio

Lasers

Software - Deﬁned Frequency-Hopping Radio

Speciﬁcations

100 Vdc, 500 Vdc, and 1000 Vdc

0.5 pF to 2,200 pF

±0.25% to ±5%

–55 ºC to +125 ºC

0805, 1210, 1812, and 2220

Ratings

Cap

(pF)

RoHS Compliant

Catalog

Part Number

100 Vdc

MC08CA0R5D-F

MC08CA010D-F

MC08CA020D-F

MC08CA030D-F

MC08CA040D-F

MC08CA050D-F

MC08CA060D-F

MC08CA070D-F

MC08CA080D-F

MC08CA090D-F

MC08CA100D-F

MC08EA120J-F

MC08EA150J-F

MC08EA180J-F

MC08EA200J-F

MC08EA220J-F

MC08EA240J-F

MC08EA270J-F

MC08EA300J-F

MC08FA330J-F

MC08FA360J-F

MC08FA390J-F

MC08FA430J-F

MC08FA470J-F

MC08FA500J-F

MC08FA510J-F

MC08FA560J-F

MC08FA620J-F

Case

Type

Cap

(pF)

Catalog

Part Number

100 Vdc

MC08FA680J-F

MC08FA750J-F

MC08FA820J-F

MC08FA910J-F

MC08FA101J-F

MC12FA470J-F

MC12FA500J-F

MC12FA510J-F

MC12FA560J-F

MC12FA620J-F

MC12FA680J-F

MC12FA750J-F

MC12FA820J-F

MC12FA910J-F

MC12FA101J-F

MC12FA111J-F

MC12FA121J-F

MC12FA131J-F

MC12FA151J-F

MC12FA161J-F

MC12FA181J-F

MC12FA201J-F

MC12FA221J-F

MC12FA241J-F

MC12FA251J-F

MC12FA271J-F

MC12FA301J-F

MC12FA331J-F

Case

Type

Cap

(pF)

Catalog

Part Number

100 Vdc

MC12FA361J-F

MC12FA391J-F

MC12FA431J-F

MC18FA251J-F

MC18FA271J-F

MC18FA301J-F

MC18FA331J-F

MC18FA361J-F

MC18FA391J-F

MC18FA431J-F

MC18FA471J-F

MC18FA501J-F

MC18FA511J-F

MC18FA561J-F

MC18FA621J-F

MC18FA681J-F

MC18FA751J-F

MC18FA821J-F

MC22FA911J-F

MC22FA102J-F

MC22FA112J-F

MC22FA122J-F

MC22FA152J-F

MC22FA182J-F

MC22FA202J-F

MC22FA222J-F

Case

Type

0.5

1.0

2.0

3.0

4.0

5.0

6.0

7.0

8.0

9.0

10.0

12.0

15.0

18.0

20.0

22.0

24.0

27.0

30.0

33.0

36.0

39.0

43.0

47.0

50.0

51.0

56.0

62.0

0805

100

110

120

130

150

160

180

200

220

240

250

270

300

330

0805

1210

360

390

430

250

270

300

330

360

390

430

470

500

510

560

620

680

750

820

910

1000

1100

1200

1500

1800

2000

2200

1210

1812

2220

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
