NMC-Q0603NPO0R5B50TRPF datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> NMC-Q0603NPO0R5B50TRPF

NMC-Q0603NPO0R5B50TRPF: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, NP0, -/+30ppm/Cel TC, 0.0000005uF, 0603; CategoryPassive components capacitor; File Size102KB，6 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

NMC-Q0603NPO0R5B50TRPF Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 20% +Tol, 20% -Tol, NP0, -/+30ppm/Cel TC, 0.0000005uF, 0603

NMC-Q0603NPO0R5B50TRPF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
capacitance	5e-7 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
JESD-609 code	e3
Manufacturer's serial number	NMC-Q
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, PUNCHED, 7/13 INCH
positive tolerance	20%
Rated (DC) voltage (URdc)	50 V
size code	0603
surface mount	YES
Temperature characteristic code	C0G
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	MATTE TIN OVER NICKEL
Terminal shape	WRAPAROUND
Base Number Matches	1

Preview

Download Datasheet

View All

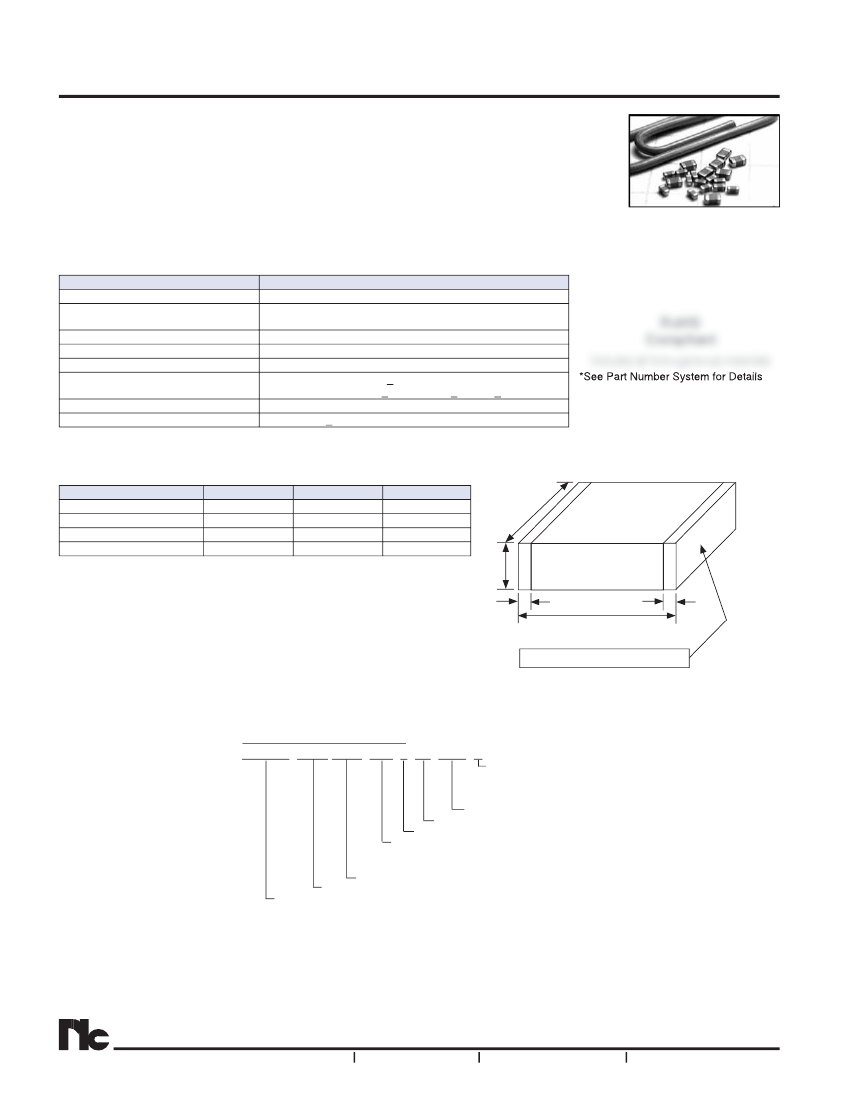

Multilayer Ceramic Chip Capacitors

FEATURES

• HIGH Q FOR RF APPLICATIONS

• STABLE NPO CHARACTERISTICS OVER TEMPERATURE AND VOLTAGE

• HIGH VOLTAGE (UP TO 250VDC)

• EIA 0201, 0402 AND 0603 CASE SIZES

• IDEAL FOR WIRELESS DATA AND VOICE COMMUNICATIONS APPLICATIONS

WLANs, HIPERLAN, 802.11A, 802.11B, Wi-Fi, BLUETOOTH,TELEMATICS, PCS,

LMDS AND CELLULAR

SPECIFICATIONS

Capacitance Range

Capacitance Tolerance

Operating Temperature Range

Temperature Characteristics

Rated Voltage

Q Factor

insulation Resistance

Dielectric Withstanding Voltage

NPO

0.1pF ~ 47pF

±0.05pF(A), ±0.1pF(B), ±0.25pF(C), ±0.5pF(D)

±1%(F), ±2%(G), ±5% (J)

-55°C ~ +125°C

0 ± 30PPM/°C

25Vdc, 50Vdc, 100Vdc & 250Vdc

0201 & 0402 Q>400+20C (1MHz, +25°C)

0603 C<30pF Q>800+20C, C >30pF Q>1000

10,000 Megohms min. @ +25°C

100V < X 2.5RV, 250V x 2RV for 5 ± 1 seconds

NMC-Q Series

RoHS

Compliant

Includes all homogeneous materials

DIMENSIONS (mm)

EIA Case Size

Length (L)

Width (W)

Thickness (T)

Termination Width (P)

0201

0.6 ± 0.03

0.3 ± 0.03

0.33 max.

0.10 ~ 0.20

0402

1.0 ±0.05

0.5 ± 0.05

0.55 max.

0.15 ~ 0.30

0603

1.6 ±0.10

0.8 ± 0.10

0.87 max.

0.25 ~ 0.55

100% Sn over Ni barrier

PART NUMBER SYSTEM

NMC-Q 0603 NPO 100 J 50 TRP F

RoHS Compliant

Tape & Reel (Punched carrier)

Voltage (Vdc)

Capacitance Tolerance Code (see chart)

Capacitance Code, expressed in pF, ﬁrst 2 digits are

signiﬁcant, 3rd digit is no. of zeros, “R” indicates

decimal for under 10pF

Temperature Characteristic

Size Code (see chart)

Series

NIC COMPONENTS CORP.

www.niccomp.com

www.lowESR.com

www.RFpassives.com

www.SMTmagnetics.com
