Interconnect Solutions
APPLICATION NOTE
www.ittcannon.com
FRCIR Connector with M12 Contacts
Product Features
connections
for
data
•
December 2008
The Challenge
To
provide
system
M12 type contacts, copper alloy material
and plastic inserts
Connector type FRCIR size 32
Cables tested and qualified at frequency of
1MHz, 10MHz, 100MHz
o
o
With Ethernet lines 100
Ω
With MVB lines 120
Ω
transmission in railway applications which group
multiple cables of Ethernet / MVB lines into the
same connector.
•
•
•
•
According to VG95234 where applicable
Aluminum allow shells with black epoxy
urethanic varnish (RoHS compliant)
Inserts are Plastic material, UL94-VO and
meets NF F 16-101/16-102 standards
Meets IP67 in a mated condition with the
appropriate accessories
Operating Temperature of -40° C to 125° C
•

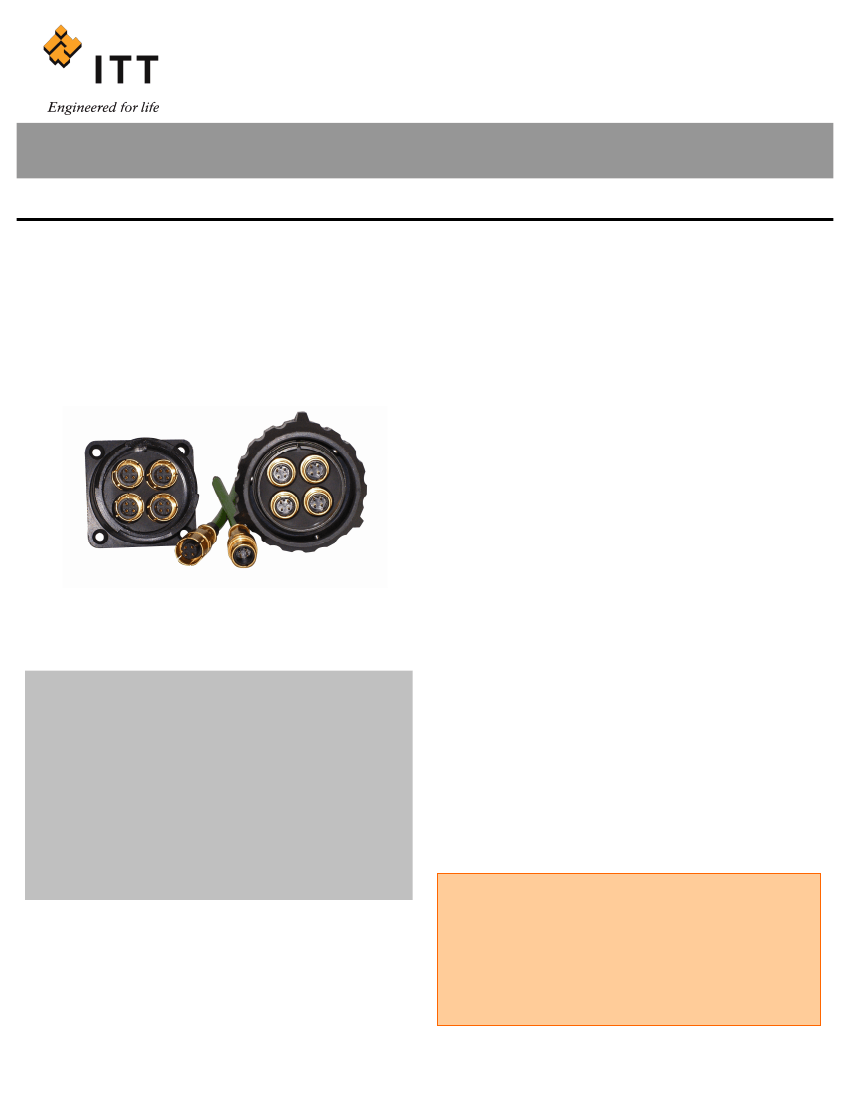

New VEAM M12 contacts within insert of FRCIR
connector, for inter-vehicle application.
•
•
The ITT Solution …
ITT ICS answered the challenge with new M12
contacts mounted into a CIR connector series
hardware. The four conductor wires and braid of
shielded cables are integrated into the M12 contact.
The special plastic insert and connector accessories
can regroup multiple M12 contacts and cables in the
same connector.
Benefit to the Customer
•
•
•
Cost effective solution for multiple shielding
Extra sealing
Suitable for harsh very demanding
applications
Applications
•
•
•
Railway system
Transportation interconnects
Data bus network system
For application assistance, please contact:
AMERICAS
Mike Gardiner, +1.860.945.8275, mike.gardiner@itt.com
ASIA
Edward Wong +852.2589.5839, edward.wong@itt.com
EUROPE
Flavio Frascoli, +39 02 93872217 flavio.frascoli@it.itt.com
